Klighten 12W IP65 LED Wall Lamp User Manual

1. Introduction

Thank you for choosing the Klighten 12W IP65 LED Wall Lamp. This modern and versatile lighting fixture is designed for both indoor and outdoor use, featuring an adjustable light beam to create various lighting effects. To ensure safe and optimal performance, please read this manual thoroughly before installation and operation. Keep this manual for future reference.

2. Safety Instructions

• Always disconnect the main power supply before attempting any installation, maintenance, or repair.
• Installation should be performed by a qualified electrician to prevent electric shock or fire hazards.
• Ensure the mounting surface is structurally sound and can support the weight of the fixture.
• This product is rated IP65 for water resistance, making it suitable for outdoor use. Ensure all connections are properly sealed during installation to maintain this rating.
• Do not attempt to disassemble or modify the fixture. There are no user-serviceable parts inside.
• Keep the product out of reach of children.
• Use appropriate tools and personal protective equipment during installation.

3. Package Contents

Verify that all components are present before beginning installation:

• Klighten 12W IP65 LED Wall Lamp (2 units)
• Mounting Accessories (screws, wall plugs)
• User Manual

4. Specifications

For detailed energy information, please refer to the EPREL database:

• EPREL Link 1
• EPREL Link 2

5. Setup (Installation)

Before you begin: Ensure the power supply to the installation area is turned off at the circuit breaker. Gather necessary tools (drill, screwdriver, wire strippers, etc.).

1. Prepare the Mounting Surface: Choose a suitable location on the wall. Use the mounting bracket (if separate) or the fixture itself as a template to mark the drilling points.
2. Drill Holes: Drill holes at the marked positions. Insert the provided wall plugs into the drilled holes.
3. Secure Mounting Bracket: Attach the mounting bracket to the wall using the screws. If the fixture mounts directly, proceed to wiring.
4. Wiring: Connect the household electrical wires to the fixture's wires. Typically, this involves connecting the live (L), neutral (N), and ground (E) wires. Ensure connections are secure and insulated. For outdoor installations, use appropriate waterproof connectors and seal the entry points to maintain the IP65 rating.
5. Attach the Fixture: Carefully align the fixture with the mounting bracket or wall holes and secure it with the provided screws. Ensure it is firmly attached and stable.
6. Restore Power: Once installation is complete and all connections are secure, restore power at the circuit breaker.

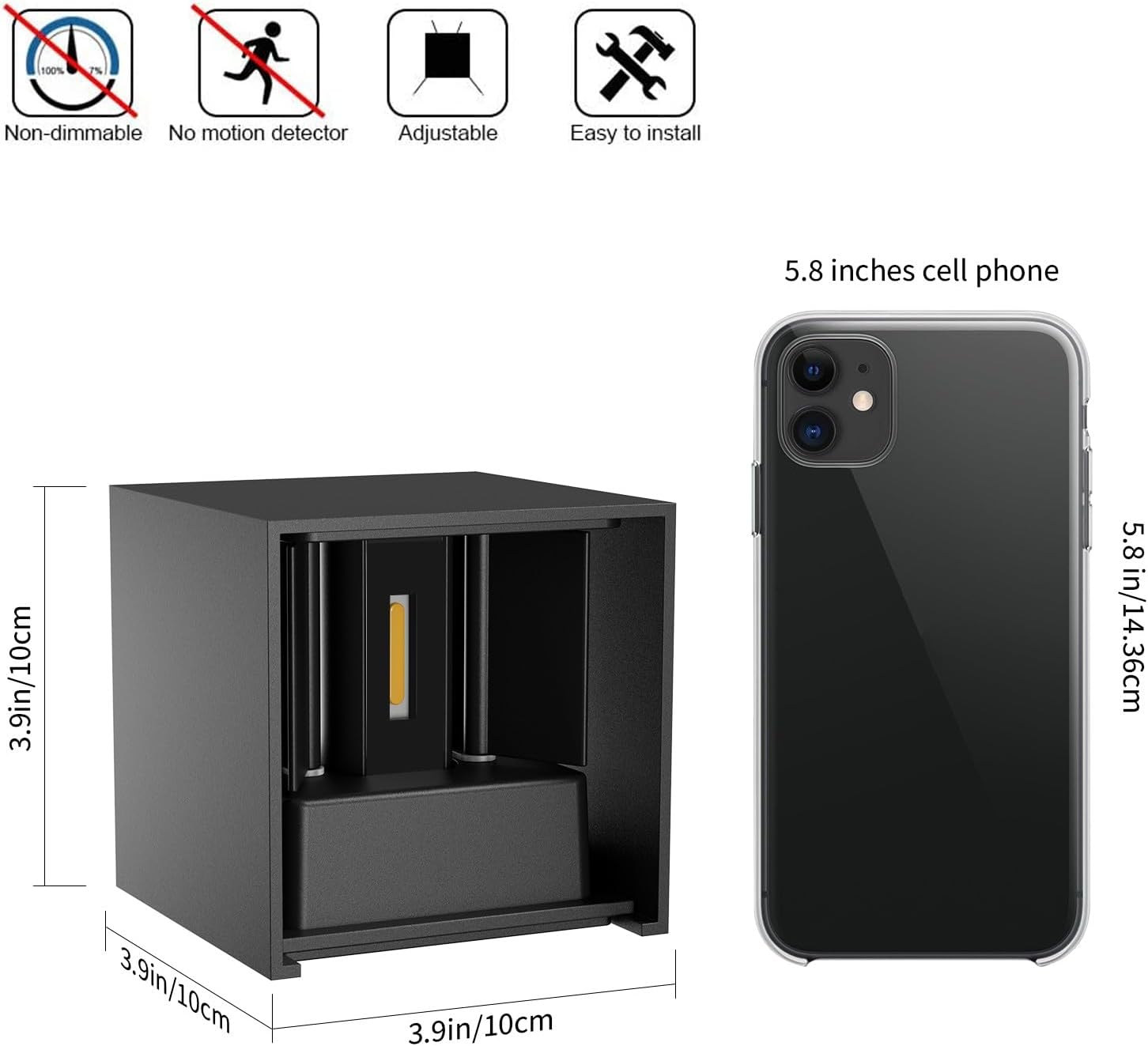

Image: The Klighten LED wall lamp showing its 10x10x10 cm dimensions and icons indicating it is non-dimmable, has no motion detector, features adjustable light, and is easy to install.

Image: The Klighten LED wall lamp installed on an outdoor wall during rain, highlighting its IP65 waterproof capability and suitability for outdoor environments. Text on the image mentions high waterproof level IP65 LED driver, high quality waterproof sealant, and aluminum matte shell for anti-rust and anti-moisture properties.

6. Operating Instructions

The Klighten LED Wall Lamp is designed for simple operation via a standard wall switch.

• Turning On/Off: Use the connected wall switch to turn the light fixture on or off.
• Adjusting the Light Beam: The fixture features four movable aluminum plates inside. These plates allow you to manually adjust the angle and spread of the light beam, creating various up/down lighting patterns. Carefully adjust these plates to achieve your desired lighting effect.

Image: A diagram illustrating the internal adjustable aluminum plates within the Klighten LED wall lamp, showing how they can be moved to modify the upward and downward light beam patterns.

Image: The Klighten LED wall lamp installed indoors above a wooden console table with decorative items, demonstrating its use in a living space with light cast both upwards and downwards.

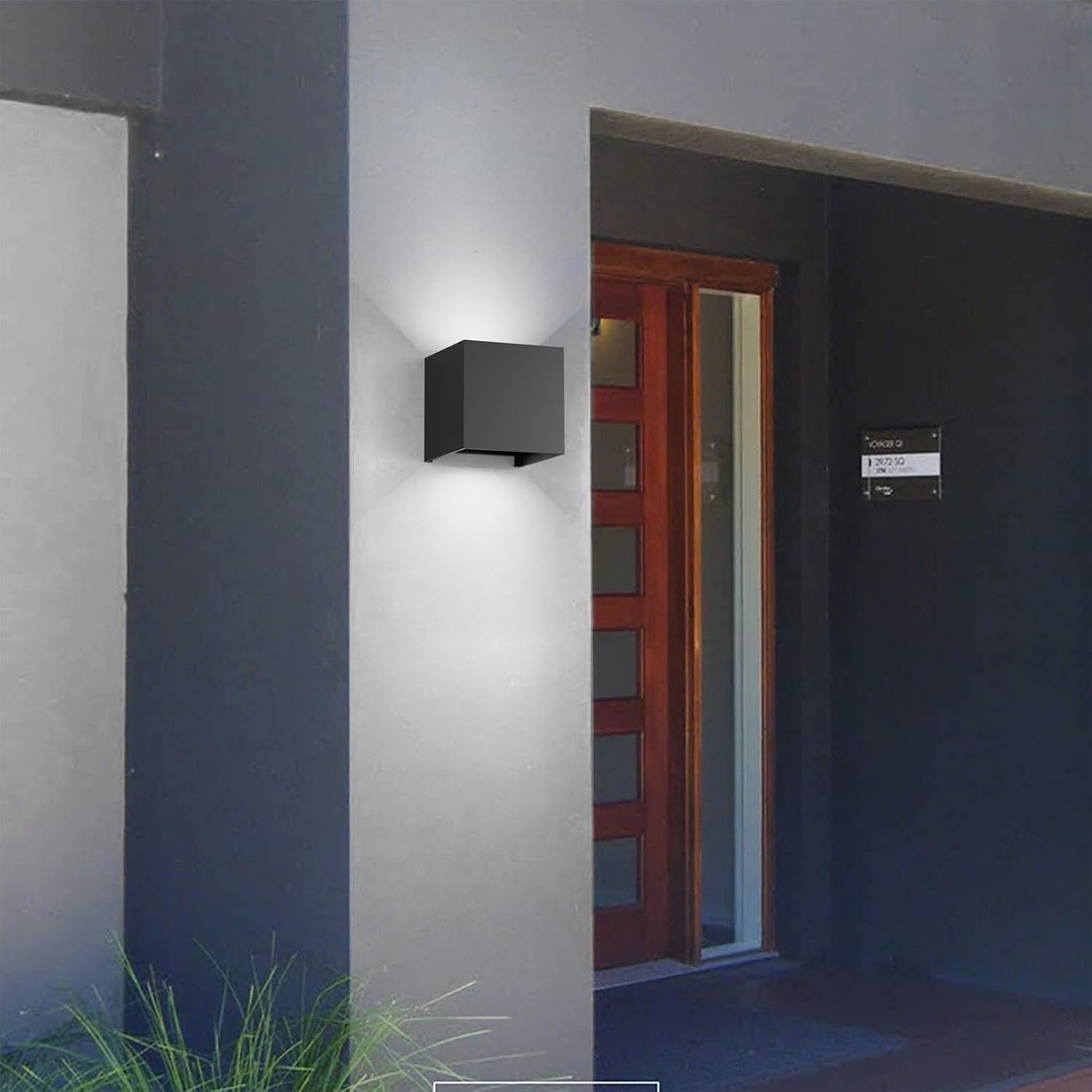

Image: The Klighten LED wall lamp installed on an outdoor wall next to a front door, providing up/down illumination for an entrance area.

7. Maintenance

Regular maintenance helps ensure the longevity and optimal performance of your Klighten LED Wall Lamp.

• Cleaning: To clean the fixture, ensure the power is off. Use a soft, damp cloth with a mild, non-abrasive detergent. Avoid harsh chemicals or abrasive materials that could damage the finish.
• Inspection: Periodically inspect the fixture for any signs of damage, loose connections, or wear. If any damage is found, disconnect power immediately and consult a qualified electrician.
• No User-Serviceable Parts: The LED light source is integrated and not replaceable by the user. Do not attempt to open the fixture.

8. Troubleshooting

If you encounter issues with your Klighten LED Wall Lamp, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

9. Warranty and Support

Klighten products are manufactured to high-quality standards. For information regarding warranty coverage and terms, please refer to the documentation provided at the time of purchase or contact your retailer.

For technical support, product inquiries, or assistance with installation, please contact Klighten customer service through your purchase platform or the official Klighten website.
