Colorfullife Vacuum Filter Replacement Kit User Manual

For Shark DuoClean NV770, NV771, UV700 Series and Compatible Models

1. Introduction

This manual provides instructions for the installation and maintenance of your Colorfullife Vacuum Filter Replacement Kit. This kit is designed to maintain the optimal performance of your compatible Shark DuoClean vacuum cleaner by ensuring efficient filtration of dust, dander, and other airborne particles.

2. Product Components

The Colorfullife Vacuum Filter Replacement Kit includes the following components:

  • 2 HEPA Filters: H12 efficiency filters designed to capture 99.97% of particles as small as 0.3 microns.
  • 4 Foam Filters: With 60 PPI (Pores Per Inch) density for initial particle capture.
  • 4 Felt Filters: Ultra-thick with a textured surface, working in conjunction with the foam filters.

Note: The kit contains a total of 10 filter pieces (2 HEPA, 4 foam, 4 felt). Some packaging may incorrectly state '6 pieces'.

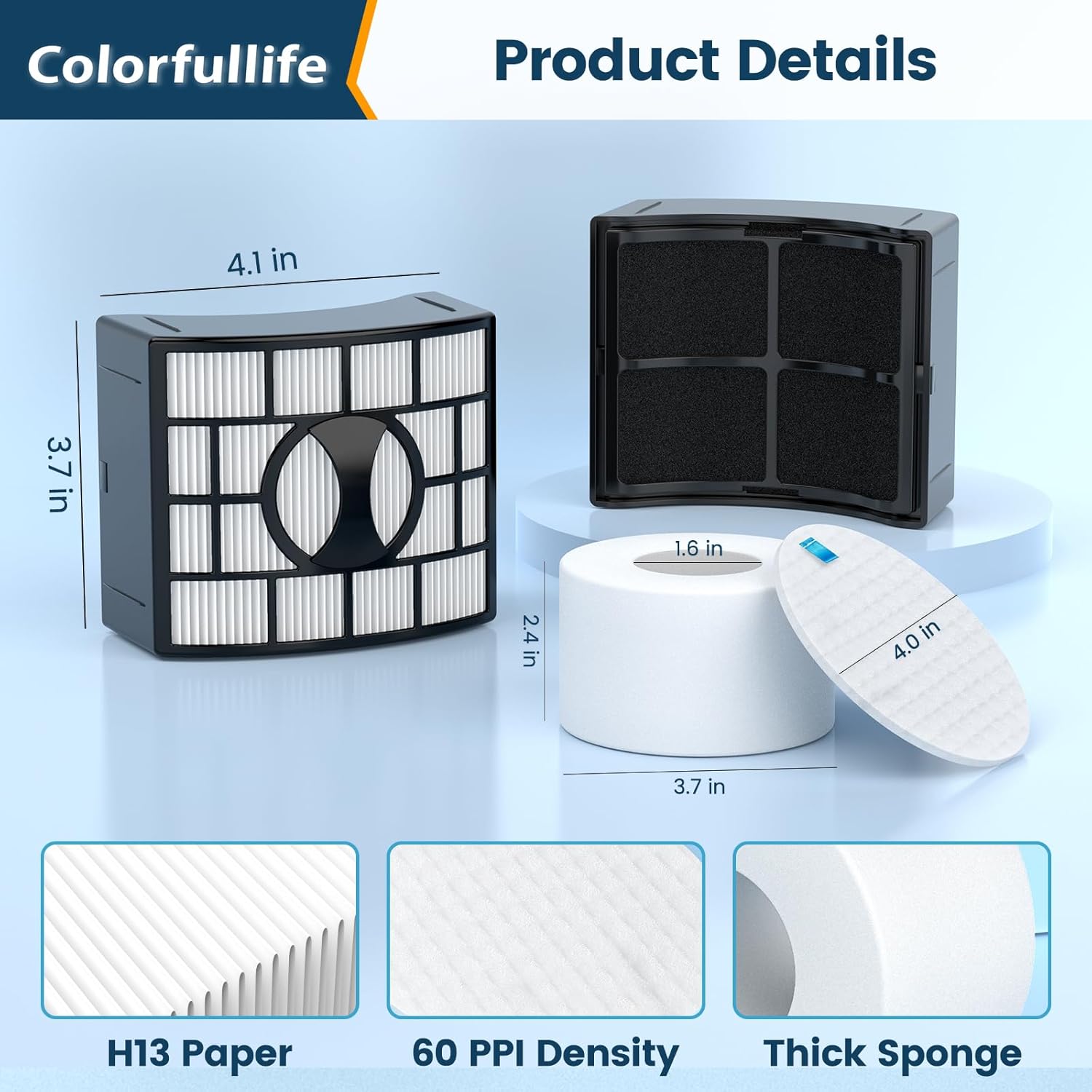

Image showing the individual components of the Colorfullife filter kit, including a HEPA filter, a foam filter, and a felt filter, with dimensions.
Figure 2.1: Detailed view of the Colorfullife filter components, highlighting their dimensions and materials (H13 Paper, 60 PPI Density, Thick Sponge).
Image showing the complete Colorfullife filter kit with two HEPA filters, four foam filters, and four felt filters, arranged on a table in a living room setting.
Figure 2.2: The full Colorfullife filter replacement kit, including 2 HEPA filters, 4 foam filters, and 4 felt filters.

3. Compatibility

This filter replacement kit is compatible with the following Shark DuoClean Rotator Lift-Away Speed Zero-M Upright Vacuum models:

  • Shark DuoClean Lift-Away Speed Upright Vacuum: NV600, NV601, NV602, NV611, NV770, NV771, NV771QBK, NV771QBL, NV771QHX, NV771QPR, NV771QRD, NV772.
  • Shark DuoClean with Zero-M Self-Cleaning Brushroll Lift-Away Upright Vacuum: UV700, ZU700C.
  • Shark Lift-Away Upright Vacuum with DuoClean and Self-Cleaning Brushroll: ZU701.

This kit replaces Shark Part Numbers XFF600 and XHF600.

Image displaying a Shark vacuum cleaner and a list of compatible Shark models for the filter kit, along with instructions on how to locate the vacuum's model name.
Figure 3.1: Compatibility chart for Colorfullife filters, showing various Shark vacuum models. To find your model name, check the label on the back of your vacuum near the dust cup.

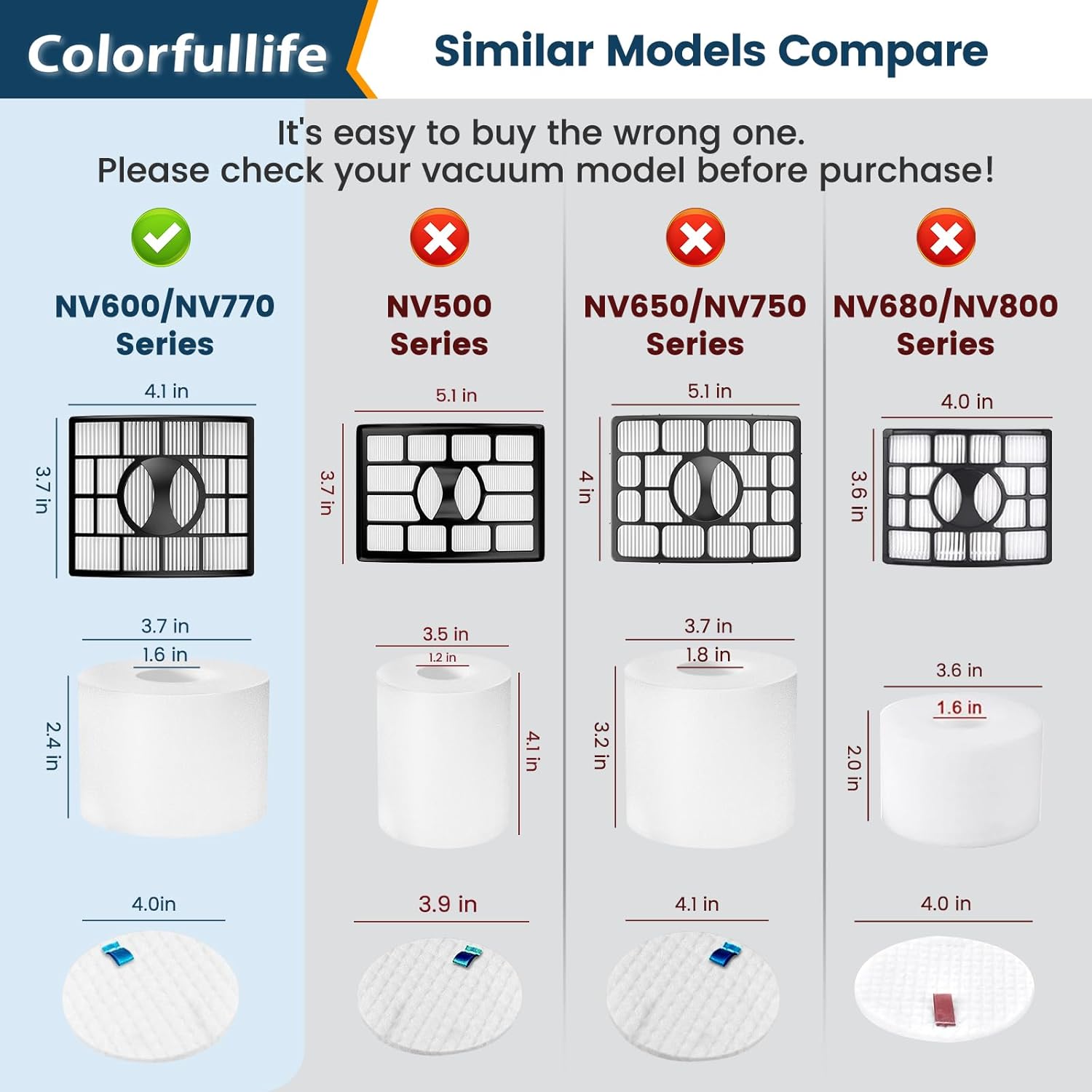

Image comparing the dimensions of different Shark filter series (NV600/NV770, NV500, NV650/NV750, NV680/NV800) to ensure correct filter selection.
Figure 3.2: Comparison of filter dimensions across different Shark vacuum series to assist in selecting the correct replacement kit.

4. Setup and Installation

Follow these steps to replace the filters in your Shark DuoClean vacuum:

  1. Power Off and Unplug: Ensure your vacuum cleaner is turned off and unplugged from the power outlet before beginning any maintenance.
  2. Access Pre-Motor Filters: Locate the dust cup on your vacuum. Remove the dust cup according to your vacuum's specific instructions. The foam and felt filters are typically located beneath or inside the dust cup assembly.
  3. Remove Old Filters: Carefully remove the old foam and felt filters. Note their orientation for correct reinstallation.
  4. Insert New Foam and Felt Filters: Place the new foam filter into its designated slot, followed by the felt filter on top. Ensure they are seated correctly.
  5. Access Post-Motor HEPA Filter: The HEPA filter is usually located at the bottom or rear of the vacuum unit. Refer to your vacuum's manual for the exact location and release mechanism.
  6. Remove Old HEPA Filter: Open the HEPA filter compartment and remove the old HEPA filter.
  7. Insert New HEPA Filter: Place the new HEPA filter into the compartment, ensuring it fits snugly. Close the compartment securely.
  8. Reassemble Vacuum: Reattach the dust cup to the vacuum cleaner. Ensure all parts are securely fastened before use.

5. Maintenance

Regular cleaning and replacement of filters are crucial for maintaining your vacuum's suction power and filtration efficiency. The Colorfullife filters are designed for reusability and easy cleaning.

Cleaning Instructions for Foam and Felt Filters:

  1. Tap off loose dirt over a trash bin.
  2. Rinse the filters under running water until the water runs clear.
  3. Squeeze out excess water and allow them to air dry completely for at least 24 hours before reinstallation. Do not use a dryer or heat to dry.

Replacement Schedule:

  • Foam and Felt Filters: It is recommended to clean these filters every 3-6 months, depending on usage and household conditions (e.g., pet dander, high dust levels). Replace them every 1-2 years or when visible wear or damage occurs.
  • HEPA Filter: The HEPA filter should be replaced every 6-12 months to ensure optimal air filtration. This filter is not washable and should be replaced when dirty.
Image illustrating the washable and reusable nature of the foam and felt filters, showing them being rinsed under water and the recommendation to replace every 3-6 months.
Figure 5.1: Visual guide for cleaning foam and felt filters, emphasizing their washable and reusable design. Recommended replacement every 3-6 months for peak performance.
Diagram showing the multi-layer filtration process of the filters, capturing particles like pet dander, lint, paper crumbs, wood chips, nail scraps, and food crumbs.
Figure 5.2: Illustration of the efficient filtration system, demonstrating how foam, felt, and HEPA filters work together to capture various particles, ensuring cleaner air.

6. Troubleshooting

If you experience reduced suction or notice an unusual odor from your vacuum, consider the following:

  • Check Filters: Ensure all filters (foam, felt, and HEPA) are clean and properly installed. Clogged filters are a common cause of reduced suction.
  • Filter Dryness: Make sure washable filters are completely dry before reinstallation. Installing wet filters can damage the vacuum and promote mold growth.
  • Filter Condition: Inspect filters for any tears, holes, or significant wear. Damaged filters should be replaced immediately.
  • Other Issues: If filter maintenance does not resolve the issue, consult your Shark vacuum's user manual for further troubleshooting steps related to blockages, brush roll issues, or motor problems.

7. Specifications

  • Brand: Colorfullife
  • Material: Foam, Felt, H12 HEPA filter media (FSC-Certified paper for some components)
  • Reusability: Foam and Felt filters are reusable (washable); HEPA filters are replaceable.
  • Number of Pieces in Kit: 10 (2 HEPA, 4 Foam, 4 Felt)
  • Compatible Vacuum Models: Shark DuoClean Rotator Lift-Away Speed Zero-M Upright Vacuum UV700, NV770, NV771, NV600, NV601, NV611, ZU701, ZU700C.
  • Replaces Part Numbers: XFF600, XHF600

8. Warranty and Support

For specific warranty information regarding your Colorfullife filter replacement kit, please refer to the product packaging or contact Colorfullife customer support directly. General return policies may apply as per the retailer's terms.

For additional support or inquiries, please visit the Colorfullife Store on Amazon.
