12V Lead Acid Battery Connector Cable User Manual

Introduction

This manual provides essential information for the safe and effective use of your KASSupply 12V Lead Acid Battery Connector Cable. This high-quality cable is designed for secure and reliable connections in various 12V battery-powered systems, including automotive, solar, and UPS applications. Please read this manual thoroughly before installation and use.

Safety Information

Always prioritize safety when working with electrical components and batteries. Failure to follow these guidelines may result in injury or damage to equipment.

• Polarity: Always connect the red (positive) terminal of the cable to the positive (+) terminal of the battery and the black (negative) terminal to the negative (-) terminal. Incorrect polarity can cause severe damage.
• Insulation: Ensure all connections are properly insulated and that no bare wires are exposed to prevent short circuits.
• Environment: Use the cable in dry conditions. Avoid contact with water or excessive moisture.
• Inspection: Before each use, inspect the cable for any signs of damage, fraying, or corrosion. Do not use a damaged cable.
• Tools: No special tools are required for connection, but ensure hands are clean and dry.

Product Features

The KASSupply 12V Lead Acid Battery Connector Cable offers the following key features:

• Universal Compatibility: Designed to connect with all 12V sealed lead acid (SLA), AGM, and GEL batteries featuring F2 style terminal tabs.
• Quick Connect/Disconnect: Equipped with 0.250" F2 spade-type terminals for secure, tool-free connections and disconnections.
• High-Quality Construction: Made from UL listed and RoHS compliant materials, ensuring safety, durability, and long-lasting performance.
• Color-Coded: Features distinct red and black cables for clear identification of positive and negative connections, simplifying installation and reducing error.
• Optimal Length: A 5-foot cable length provides ample reach and flexibility for various installation scenarios.

Figure 1: Overview of the KASSupply 12V Lead Acid Battery Connector Cable. This image shows the 5-foot black cable neatly coiled, with the red and black F2 spade-type terminals clearly visible at the ends.

Setup and Installation

Follow these steps to properly connect your battery using the KASSupply connector cable:

1. Identify Terminals: Locate the positive (+) and negative (-) F2 spade-type terminals on your 12V sealed lead acid battery. The positive terminal is typically marked with a plus sign and the negative with a minus sign.
2. Connect Positive: Take the red F2 terminal of the KASSupply cable and firmly push it onto the positive (+) F2 terminal tab of your battery. Ensure a snug fit.
3. Connect Negative: Take the black F2 terminal of the KASSupply cable and firmly push it onto the negative (-) F2 terminal tab of your battery. Ensure a snug fit.
4. Verify Connection: Gently tug on both connectors to ensure they are securely attached and will not easily pull off.
5. Route Cable: Route the cable safely, avoiding sharp edges, moving parts, or areas where it could be pinched or damaged.

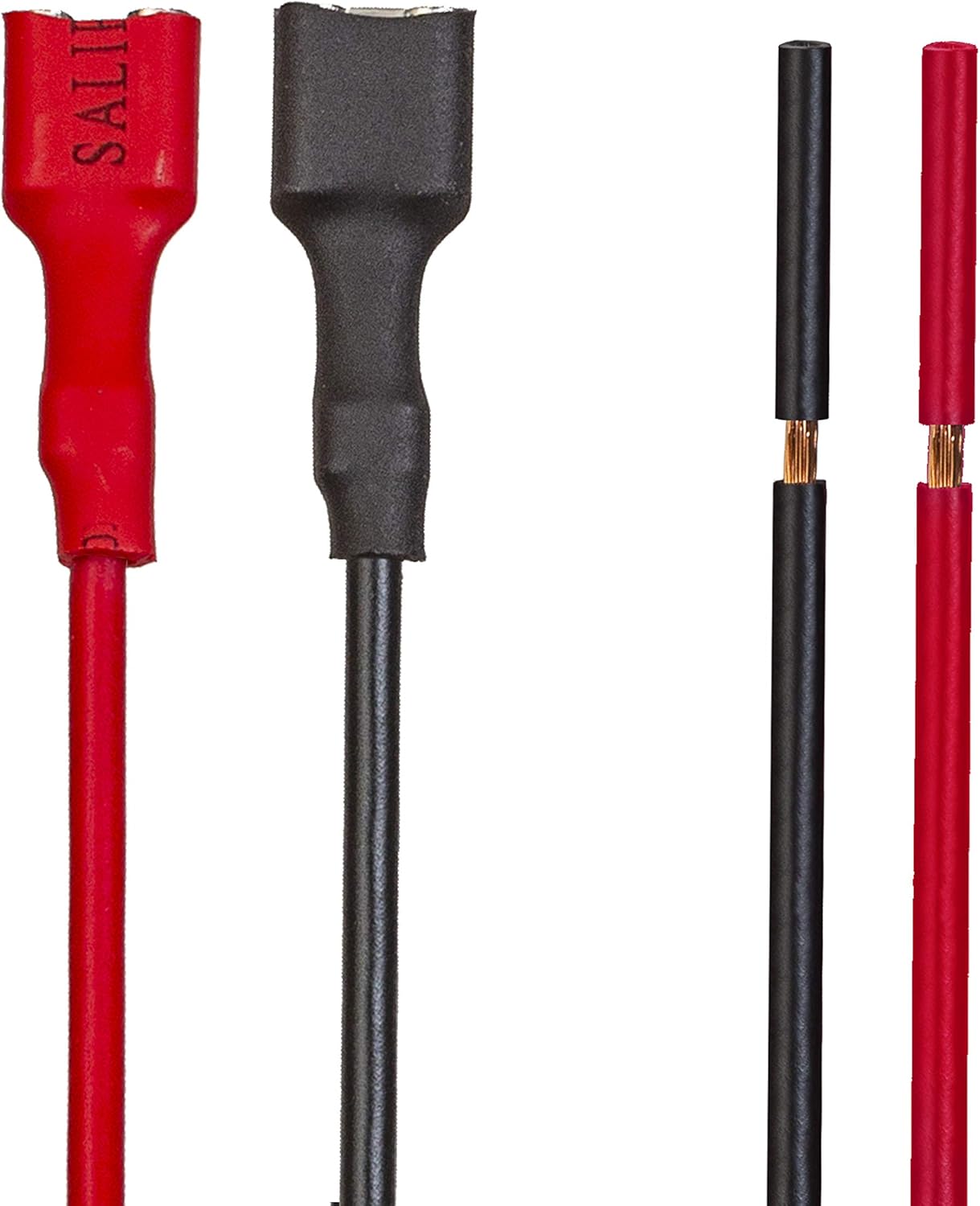

Figure 2: Detailed view of the F2 spade-type terminals. This image highlights the red (positive) and black (negative) insulated terminals, ready for quick connection to compatible battery tabs.

Operating and Applications

Once connected, the KASSupply 12V Lead Acid Battery Connector Cable facilitates power transfer for various applications:

• Automotive Systems: Ideal for connecting to car batteries for maintenance, charging, or powering accessories.
• Solar Panel Setups: Connect solar panels to batteries for off-grid power solutions.
• UPS and Backup Power Systems: Ensure reliable power connections for uninterrupted service during outages.
• RV and Boat Applications: Power various electrical systems in recreational vehicles and marine vessels.
• DIY Projects: Suitable for home projects involving 12V battery-powered tools, lighting, and other electronics.
• Mobility Devices: Use for safe and secure battery connections in electric wheelchairs and mobility scooters.

Maintenance

The KASSupply battery connector cable requires minimal maintenance to ensure optimal performance and longevity:

• Regular Inspection: Periodically inspect the cable and terminals for any signs of wear, cuts, cracks, or corrosion.
• Cleanliness: Keep the terminals clean and free of dirt, dust, and moisture. Use a dry cloth to wipe them if necessary.
• Storage: When not in use, store the cable in a dry, cool place, away from direct sunlight and extreme temperatures. Avoid kinking or tightly bending the cable.

Troubleshooting

If you encounter issues with your KASSupply battery connector cable, consider the following:

• No Power/Intermittent Connection:
  • Ensure both red and black F2 terminals are fully and securely seated on the battery tabs.
  • Check for any visible damage to the cable or terminals. A damaged cable should not be used.
  • Verify that the battery itself is charged and functioning correctly.
• Incorrect Polarity Indication:
  • The cable is color-coded (red for positive, black for negative). Always connect red to positive (+) and black to negative (-).
  • If the heat shrink on the terminals appears to be mismatched (e.g., red on black wire), rely on the wire color itself for correct polarity. The wire insulation color (red or black) indicates the intended polarity.
• Cable Not Fitting:
  • Confirm your battery has F2 style terminal tabs (0.250" wide). This cable is specifically designed for F2 terminals.

Specifications

Figure 3: The KASSupply cable, illustrating its construction and wire markings. This view provides a closer look at the cable's insulation and gauge details.

Warranty Information

Specific warranty details for the KASSupply 12V Lead Acid Battery Connector Cable are provided by the manufacturer or seller at the time of purchase. Please refer to your purchase documentation or contact the seller directly for information regarding warranty coverage and terms.

Customer Support

For any questions, technical assistance, or support regarding your KASSupply product, please contact the manufacturer, KASSupply, or the seller, WireNPower, through the platform where the product was purchased. They can provide further guidance and support.
