Rheem Instantaneous Water Heater 13 Liters/Min

Product Overview

The Rheem RHIN-CHL13 Instantaneous Water Heater is designed to provide a continuous supply of hot water for your home. With a capacity of 13 liters per minute and operating on natural gas, this unit is ideal for households requiring hot water for up to two services simultaneously. Its compact design and advanced features ensure comfort, efficiency, and safety.

Front view of the Rheem instantaneous water heater, showcasing its compact design and user interface with a digital display and control knob.

Key Features

• Instant Hot Water: Provides hot water instantly upon demand, activated by water flow, eliminating the need for a pilot light.
• Reduced Gas Consumption: High energy efficiency leads to significant gas savings.
• Ergonomic Temperature Control: Features an ergonomic knob for easy temperature adjustment.
• Modern Digital Display: A clear digital display shows the water output temperature.
• Multiple Safety Systems: Equipped with various safety mechanisms for enhanced peace of mind.

Key benefits of the water heater: maximum gas savings, precise temperature adjustment, and enhanced durability for long-lasting performance.

Setup and Installation

For optimal performance and safety, it is highly recommended that the Rheem Instantaneous Water Heater be installed by a certified professional. Ensure the installation location complies with local building and gas codes.

Dimensions and Placement:

The compact design allows for flexible placement. Refer to the dimensions below to ensure adequate space and clearances for proper ventilation and maintenance.

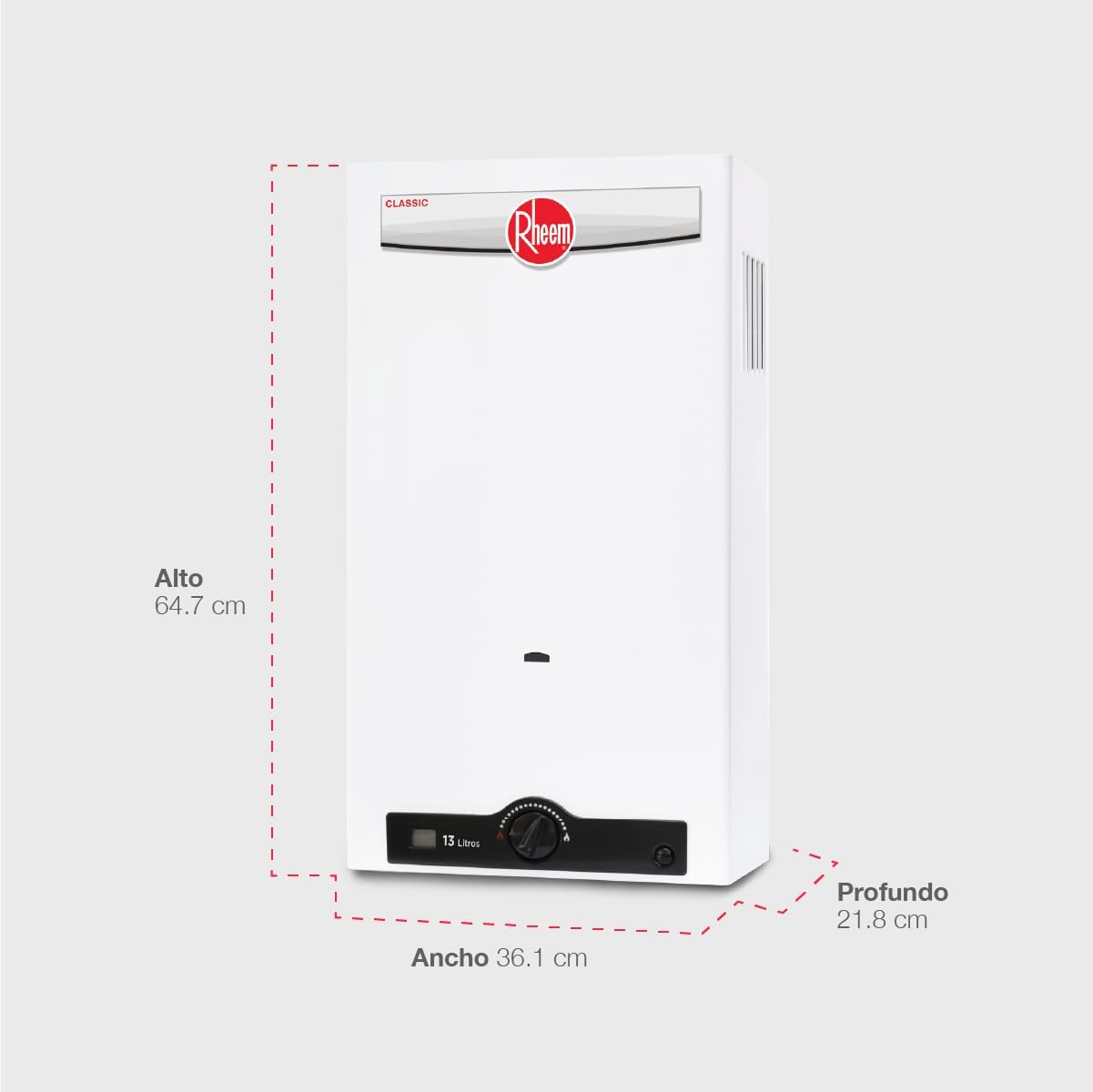

Dimensions of the water heater: Height 64.7 cm, Width 36.1 cm, Depth 21.8 cm, illustrating its slim profile suitable for various installations.

The Rheem water heater installed above a washing machine in a utility area, demonstrating its compact size and suitability for indoor spaces.

Connections:

• Gas Supply: This model operates on Natural Gas. Ensure the gas supply line is correctly sized and connected.
• Water Connections: Connect the cold water inlet and hot water outlet pipes according to the markings on the unit.
• Ventilation: Proper ventilation is crucial. Ensure the exhaust system is correctly installed and free from obstructions.

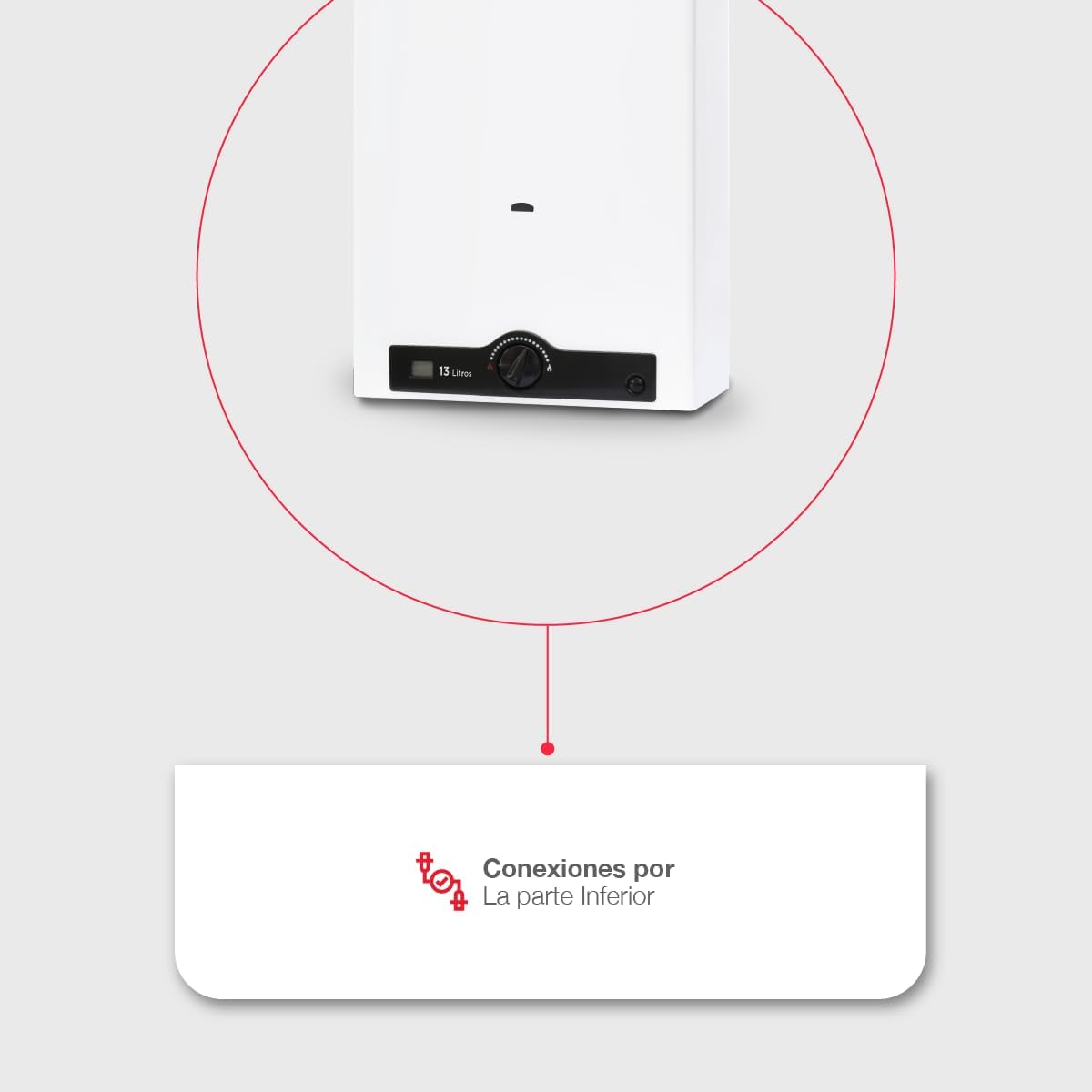

An illustration indicating the internal connections of the water heater, including water inlet, outlet, and gas connections.

Operating Instructions

Turning On/Off:

The Rheem instantaneous water heater is designed for flow-activated ignition. Simply open a hot water faucet, and the unit will automatically ignite to provide hot water. Close the faucet to turn off the unit.

Temperature Adjustment:

Use the ergonomic control knob located on the front panel to adjust the desired water temperature. The digital display will show the current output temperature, allowing for precise control.

Close-up view of the water heater's ergonomic control knob for temperature regulation and the digital display indicating the water output temperature.

Safety Features:

Your Rheem water heater is equipped with multiple safety systems to ensure safe operation, including:

• Temperature sensor
• Flame detection sensor
• Overheat protection
• Electronic ignition
• Gas valve with double high-security protection system

Maintenance

Regular maintenance helps ensure the longevity and efficient operation of your Rheem water heater. It is recommended to have the unit inspected annually by a qualified technician. Keep the exterior clean and ensure ventilation openings are free from dust and debris.

Troubleshooting

If you experience issues with your water heater, please check the following:

• Ensure the gas supply is on.
• Check for adequate water pressure.
• Verify that the digital display is functioning.

For persistent problems or complex issues, please contact Rheem technical support. Do not attempt to repair the unit yourself.

Specifications

Detailed technical specifications table for Rheem instantaneous gas water heaters, including capacity, pressure, flow rate, energy efficiency, dimensions, and safety features for various models.

Warranty and Support

The Rheem RHIN-CHL13 Instantaneous Water Heater comes with a 2-year warranty, ensuring peace of mind regarding your investment. Rheem also provides nationwide technical service to assist with any installation, maintenance, or troubleshooting needs.

Product packaging displaying key service information: free shipping, 2-year warranty, and nationwide technical service availability.

For further assistance or to locate a service center, please visit the official Rheem website or contact their customer support. You can also visit the Rheem Brand Store on Amazon.
