BestEquip Fully Automatic Tea Cup Sealing Machine

Introduction

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your BestEquip Fully Automatic Tea Cup Sealing Machine. Please read this manual thoroughly before operating the machine to ensure proper function and to prevent damage or injury. Keep this manual for future reference.

Safety Instructions

• Always ensure the machine is connected to a grounded power outlet with the correct voltage.
• Do not operate the machine with wet hands or in wet conditions.
• Keep hands and loose clothing away from moving parts during operation.
• The sealing plate becomes hot during operation. Avoid direct contact to prevent burns.
• Unplug the machine before cleaning, maintenance, or when not in use.
• Do not attempt to modify or repair the machine yourself. Contact qualified service personnel for assistance.
• This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

Product Components and Features

The BestEquip Fully Automatic Tea Cup Sealing Machine is designed for efficient and reliable cup sealing. Key features include:

• Durable Construction: Made from stainless steel for commercial quality reliability.
• Automatic Operation: Seals cups fully automatically within seconds.
• Intelligent Control Panel: Features digital control for temperature and sealing/rolling times, and an automatic counting function.
• Sensitive Scanner: Ensures precise sealing alignment.
• Adjustable Cup Height: Accommodates various cup sizes up to 7.48 inches (190mm).
• Wide Application: Suitable for PP, PET, and paper cups, ideal for restaurants and beverage factories.

Image: The robust black stainless steel construction of the cup sealing machine, highlighting its durability.

Image: A close-up of the intelligent digital control panel, showing temperature settings, counter, and operational buttons.

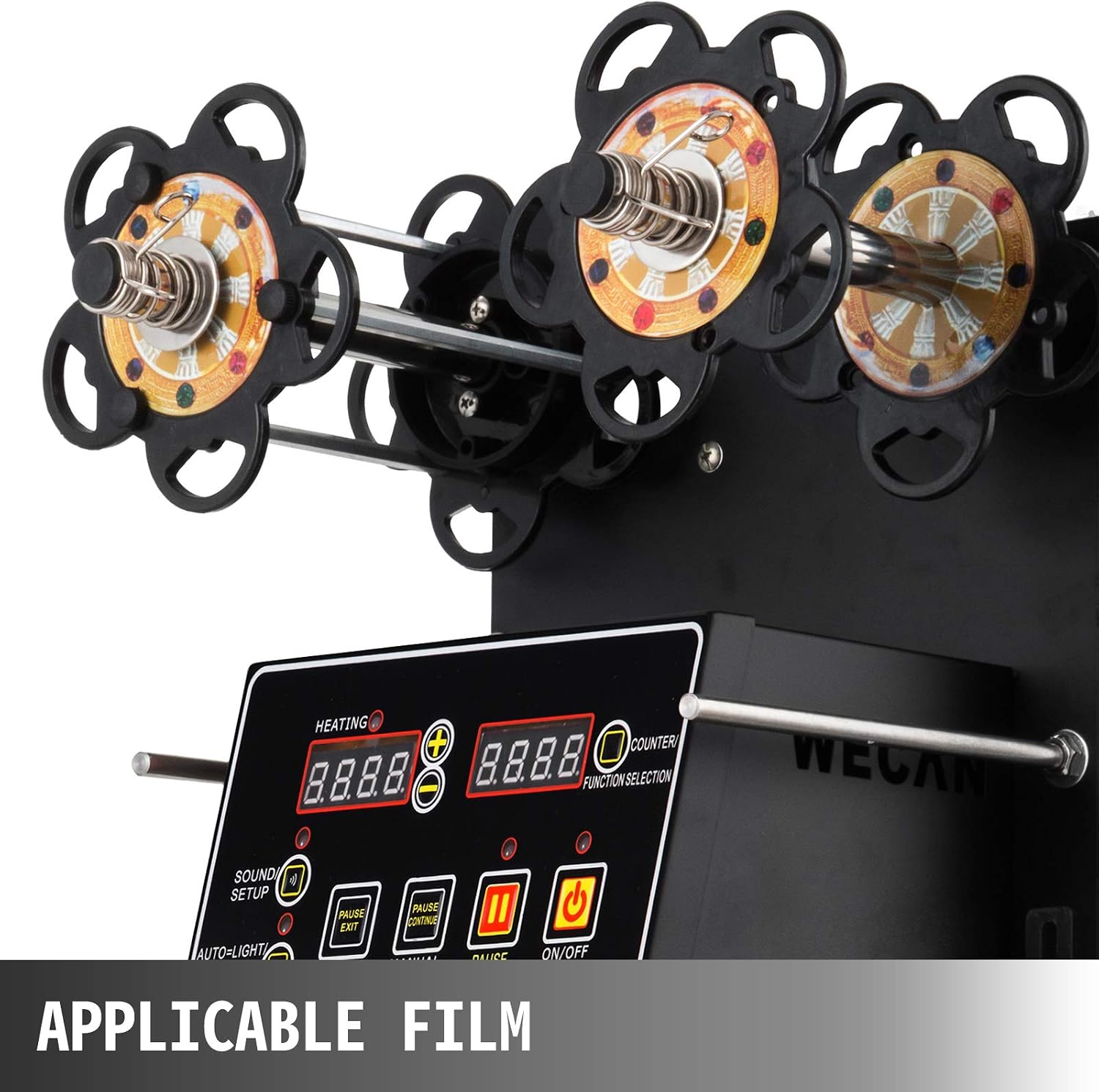

Image: The film roll mechanism at the top of the machine, indicating where new and used film rolls are installed.

Setup

1. Unpacking: Carefully remove the machine from its packaging. Inspect for any shipping damage.
2. Placement: Place the machine on a stable, level, and heat-resistant surface. Ensure adequate ventilation around the machine.
3. Film Roll Installation: Refer to the diagram on the machine or in the detailed instructions for correctly loading the sealing film roll onto the designated spindles. Ensure the film is threaded smoothly through the guides.
4. Power Connection: Connect the power cord to the machine and then to a suitable grounded electrical outlet.
5. Cup Holder Adjustment: If necessary, adjust the cup holder height to match your cup size.

Image: Side view of the machine with dimensions (24" H x 14" W x 9.5" D), useful for placement planning.

Operating Instructions

1. Power On: Press the 'ON/OFF' button on the control panel to power on the machine.
2. Set Temperature: Use the temperature adjustment buttons on the control panel to set the desired sealing temperature based on your cup material. Recommended temperatures are:
   • PP Cups: 170°C - 200°C (338°F - 392°F)
   • PET Cups: 160°C - 200°C (320°F - 392°F)
   • Paper Cups: 170°C - 190°C (338°F - 374°F)
3. Preheating: Allow the machine to preheat until the set temperature is reached. The 'HEATING' indicator will show the current temperature.
4. Place Cup: Place a filled cup into the cup holder.
5. Automatic Sealing: The machine will automatically detect the cup, move it into position, seal it, and then eject it. The counter will increment with each sealed cup.
6. Manual Operation (Optional): If available, use the 'MANUAL START' button for manual control over the sealing process.
7. Power Off: After use, press and hold the 'ON/OFF' button to power off the machine.

Image: Display of recommended sealing temperatures for PP, PET, and paper cups.

Image: The machine in operation, showing a cup being sealed automatically.

Maintenance

• Cleaning: Regularly clean the machine's exterior with a damp cloth. Ensure the sealing plate is cool before cleaning. Do not use abrasive cleaners or immerse the machine in water.
• Film Path: Keep the film path clear of debris and sticky residue to ensure smooth film feeding.
• Film Roll Replacement: When the film roll is depleted, replace it with a new one following the installation steps.
• Inspection: Periodically inspect the power cord for any damage.

Troubleshooting

• Machine Not Powering On: Check if the power cord is securely plugged into both the machine and the outlet. Verify the outlet has power.
• Poor Sealing Quality: Ensure the correct temperature is set for the cup material. Check if the film is loaded correctly and free from wrinkles. Verify the cup is placed properly in the holder.
• Film Not Feeding: Check for any obstructions in the film path. Ensure the film roll is installed correctly and not jammed.
• Error Codes: If an error code appears on the display, refer to the specific error code section in the full manual (if provided separately) or contact customer support.

Specifications

Warranty and Support

This product comes with a 2-year warranty. For warranty claims, technical support, or any operational questions, please refer to the contact information provided at the point of purchase or visit the official BestEquip website for customer service details.

Image: A set of tools including an Allen wrench, two sealing rings, a spanner, and a screwdriver, typically included for maintenance and setup.
