ECOTOUCH ECO55B
ECOTOUCH 5.5KW 240V Tankless Electric Water Heater
Model: ECO55B
Introduction
Thank you for choosing the ECOTOUCH 5.5KW 240V Tankless Electric Water Heater. This manual provides essential information for the safe installation, operation, and maintenance of your new appliance. Please read it thoroughly before installation and keep it for future reference.
The ECOTOUCH 5.5KW 240V Tankless Electric Water Heater, featuring a digital display and remote control for convenient temperature adjustment.
Important Safety Information
Failure to follow these instructions may result in property damage, personal injury, or death. This appliance must be installed by a qualified electrician and plumber in accordance with all local electrical and plumbing codes.
- Electrical Hazard: Ensure the power supply is disconnected at the circuit breaker before installation or servicing.
- Water Pressure: Do not operate the unit if water pressure is below the minimum required.
- Temperature Settings: Exercise caution when setting high temperatures to prevent scalding.
- Indoor Use Only: This appliance is designed for indoor installation only.
- Proper Grounding: The unit must be properly grounded.
- Clearance: Maintain adequate clearance around the unit for ventilation and servicing.
Package Contents
Verify that all components are present before beginning installation.
Contents typically included in the ECOTOUCH water heater package, featuring the instruction manual and mounting hardware.
- ECOTOUCH Tankless Electric Water Heater Unit
- Instruction Manual
- Remote Control
- Mounting Brackets (2)
- Wall Anchors (4)
- Mounting Screws (4)
- Gaskets (4)
Technical Specifications
| Specification | Value |
|---|---|
| Brand | ECOTOUCH |
| Model Number | ECO55B |
| Product Dimensions | 7.5"W x 11"H x 2.35"D |
| Color | Black |
| Wattage | 5.5 KW |
| Voltage | 240 Volts |
| Heat Output | 5.5 Kilowatts |
| Efficiency | 98% |
| Mounting Type | Wall |
| Item Weight | 7.59 pounds |
| UPC | 631105420433 |
The compact design of the ECOTOUCH water heater, showing its dimensions (7.5 inches wide, 11 inches high, 2.35 inches deep) and various potential installation locations.
Installation Guide
1. Mounting the Unit
- Choose a suitable indoor location near the point of use, away from freezing temperatures and direct sunlight. Ensure the wall can support the unit's weight.
- Use the provided mounting brackets as a template to mark drilling points on the wall.
- Drill holes, insert wall anchors, and secure the mounting brackets with screws.
- Hang the water heater unit securely onto the mounted brackets.
2. Plumbing Connections
The unit features 1/2" NPT connections. The blue port is for cold water inlet, and the red port is for hot water outlet.
- Flush the water lines thoroughly before connecting to the heater to remove any debris.
- Connect the cold water supply line to the blue inlet port. Ensure the provided gasket is used for a watertight seal.
- Connect the hot water outlet line to the red outlet port. Use a gasket for this connection as well.
- Open the hot water faucet at the point of use to allow air to escape the system. Once water flows steadily, close the faucet.

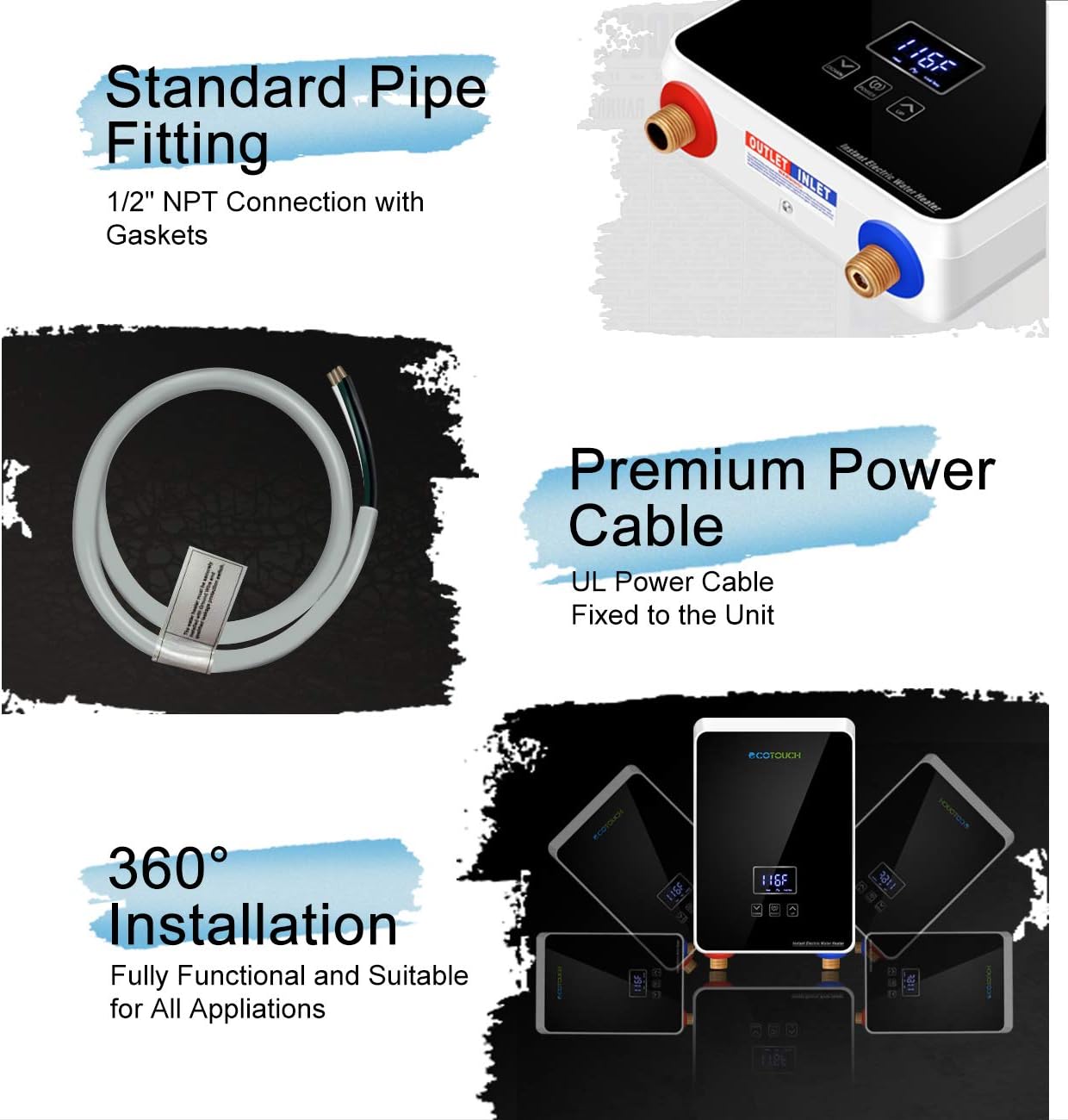

Details on standard 1/2" NPT pipe fittings with gaskets, the integrated premium power cable, and the versatile installation options for the ECOTOUCH water heater.
3. Electrical Connections
This unit requires a dedicated 240V circuit. Consult a qualified electrician for proper wiring.
- WARNING: Ensure power is OFF at the main circuit breaker before proceeding.
- Connect the unit's power cable to a dedicated 240V, 30 Amp double-pole circuit breaker. Refer to local electrical codes for appropriate wire gauge.
- Ensure proper grounding of the unit.
- Once all connections are secure, turn on the circuit breaker.
An internal diagram illustrating the components of the ECOTOUCH water heater, including the water inlet (1), flow rate & temperature calculator (2), power self-modulation chip (3), leakage sensor (4), thermal cut-off (5), heating chamber (6), and hot water outlet (7), along with the 240V electrical connection.
4. Initial Startup
- Ensure the unit is filled with water by opening a hot water faucet until water flows steadily.
- Turn on the circuit breaker. The unit's digital display will illuminate.
- Press the 'Power' button on the unit or remote control to turn it on.
- Set your desired temperature using the 'UP' and 'DOWN' buttons.
Operation
Control Panel and Display
The front panel features a digital display showing the current water temperature and touch controls for power and temperature adjustment.
- Digital Display: Shows the set temperature or actual outlet temperature.
- POWER Button: Turns the unit ON/OFF.
- UP/DOWN Buttons: Adjust the desired water temperature.
Remote Control
The included remote control provides convenient access to the unit's functions.
The remote control for the ECOTOUCH water heater, allowing easy adjustment of settings from a distance, alongside a summary of the unit's multiple protection features.
- ON/OFF Button: Powers the unit on or off.
- Temperature Buttons (104°F / 124°F): Quick set buttons for common temperatures.
- UP/DOWN Buttons: Fine-tune the desired water temperature.
Temperature Adjustment
Use the UP/DOWN buttons on the unit or remote to set your desired hot water temperature. The unit will heat water to this set point as it flows through.
Flow Rate Considerations
The actual hot water output temperature is dependent on the inlet water temperature and flow rate. Lower flow rates generally result in higher outlet temperatures.
A geographical map indicating typical inlet water temperatures across the United States, accompanied by a table detailing the ECOTOUCH 5.5KW heater's performance (outlet temperature at specific GPM) based on different inlet water temperatures. This model is suggested for sinks only.
Refer to the performance chart to understand expected outlet temperatures based on your local inlet water temperature and desired flow rate. This 5.5KW model is primarily recommended for single-sink applications.
Key Features and Protection Systems
The ECOTOUCH water heater is designed with multiple safety and performance features.
- Instant Heating: Provides hot water on demand without storage.
- Stable Temperature: Maintains consistent output temperature.
- Intelligent Self-Modulating: Adjusts power based on flow rate and temperature needs.
- Water and Electricity Separated: Enhanced safety design.
- Sensitive Leakage Protection: Detects and prevents water leakage issues.
- Over Temperature Protection: Automatically shuts off if water temperature exceeds safe limits.
- Dry Combustion Protection: Prevents heating element damage if water flow is insufficient.
- Over Voltage Protection: Safeguards against electrical surges.
- ETL Approval: Certified for safety and quality standards.
Maintenance
Regular maintenance ensures optimal performance and longevity of your water heater.
- Cleaning: Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners.
- Inlet Filter: Periodically check and clean the inlet water filter screen to prevent debris buildup.
- Descaling: In areas with hard water, mineral deposits can accumulate. Consult a qualified plumber for descaling procedures if water flow or heating performance decreases.
- Winterization: If the unit is in an area prone to freezing and will not be used for an extended period, drain the unit completely to prevent damage.
Troubleshooting
Before contacting customer support, review the following common issues and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| No hot water / Unit not turning on | No power; Circuit breaker tripped; Insufficient water flow. | Check circuit breaker; Ensure water supply is open and flow rate is adequate. |
| Water not hot enough | Inlet water too cold; Flow rate too high; Temperature setting too low; Mineral buildup. | Reduce water flow; Increase temperature setting; Consider professional descaling. |
| Water leaks | Loose connections; Damaged gaskets. | Tighten plumbing connections; Replace gaskets if damaged. |
| Unit displays error code | Internal fault. | Refer to specific error code in the full manual (if available) or contact customer support. |
Warranty and Customer Support
ECOTOUCH products are manufactured to high-quality standards. For warranty information, technical assistance, or to report issues, please refer to the contact details provided with your purchase documentation or visit the official ECOTOUCH website. Do not attempt to repair the unit yourself, as this may void the warranty and pose safety risks.
