1. Introduction
Thank you for choosing the wowatt LED Ceiling Light. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.
2. Safety Information
To ensure your safety and prevent damage to the product, please observe the following precautions:
- Always disconnect the power supply before installation, maintenance, or bulb replacement.
- Installation should be performed by a qualified electrician or in accordance with local electrical codes.
- Do not modify the product in any way. Unauthorized modifications may void the warranty and pose safety risks.
- Ensure the mounting surface can support the weight of the fixture.
- This product has an IP20 protection level. It is designed for indoor use only. While it can be used in a bathroom, direct contact with water must be avoided.
- Do not exceed the maximum wattage for replacement bulbs (up to 50W for GU10).
3. Package Contents
Verify that all components are present and undamaged upon opening the package:
- 1 x wowatt Ceiling Light Fixture
- 4 x GU10 LED Spots (5W, 2800K Warm White)
- 1 x Instruction Manual (in multiple languages)
Image 3.1: The wowatt LED Ceiling Light fixture, showcasing its sleek design.
4. Specifications
Detailed technical specifications for the wowatt LED Ceiling Light:
| Feature | Specification |
|---|---|
| Brand | wowatt |
| Model | 5W 4 Spots Blanc Chaud 2800k Nickel Mat |
| Product Dimensions (L x W x H) | 68 x 16.5 x 7.5 cm (26.8 x 6.5 x 3 inches) |
| Item Weight | 475 g (1.05 lbs) |
| IP Rating | IP20 (Indoor use only) |
| Number of Bulbs | 4 |
| Bulb Type | LED |
| Cap Type | GU10 |
| Luminous Flux | 420 lm per bulb |
| Power | 5 Watts per bulb (20 Watts total) |
| Incandescent Equivalent | 40 Watts per bulb |
| Color Temperature | 2800 Kelvin (Warm White) |
| Color Rendering Index (CRI) | 82.00 |
| Average Lifespan | 30,000 Hours |
| Material | Metal (Nickel Matt finish) |
| Voltage | 230 Volts |
| Special Features | Adjustable Spots, Energy Saving (90%) |
| Installation Type | Ceiling Mount |
Image 4.1: Detailed dimensions of the wowatt LED Ceiling Light fixture.
5. Setup and Installation
The wowatt LED Ceiling Light is designed for easy installation. No additional hole drilling is required for standard setup.
- Preparation: Before beginning installation, ensure the main power supply to the circuit where the light will be installed is turned OFF at the circuit breaker.
- Mounting the Base: Position the light fixture's base against the ceiling at your desired location. Mark the drilling points for the mounting screws.
- Secure the Base: Drill pilot holes if necessary and secure the mounting bracket or base of the fixture to the ceiling using appropriate screws and anchors (not included, typically).
- Wiring: Connect the electrical wires from your ceiling to the corresponding terminals on the light fixture. Ensure correct polarity (Live, Neutral, Earth). If unsure, consult a qualified electrician.
- Attach the Fixture: Once wiring is complete and secure, attach the main body of the light fixture to the mounted base, ensuring it is firmly in place.
- Insert Bulbs: Gently insert the provided GU10 LED bulbs into each of the four spot holders.
- Restore Power: Once installation is complete and all connections are secure, restore power at the circuit breaker.

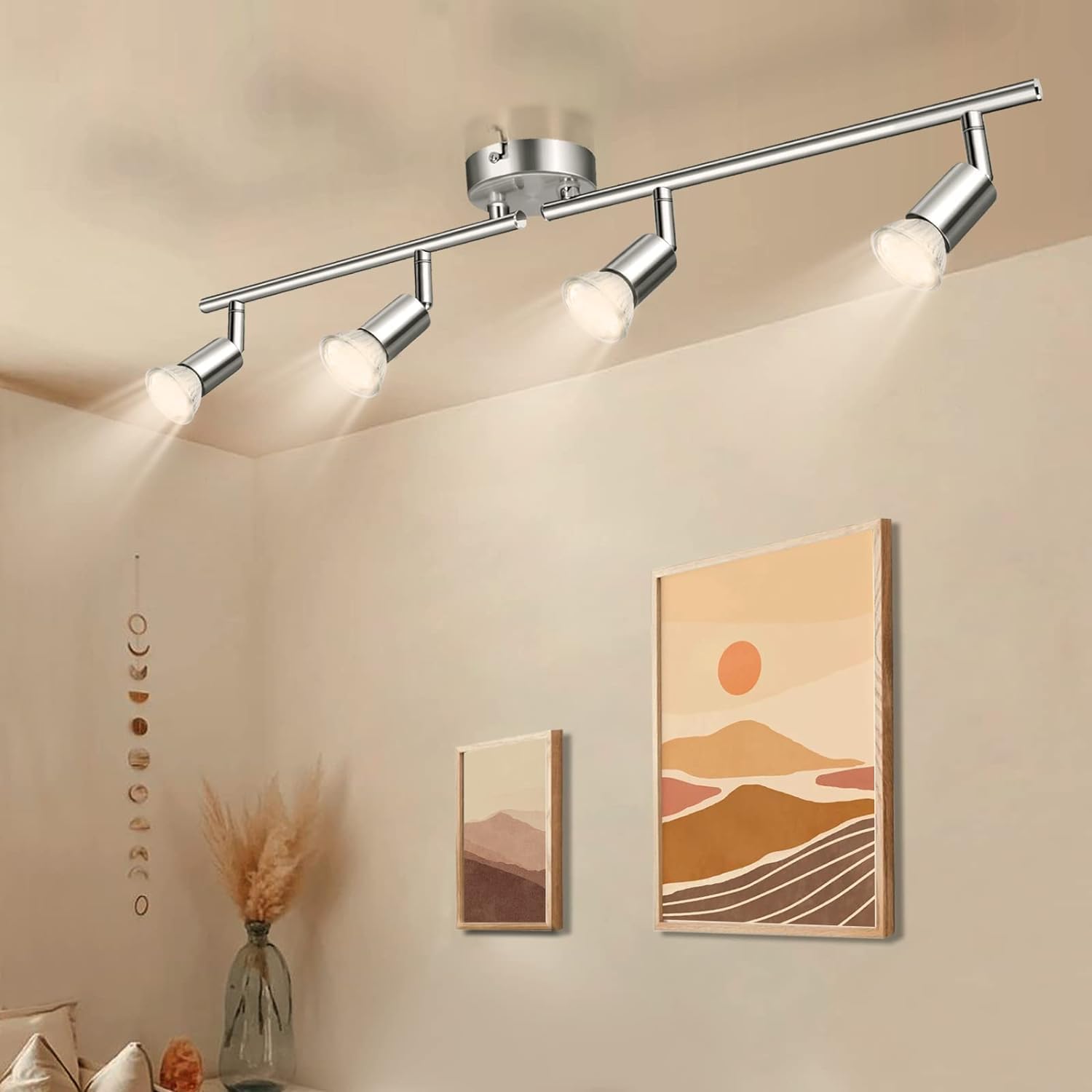

Image 5.1: The wowatt LED Ceiling Light installed, providing illumination in a modern living space.
6. Operating Instructions
Using your wowatt LED Ceiling Light is straightforward:
- Turning On/Off: Operate the light using your standard wall switch connected to the fixture's circuit.
- Adjusting Spots: Each of the four LED spots can be individually adjusted. They are 360° rotatable and 90° adjustable, allowing you to direct light precisely where needed.
Image 6.1: Illustration of the 360° rotatable and 90° adjustable features of the individual light spots.
Image 6.2: The light fixture illuminating a bedroom, demonstrating its versatile design.
7. Maintenance
Regular maintenance will help prolong the life and appearance of your wowatt LED Ceiling Light:
- Cleaning: Ensure the power is off before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.
- Bulb Replacement: The included GU10 LED bulbs have a long lifespan (30,000 hours). If a bulb needs replacement, ensure the power is off, allow the bulb to cool, then gently twist and pull to remove. Insert a new GU10 LED bulb (up to 50W maximum) by pushing and twisting into place.
Image 7.1: The GU10 LED bulbs included with the wowatt ceiling light, rated at 5W and 2800K.
8. Troubleshooting
If you encounter any issues with your wowatt LED Ceiling Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply; Loose wiring; Faulty bulb; Faulty switch | Check circuit breaker; Ensure all wires are securely connected; Replace bulb; Test or replace switch. |
| One or more spots not lighting up | Faulty bulb; Loose bulb connection | Replace the specific bulb; Ensure the bulb is fully inserted and twisted into its socket. |
| Light flickers | Loose wiring; Incompatible dimmer switch (this light is non-dimmable); Voltage fluctuations | Check wiring connections; Ensure no dimmer switch is used; Consult an electrician for voltage issues. |
If the problem persists after attempting these solutions, please contact wowatt customer support.
9. Warranty and Support
The wowatt LED Ceiling Light comes with a 3-year warranty from the date of purchase, covering defects in materials and workmanship under normal use. This warranty does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications.
For warranty claims, technical support, or any questions regarding your product, please contact wowatt customer service through the retailer's platform or visit the official wowatt website.
Contact Information:
Website: Visit wowatt Store on Amazon
Seller Support: Refer to your purchase platform for direct seller contact options.
