Hecht HEC-796 Gasoline Garden Tiller User Manual

1. Important Safety Information

Read and understand all safety warnings and instructions before operating this garden tiller. Failure to follow these instructions may result in serious injury or death.

• Personal Protective Equipment: Always wear appropriate safety gear, including eye protection, hearing protection, sturdy footwear, and gloves.
• Fuel Safety: Gasoline is highly flammable. Handle fuel in a well-ventilated area, away from sparks, open flames, or other ignition sources. Do not smoke while fueling.
• Operating Area: Clear the work area of stones, debris, and other objects that could be thrown by the tines. Keep bystanders, children, and pets at a safe distance (at least 15 meters/50 feet).
• Engine Exhaust: Operate the tiller in a well-ventilated outdoor area. Engine exhaust contains carbon monoxide, which is a colorless, odorless, and deadly gas.
• Machine Control: Always maintain a firm grip on the handlebars. Be aware of the tines and their rotation direction. Never operate the tiller on excessively steep slopes.
• Maintenance: Disconnect the spark plug wire before performing any maintenance or adjustments to prevent accidental starting.

2. Product Overview and Components

Familiarize yourself with the main parts of your Hecht HEC-796 garden tiller.

Figure 2.1: The handlebar assembly featuring the Hecht brand logo. This is where the operator controls the tiller.

Figure 2.2: Close-up of a handlebar grip, designed for comfortable and secure handling during operation.

Figure 2.3: The throttle control and engine kill switch located on the handlebar for easy access. The red switch is for turning the engine ON/OFF.

Figure 2.4: View of the engine area, showing the fuel tank cap (silver) and the air filter housing (black cage). Regular checks of these components are crucial for performance.

Figure 2.5: The tilling tines (black blades) and the transport wheel. The transport wheel assists in moving the tiller to and from the work area.

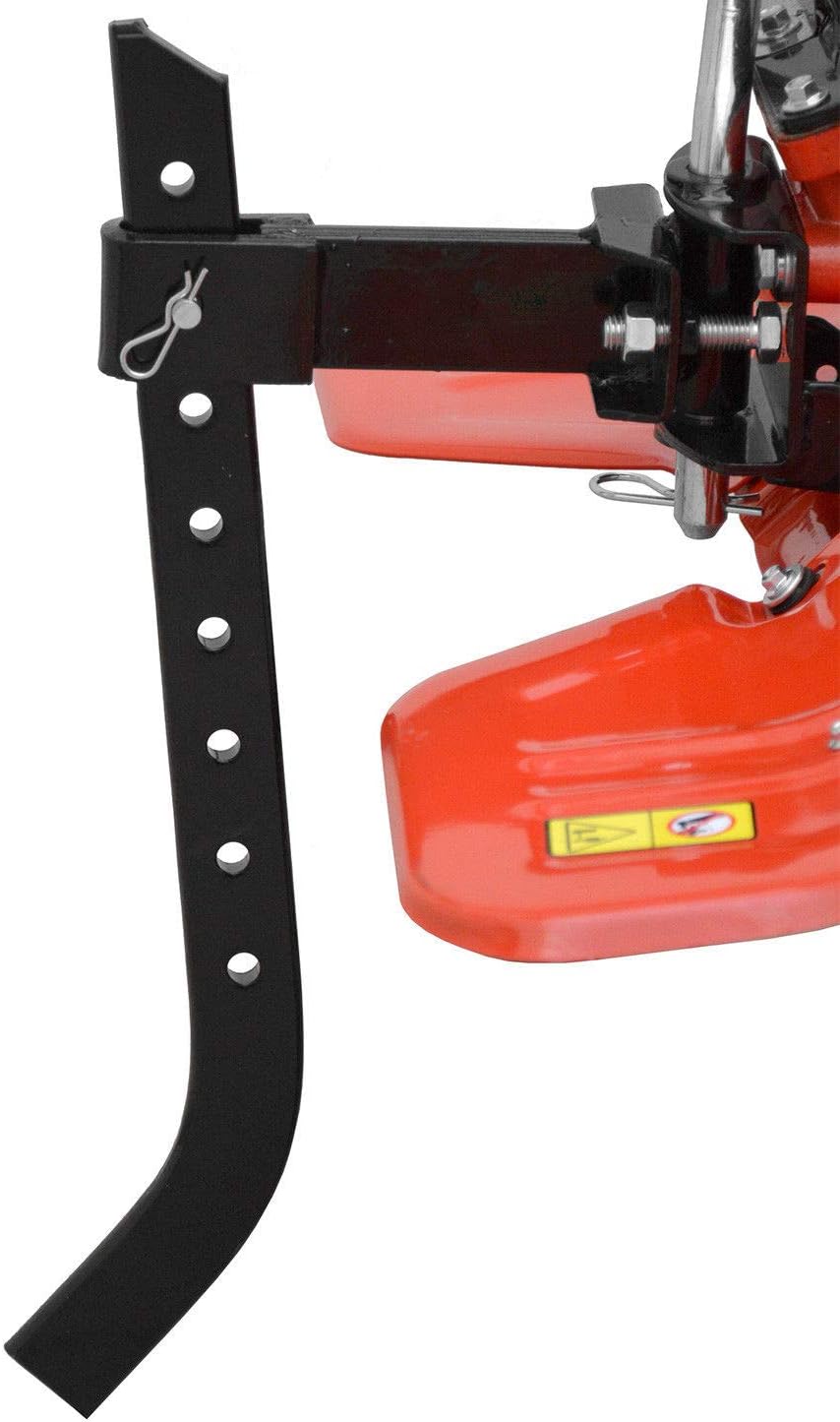

Figure 2.6: The adjustable depth stake (also known as a drag bar) at the rear of the tiller. This component helps control the tilling depth and forward speed.

3. Setup and Assembly

Your Hecht HEC-796 tiller may require some assembly before first use. Follow these steps carefully:

1. Unpacking: Carefully remove all components from the packaging. Check for any damage or missing parts.
2. Handlebar Assembly: Attach the handlebar assembly to the main unit. Secure it firmly using the provided bolts and nuts. Ensure all cables (throttle, kill switch) are routed correctly and not pinched.
3. Transport Wheel Installation: Install the transport wheel(s) as per the diagrams in the separate assembly guide. Ensure they can be easily raised and lowered.
4. Depth Stake/Drag Bar: Attach the depth stake to the rear of the tiller. Adjust its height to the desired tilling depth. A lower setting results in deeper tilling and slower forward movement.
5. Fluid Checks:
   • Engine Oil: Fill the engine with appropriate 4-stroke engine oil (e.g., SAE 10W-30) to the recommended level on the dipstick. Do not overfill.
   • Fuel: Fill the fuel tank with fresh, unleaded gasoline. Do not use E85 or mixed fuels. Ensure the fuel cap is securely tightened.

4. Operating Instructions

Before starting, ensure you have read the safety section and the tiller is properly assembled and fueled.

4.1. Starting the Engine

1. Fuel Valve: Open the fuel valve (if equipped).
2. Choke: Move the choke lever to the 'CHOKE' position (for cold starts).
3. Throttle: Set the throttle lever to the 'FAST' or 'START' position.
4. Kill Switch: Ensure the engine kill switch is in the 'ON' position.
5. Recoil Starter: Pull the recoil starter handle slowly until resistance is felt, then pull firmly and quickly. Repeat until the engine starts.
6. Warm-up: Once the engine starts, gradually move the choke lever to the 'RUN' position as the engine warms up.

4.2. Tilling

1. Lower Transport Wheel: Raise the transport wheel(s) to engage the tines with the ground.
2. Engage Tines: Engage the tines using the appropriate lever or clutch control on the handlebar.
3. Control Depth: Use the depth stake to control how deep the tines penetrate the soil. For initial passes, a shallower depth is often recommended.
4. Maintain Control: Walk behind the tiller, maintaining a firm grip on the handlebars. Allow the tiller to pull itself forward. Do not force it.
5. Multiple Passes: For deeply compacted soil, make several passes, gradually increasing the tilling depth with each pass.

4.3. Stopping the Engine

1. Disengage Tines: Disengage the tines.
2. Throttle: Move the throttle lever to the 'SLOW' or 'IDLE' position and allow the engine to cool for a minute.
3. Kill Switch: Move the engine kill switch to the 'OFF' position.
4. Fuel Valve: Close the fuel valve (if equipped) for storage.

5. Maintenance

Regular maintenance ensures optimal performance and extends the life of your tiller. Always disconnect the spark plug wire before performing any maintenance.

• After Each Use:
  • Clean soil and debris from the tines and housing.
  • Inspect tines for damage or wear.
  • Check for loose fasteners.
• Every 10-20 Hours of Operation (or Annually):
  • Engine Oil: Check engine oil level and change if necessary. Refer to the engine manual for specific oil change intervals.
  • Air Filter: Clean or replace the air filter. A dirty air filter can reduce engine performance.
  • Spark Plug: Inspect and clean the spark plug. Replace if electrodes are worn or fouled.
  • Fuel Filter: Inspect and replace the fuel filter if necessary.
• Storage:
  • Drain the fuel tank or add a fuel stabilizer if storing for more than 30 days.
  • Clean the entire machine thoroughly.
  • Store in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.

6. Troubleshooting

Refer to this section for common issues and their potential solutions.

If problems persist after attempting these solutions, contact a qualified service technician or Hecht customer support.

7. Technical Specifications

8. Warranty and Customer Support

This Hecht HEC-796 garden tiller is covered by a manufacturer's warranty. Please refer to the separate warranty document included with your purchase for specific terms and conditions, including warranty period and coverage details.

For technical assistance, spare parts, or warranty claims, please contact your authorized Hecht dealer or visit the official Hecht website for customer support information.

Hecht Customer Service:

• Refer to your purchase documentation for local contact details.
• Visit www.hecht.cz/en/ for general information and support.
