KITMA KMSL-12HD Electric Deli Food Slicer User Manual

1. Important Safety Instructions

Read all instructions carefully before operating the KITMA KMSL-12HD Electric Deli Food Slicer. Failure to follow these instructions may result in electric shock, fire, or serious injury. Keep this manual for future reference.

• Electrical Safety: Ensure the power supply matches the voltage specified on the slicer's rating label. Always plug into a grounded outlet. Do not operate with a damaged cord or plug.
• Blade Hazard: The blade is extremely sharp. Always exercise extreme caution when handling, cleaning, or assembling parts near the blade. Never touch the blade directly.
• Personal Protection: Wear cut-resistant gloves when cleaning the blade. Keep hands and fingers away from the blade during operation.
• Supervision: This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the appliance.
• Stable Surface: Always operate the slicer on a stable, level, and non-slip surface.
• Cleaning: Disconnect from power before cleaning. Follow the cleaning instructions carefully. The product care instructions specify "Hand Wash Only".
• Overload Protection: Do not overload the motor. If the slicer frequently blows fuses, discontinue use and contact customer support.
• Intended Use: Use this appliance only for its intended purpose of slicing food items. Do not attempt to slice frozen foods, bones, or non-food items.

2. Product Overview and Components

Familiarize yourself with the various parts of your KITMA Electric Deli Food Slicer before initial use.

Figure 2.1: Labeled components of the KITMA Electric Deli Food Slicer. Key parts include the Knife Lock, Removable parts, Adjustable Back Plate, Fixed Handle, Thickness Adjustment knob, and Power Switch.

• Blade: The circular cutting blade (12-inch diameter).
• Food Carriage: Holds the food item securely against the blade.
• Food Pusher/Handle: Used to push food towards the blade while keeping hands safe.
• Thickness Adjustment Knob: Controls the slice thickness from 0 to 14mm.
• Power Switch: On/Off control for the motor. Features a no-voltage release to prevent accidental reactivation.
• Blade Guard: Protects the blade when not in use and during cleaning.

3. Setup and First Use

Follow these steps to set up your slicer for the first time.

1. Unpacking: Carefully remove all packaging materials. Inspect the slicer for any damage. Report any damage to the retailer immediately.
2. Placement: Place the slicer on a clean, dry, stable, and level surface. Ensure there is adequate space around the unit for safe operation and ventilation.
3. Initial Cleaning: Before first use, clean all parts that will come into contact with food. Refer to the "Cleaning and Maintenance" section for detailed instructions.
4. Power Connection: Ensure the power switch is in the "OFF" position. Plug the power cord into a grounded electrical outlet.

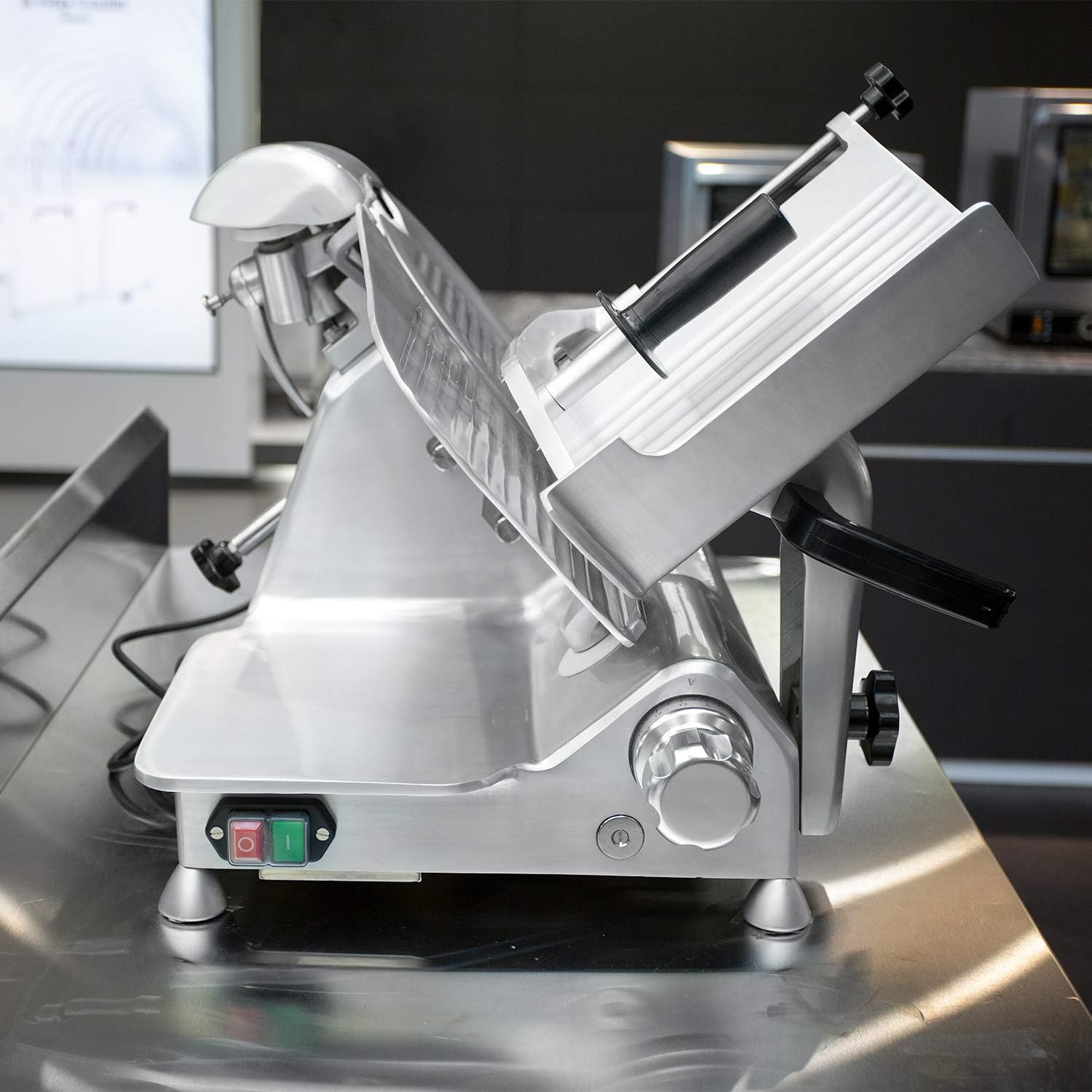

Figure 3.1: The KITMA Electric Deli Food Slicer positioned on a clean, stable counter surface, illustrating proper setup.

4. Operating Instructions

Learn how to safely and effectively operate your deli slicer.

1. Prepare Food: Ensure the food item is free of bones or hard impurities. For best results, chill meats and cheeses slightly before slicing.
2. Adjust Thickness: Turn the Thickness Adjustment Knob to select your desired slice thickness (0-14mm).

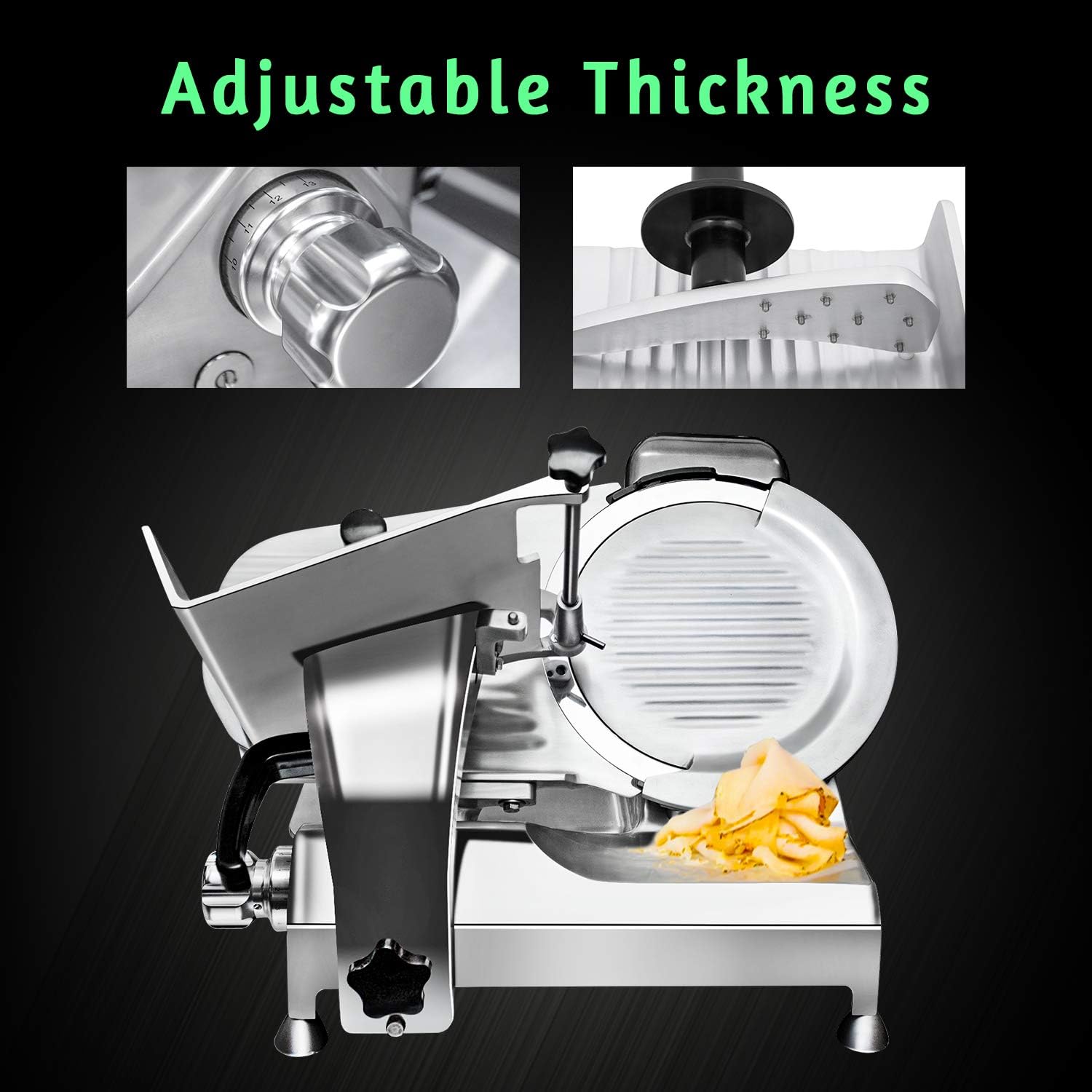

Figure 4.1: The thickness adjustment knob allows precise control over slice thickness, from very thin to up to 14mm.

3. Load Food: Place the food item onto the food carriage. Use the food pusher to secure it against the back plate and the blade guard.
4. Power On: Press the green "ON" button on the power switch to start the motor.

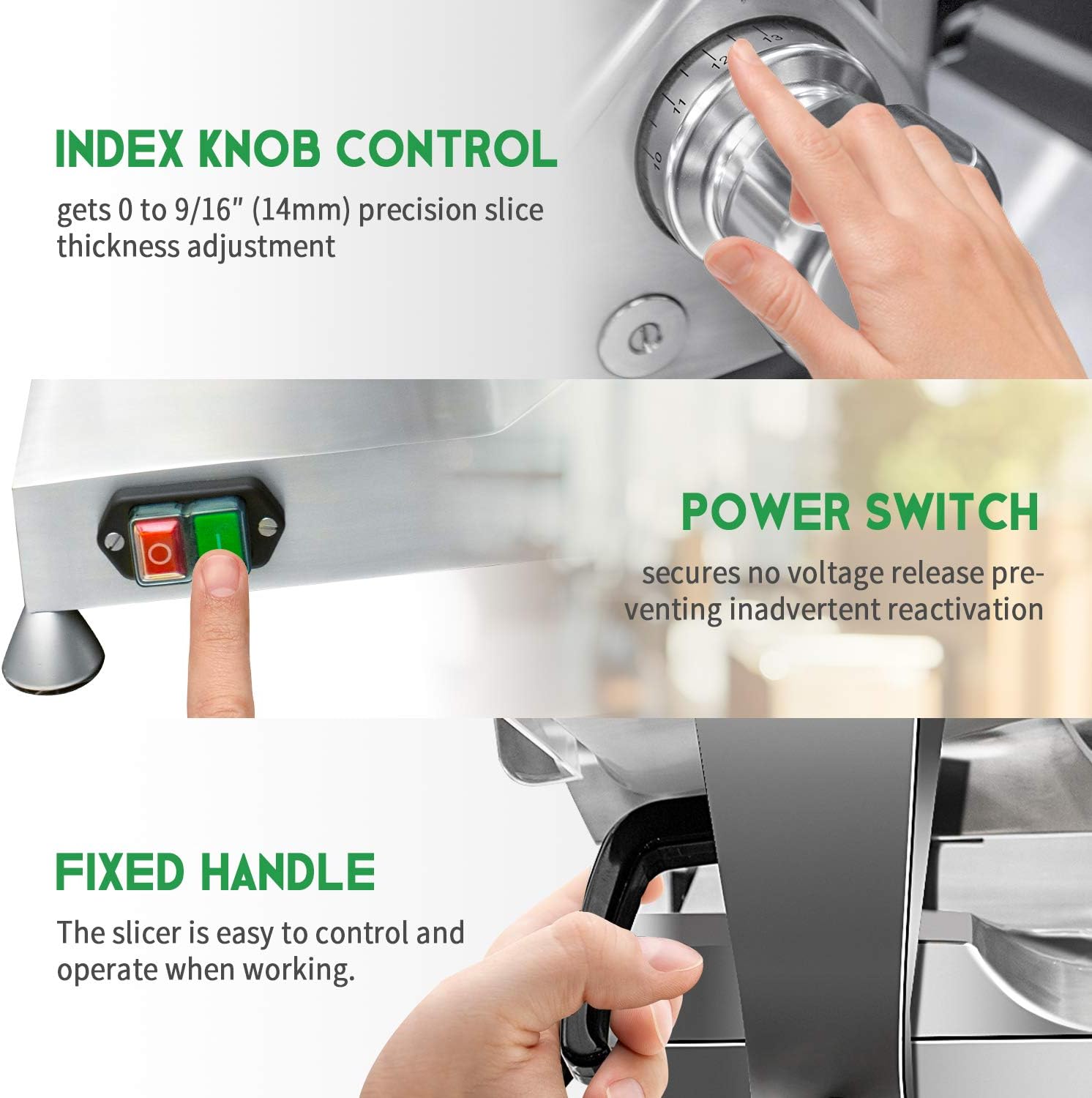

Figure 4.2: Details of the control panel, including the index knob for thickness, the power switch, and the fixed handle for safe operation.

5. Slicing: While the blade is rotating, gently push the food carriage back and forth, guiding the food item against the rotating blade using the food pusher. Apply even pressure.

Figure 4.3: The slicer in action, demonstrating the process of slicing food items like cheese.
6. Power Off: Once slicing is complete, press the red "OFF" button on the power switch. Wait for the blade to come to a complete stop before removing sliced food or cleaning.

The slicer is designed for versatile use, capable of slicing various items such as cheese, bread, and meat.

Figure 4.4: Examples of food items that can be sliced, including cheese, bread, and various meats.

5. Cleaning and Maintenance

Regular cleaning and maintenance are essential for the longevity and safe operation of your slicer. Always disconnect the power before cleaning.

1. Disconnect Power: Unplug the slicer from the electrical outlet.
2. Remove Food Residue: Carefully remove any large food particles from the blade and surrounding areas using a damp cloth or brush.
3. Disassemble for Cleaning: The slicer features removable parts for thorough cleaning. Consult the product overview for identifying removable components.
4. Blade Cleaning: The blade is extremely sharp. Wear cut-resistant gloves. Use a damp cloth with mild detergent to wipe both sides of the blade, moving from the center outwards. Do not immerse the motor housing in water.


Figure 5.1: Close-up view of the slicer blade, highlighting areas that require careful cleaning. Always use protective gloves.

5. Body Cleaning: Wipe down the stainless steel body and other surfaces with a damp cloth and mild detergent. Dry thoroughly with a clean cloth.
6. Lubrication: Periodically apply food-grade lubricant to moving parts as recommended by the manufacturer (if applicable, consult specific product documentation).
7. Storage: Store the slicer in a clean, dry place. Ensure the blade guard is in place.

6. Troubleshooting

This section addresses common issues you might encounter with your slicer.

7. Specifications

Detailed technical specifications for the KITMA KMSL-12HD Electric Deli Food Slicer.

Figure 7.1: Dimensional drawing and specifications table for the KMSL-12HD model.

8. Customer Support

For technical assistance, warranty information, or to order replacement parts, please contact KITMA customer service.

• Website: Visit the official KITMA website for support resources.
• Email: Refer to your purchase documentation for customer service email.
• Phone: Refer to your purchase documentation for customer service phone number.

Please have your model number (KMSL-12HD) and purchase date available when contacting support.
