1. Introduction
Thank you for choosing the Arebos 580W Concrete Vibrator. This manual provides essential information for the safe and efficient operation, maintenance, and care of your tool. Please read these instructions carefully before use and keep them for future reference.
This powerful 580W internal concrete vibrator is designed for compacting fresh concrete, effectively removing air bubbles to ensure a dense and strong finish. Its portable design and 1.5-meter flexible hose make it suitable for various construction and repair tasks.
2. Safety Instructions
Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury.
General Safety
- Work Area: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
- Electrical Safety: Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Personal Safety: Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use the tool while tired or under the influence of drugs, alcohol, or medication.
- Dress Properly: Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts.
- Use Personal Protective Equipment (PPE): Always wear eye protection, hearing protection, and safety footwear.
Tool Use and Care
- Secure the Workpiece: Always ensure the concrete formwork is stable and secure before vibrating.
- Avoid Overreaching: Maintain proper footing and balance at all times.
- Disconnect Power: Always disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
- Check for Damage: Before use, check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool’s operation. If damaged, have the tool repaired before use.
- Proper Storage: Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
3. Product Overview
The Arebos 580W Concrete Vibrator is designed for efficient concrete compaction. It features a robust motor, a flexible shaft, and a vibrating head to remove air from fresh concrete.
Image 3.1: Worker using the Arebos Concrete Vibrator on a concrete slab.
Key Components:
- Motor Unit: The main housing containing the 580W motor. It features a pistol-grip handle for comfortable and secure operation.
- Flexible Shaft: A 1.5-meter long, robust rubber hose (30mm diameter) with a 10mm flexible inner shaft, providing extended reach and maneuverability.
- Vibrating Head: A 35mm diameter cylindrical head at the end of the flexible shaft, responsible for generating vibrations within the concrete.
- Power Cable: A 1.8-meter cable for connecting to a 230V power source.
- Continuous Operation Button: Allows for sustained operation without continuously holding the trigger.
Image 3.2: The 580W copper motor unit, designed for efficient power delivery.
Image 3.3: The 1.5m flexible hose provides maximum reach and flexibility during use.
4. Specifications
| Feature | Specification |
|---|---|
| Power | 580W |
| Voltage | 230V |
| Frequency | 50Hz |
| Motor Speed | 4000 rpm |
| Vibrating Head Diameter | 35mm |
| Rubber Hose Diameter | 30mm |
| Flexible Shaft Diameter | 10mm |
| Hose Length | 1.5m |
| Cable Length | 1.8m |
| Weight | 7 kg |
| Material | Plastic (handle), Steel (vibrating head) |
| Model Number | AR-HE-BR58015 |

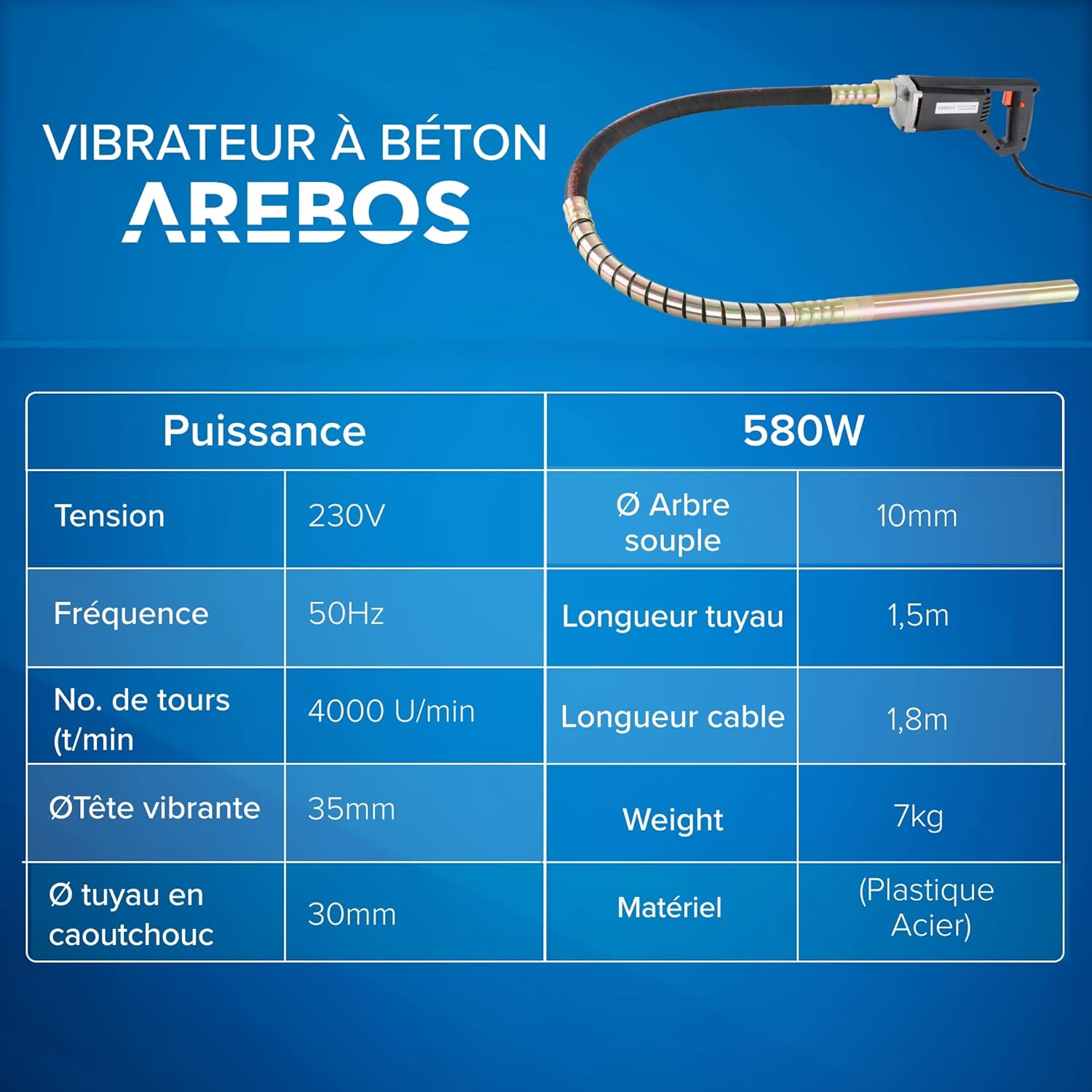

Image 4.1: Detailed specifications for the Arebos Concrete Vibrator.
5. Setup
Before operating the concrete vibrator, ensure all components are securely assembled.
- Unpack: Carefully remove all components from the packaging. Inspect for any shipping damage.
- Attach Flexible Shaft: Connect the flexible shaft to the motor unit. Ensure the connection is tight and secure to prevent detachment during operation.
- Power Connection: Plug the power cable into a suitable 230V mains socket. Ensure the power source matches the tool's voltage requirements.
- Pre-Operation Check: Before inserting into concrete, briefly turn on the vibrator to ensure it functions correctly and the vibrating head is active.
Image 5.1: The main unit with its pistol-grip handle and power connection.
6. Operating Instructions
Follow these steps for effective concrete compaction:
- Prepare Concrete: Ensure the concrete is freshly poured and has the correct consistency for vibration.
- Insert Vibrating Head: Immerse the vibrating head vertically into the fresh concrete. Do not push it against the rebar or formwork.
- Vibrate: Allow the vibrator to operate for 5-15 seconds in each position, or until air bubbles stop rising to the surface and the concrete appears smooth and glossy.
- Withdraw Slowly: Slowly withdraw the vibrating head from the concrete to allow the concrete to flow back into the void created by the head.
- Overlap: Move the vibrator to the next position, ensuring an overlap with the previously vibrated area to achieve uniform compaction.
- Avoid Over-Vibration: Do not over-vibrate the concrete, as this can lead to segregation of aggregates and a weaker concrete mix.
- Continuous Operation: For extended use, engage the continuous operation button on the pistol-grip handle.
Image 6.1: The powerful 4000 rpm motor effectively expels trapped air from the concrete, ensuring a perfect finish.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your concrete vibrator.
- Cleaning: After each use, clean the vibrating head and flexible shaft thoroughly to remove any concrete residue. Use a stiff brush and water. Do not use harsh chemicals that may damage the rubber hose.
- Inspection: Regularly inspect the power cable for cuts, fraying, or damage. Check the flexible shaft and vibrating head for wear or damage.
- Motor Unit: Keep the motor unit clean and free from dust and debris. Ensure ventilation openings are clear to prevent overheating.
- Storage: Store the tool in a dry, secure place, out of reach of children. Coil the flexible shaft neatly without kinks.
- Carbon Brushes: The motor uses carbon brushes. If the tool experiences reduced power or intermittent operation, the carbon brushes may need inspection or replacement. Refer to a qualified technician for this service.
8. Troubleshooting
Here are some common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not start | No power supply | Check power cable, plug, and power outlet. Ensure circuit breaker is not tripped. |
| Weak vibration | Damaged flexible shaft or vibrating head | Inspect shaft and head for damage. Replace if necessary. |
| Motor overheats | Blocked ventilation slots; continuous heavy use | Clean ventilation slots. Allow tool to cool down. Avoid prolonged heavy use without breaks. |
| Excessive sparking from motor | Worn carbon brushes | Have carbon brushes inspected and replaced by a qualified technician. |
If you encounter problems not listed here or if solutions do not resolve the issue, contact customer support.
9. Storage
When not in use, store the Arebos Concrete Vibrator in a safe and dry location.
- Ensure the tool is clean and dry before storage.
- Coil the power cable and flexible shaft neatly to prevent tangling or damage.
- Store the tool in its original packaging or a suitable storage container to protect it from dust and moisture.
- Keep out of reach of children and unauthorized personnel.
10. Disposal
Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities. Contact your local authority for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
11. Warranty and Support
Arebos products are manufactured with quality and durability in mind. For warranty information, please refer to the terms and conditions provided at the time of purchase or visit the official Arebos website. For technical support, spare parts, or service inquiries, please contact your retailer or the Arebos customer service department.
Please have your model number (AR-HE-BR58015) and purchase date ready when contacting support.
