Fortin EVO-ONE-TOY1 Remote Start Combo Instruction Manual

1. Introduction

The Fortin EVO-ONE-TOY1 is an all-in-one remote starter, security system, and data interface designed for select Toyota and Scion vehicles manufactured between 1995 and 2020, supporting Standard Key, G-Key, and H-Key systems. This system provides advanced features for vehicle convenience and security.

Key features include a built-in alarm system, standalone remote starter capabilities, OEM remote monitoring (e.g., 3x Lock remote start), digital remote starter functionality, and full immobilizer bypass. It is compatible with RF kits for extended range, convenience functions control, smartphone remote starter apps, and telematic devices. The system supports both automatic and manual transmission vehicles and features 5 programmable circuit-board relays, compatible with Dcryptor technology.

2. Package Contents

Verify that all components listed below are present in your package:

• 1x Fortin EVO-ONE Remote Starter and Alarm Interface Module
• 1x THAR-ONE-TOY1 Harness
• 1x Valet Switch with 36-inch Wires (2-Pin Plug)
• 1x Hood Pin Switch
• 1x Warning/Attention Sticker

Figure 2.1: Overview of the Fortin EVO-ONE-TOY1 Remote Start Combo kit components, including the EVO-ONE module, wiring harnesses, valet switch, and hood pin switch.

3. Setup and Installation

Installation of the Fortin EVO-ONE-TOY1 system requires advanced technical knowledge and should ideally be performed by a certified professional installer. Incorrect installation can lead to vehicle damage or system malfunction.

3.1. Pre-Installation Checks

1. Ensure the vehicle is compatible with the EVO-ONE-TOY1 system.
2. Disconnect the vehicle's negative battery terminal before beginning any wiring.
3. Verify all package contents are present and undamaged.

3.2. Module Overview

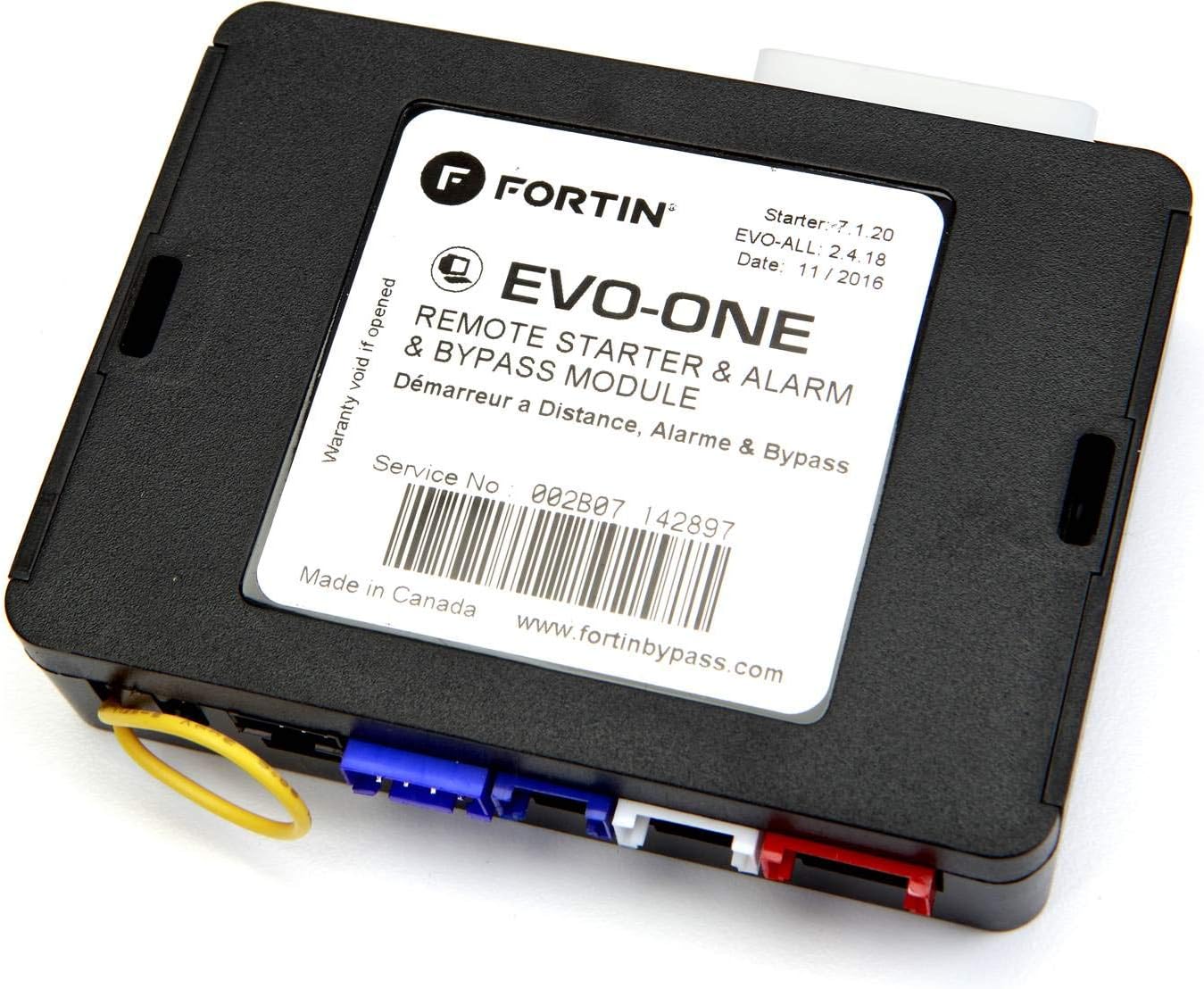

Figure 3.1: Top view of the Fortin EVO-ONE module, showing the product label with model information, serial number (e.g., 002B07 145086), and manufacturer website www.fortinbypass.com.

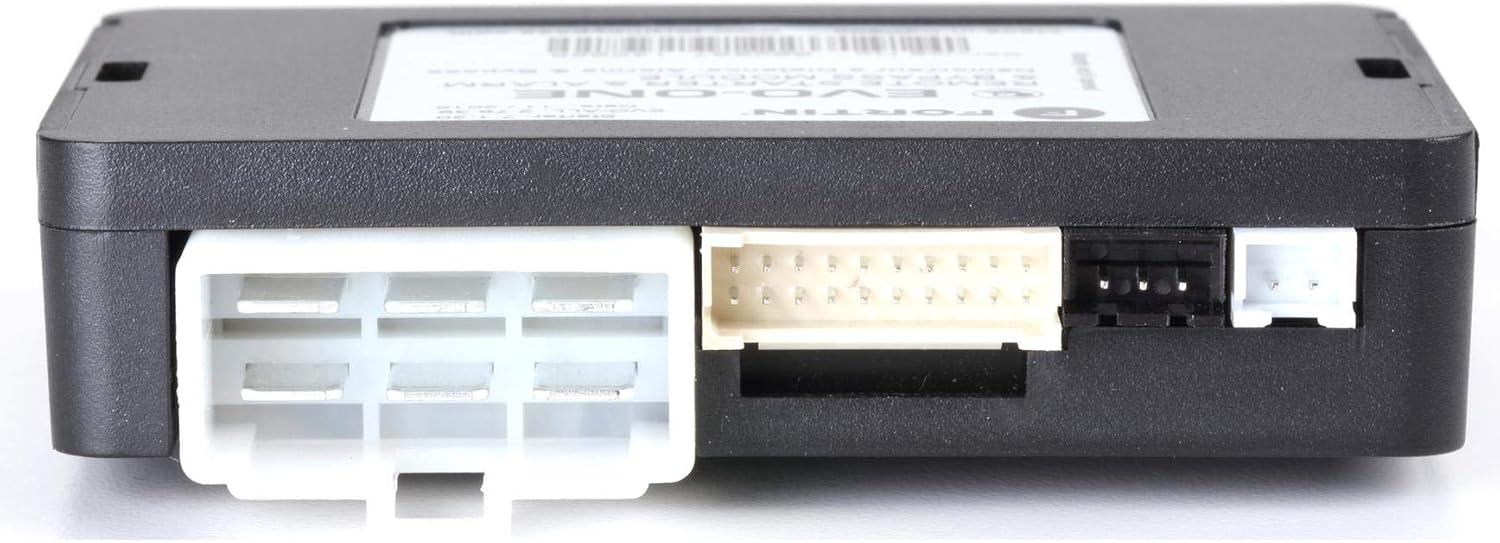

Figure 3.2: Side view of the Fortin EVO-ONE module, illustrating the various input and output connectors for integration with the vehicle's electrical system.

3.3. Wiring and Connections

Connect the THAR-ONE-TOY1 harness to the EVO-ONE module and then to the designated ports in your vehicle. Refer to the specific vehicle wiring diagram provided by Fortin for your exact make, model, and year. Ensure all connections are secure and properly insulated.

3.4. Valet Switch and Hood Pin Installation

• Install the valet switch in an easily accessible but discreet location within the vehicle's cabin. This switch is used for programming and entering/exiting valet mode.
• Mount the hood pin switch under the hood, ensuring it properly detects when the hood is open or closed. This is a critical safety feature for remote start systems.

3.5. Module Programming

After all physical connections are made, the EVO-ONE module must be programmed to your specific vehicle. This typically involves a series of steps using the valet switch and the vehicle's ignition. Consult the detailed programming guide available on the Fortin website (www.fortinbypass.com) for precise instructions for your vehicle.

4. Operating Instructions

4.1. Remote Starting the Vehicle

The EVO-ONE-TOY1 system supports remote starting using your vehicle's OEM remote or an optional RF kit.

• Using OEM Remote: Typically, press the 'Lock' button three times (3x Lock) or 'Lock-Unlock-Lock' on your factory remote within a short period to initiate the remote start sequence. The vehicle's parking lights will flash, and the engine will start.
• Using RF Kit (Optional): If an aftermarket RF kit is installed, refer to its specific instructions for remote start operation.
• Smartphone App (Optional): If a compatible telematic device and smartphone app are configured, follow the app's instructions to remotely start, lock, or unlock your vehicle.

4.2. Entering the Vehicle After Remote Start

Once the vehicle is remotely started, unlock the doors using your remote. Enter the vehicle, insert the key into the ignition, turn it to the 'ON' (not 'START') position, and then press the brake pedal. This will transfer control from the remote start system to the ignition key, allowing you to drive.

4.3. Valet Mode

Valet mode disables the remote start and alarm features, allowing the vehicle to be serviced without activating these systems. To enter/exit valet mode, typically turn the ignition to the 'ON' position, then press and hold the valet switch for a few seconds until the system indicates entry/exit (e.g., LED flashes, parking lights flash).

5. Maintenance

The Fortin EVO-ONE-TOY1 system is designed for reliable operation with minimal maintenance. However, consider the following:

• Keep the EVO-ONE module and its connections dry and free from excessive dust or debris.
• Periodically check all wiring connections to ensure they remain secure.
• If you experience any issues, avoid attempting complex repairs yourself. Consult a professional installer or Fortin technical support.

6. Troubleshooting

If you encounter issues with your Fortin EVO-ONE-TOY1 system, review the following common troubleshooting steps:

• Remote Start Not Engaging: Ensure the vehicle doors are closed, the hood is closed (hood pin switch activated), and the parking brake is engaged (if applicable for manual transmission). Check if the vehicle is in valet mode.
• No Response from Remote: Check the battery in your OEM remote or RF kit remote. Ensure the vehicle's battery is charged.
• System Malfunction: Try resetting the system by disconnecting the vehicle's battery for a few minutes, then reconnecting it. If issues persist, contact Fortin technical support or a professional installer.

For detailed troubleshooting guides and FAQs, visit the official Fortin website.

7. Specifications

8. Warranty and Support

Fortin products are covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your product or visit the official Fortin website.

For technical support, installation assistance, or warranty claims, please contact Fortin directly:

• Manufacturer: Fortin
• Website: www.fortinbypass.com
• Service Number (example): 002B07 145086 (found on module label)

It is recommended to register your product on the Fortin website to receive updates and facilitate support.
