BarberPub Heavy Duty Recline Barber Chair Instruction Manual

Product Overview

This BarberPub Heavy Duty Recline Barber Chair is designed for professional use in barbershops, beauty salons, and spa environments. It features a robust construction with a high-density sponge and textured synthetic leather for client comfort and durability. The chair offers multiple adjustment options for optimal client positioning and stylist convenience.

Key Features:

• Durable and sturdy hydraulic pump with 450lbs loading capacity.
• 27" Chrome Base for enhanced stability.
• Two levers for convenient adjustment of the lying angle (recline up to 139°).
• Fully adjustable headrest with 7 positions, extending up to 8.7".
• Bottom lever for height adjustment, maximum 6".
• 360° Swivel with locking mechanism for versatility.
• High-quality textured satin PU leather: waterproof, anti-fouling, and easy to clean.
• Removable headrest and footrest.

Safety Information

Please read and understand all safety warnings before assembly and use.

• Ensure the chair is used by individuals within the 450lbs weight limit.
• Be cautious when adjusting the backrest and headrest to prevent injury.
• Assemble and handle the steel frame with care to avoid pinching or cuts.
• Always lower the chair completely before a client exits to ensure stability.
• Keep small parts away from children during assembly.

Assembly Instructions

The BarberPub Heavy Duty Recline Barber Chair requires self-assembly and comes in two packages. Some screws may be pre-installed. It is recommended to have two people for assembly.

Before You Begin:

• Unpack all components carefully and verify against the parts list in the included manual.
• Inspect all parts for any damage. If any parts are damaged or missing, contact customer support immediately.
• Clear a spacious area for assembly.

Assembly Steps:

1. Attach the Hydraulic Pump to the Base: Secure the hydraulic pump into the center of the 27" chrome base. Ensure it is firmly seated.
2. Assemble the Footrest: Attach the footrest to the main chair frame using the provided hardware. Ensure all connections are tight.
3. Connect the Seat and Backrest: Secure the seat cushion to the main frame. Then, attach the backrest to the seat assembly. Pay attention to alignment for proper reclining function.
4. Install Armrests: Attach the elegant arc-shaped armrests to the sides of the chair.
5. Attach Headrest: Insert the adjustable headrest into its slot at the top of the backrest.
6. Final Check: Once assembled, test all functions (height adjustment, recline, swivel) to ensure smooth operation and stability.

Figure 1: Chair dimensions and key components for assembly.

Note: Some customer feedback indicates potential issues with pre-drilled holes not aligning perfectly or minor cosmetic imperfections upon arrival. Please verify all parts before proceeding with assembly. If you encounter such issues, contact customer support for assistance.

Operating Instructions

Height Adjustment:

To adjust the chair's height, use the bottom lever located near the hydraulic pump. Pressing the lever down will lower the chair, while pumping it will raise the chair. The chair can be adjusted up to 6 inches in height.

Recline Function:

The chair features two levers on both sides for adjusting the recline angle. Pulling these levers allows the backrest to recline up to 139°. Release the levers to lock the backrest in the desired position. This dual-lever design offers flexibility for stylists working from either side of the chair.

Figure 2: Dual side levers for recline control.

Figure 3: Illustration of chair recline up to 139° and 360° swivel.

Headrest Adjustment:

The headrest is fully adjustable with 7 different gear positions, allowing it to extend up to 8.7 inches. Adjust the headrest by pulling it up or pushing it down to the desired height. It will lock into place at each gear.

Figure 4: Adjustable headrest with multiple locking positions.

360° Swivel:

The chair can swivel 360 degrees. A locking mechanism is integrated to secure the chair in a fixed position when needed. To unlock, slightly depress the hydraulic pump pedal until the chair can rotate freely.

Footrest:

The footrest provides support for the client and can be easily removed if necessary. It is designed to be sturdy and comfortable.

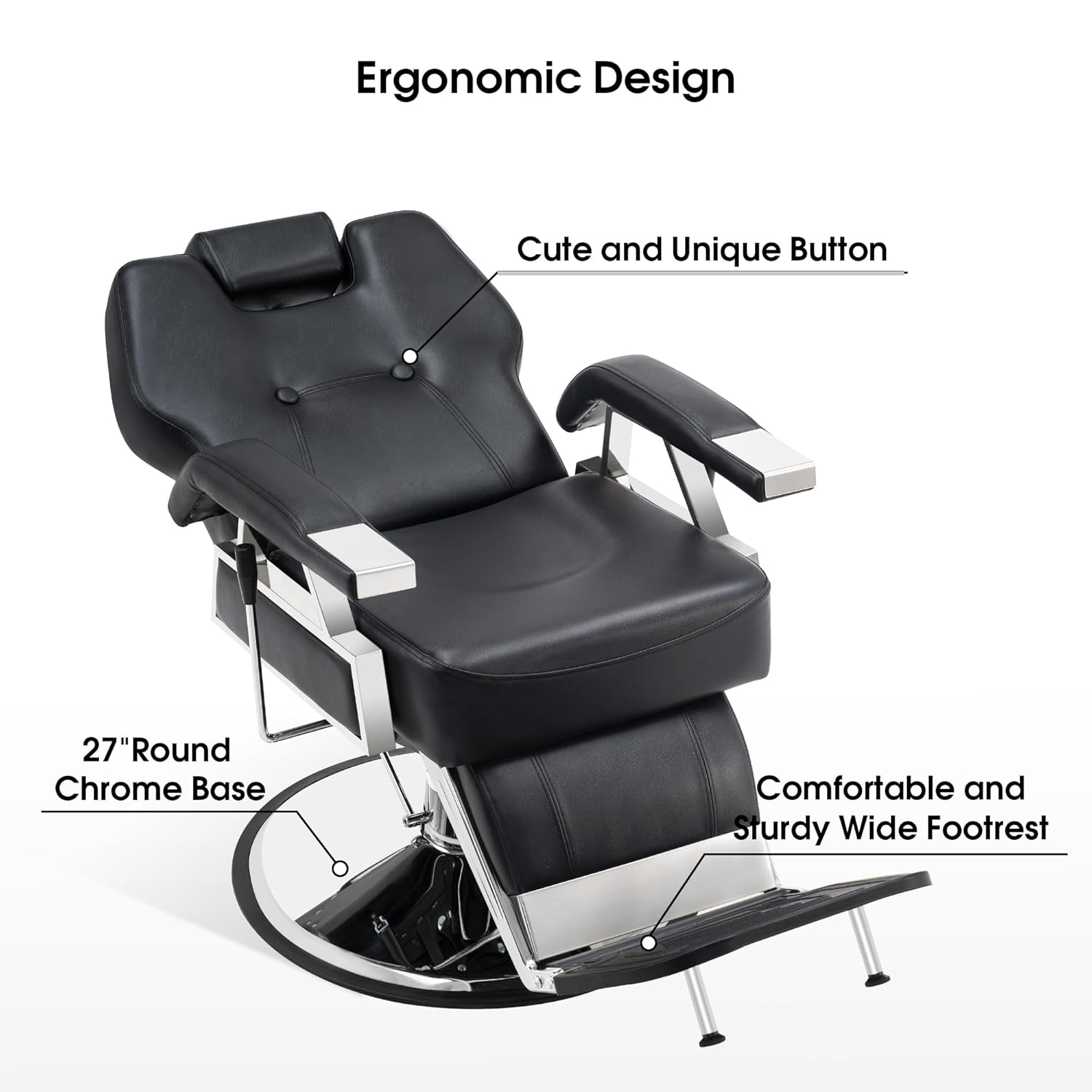

Figure 5: Sturdy wide footrest and 27" round chrome base.

Official Product Videos:

Maintenance

Cleaning:

The chair's high-quality textured satin PU leather is waterproof and anti-fouling, making it easy to clean. Wipe down the leather surfaces regularly with a damp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners that could damage the material. For chrome parts, use a soft cloth and a non-abrasive chrome cleaner to maintain their shine.

General Care:

• Periodically check all screws and bolts to ensure they are tight. Tighten any loose fasteners to maintain stability and prevent wobbling.
• Lubricate moving parts of the hydraulic system and recline mechanism annually with a silicone-based lubricant to ensure smooth operation.
• Avoid exposing the chair to direct sunlight or extreme temperatures for prolonged periods, as this can cause the leather to crack or fade.

Troubleshooting

Common Issues and Solutions:

• Chair is wobbly after assembly:

  Ensure all bolts and screws are securely tightened, especially those connecting the seat cushion to the steel frame and the base to the hydraulic pump. Re-check assembly steps to confirm all components are correctly installed.

• Hydraulic pump not raising/lowering smoothly or chair is stuck:

  Check if the hydraulic fluid level is adequate (if accessible and serviceable). Ensure the hydraulic pump pedal is fully engaged or disengaged as required. If the chair is stuck in a locked position, try slightly depressing the pedal to release the locking mechanism. Lubricate the hydraulic system if necessary. If issues persist, the hydraulic pump may need professional inspection or replacement.

• Pre-drilled holes do not align during assembly:

  While rare, manufacturing variances can occur. If holes are slightly misaligned, try gently wiggling components to encourage alignment. Do not force screws, as this can strip threads or damage parts. If misalignment is significant, contact customer support for replacement parts.
• Cosmetic damage (scratches, dents, bent parts) upon arrival:

  Inspect all parts immediately upon delivery. Document any damage with photos and contact the seller or manufacturer's customer support within the specified return/exchange period (e.g., 30 days for returns). Provide clear evidence of the damage for prompt resolution.

For any issues not covered here, please refer to the detailed troubleshooting section in your physical manual or contact BarberPub customer support.

Specifications

Warranty and Support

BarberPub is committed to providing quality products. For specific warranty information, please refer to the documentation included with your purchase or visit the official BarberPub website.

Returns:

This product is eligible for 30-day easy returns. Please retain all original packaging and documentation for any return requests.

Customer Support:

For technical assistance, missing parts, or any other inquiries, please contact BarberPub customer support. Contact details can typically be found on the product packaging or the brand's official online store.
