1. Introduction and Overview
Thank you for choosing the Edesa EOE-6020 X Multifunction Electric Oven. This manual provides essential information for the safe and efficient use of your appliance. Please read it thoroughly before installation and operation.
- Ample Capacity: This independent multifunction oven offers a generous 70-liter capacity, suitable for preparing meals for families or larger gatherings.
- Elegant and Functional Design: Features a black glass door complemented by a stainless steel control panel, adding a modern aesthetic to your kitchen.
- Versatile Cooking: Explore 6 multifunctional cooking programs, allowing for diverse culinary techniques and recipes.
- Easy Cleaning: Equipped with an “ETC” easy-clean enamel and a manual Easy-clean system, simplifying oven maintenance.
- Practicality and Safety: Includes telescopic side guides for safe and convenient access to dishes, and a deep 50 mm enameled tray for increased cooking capacity.
Front view of the Edesa EOE-6020 X electric oven, showcasing its black glass door and stainless steel control panel.
Diagram illustrating key features of the Edesa EOE-6020 X oven, including its 70-liter capacity, black glass door, 6 cooking programs, Easy-Clean enamel, tangential ventilation, telescopic side guides, and enameled tray.
2. Safety Information
Always adhere to basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
- Do not use appliance for other than intended use.
3. Setup and Installation
Proper installation is crucial for the oven's performance and safety. It should be installed by a qualified technician.
3.1 Unpacking
Carefully remove the oven from its packaging. Inspect for any damage during transit. Keep packaging materials away from children.
3.2 Placement
Ensure the oven is placed in a suitable cabinet opening with adequate ventilation. Refer to the installation diagram provided with your purchase for precise dimensions and clearances. The oven is designed for built-in installation.
3.3 Electrical Connection
Connect the oven to a properly grounded electrical outlet. The electrical supply must match the voltage and frequency specified on the appliance's rating plate. Do not use extension cords or adapters.
3.4 First Use
Before first use, clean the interior of the oven with a damp cloth. It is recommended to run the oven empty at maximum temperature for approximately 30 minutes to burn off any manufacturing residues and odors. Ensure the kitchen is well-ventilated during this process.

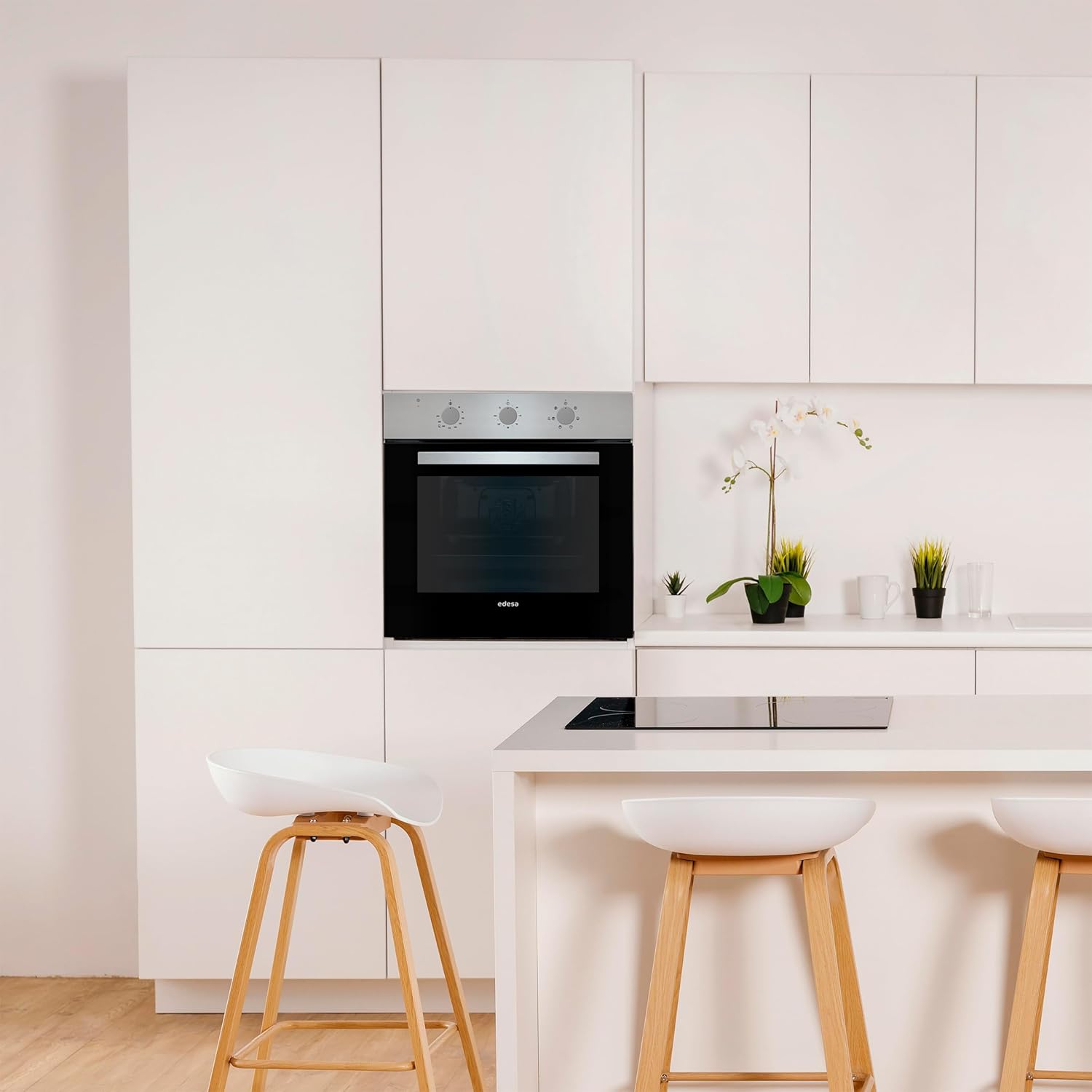

The Edesa EOE-6020 X oven seamlessly integrated into a modern kitchen cabinet, highlighting its sleek design.
4. Operating Instructions
The Edesa EOE-6020 X oven features intuitive controls for temperature and cooking program selection.
4.1 Control Panel Overview
The control panel consists of two main rotary dials and a digital display (if applicable to your specific model variant).
- Left Dial: Temperature selection (50°C to 250°C).
- Right Dial: Cooking program selection (6 multifunction programs).
Close-up of the Edesa EOE-6020 X oven's control panel, showing the temperature and function selector dials.
4.2 Setting Temperature
- Turn the left dial to select the desired cooking temperature, ranging from 50°C to 250°C.
- The oven will begin to preheat. An indicator light will typically show when the desired temperature is reached.
4.3 Selecting Cooking Programs
The oven offers 6 multifunction cooking programs to suit various dishes:
- Turn the right dial to select one of the 6 available cooking programs. Each program is designed for optimal results with specific food types.
- Consult your recipe or cooking guide for recommended program settings for different dishes.
4.4 Using the Timer (if applicable)
If your model includes a timer, use the digital controls to set the cooking duration or a delayed start. Refer to the specific timer instructions in your full manual for detailed operation.
5. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Edesa oven.
5.1 Easy-Clean System
The oven features an Easy-Clean enamel and a manual Easy-clean system for simplified cleaning. This system typically involves using steam to loosen baked-on food residues.
- Ensure the oven is cool before starting the cleaning process.
- Pour a small amount of water (e.g., 200-300 ml) into the bottom cavity of the oven.
- Select the Easy-Clean or steam-assisted cleaning function (refer to your control panel for the specific symbol or setting).
- Run the program for the recommended duration (usually 15-30 minutes) at a low temperature (e.g., 90°C).
- Once the program is complete and the oven has cooled, wipe away the loosened dirt with a soft cloth or sponge.
5.2 General Cleaning
- Exterior: Clean the exterior surfaces with a soft cloth and mild detergent. Avoid abrasive cleaners or scouring pads.
- Interior: For stubborn stains not removed by the Easy-Clean system, use a non-abrasive oven cleaner, following the product's instructions. Ensure all cleaner residue is removed before using the oven again.
- Accessories: The enameled tray and chrome grid can be washed with warm soapy water or in a dishwasher.
- Light Bulb: If the oven light needs replacement, ensure the oven is unplugged and cool. Consult your full manual for specific bulb type and replacement instructions.
6. Troubleshooting
Before contacting customer service, please check the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven does not heat up. | No power supply; incorrect settings. | Check power connection and circuit breaker. Ensure temperature and program dials are correctly set. |
| Food is not cooking evenly. | Incorrect rack position; overloaded oven; door not fully closed. | Use the recommended rack position. Avoid overloading. Ensure oven door is securely closed. |
| Oven light is not working. | Light bulb is faulty. | Replace the oven light bulb (refer to maintenance section or full manual). |
| Excessive smoke during cooking. | Food spillage; excessive fat. | Clean the oven interior thoroughly. Reduce fat in cooking. |
7. Specifications
| Feature | Specification |
|---|---|
| Brand | EDESA |
| Model Number | EOE6020X |
| Color | Black |
| Product Dimensions | 50 x 50 x 28 cm; 36.5 kg |
| Capacity | 70 Liters |
| Power | 1100 Watts |
| Material | Stainless Steel |
| Energy Efficiency | A+++ to D (Rated A) |
| Heating Method | Convection |
| Installation Type | Integrated |
| Special Feature | Large Capacity |
8. Warranty and Support
Your Edesa EOE-6020 X oven is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.
For technical assistance, spare parts, or any inquiries, please contact Edesa customer support through their official website or the contact information provided in your product documentation.
Keep your proof of purchase for warranty claims.
