Introduction
The Fire-Maple Blade 2 is a lightweight and portable titanium gas stove designed for backpacking and camping. It features a pre-heat tube system, making it highly efficient and versatile for various weather conditions, including cold temperatures. Its compact design allows for easy storage within a 1-liter pot, making it ideal for solo adventures or group cooking.
This manual provides detailed instructions for the safe and effective use, setup, operation, and maintenance of your Fire-Maple Blade 2 stove.
Safety Information
Always read and understand all instructions before operating the stove. Failure to follow these instructions could result in fire, explosion, serious injury, or death.
- Use outdoors only in a well-ventilated area.
- Keep away from flammable materials.
- Do not leave the operating stove unattended.
- Ensure the stove is stable on a flat, non-combustible surface before use.
- Allow the stove to cool completely before handling or storing.
- Use only compatible fuel canisters (standard backpacking screw-top gas canister).
- If using a 1LB Propane tank, a suitable adapter is required.
- Check for gas leaks before each use.
Package Contents
- Fire-Maple Blade 2 Titanium Backpacking Stove (FMS-117H)
- Padded mesh storage bag
- User Manual (this document)
Image: The Fire-Maple Blade 2 stove connected to a gas canister, showcasing its compact design and hose connection.
Setup
- Unpack the Stove: Carefully remove the stove from its padded mesh bag.
Image: The Fire-Maple Blade 2 stove folded and stored inside its protective mesh bag.
- Unfold the Legs: Extend the three support legs until they lock into place, ensuring a stable base.

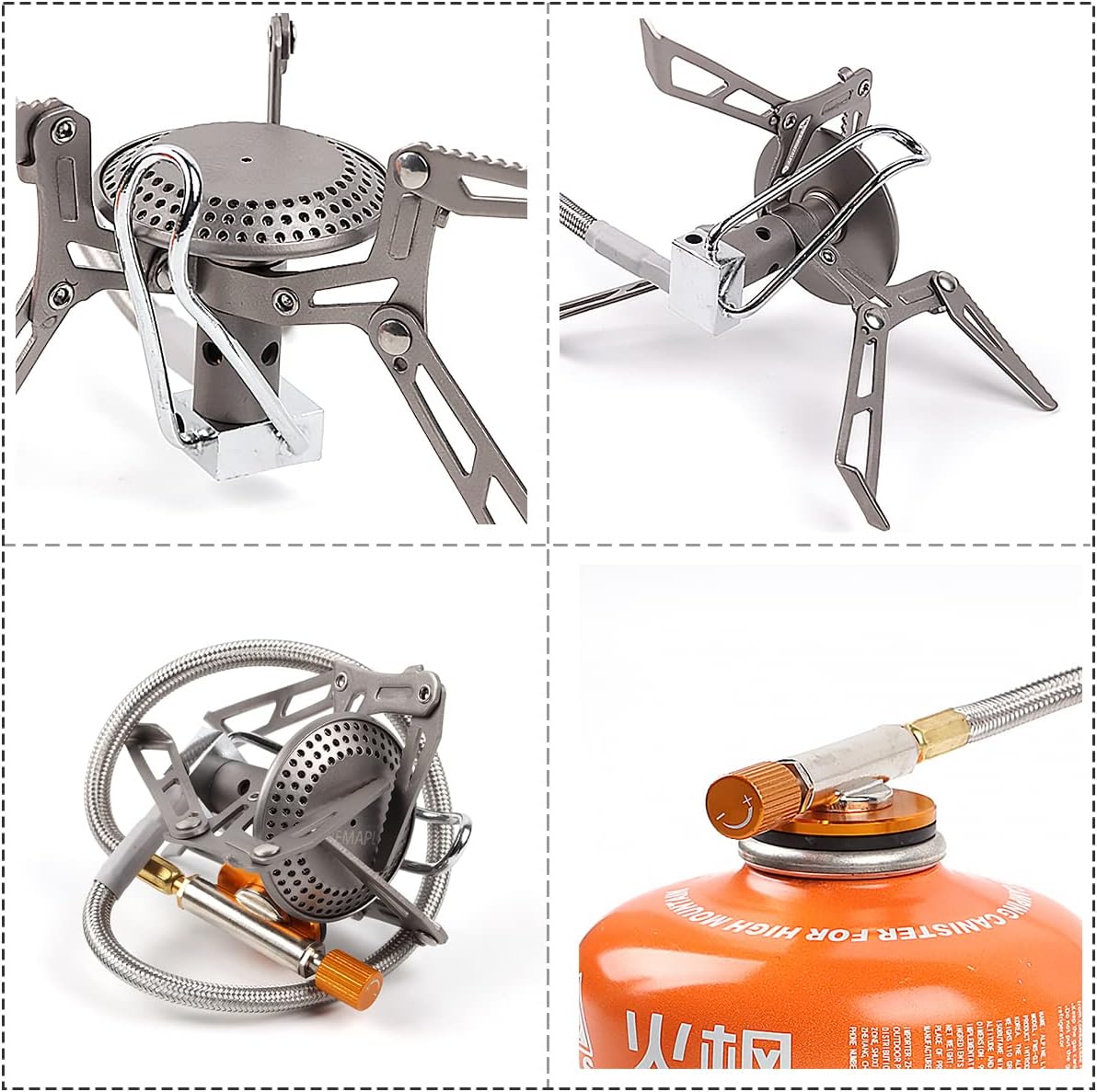

Image: A collage showing different angles of the stove, including its folded and unfolded configurations, highlighting the sturdy leg design.
- Connect Fuel Canister: Screw the stove's connector onto a standard backpacking screw-top gas canister. Ensure a tight, leak-free connection.
Image: The Fire-Maple Blade 2 stove fully set up and connected to a gas canister, ready for operation.
Operating Instructions
Standard Operation (Canister Upright)
- Positioning: Place the stove on a stable, level surface, away from any flammable materials. Ensure the fuel canister is upright.
- Open Valve: Slowly turn the control knob on the stove's hose counter-clockwise to allow a small amount of gas to flow.
- Ignite: Use a lighter or match to ignite the gas at the burner head. Adjust the flame to the desired intensity using the control knob.
Image: The Fire-Maple Blade 2 stove in operation, showing a stable blue flame, indicating efficient combustion.
- Cooking: Place your pot or pan on the pot supports. The wide burner design helps avoid hot spots.
Image: The stove supporting a cooking pot, demonstrating its stability and suitability for various cookware sizes.
- Turn Off: When finished, turn the control knob clockwise until the flame extinguishes completely.
Cold Weather Operation (Inverted Canister with Pre-heat Tube)
The Blade 2 is equipped with a pre-heat tube, allowing for inverted canister operation to improve performance in cold conditions (below -10°C / 14°F).
- Initial Ignition (Upright): Begin by operating the stove with the canister upright for about 30-60 seconds to allow the pre-heat tube to warm up.
- Invert Canister: Carefully invert the fuel canister. This allows liquid fuel to enter the pre-heat tube.
Image: A detailed diagram illustrating the pre-heat tube mechanism. Cold gas enters, is heated by the flame, and then vaporizes before reaching the burner, ensuring efficient operation in cold weather.
Image: A visual explanation of how inverting the gas cartridge increases the mixture of gas and liquid flow to the pre-heat tube, leading to stronger burner flame after vaporization.
- Vaporization: The pre-heat tube, warmed by the flame, will vaporize the liquid fuel before it reaches the burner head, ensuring consistent performance.
- Adjust Flame: Adjust the flame as needed using the control knob.
Product Demonstration Video
Video: A demonstration of the Fire-Maple Blade 2 Backpacking Stove, highlighting its features and use in outdoor settings, including the pre-heat tube functionality.
Maintenance
- Cleaning: After each use, ensure the stove is cool. Wipe down the stove with a damp cloth to remove any food residue or soot. Do not use abrasive cleaners.
- Storage: Store the stove in its padded mesh bag in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure the fuel canister is disconnected and stored separately.
Image: The compact Fire-Maple Blade 2 stove fitting neatly inside a cooking pot for efficient storage during travel.
- Inspection: Periodically inspect the hose, connections, and burner head for any signs of wear, damage, or blockages. Replace parts if necessary.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Stove won't light or has a weak flame. |
|
|
| Flame is inconsistent or flickers. |
|
|
| Gas smell detected. |
|
|
Specifications
| Feature | Detail |
|---|---|
| Brand | Fire-Maple |
| Model Number | FMS-117H |
| Fuel Type | Liquefied Petroleum Gas |
| Material | Titanium |
| Product Dimensions (L x W x H) | 5.71" x 5.71" x 2.95" |
| Item Weight | 135 Grams (4.76 oz) |
| Maximum Energy Output | 2800 Watts (9500 BTU) |
| UPC | 700828782941 |
Image: Technical drawing showing the dimensions of the Fire-Maple Blade 2 stove in millimeters.
Warranty and Support
For warranty information or technical support, please contact Fire-Maple customer service. Refer to the product packaging or the official Fire-Maple website for the most up-to-date contact details.
You can also visit the official Fire-Maple store on Amazon for more product information and support: Fire-Maple Store
