Ultrasport F-Bike 400BS Folding Exercise Bike User Manual

Introduction

Thank you for choosing the Ultrasport F-Bike 400BS Folding Exercise Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read it thoroughly before first use and keep it for future reference.

Figure 1: Ultrasport F-Bike 400BS Folding Exercise Bike, fully assembled.

Important Safety Instructions

To reduce the risk of serious injury, read all instructions before using the Ultrasport F-Bike 400BS. Keep this manual for future reference.

• Consult your physician before starting any exercise program.
• Maximum user weight: 100 kg (220 lbs).
• Minimum user height: 160 cm (5 ft 3 in).
• Place the exercise bike on a level, stable surface. Ensure adequate space around the equipment.
• Keep children and pets away from the equipment during use.
• Wear appropriate exercise clothing and footwear.
• Inspect the bike for loose or worn parts before each use. Do not use if damaged.
• Do not overexert yourself. Stop exercising immediately if you feel faint, dizzy, or experience pain.
• This product is designed for indoor use only.

Assembly Instructions

The Ultrasport F-Bike 400BS is designed for quick and easy assembly. A tool kit is included. Follow these steps carefully:

1. Unpack Components: Carefully remove all parts from the packaging. Verify that all components listed in the parts list (refer to included manual) are present.
2. Stabilizer Installation: Attach the front and rear stabilizer bars to the main frame using the provided bolts and nuts. Ensure they are securely tightened.
3. Pedal Attachment: Identify the left (L) and right (R) pedals. Attach them to the corresponding crank arms. Note that the left pedal typically tightens counter-clockwise.
4. Seat and Backrest Assembly: Mount the seat and backrest onto the seat post. Adjust the seat height to a comfortable position (see "Adjusting Seat Height" in Operation section).
5. Handlebar and Console Installation: Secure the handlebar post to the main frame. Attach the LCD console to the handlebar post and connect any necessary sensor cables.
6. Resistance Bands: Attach the resistance bands for arm and leg training to the designated points on the frame.
7. Final Check: Before first use, double-check all bolts and connections to ensure they are tight and secure.

Figure 2: Key components and adjustable features of the F-Bike 400BS.

Operating Instructions

1. Adjusting Seat Height and Angle

The F-Bike 400BS features a 2-step tilt adjustment for the seat and an adjustable seat height to accommodate various body sizes. Loosen the adjustment knob, slide the seat post to the desired height, and re-tighten the knob securely. The seat angle can also be adjusted for optimal comfort.

2. Using the LCD Display

The LCD display provides real-time feedback on your workout. It is battery-powered (2 AAA batteries included). The display typically shows the following metrics:

Figure 3: LCD Display functions.

• TIME: Duration of your workout.
• SPEED: Current cycling speed.
• SCAN: Automatically cycles through all metrics.
• DISTANCE: Distance covered during the workout.
• CALORIES: Estimated calories burned.
• PULSE: Heart rate detected by the hand pulse sensors on the handlebars.

Press the red button on the console to cycle through display modes or reset values (refer to the detailed console instructions in the included manual for specific functions).

3. Adjusting Resistance Levels

The F-Bike 400BS features 8 manually adjustable resistance levels. Turn the resistance knob located below the handlebars clockwise to increase resistance and counter-clockwise to decrease it. Start with a lower resistance and gradually increase as your fitness improves.

4. Using Resistance Bands for Arm and Leg Training

The integrated pull strap system allows for targeted arm and leg exercises. The tension of these straps is adjustable.

Figure 4: Examples of arm and leg training with resistance bands.

• Arm Training: Sit on the bike and hold the handles of the resistance bands. Perform bicep curls, tricep extensions, or chest presses.
• Leg Training: While seated or standing next to the bike, attach the ankle straps (if provided) or loop the bands around your feet. Perform leg extensions or abductions.

5. Folding and Storage

The F-Bike 400BS is a folding exercise bike, designed for easy storage. To fold, locate the folding mechanism (usually a pin or knob near the main hinge) and release it. Carefully fold the bike until it locks into its compact position. Use the transport wheels for easy relocation.

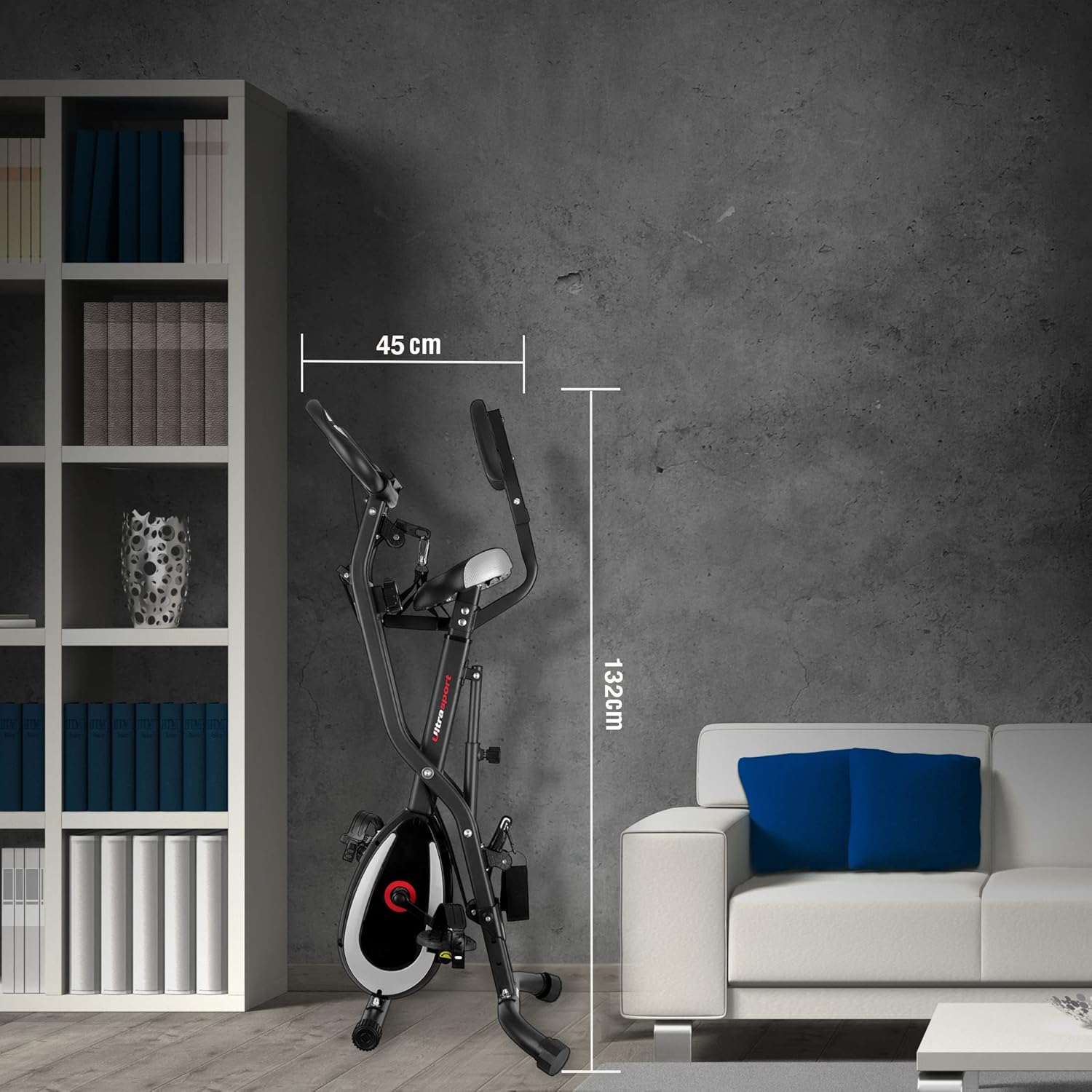

Figure 5: Folded dimensions for storage.

Maintenance

Regular maintenance ensures the longevity and safe operation of your Ultrasport F-Bike 400BS.

• Cleaning: Wipe down the bike with a damp cloth after each use to remove sweat and dust. Do not use abrasive cleaners.
• Lubrication: Periodically check moving parts for smooth operation. Lubricate as necessary with a silicone-based lubricant (avoid oil-based lubricants).
• Tightness Check: Regularly inspect all bolts, nuts, and connections for tightness. Re-tighten any loose fasteners.
• Belt System: The belt drive system is designed to be quiet and low-maintenance. Ensure no foreign objects interfere with the belt.
• Storage: Store the bike in a dry, cool place away from direct sunlight and extreme temperatures.

Figure 6: The 2kg aluminum flywheel and quiet belt drive system.

Troubleshooting

Product Specifications

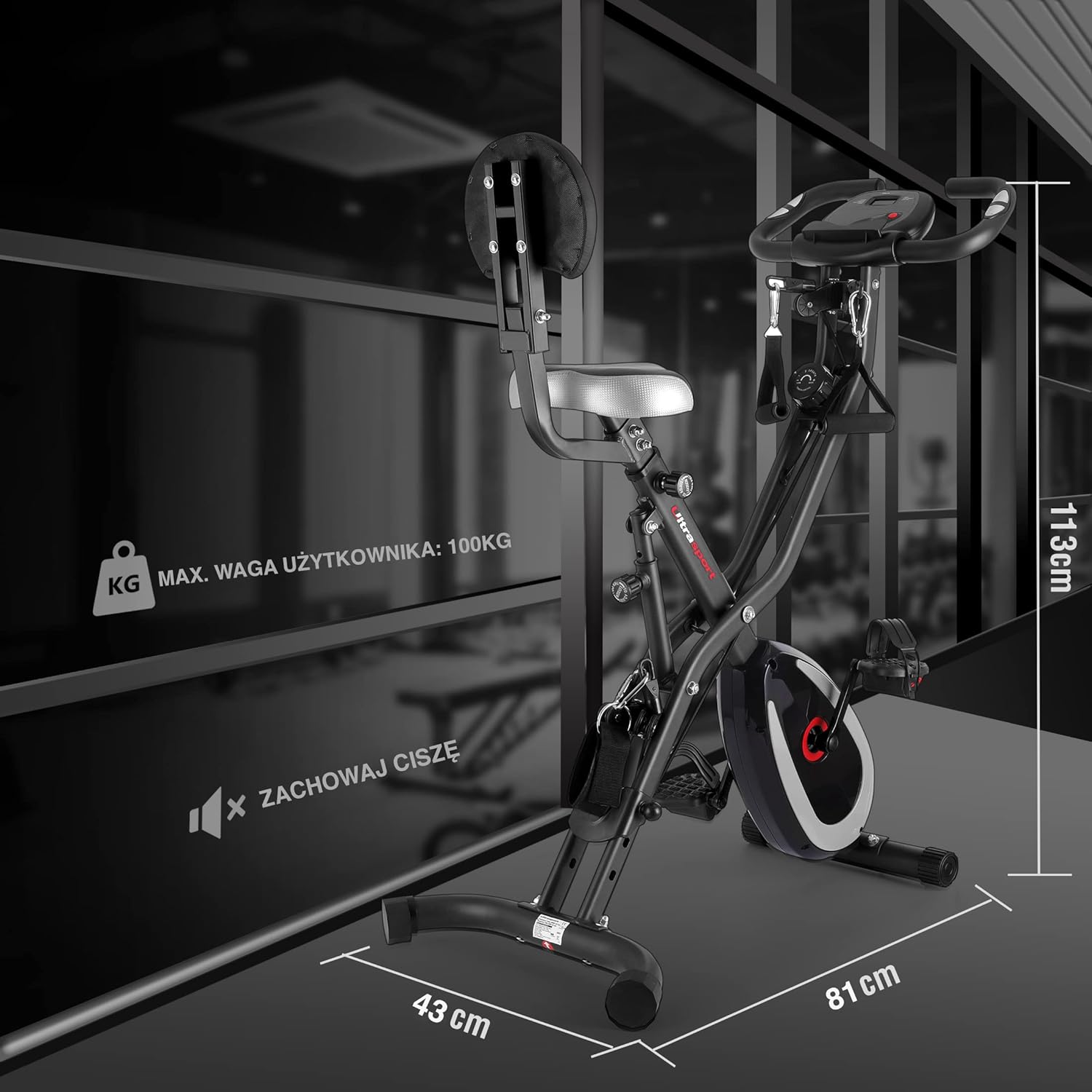

Figure 7: Assembled dimensions and weight capacity.

Warranty and Support

Ultrasport products are manufactured with quality and durability in mind. For specific warranty information, please refer to the warranty card included with your product or visit the official Ultrasport website. Keep your proof of purchase for warranty claims.

Customer Support

If you have any questions, require assistance with assembly, operation, or troubleshooting, please contact Ultrasport customer support. Contact details can typically be found on the product packaging, the included manual, or the official Ultrasport website.

Manufacturer: Santos Vertriebs

Model Number: 331100000330

ASIN: B07KRT1C5V
