1. Introduction
This manual provides essential information for the safe and effective operation of your U`King ZQ02015 Moving Head LED Stage Light. Please read these instructions thoroughly before use and retain for future reference.
2. Safety Information
- Ensure the power supply voltage matches the product's requirements.
- Always connect to a grounded power outlet.
- Do not expose the device to rain or moisture.
- Ensure adequate ventilation around the unit to prevent overheating.
- Avoid direct eye exposure to the light source.
- Disconnect power before cleaning or servicing.
- This product is for indoor use only.
3. Product Features
- Colorful LED Circle Light Strip: Features an added LED circle light strip for enhanced visual effects, which can be turned off if not desired.
- High-Quality Illumination: Utilizes 50W high-quality lamp beads for bright and clear light output.
- Versatile Gobo and Color Options: Includes 8 different patterns (gobos) and 8 single colors. Supports half-color and mixed-color effects.
- Multiple Control Modes: Offers Automatic, Voice Control (Sound Activated), DMX 512, and Master-Slave modes.
- Adjustable Dimming and Speed: Built-in dimming and changing speed functions are adjustable for customized lighting.
- Wide Coverage: Provides a 540° horizontal scanning angle and 270° vertical scanning angle for broad area coverage.
- Durable Construction: Constructed with a superior ABS shell and aluminum alloy base, featuring a built-in cooling fan for long-term, smooth operation.
4. Package Contents
Verify that all items are present and in good condition upon unpacking.
Image: U`King Moving Head LED Stage Light with included accessories.
- U`King ZQ02015 Moving Head LED Stage Light
- Power Cable
- Mounting Bracket
- Instruction Manual
5. Setup Instructions
5.1 Placement
Place the moving head light on a stable, flat surface or mount it securely using the provided bracket. Ensure there is sufficient space around the unit for ventilation.
5.2 Power Connection
Connect the provided power cable to the 'POWER IN' port on the back of the unit and then to a suitable grounded power outlet.

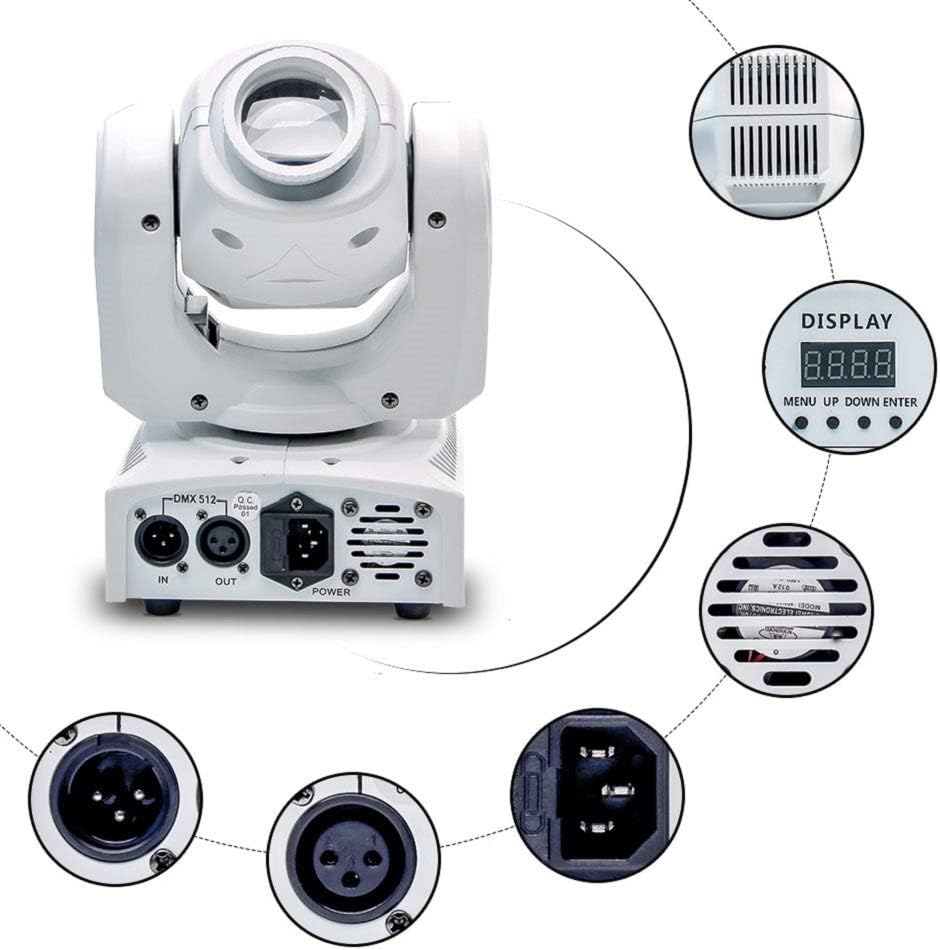

Image: Rear panel connections including DMX IN/OUT and Power IN.
5.3 DMX Connection (Optional)
For DMX control, connect a DMX controller to the 'DMX IN' port. If linking multiple units, connect the 'DMX OUT' of the first unit to the 'DMX IN' of the next, and so on.
6. Operating Instructions
6.1 Control Panel Overview
The unit features a control panel with a digital display and four buttons for navigation and selection:
Image: Control panel with display and navigation buttons.
- MENU: Accesses the main menu and cycles through options.
- UP: Navigates up through menu options or increases values.
- DOWN: Navigates down through menu options or decreases values.
- ENTER: Confirms selection or saves settings.
6.2 Operating Modes
The U`King ZQ02015 supports the following operating modes:
- Automatic Mode: The light runs through pre-programmed sequences automatically. Use the control panel to select different auto programs.
- Voice Control (Sound Activated) Mode: The light reacts to sound and music. Adjust sensitivity via the control panel if available.
- DMX 512 Mode: For professional control using a DMX controller. The unit supports 10 or 12 DMX channels. Refer to the DMX chart in the full manual for specific channel functions.
- Master-Slave Mode: Connect multiple units via DMX cables. Set one unit as 'Master' and others as 'Slave' to synchronize their operation.
6.3 Light Effects
The light offers a variety of dynamic effects, including 8 distinct gobos and 8 colors, with options for half-color and mixed-color displays. The LED circle light strip can also be activated or deactivated.
Image: Multiple light effects and color combinations.
Image: Real-time display of various light effects.
6.4 Movement Range
The moving head light provides extensive movement capabilities:
- Pan (Horizontal): 540° rotation.
- Tilt (Vertical): 270° rotation.
Image: Pan and Tilt movement range diagram.
7. Maintenance
7.1 Cleaning
Regularly clean the lens and exterior with a soft, lint-free cloth. Do not use abrasive cleaners or solvents. Ensure the unit is unplugged before cleaning.
7.2 Storage
When not in use, store the light in a cool, dry place away from direct sunlight and extreme temperatures. Use original packaging for protection if available.
8. Troubleshooting
- No Power: Check power cable connection, wall outlet, and ensure the power switch is on.
- No Light Output: Verify the selected mode is active and not in a blackout state. Check DMX signal if in DMX mode.
- Erratic Movement/Behavior: Ensure DMX connections are secure and correct. If in Master-Slave mode, confirm master/slave settings are properly configured. Reset the unit by power cycling.
- Overheating: Ensure proper ventilation and that the cooling fan is not obstructed.
If issues persist, contact customer support for assistance.
9. Specifications
| Feature | Specification |
|---|---|
| Brand | U`King |
| Model Number | ZQ02015 |
| Color | White |
| Light Source Type | Light Emitting Diode (LED) |
| Power Source | Corded Electric |
| Item Weight | 5.51 Pounds |
| Product Dimensions | 5.7"L x 5.7"W x 9.45"H |
| DMX Channels | 10 / 12 Channel |
| Pan Angle | 540° |
| Tilt Angle | 270° |
| Gobos | 8 Patterns |
| Colors | 8 Single Colors (plus half-color and mixed effects) |
| Material | ABS, Alloy, Aluminum |
10. Official Product Video
Watch the official product video for a demonstration of the U`King Moving Head LED Stage Light's features and effects.
Video: Demonstration of Moving Head Stage Lighting LED Spot RGBW Gobos Light with DMX 512 for DJ Disco Party Lights.
11. Warranty and Support
U`King products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the contact details provided with your purchase documentation or visit the official U`King website. Keep your proof of purchase for warranty claims.
