Yamata/Feiyue FY-1541S
Yamata FY-1541S Industrial Walking Foot Sewing Machine User Manual
Model: FY-1541S
1. Introduction
This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Yamata FY-1541S Industrial Walking Foot Sewing Machine. The FY-1541S is designed for heavy-weight applications, featuring a walking foot mechanism similar to Juki DNU-1541S and Thor GC-1541S models. Please read this manual thoroughly before operating the machine.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in serious injury or damage to the machine.
- Always disconnect the machine from the power supply before cleaning, lubricating, or performing any maintenance.
- Keep fingers, hair, and loose clothing away from all moving parts, especially the needle and walking foot area, during operation.
- Ensure the machine is placed on a stable, level surface.
- Do not operate the machine if any parts are damaged or missing.
- Only use the machine for its intended purpose as an industrial sewing machine for heavy-weight materials.
- Wear appropriate eye protection when operating the machine.
- Keep the work area well-lit and free of clutter.
3. Setup and Assembly
Professional assembly is required for this industrial sewing machine. It comes complete with the sewing machine head, a dedicated table, and an Electronic DC Servo Motor.
3.1 Unpacking and Component Identification
Carefully unpack all components. Verify that all parts are present:
- Sewing Machine Head (Yamata FY-1541S)
- Industrial Sewing Machine Table
- Electronic DC Servo Motor (Model SMS-500, 1/2 HP, 1 Phase, 110 Volt)
- Foot Pedal and Linkage
- Thread Stand, Bobbin Winder, and other accessories (drawer, belt, tools)
Figure 3.1: The main Yamata FY-1541S industrial sewing machine head.
Figure 3.2: Overview of the main components including the machine head, table, and motor.
3.2 Table and Motor Assembly
The industrial table provides a stable base for the machine. The Electronic DC Servo Motor is typically mounted underneath the table and connected to the machine head via a belt. This motor offers variable speed control from 0 to 3300 RPM.

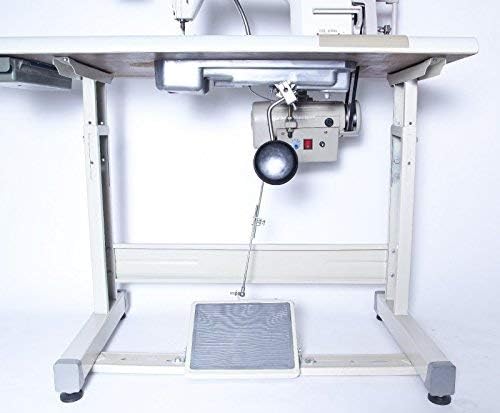

Figure 3.3: The complete sewing machine setup, including the table and foot pedal.
Figure 3.4: The Electronic DC Servo Motor (Model SMS-500) with speed control dial.
3.3 Threading and Bobbin Winding
Refer to the detailed threading diagrams provided with your machine for correct upper thread path and bobbin winding procedures. Proper threading is crucial for stitch quality.

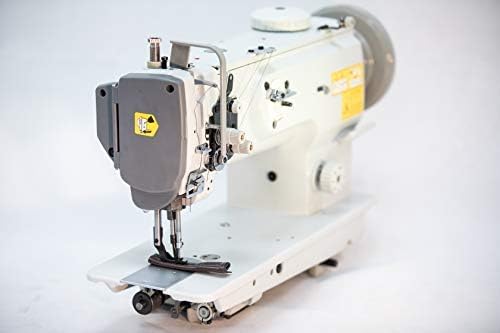

Figure 3.5: A view of the machine head, illustrating the general threading area.

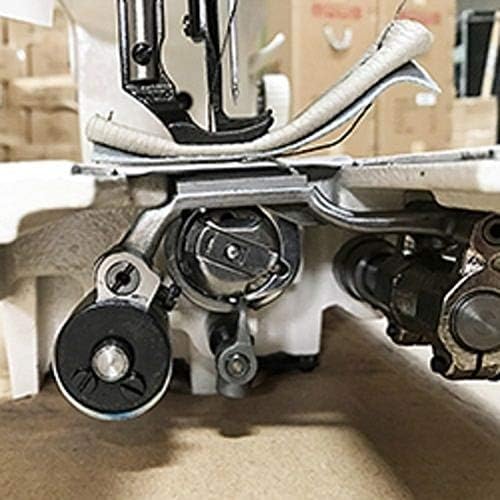

Figure 3.6: The bobbin area, showing the large bobbin capacity.
4. Operating Instructions
4.1 Powering On/Off
Locate the power switch, typically on the motor unit or a control box mounted under the table. Turn the switch to the 'ON' position to power the machine. Turn to 'OFF' when not in use or during maintenance.
Figure 4.1: Example of control switches and an integrated sewing light.
4.2 Adjustable Climbing Device (Walking Foot)
The FY-1541S features an adjustable climbing device, allowing you to dial in the walk height of the walking foot. This mechanism is crucial for feeding multiple layers of heavy material evenly and prevents the walking foot from snagging.
4.3 Stitch Length and Reverse Function
- Stitch Length: Adjust the stitch length using the dial or lever on the machine head. The maximum stitch length is 9 mm.
- Reverse Stitching: Engage the reverse lever for back-tacking at the beginning and end of seams to secure stitches.
Figure 4.2: The needle and walking foot in action, demonstrating material feeding.
4.4 Presser Foot Lift
The presser foot can be lifted up to 16 mm, typically using a knee lift mechanism. This high lift capacity accommodates very thick materials.
4.5 Speed Control
The Electronic DC Servo Motor allows for precise speed control, from 0 to 3300 RPM, via the foot pedal. This enables slow, controlled stitching for intricate work and higher speeds for long seams.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your sewing machine.
- Lubrication: Refer to the machine's lubrication points and schedule. Use only recommended sewing machine oil.
- Cleaning: Regularly clean lint and thread debris from the bobbin case, feed dogs, and tension discs. Use a brush or vacuum.
- Needle Replacement: Replace needles frequently, especially when sewing heavy materials, to prevent skipped stitches and thread breakage. Use the correct needle type and size for your fabric.
- Belt Tension: Periodically check the motor belt tension. Adjust if too loose or too tight.
- Professional Servicing: For complex issues or annual tune-ups, it is recommended to consult a professional sewing machine technician.
6. Troubleshooting
This section addresses common issues you might encounter. Always disconnect power before inspecting the machine.
| Problem | Possible Cause | Solution |
|---|---|---|
| Skipped Stitches | Incorrect needle, bent needle, improper threading, incorrect tension. | Replace needle, re-thread machine, adjust tension. |
| Thread Breakage | Incorrect tension, poor quality thread, burrs on thread path, needle inserted incorrectly. | Check tension, use quality thread, inspect thread path for rough spots, re-insert needle correctly. |
| Uneven Stitching | Improper tension, worn feed dogs, walking foot not adjusted correctly. | Adjust tension, clean feed dogs, adjust walking foot height. |
| Machine Not Powering On | Power cord unplugged, power switch off, circuit breaker tripped. | Check power connections, ensure switch is ON, reset circuit breaker. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | FY-1541S |
| Application | Heavy Weight Materials |
| Max Sewing Speed | 2,500 RPM |
| Max Stitch Length | 9 mm |
| Presser Foot Lift | 16 mm (by knee) |
| Needle System | Single Needle |
| Motor Type | Electronic DC Servo Motor (1/2 HP, 1 Phase, 110 Volt) |
| Features | Walking Foot, Adjustable Climbing Device, Reverse Stitching, Large Bobbin |
| Manufacturer | Yamata/Feiyue |
| UPC | 760781219229 |
8. Warranty and Support
For warranty information, please refer to the documentation provided at the time of purchase or contact your authorized dealer. For technical support or spare parts, please reach out to the seller or manufacturer directly.
Manufacturer: Yamata/Feiyue
