Hypro 6500C Cast Iron 6 Roller Pump User Manual

Introduction

This manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your Hypro 6500C Cast Iron 6 Roller Pump. This product is manufactured by HYPRO and is designed for various industrial and agricultural applications, including spraying, wash down, and turf applications.

The Hypro 6500C is a robust 6-roller cast iron pump, known for its durability and performance. Proper care and adherence to these instructions will ensure the longevity and optimal performance of your pump.

Important Safety Information

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

• Always read and understand all instructions before operating the pump.
• Wear appropriate personal protective equipment (PPE) when handling or operating the pump.
• Ensure the pump is securely mounted and all connections are tight before operation.
• Do not exceed the maximum pressure or flow rate specified for this pump.
• Disconnect power or PTO before performing any maintenance or adjustments.

Product Overview

Front view of the Hypro 6500C Cast Iron 6 Roller Pump, showcasing its robust blue cast iron housing and hexagonal bolts.

Technical data sheet detailing features such as port size, fluid temperature, housing material, shaft rotation, roller type, shaft seals, and recommended PTO torque arm kit. Includes a performance table with GPM, HP, and pressure at various RPMs.

Detailed pump dimensions diagram for the Hypro 6500C series, providing measurements (Dim. Inch mm) for various parts of the pump, essential for installation and fitment.

Image of the Hypro Cast Iron Pump packaging box, highlighting "Worldwide Leader in Roller Pump Technology" and key specifications.

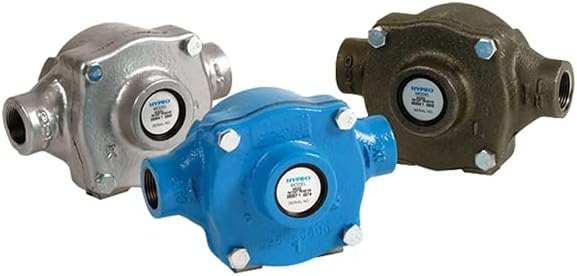

An illustration showing three Hypro roller pumps, demonstrating different finishes or material options available for the series.

Setup and Installation

1. Mounting: Securely mount the pump to a stable surface or directly to the PTO (Power Take-Off) of your equipment. Ensure the mounting bolts are tightened to prevent vibration and movement during operation. Refer to the pump dimensions diagram for proper fitment.
2. Inlet and Outlet Connections: Connect the inlet and outlet hoses to the pump's 3/4" NPT ports. Use appropriate thread sealant to ensure a leak-free connection. Ensure hoses are free of kinks and obstructions.
3. Shaft Connection: If connecting to a PTO, ensure the shaft is properly aligned and secured to the coupler. The shaft on the pump goes into the coupler that attaches to the PTO. A lock screw connects the coupler to a flat shelf on the shaft. Ensure this set screw is tightened securely to prevent the shaft from spinning free.
4. Power Source: This pump is designed for AC/DC power sources, typically driven by a PTO. Ensure your power source matches the pump's requirements.
5. Initial Inspection: Before first use, inspect all connections for tightness and ensure there are no visible leaks or damage to the pump.

Operating Instructions

• Priming: Ensure the pump is primed before starting. This typically involves filling the pump housing and inlet line with the liquid to be pumped to prevent dry running.
• Starting the Pump: Gradually engage the PTO or power source. Monitor the pump for unusual noises or vibrations.
• Monitoring Performance: Observe the flow rate and pressure. The maximum flow rate is 21.8 Gallons Per Minute (GPM) and maximum pressure is 300 PSI. Do not exceed these limits.
• Fluid Temperature: The maximum fluid temperature for operation is 140°F (60°C).
• Shutting Down: Disengage the PTO or power source. Allow the pump to drain if necessary, especially before maintenance or storage.

Maintenance

Regular maintenance is crucial for the longevity and performance of your Hypro 6500C pump, especially given its cast iron construction.

• After Each Use:
  • Flush the pump with clean water to remove any chemical residues.
  • Important: After flushing, put oil in the pump. This is critical to prevent rusting and ensure the pump works correctly for future use. Failure to do so can lead to the pump seizing up.
  • Store the pump in a climate-controlled building to protect it from extreme temperatures and moisture.
• Periodic Inspection:
  • Check for wear on rollers and shaft seals. Replace as needed.
  • Inspect all hoses and connections for leaks or damage.
  • Ensure mounting bolts and shaft coupler set screws remain tight.

Troubleshooting

Specifications

Warranty Information

The Hypro 6500C Cast Iron 6 Roller Pump comes with a 1 Year Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims.

The warranty does not cover damage resulting from improper installation, misuse, neglect, lack of proper maintenance (e.g., failure to oil after use), unauthorized repairs, or normal wear and tear.

Customer Support

For technical assistance, replacement parts, or warranty inquiries, please contact Hypro customer support or an authorized Hypro dealer. Refer to the official Hypro website for the most up-to-date contact information and service center locations.

Online Resources: Visit the official Hypro website for additional product information, FAQs, and instructional videos.
