Dancing Wings Hobby EXTRA330 S2501 Balsa Electric Airplane Kit Instruction Manual

1. Introduction

Thank you for choosing the Dancing Wings Hobby EXTRA330 S2501 Balsa Electric Airplane Kit. This kit provides an engaging building experience, allowing you to construct a high-performance remote-controlled aircraft with a 1025mm wingspan. Designed for enthusiasts, this model offers stable flight characteristics, making it suitable for improving flying skills. Please read this manual thoroughly before beginning assembly and operation to ensure safe and correct use.

2. Safety Information

• Adult Supervision: This product is recommended for adults (minimum age 18 years) due to the complexity of assembly and operation.
• Flying Environment: Always operate the aircraft in open, clear areas, away from people, animals, buildings, and power lines. Avoid flying in strong winds or adverse weather conditions.
• Battery Safety: Use only recommended batteries (3S 1500-2200mAh LiPo). Handle LiPo batteries with extreme care. Do not overcharge, over-discharge, or puncture them. Store in a fire-safe container.
• Propeller Hazard: The propeller can cause serious injury. Always ensure the motor is disarmed and the battery disconnected before handling the aircraft or making adjustments. Keep hands clear of the propeller when the battery is connected.
• Electronic Components: Ensure all electronic components (motor, ESC, servos, receiver) are correctly installed and connected according to their respective manuals. Incorrect wiring can lead to damage or fire.
• Pre-Flight Checks: Before each flight, perform a thorough check of all control surfaces, battery level, radio range, and structural integrity.

3. Package Contents

The S2501 kit includes precision laser-cut balsa and plywood parts, along with essential hardware for assembly. Please verify all components are present upon opening the package.

Image: All components of the S2501 Balsa Electric Airplane Kit laid out, including laser-cut wood sheets, plastic cowl, windscreen, landing gear, and hardware.

• Laser-cut balsa and plywood sheets for fuselage, wings, and tail.
• Molded plastic cowl.
• Clear plastic windscreen.
• Functional landing gear set.
• Comprehensive hardware pack (control horns, pushrods, hinges, etc.).
• Assembly instructions (this manual).

Note: Electronic components (motor, ESC, servos, propeller, battery, radio receiver/transmitter) are not included in the S2501 kit and must be purchased separately. Refer to the 'Suggested Power System' in the Specifications section for recommendations.

4. Assembly

The assembly process involves gluing the laser-cut balsa and plywood parts together to form the aircraft structure. A flat, clean workspace is essential. You will need modeling glue (e.g., CA glue, epoxy), sandpaper, and basic modeling tools.

Image: Close-up view of the laser-cut balsa wood sheets, showing the precision of the parts for assembly.

4.1 Fuselage Construction

1. Carefully remove all laser-cut parts from their sheets. Identify fuselage formers and stringers.
2. Assemble the main fuselage frame, ensuring all parts are aligned correctly before applying glue. Use a building jig if available to maintain straightness.
3. Install the landing gear mounts and reinforce as necessary.

4.2 Wing Assembly

1. Construct the wing ribs and spars. Ensure the correct dihedral (if any) is maintained.
2. Assemble the ailerons and prepare them for hinge installation.
3. Attach the wings to the fuselage, ensuring proper alignment and secure attachment.

4.3 Tail Section

1. Assemble the horizontal and vertical stabilizers.
2. Attach the rudder and elevator, preparing them for hinge installation.
3. Mount the tail section to the fuselage, ensuring it is square and aligned.

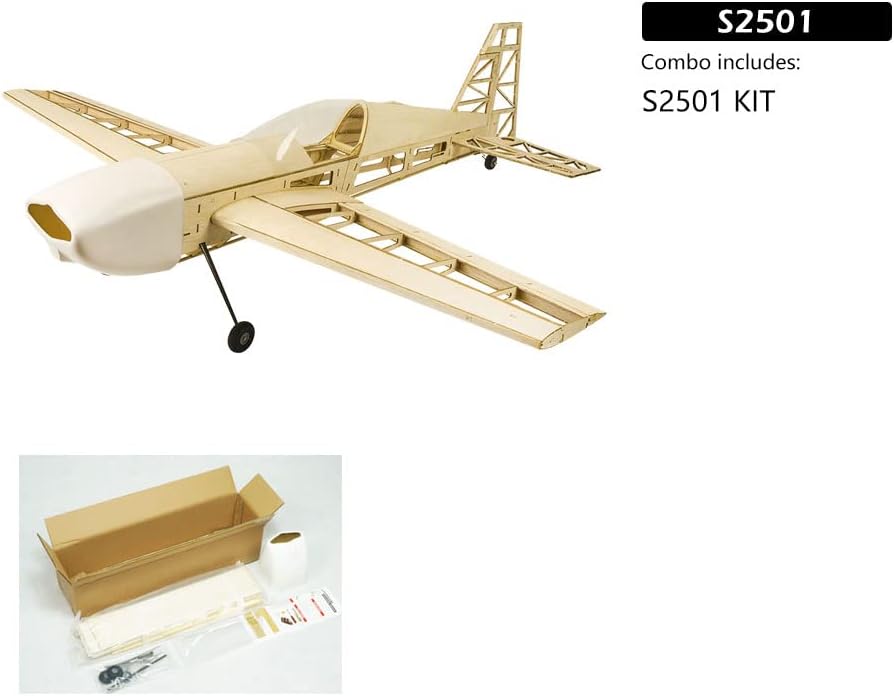

Image: Assembled frame of the Dancing Wings Hobby EXTRA330 S2501 Balsa Electric Airplane Kit, showing the main structure and the kit designation.

4.4 Final Touches

1. Install the functional landing gear.
2. Fit the molded plastic cowl and windscreen.
3. Cover the airframe with appropriate covering material (not included) to protect the wood and provide aerodynamic finish.

5. Electronic Setup

After the airframe is built, install the electronic components. Refer to the individual manuals for your chosen motor, ESC, servos, and radio system for specific wiring and programming instructions.

5.1 Motor and ESC Installation

• Mount the recommended motor (e.g., 2216 1200KV) securely to the firewall.
• Install the Electronic Speed Controller (ESC, e.g., 3S 20A) in a location with good airflow for cooling.
• Connect the motor to the ESC and the ESC to the battery connector (e.g., XT60).

5.2 Servo Installation and Linkages

• Install four 9g servos for ailerons, elevator, and rudder.
• Connect the servos to the control surfaces using the provided pushrods and control horns. Ensure smooth, free movement of all surfaces.
• Set up the servo throws and directions using your radio transmitter.

5.3 Receiver and Battery Placement

• Mount your 4+ channel radio receiver securely within the fuselage.
• Position the 3S 1500-2200mAh battery to achieve the correct Center of Gravity (CG). The CG is critical for stable flight. Refer to the specifications for the recommended CG location.

6. Operating Instructions

Operating an RC airplane requires practice and adherence to safety guidelines. If you are a beginner, seek assistance from an experienced pilot or join a local RC flying club.

6.1 Pre-Flight Checks

• Verify battery levels in both the aircraft and transmitter.
• Check all control surfaces (ailerons, elevator, rudder) for correct movement and direction relative to stick inputs.
• Ensure all linkages are secure and free from binding.
• Confirm the propeller is securely attached and undamaged.
• Perform a range check of your radio system.

6.2 Takeoff and Flight

• Choose a calm day for initial flights.
• Gradually apply throttle for takeoff, maintaining directional control with the rudder.
• Once airborne, make small, gentle control inputs.
• Practice basic maneuvers at a safe altitude.

6.3 Landing

• Reduce throttle and approach the landing strip into the wind.
• Maintain a controlled descent, using elevator for pitch control and ailerons for wing leveling.
• Flare gently just above the ground to reduce speed and settle the aircraft onto its landing gear.

7. Maintenance

Regular maintenance will ensure the longevity and safe operation of your EXTRA330 S2501.

• Inspect Airframe: After each flight, check the balsa and plywood structure for any damage, cracks, or loose joints. Repair immediately with appropriate modeling glue.
• Check Linkages: Ensure all control linkages are free-moving, secure, and not bent or damaged.
• Motor and Propeller: Inspect the motor for any debris and ensure the propeller is balanced and free from nicks or cracks. Replace damaged propellers.
• Battery Care: Follow LiPo battery charging, discharging, and storage guidelines strictly.
• Cleanliness: Keep the aircraft clean and free of dirt, grass, or other debris.

8. Troubleshooting

9. Specifications

Image: Graphic displaying key specifications for the S2501 airplane kit, including wingspan, fuselage length, flying weight, motor, ESC, servo, propeller, battery, and radio requirements.

10. Warranty and Support

Dancing Wings Hobby products are designed for hobbyists and are subject to the nature of RC model building and flying. Due to the 'kit' nature of this product, which requires user assembly and integration of third-party electronics, specific warranties on individual components may vary. Please contact your retailer or the manufacturer directly for support regarding missing or defective parts upon receipt of the kit.

For technical assistance or inquiries, please refer to the contact information provided by your point of purchase or visit the official Dancing Wings Hobby website.
