Sensio Home Electric Coffee Grinder SHCOFGR Instruction Manual

Introduction

This manual provides comprehensive instructions for the safe and efficient operation, maintenance, and care of your Sensio Home Electric Coffee Grinder, Model SHCOFGR. Please read these instructions thoroughly before first use and retain them for future reference.

Image: The Sensio Home Electric Coffee Grinder, featuring its stainless steel body, transparent lid, and two detachable cups, shown alongside whole coffee beans and ground coffee.

Important Safeguards

When using this electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons. Please ensure you read these instructions before operating this product.

• Read all instructions before using this appliance.
• To protect against the risk of electrical shock, do not immerse the motor unit in water or other liquids.
• Before plugging into a socket, verify that your voltage corresponds to the rating label on the appliance.
• Close supervision is necessary when any appliance is used near children. Children should not use this appliance.
• Ensure the appliance is OFF when not in use, before attaching or removing parts, and before cleaning.
• Avoid contacting moving parts during operation.
• Keep hands and utensils out of the container while grinding to reduce the risk of injury or damage to the grinder. A scraper may be used, but only when the grinder is not running.
• Always operate the grinder with the cover securely in place.
• Do not blend any liquids.
• Blades are sharp. Handle with extreme care.

Product Description and Components

The Sensio Home Electric Coffee Grinder is designed for versatility, featuring two detachable cups for different grinding needs.

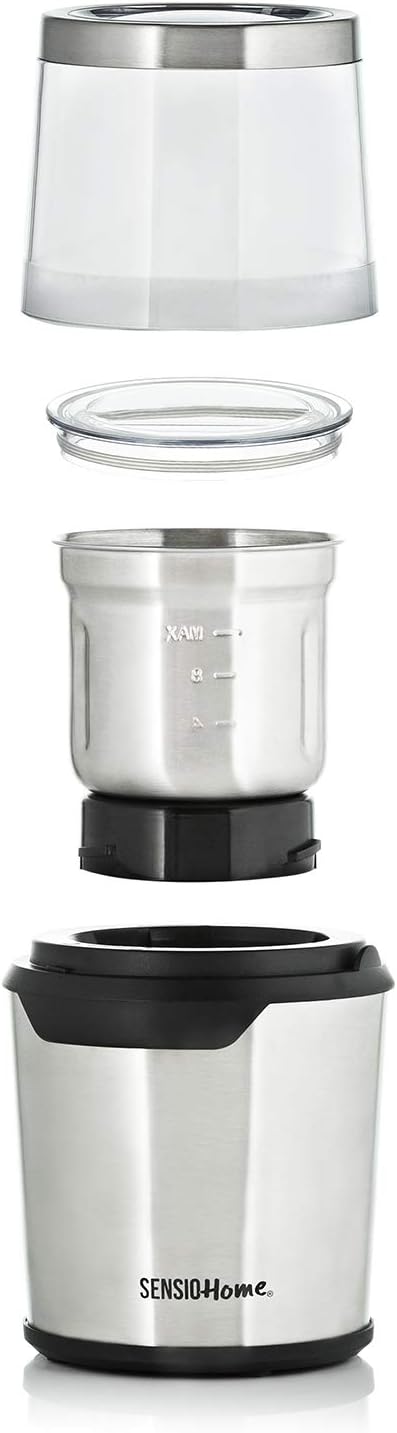

Image: An exploded view showing the individual components of the Sensio Home Coffee Grinder, including the lid, two grinding cups, and the motor unit.

Components:

1. Lid: Transparent cover for safe operation and viewing.
2. Grinding Bowls (2x):
   • One stainless steel cup with a single blade, ideal for grinding coffee beans and dry spices.
   • One stainless steel cup with a double blade, suitable for chopping nuts, garlic, ginger, chili, onion, and other wet ingredients.
3. Motor Unit: The main power unit with a 200W motor.
4. Non-slip Base: Provides stability during operation.

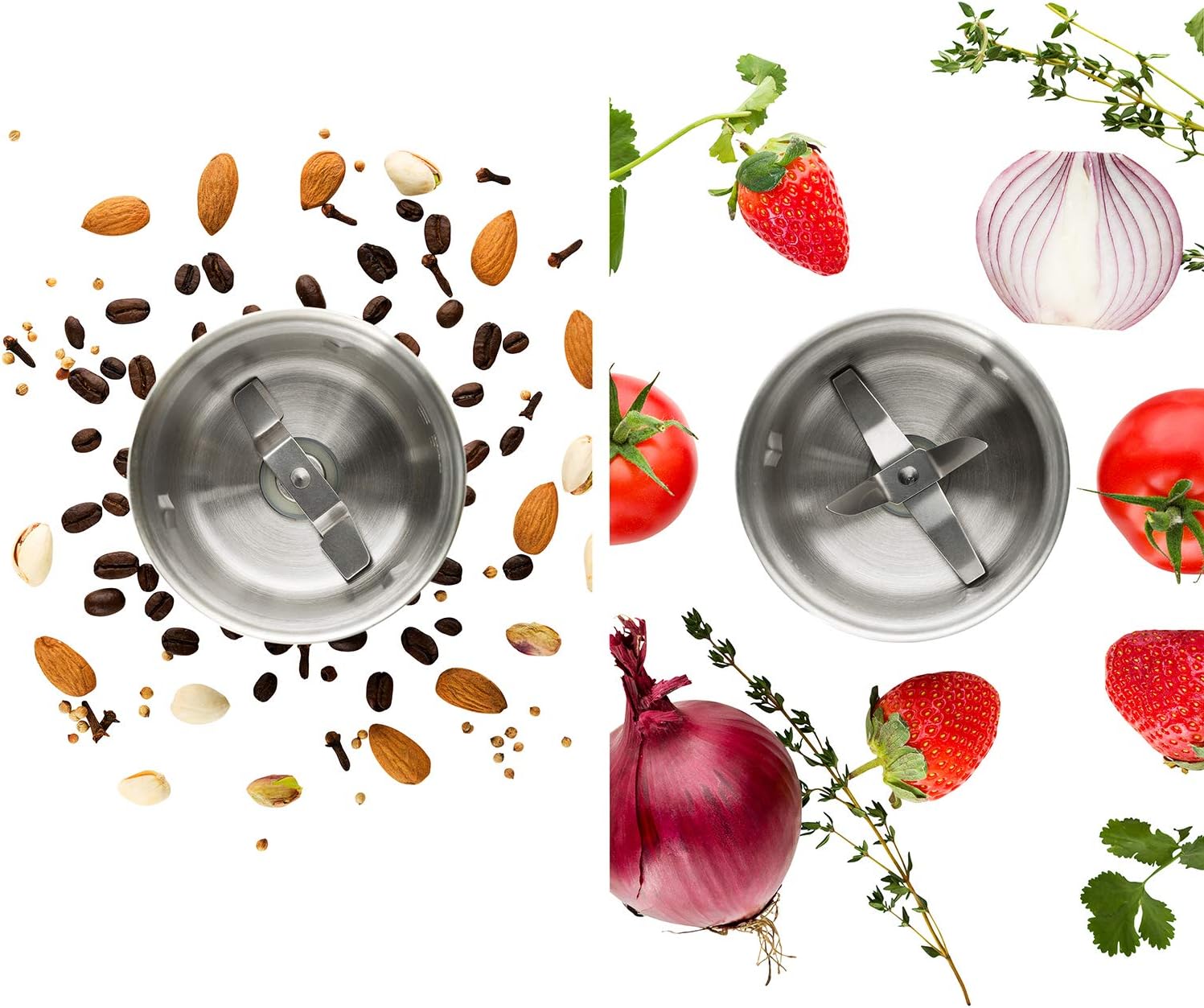

Image: A side-by-side comparison of the two detachable grinding cups, highlighting the single blade for dry ingredients and the double blade for wet ingredients.

Setup

1. Unpack all components and remove any packaging materials.
2. Wash the grinding cups and lids with warm soapy water, rinse thoroughly, and dry completely before first use. The motor unit should only be wiped with a damp cloth.
3. Select the appropriate grinding cup (single blade for dry ingredients like coffee beans or spices; double blade for wet ingredients like nuts or garlic).
4. Place the chosen grinding cup onto the motor unit, ensuring it is securely seated.
5. Ensure the appliance is placed on a stable, flat, and dry surface.

Operating Instructions

Follow these steps to operate your Sensio Home Electric Coffee Grinder:

1. Prepare Ingredients: Add your desired ingredients to the selected grinding cup. Do not exceed the "MAX" fill line (80g capacity).
2. Secure the Lid: Place the transparent lid onto the grinding cup, ensuring it is properly aligned and securely closed. The grinder will only operate when the lid is correctly in place.
3. Connect Power: Plug the power cord into a suitable electrical outlet.
4. Start Grinding: Gently press down on the lid to activate the grinding mechanism. The grinder will operate as long as pressure is applied to the lid.
5. Monitor Grinding: Use the transparent lid to observe the grinding process and achieve your desired consistency. For a finer grind, continue pressing for longer durations.
6. Stop Grinding: Release pressure from the lid to stop the grinding.
7. Unplug and Remove: Unplug the appliance from the power outlet. Carefully remove the lid, then lift the grinding cup from the motor unit.
8. Serve: Pour out the freshly ground ingredients.

Image: A hand demonstrating how to adjust the grind preference by controlling the grinding duration on the Sensio Home Coffee Grinder.

Image: The Sensio Home Coffee Grinder positioned beside a cup of espresso and a scattering of whole coffee beans, illustrating its primary use.

Maintenance and Cleaning

Proper maintenance ensures the longevity and optimal performance of your grinder.

• Always unplug the appliance before cleaning.
• The detachable grinding cups and transparent lids are dishwasher safe for convenient cleaning.
• The exterior of the motor unit can be cleaned with a soft, damp cloth. Do not immerse the motor unit in water or any other liquid.
• For stubborn residue in the grinding cups, a small brush can be used to dislodge particles.
• Ensure all parts are completely dry before reassembling or storing the appliance.
• The power cord can be stored in the designated area in the base of the unit by pushing it in section by section, allowing for easy and compact storage.

Image: Hands demonstrating the cleaning process of a grinding cup under running water, highlighting the ease of maintenance.

Specifications

• Model: SHCOFGR
• Power: 200 Watts
• Voltage: 120VAC 60Hz
• Capacity: 80g (for each cup)
• Body Material: Durable Stainless Steel
• Item Weight: 2.85 pounds
• Package Dimensions: 12.3 x 4.9 x 4.9 inches
• Color: Silver
• Manufacturer: Sensio Home
• Made In: P.R.C.

Image: The Sensio Home Coffee Grinder with its key dimensions (height 20.6cm, width 9.6cm) and an indication of its 80g capacity (equivalent to 15 cups) for reference.

Warranty and Support

The Sensio Home Coffee Grinder is covered by a 2-year guarantee. For support or warranty claims, please contact customer service.

• Warranty Period: 2 years from the date of purchase.
• Contact Support: For assistance, please email helpus@custsuppserv.com.
