Greenworks 12V 55lbs Trolling Motor Instruction Manual

Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and setup of your Greenworks 12V 55lbs Trolling Motor. Please read this manual thoroughly before using the product.

The Greenworks Electric Trolling Motor features 55 lbs of thrust and a 36-inch composite shaft. It offers 5 forward speeds and 3 reverse speeds, controlled by a pivoting tiller handle. The shaft is easily adjustable for varying water depths, and durable clamping knobs ensure secure attachment. A bracket adjustment lever allows for vertical positioning, shallow water angling, or complete tilt out of the water. The weedless propeller is designed to maximize run time by pushing away weeds. An integrated LED display provides an accurate indication of the remaining battery charge. This motor is designed for boats up to 15 feet and requires a deep cycle 12V marine battery (sold separately).

Setup

Unboxing and Initial Inspection

Carefully remove all components from the packaging. Inspect for any damage that may have occurred during shipping. Ensure all parts listed in the packing list are present.

Image: Overview of the Greenworks 12V 55lbs Trolling Motor components after unboxing.

Mounting the Trolling Motor

1. Position the motor on the transom of your boat. The mounting bracket is designed for easy attachment.
2. Tighten the durable clamping knobs securely to fasten the motor to the boat. Ensure the motor is stable and does not wobble.
3. Adjust the shaft length as needed for your boat's transom height and water depth. The shaft is easily adjustable.
4. Use the bracket adjustment lever to set the motor to the desired angle. It can be locked in a vertical position, angled for shallow water, or tilted completely out of the water.

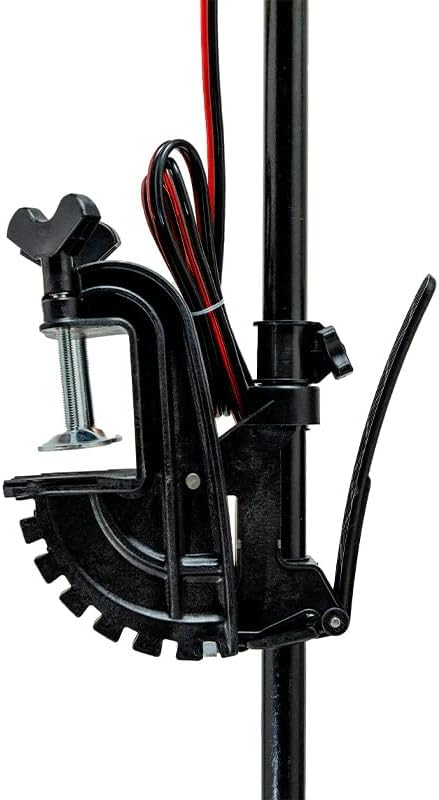

Image: Close-up of the trolling motor's mounting bracket and clamping knobs for secure attachment to the boat's transom.

Image: The Greenworks trolling motor securely mounted on the transom of a small boat, ready for operation.

Battery Connection

The motor requires a deep cycle 12V marine battery (sold separately). Connect the motor's power cables to the battery terminals, ensuring correct polarity (red to positive, black to negative).

Operating Instructions

Tiller Handle and Speed Control

The motor is controlled via a pivoting tiller handle. This handle allows for precise steering and speed adjustments.

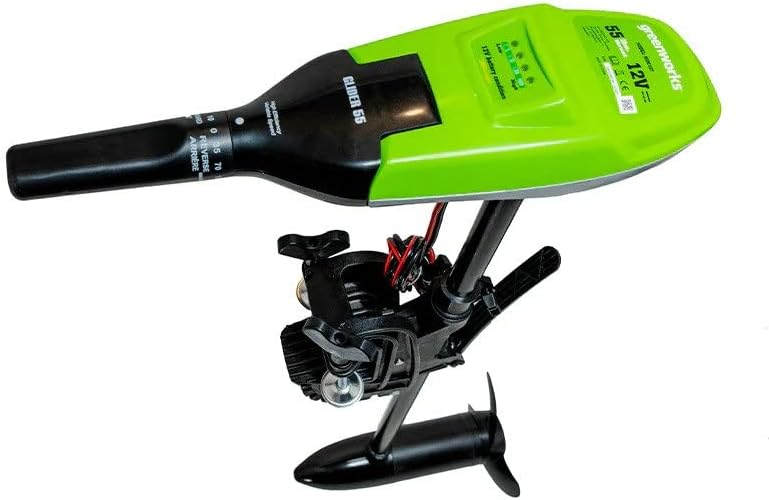

Image: The pivoting tiller handle of the trolling motor, used for steering and speed control.

The tiller handle features 5 forward speeds and 3 reverse speeds. Rotate the handle to select your desired speed and direction. An "OFF" position is located between forward and reverse settings.

Battery Charge Indicator

The motor includes an LED display that provides an accurate indication of the remaining battery charge. Monitor this indicator regularly to avoid unexpected power loss.

Image: The top of the trolling motor head showing the LED battery charge indicator lights.

Weedless Propeller

The motor is equipped with a weedless propeller designed to efficiently move through aquatic vegetation, maximizing your run time and preventing entanglement.

Image: Close-up of the weedless propeller and lower unit of the trolling motor.

Maintenance

• Regular Cleaning: After each use, especially in saltwater, rinse the motor with fresh water to prevent corrosion.
• Propeller Inspection: Periodically check the propeller for any fishing line, weeds, or debris that may be wrapped around it. Remove any obstructions to ensure optimal performance.
• Battery Care: Ensure your 12V marine battery is properly charged and maintained according to the battery manufacturer's instructions. Disconnect the battery when the motor is not in use for extended periods.
• Connection Check: Regularly inspect all electrical connections for corrosion or looseness. Clean and tighten as necessary.

Troubleshooting

Motor Not Operating

• Check Battery Connection: Ensure the power cables are securely connected to the 12V marine battery terminals with correct polarity.
• Verify Battery Charge: Check the LED battery indicator on the motor head. If the charge is low, recharge the battery.
• Inspect Propeller: Ensure the propeller is free from obstructions (e.g., fishing line, weeds) that might prevent it from spinning.

Reduced Performance

• Battery Condition: A weak or old battery may not provide sufficient power. Consider testing or replacing the battery.
• Propeller Damage: A damaged or bent propeller can reduce thrust. Inspect and replace if necessary.
• Weed Buildup: Even with a weedless design, excessive weeds can reduce efficiency. Clear any buildup.

Specifications

Warranty and Support

This Greenworks Trolling Motor comes with a 3-year manufacturer warranty.

For further assistance, product registration, or to view other Greenworks products, please visit the Greenworks Store.
