HAMMOND 1418D8 - Type 12 Mild Steel Wall Mount Enclosure User Manual
Model: 1418D8 | Brand: Hammond Manufacturing
Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Hammond 1418D8 Type 12 Mild Steel Wall Mount Enclosure. Please read these instructions carefully before proceeding with installation or use to ensure safety and optimal performance of the product.
The Hammond 1418D8 is a robust, compact wall-mount enclosure designed to protect electrical and electronic components in various industrial and commercial environments. Constructed from mild steel, it offers durability and a secure housing solution.
Product Overview

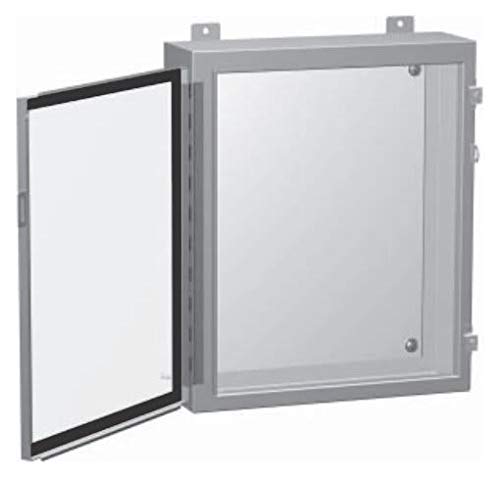

Image: The Hammond 1418D8 Type 12 Mild Steel Wall Mount Enclosure. The image shows the enclosure with its door partially open, revealing the interior space and the robust construction. The enclosure is gray, indicating its mild steel material, and features mounting brackets at the top for wall installation.
The 1418D8 enclosure is specifically designed for wall mounting, providing a secure and accessible housing for sensitive equipment. Its mild steel construction ensures protection against dust, dirt, and light splashing, making it suitable for Type 12 applications.
Setup and Installation
Safety Precautions
- Ensure all power is disconnected before installing or working inside the enclosure.
- Wear appropriate personal protective equipment (PPE) during installation.
- Verify the mounting surface can support the weight of the enclosure and its contents.
Mounting Instructions
- Select Location: Choose a suitable wall location that is clean, dry, and provides adequate space for installation and future access.
- Mark Mounting Points: Use the enclosure's pre-drilled mounting brackets as a template to mark the drilling points on the wall.
- Drill Holes: Drill holes at the marked locations using an appropriate drill bit for your wall material (e.g., concrete, wood, drywall).
- Secure Enclosure: Attach the enclosure to the wall using suitable fasteners (not included) that are rated for the enclosure's weight and intended contents. Ensure the enclosure is level and securely fastened to prevent movement.
- Internal Component Installation: Once mounted, install your electrical or electronic components inside the enclosure as required. Ensure proper grounding and wiring practices are followed according to local electrical codes.
Operation
The Hammond 1418D8 enclosure is a passive protective housing. Its primary function is to safeguard internal components from environmental factors and unauthorized access. Proper operation involves ensuring the door is securely closed and latched after accessing the interior.
- Accessing Interior: To open the enclosure, unlatch the door mechanism. The door swings open to allow access to the mounted equipment.
- Securing Enclosure: After performing any work or inspection, ensure the door is fully closed and the latching mechanism is engaged to maintain the enclosure's protective rating.
- Environmental Considerations: This enclosure is rated Type 12, suitable for indoor use to protect against dust, falling dirt, and dripping non-corrosive liquids. It is not designed for outdoor use or environments with direct water spray or submersion.
Maintenance
Regular maintenance ensures the longevity and continued protective function of your enclosure.
- Cleaning: Clean the exterior of the enclosure periodically with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.
- Inspection: Annually inspect the enclosure for signs of wear, corrosion, or damage. Check door hinges, latches, and seals for proper function and integrity.
- Gasket Integrity: Ensure the door gasket is free from cracks or damage to maintain the Type 12 rating. Replace if necessary.
- Fastener Tightness: Periodically check that all mounting fasteners are tight and secure.
Troubleshooting
This section addresses common issues you might encounter with your enclosure.
| Problem | Possible Cause | Solution |
|---|---|---|
| Door does not close or latch properly. | Obstruction, damaged hinge, misaligned latch. | Check for obstructions. Inspect hinges and latch for damage. Adjust alignment if possible. |
| Signs of moisture or dust inside. | Damaged or improperly seated gasket, enclosure not fully sealed. | Inspect and clean the door gasket. Ensure the door is fully closed and latched. Verify the enclosure is suitable for the environment. |
| Enclosure feels loose on wall. | Loose mounting fasteners, inadequate wall support. | Tighten all mounting fasteners. Reinforce the wall if necessary. |
Specifications
| Attribute | Detail |
|---|---|
| Model | 1418D8 |
| Brand | Hammond Manufacturing |
| Material | Alloy Steel (Mild Steel) |
| Style | Compact |
| Finish Type | Steel |
| Installation Type | Wall Mount |
| Item Weight | 3 Pounds (1.36 kg) |
| Package Dimensions | 20 x 20 x 8 inches (50.8 x 50.8 x 20.3 cm) |
| UPC | 623980365008 |
| Manufacturer | HAMMOND MANUFACTURING CO INC |
| Date First Available | February 2, 2019 |
Warranty and Support
For specific warranty information regarding your Hammond 1418D8 enclosure, please refer to the documentation provided at the time of purchase or contact Hammond Manufacturing directly. Warranty terms typically cover manufacturing defects.
For technical support, replacement parts, or further inquiries, please contact Hammond Manufacturing customer service or visit their official website. Ensure you have your product model number (1418D8) and any relevant purchase details ready when seeking support.
Note: This manual provides general guidelines. Always adhere to local electrical codes and safety regulations during installation and use.
