MiSMON MS-206B IPL Hair Removal System SR Lamp/Cartridge Replacement Manual

Introduction

This manual provides essential instructions for the safe and effective replacement and use of the Skin Rejuvenation (SR) lamp/cartridge designed specifically for the MiSMON MS-206B IPL Hair Removal System. Please read these instructions carefully before proceeding with installation or operation.

The SR lamp/cartridge is intended for skin rejuvenation purposes, targeting rough and aging skin, dull complexion, enlarged pores, fine lines, and improving skin elasticity and radiance.

Product Overview

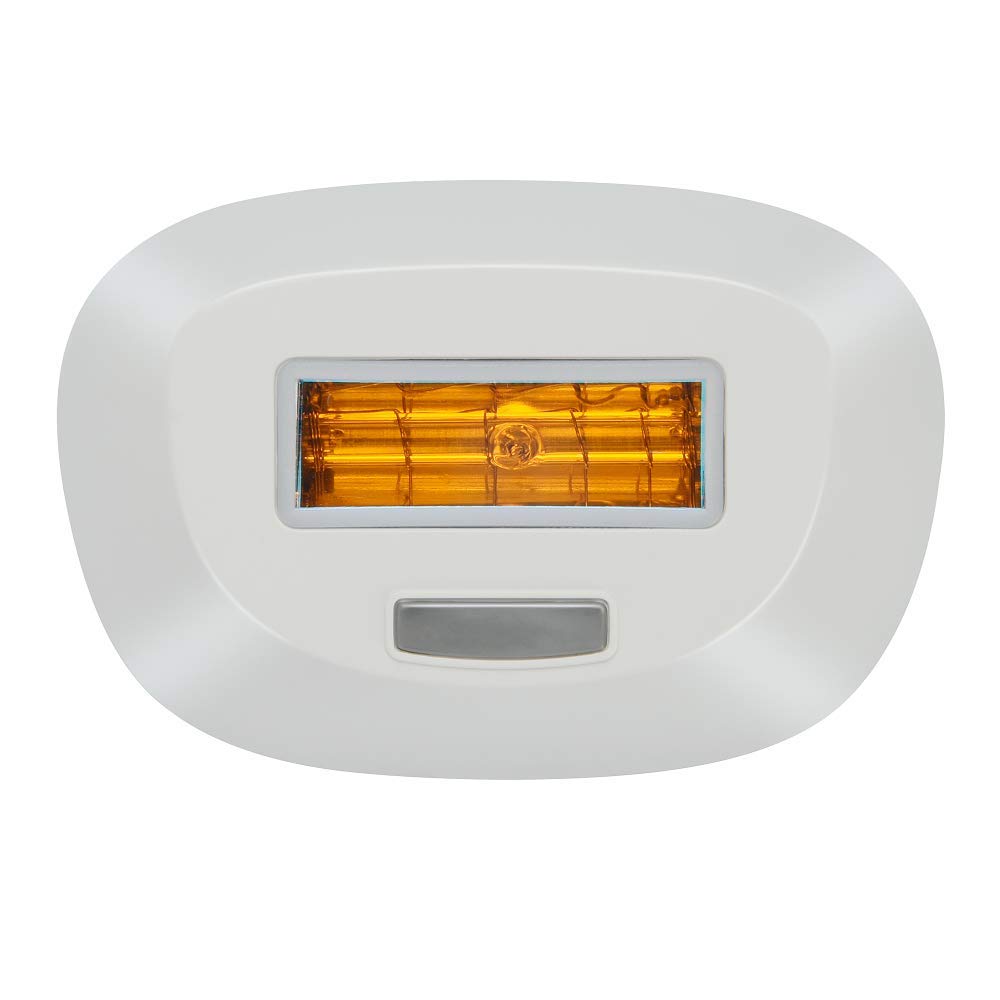

Image Description: A close-up view of the MiSMON SR (Skin Rejuvenation) replacement lamp cartridge. It features a white, oval-shaped housing with a rectangular, amber-colored light window in the center, indicating the light emission area. Below the light window is a small, gray button or sensor area.

The MiSMON SR lamp/cartridge is a specialized component for the MS-206B IPL system. It emits light within the 560-1100nm spectrum, optimized for skin rejuvenation treatments. This cartridge is designed for easy replacement to ensure continuous functionality of your device.

Installation and Replacement

Important Safety Precaution: Always ensure the power to the MiSMON MS-206B IPL Hair Removal System is completely cut off and the device is unplugged before attempting to replace the lamp cartridge.

1. Detach the Old Lamp Cartridge:

   Hold the existing lamp cartridge firmly. Gently pull it out parallel to the device body. It should slide out from its slot.

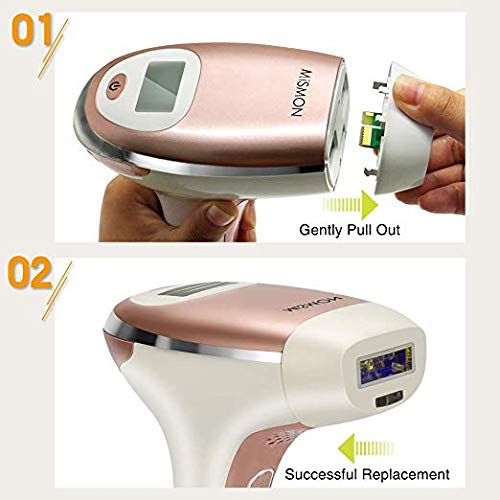

   Image Description: A two-part image illustrating the lamp cartridge replacement process. The top part shows a hand gently pulling out the cartridge from the main device body, labeled "Gently Pull Out". The bottom part shows the new cartridge successfully inserted into the device, labeled "Successful Replacement". The device itself is rose gold and white.

2. Attach the New SR Lamp Cartridge:

   Align the chip of the new SR lamp cartridge with the chip slot on the MiSMON MS-206B device. Carefully push and press the cartridge into the slot until you hear an audible "click". This indicates that the cartridge is firmly and correctly attached.

Once the new cartridge is installed, you may reconnect the power and turn on the device.

Operating Instructions (SR Function)

After successfully installing the SR lamp/cartridge, your MiSMON MS-206B device is ready for skin rejuvenation treatments. Refer to your main MiSMON MS-206B user manual for general operating procedures, power settings, and safety guidelines.

SR Function Benefits:

• Addresses rough and aging skin.
• Improves dull skin tone.
• Helps reduce the appearance of large pores.
• Assists in minimizing fine lines and wrinkles.
• Enhances skin elasticity and radiance.

Always perform a patch test before full treatment and follow the recommended treatment schedule and intensity levels as outlined in your primary device manual.

Maintenance

To ensure optimal performance and longevity of your SR lamp/cartridge:

• After each use, gently wipe the light window with a soft, dry cloth to remove any residue.
• Do not use abrasive cleaners or solvents on the cartridge.
• Store the cartridge in a clean, dry place when not in use, preferably in its original packaging or a protective case.
• Replace the cartridge when its specified flashes are depleted or if you notice a significant decrease in performance.

Specifications

Support

For further assistance, troubleshooting, or inquiries regarding your MiSMON MS-206B IPL Hair Removal System or its replacement cartridges, please refer to the contact information provided in your original device manual or visit the official MiSMON website.

You can also visit the MiSMON Store on Amazon for more product information.
