Lumix GC Pull Start Recoil Starter User Manual

Introduction

This manual provides instructions for the proper installation, operation, and maintenance of your new Lumix GC Pull Start Recoil Starter. This recoil starter is designed as a replacement part for Coleman Powermate Powerbase 2250 Watt Generators equipped with a 5HP Briggs & Stratton Motor. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.

Safety Information

Always observe the following safety precautions when working with generator components:

• Ensure the generator is completely shut off and cooled down before attempting any installation or maintenance.
• Disconnect the spark plug wire to prevent accidental starting.
• Wear appropriate personal protective equipment, such as gloves and eye protection.
• Keep children and bystanders away from the work area.
• If you are unsure about any procedure, consult a qualified technician.

Package Contents

Verify that all items are present in your package:

• 1 x Lumix GC Pull Start Recoil Starter

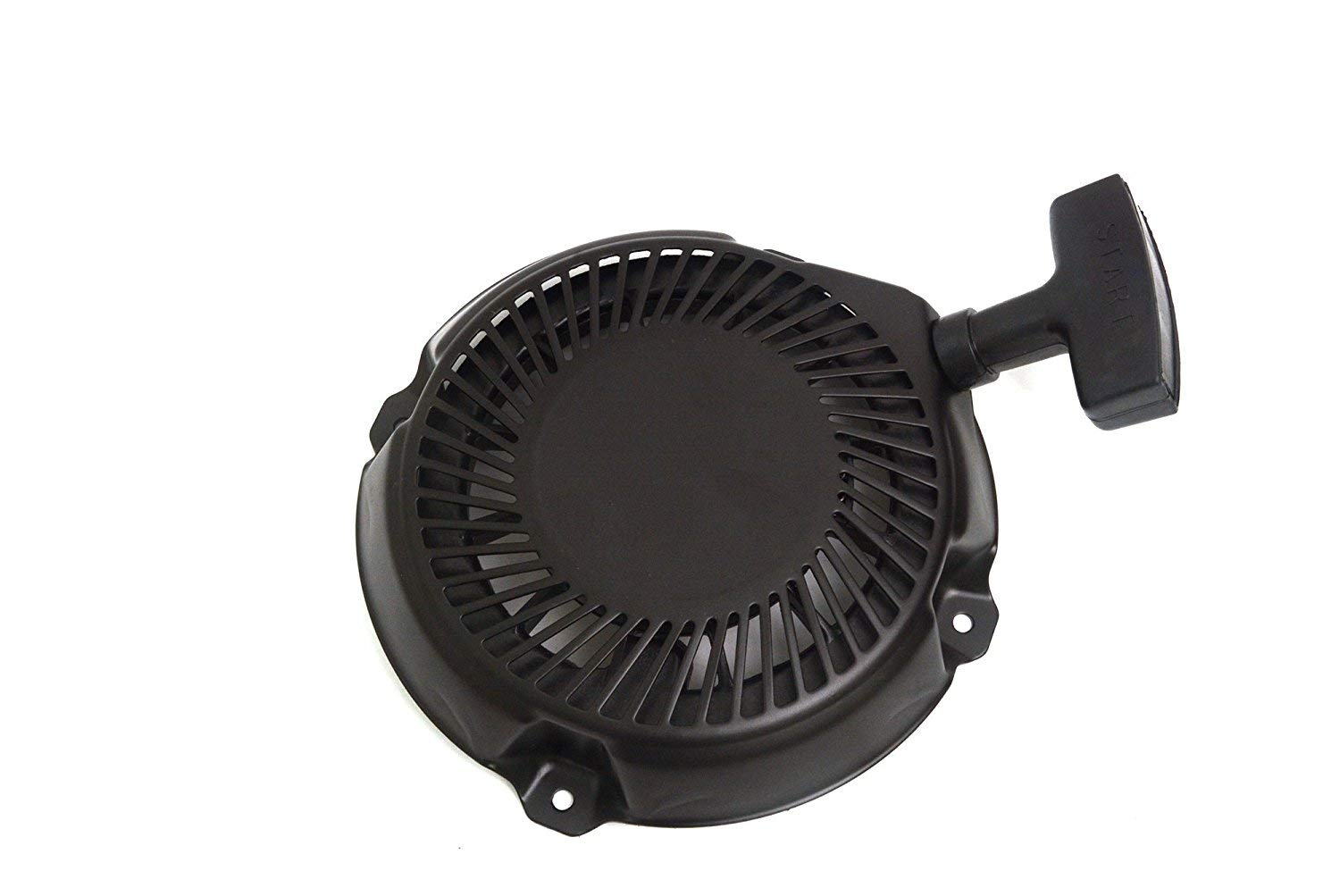

Image: The Lumix GC Pull Start Recoil Starter, a replacement component for compatible generators.

Setup and Installation

Follow these steps to install the recoil starter:

1. Prepare the Generator: Ensure the generator is turned off, the engine is cool, and the spark plug wire is disconnected to prevent accidental starting.
2. Locate the Old Recoil Starter: Identify the existing recoil starter assembly on your generator. It is typically mounted on the engine housing.
3. Remove the Old Starter: Using appropriate tools (e.g., a socket wrench or screwdriver), carefully unbolt and remove the old recoil starter assembly. Note the position and orientation of any mounting bolts or screws.
4. Install the New Starter: Position the new Lumix GC Pull Start Recoil Starter in the same location and orientation as the old one. Align the mounting holes.
5. Secure the New Starter: Reinstall the mounting bolts or screws, tightening them securely. Do not overtighten.
6. Reconnect Spark Plug: Once the new starter is securely installed, reconnect the spark plug wire.

Operating Instructions

To start your generator using the recoil starter:

1. Check Fuel and Oil: Ensure the generator has sufficient fuel and oil according to your generator's specific manual.
2. Set Choke and Throttle: Follow your generator's instructions for setting the choke and throttle lever for starting.
3. Pull the Starter Rope: Grip the starter handle firmly. Pull the rope slowly until you feel resistance, then give a quick, strong pull. Allow the rope to retract smoothly. Do not let the handle snap back against the starter housing.
4. Repeat if Necessary: If the engine does not start, repeat the pulling process. Adjust the choke as needed once the engine begins to fire or run.
5. Warm-up: Allow the engine to warm up for a few minutes before applying a load.

Maintenance

Proper maintenance ensures the longevity of your recoil starter:

• Keep Clean: Periodically clean the recoil starter assembly to remove dirt, dust, and debris that could impede its function.
• Inspect Rope: Regularly inspect the starter rope for fraying or damage. Replace the rope if any wear is observed to prevent breakage during use.
• Lubrication: Lightly lubricate moving parts within the recoil mechanism if recommended by your generator's manufacturer, using a suitable lubricant.
• Storage: When not in use for extended periods, store the generator in a clean, dry environment to protect the recoil starter from corrosion.

Troubleshooting

If you encounter issues with your recoil starter, consider the following:

• Rope Does Not Retract:
  • Check for debris or obstructions within the recoil mechanism.
  • The recoil spring may be damaged or dislodged. This typically requires replacement of the entire starter assembly.
• Rope is Hard to Pull:
  • Ensure the engine is not seized. Try turning the engine manually (if safe to do so).
  • The recoil spring may be binding.
  • Check for proper lubrication of internal components.
• Engine Does Not Start After Pulling:
  • This issue is likely related to the generator's engine itself, not the recoil starter. Check fuel, spark plug, carburetor, and ignition system according to your generator's manual.

Specifications

Warranty and Support

For warranty information or technical support regarding your Lumix GC Pull Start Recoil Starter, please refer to the documentation provided with your purchase or contact the retailer. Specific warranty terms may vary.
