SunSun Aquarium Heater JRB Series User Manual

1. Introduction

Thank you for choosing the SunSun JRB Series Aquarium Heater. This high-quality submersible heater is designed to maintain a stable and optimal temperature in your aquarium, crucial for the health and comfort of your aquatic inhabitants. Please read this manual thoroughly before installation and operation to ensure safe and efficient use of the product.

Image 1: SunSun JRB Series Aquarium Heater (100W model shown).

2. Safety Information

Always prioritize safety when handling electrical appliances, especially those used in water. Failure to follow these instructions may result in electric shock, fire, or damage to the product.

• Ensure the heater is fully submerged in water before plugging it into a power outlet. Operating the heater out of water will cause it to overheat and fail.
• Always unplug the heater from the power supply before performing any maintenance, cleaning, or handling the heater or aquarium water.
• Do not operate the heater if the power cord or plug is damaged.
• This appliance is intended for indoor use only.
• Keep out of reach of children.
• Do not attempt to repair the heater yourself. Refer all servicing to qualified personnel.
• Ensure a drip loop is formed with the power cord to prevent water from traveling along the cord and into the electrical outlet.

3. Product Features

The SunSun JRB Series Aquarium Heater incorporates several key features for reliable and efficient performance:

• Precision Temperature Control: Circulates heating to the set temperature and maintains it consistently.
• Uniform Heating Wire: Ensures fast heat collection and uniform heating for optimal thermal energy output.
• Wide Temperature Adjustment Range: Allows for setting the desired temperature between 20°C and 34°C (68°F and 93.2°F).
• Explosion Proof Design: Constructed for safety and reliability.
• Energy Saving: High efficiency design with quality materials that do not pollute water.
• Fully Submersible: Designed to be completely immersed in water for proper operation.

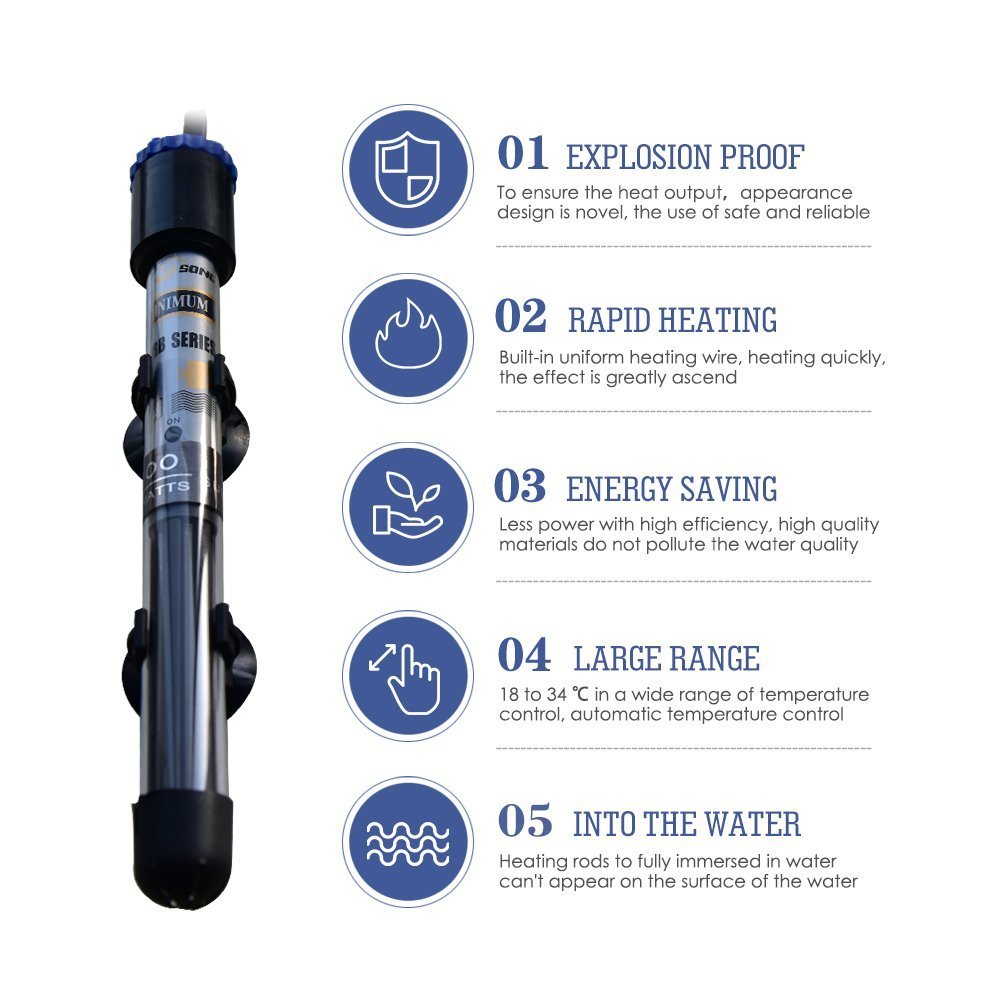

Image 2: Key features of the SunSun JRB Series Heater.

4. Components Overview

Familiarize yourself with the main components of your SunSun Aquarium Heater:

• Temperature Regulator: Located at the top, allows you to set the desired water temperature.
• Indicator Light: Illuminates when the heater is actively heating.
• Suction Cups: Used to securely mount the heater to the inside of the aquarium glass.
• Double Insulation Layer: Provides enhanced safety and durability.
• Protective Cover: A cap at the bottom of the heating element for protection.

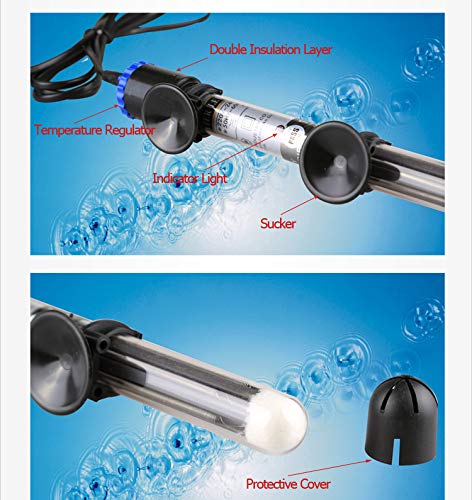

Image 3: Main components of the SunSun JRB Series Heater.

5. Setup and Installation

Follow these steps for proper installation of your aquarium heater:

1. Unpack: Carefully remove the heater from its packaging. Inspect for any signs of damage.
2. Placement: Choose a location in your aquarium where water circulation is good, typically near a filter outlet or in an area with consistent water flow. This ensures even heat distribution.
3. Mounting: Use the provided suction cups to securely attach the heater to the inside wall of your aquarium. Ensure the heater is positioned vertically and is fully submerged in the water. The water level must always be above the 'MINIMUM' water level mark indicated on the heater.
4. Temperature Setting: Before plugging in, rotate the temperature regulator dial at the top of the heater to your desired temperature. The recommended temperature range for most tropical fish is 24-26°C (75-79°F).

Image 4: Temperature regulation dial.
5. Power Connection: Once the heater is securely mounted and fully submerged, plug the power cord into a suitable electrical outlet. Ensure a drip loop is created to prevent water from reaching the outlet.

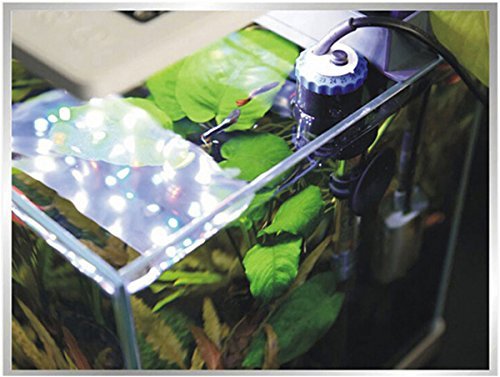

Image 5: Heater installed in an aquarium.

6. Operating Instructions

After proper installation, the heater will begin to operate automatically.

• Initial Heating: The indicator light will illuminate when the heater is actively heating the water. It will turn off once the set temperature is reached.
• Temperature Monitoring: Use a separate aquarium thermometer to monitor the water temperature. It may take several hours for the aquarium water to reach the desired temperature, especially in larger tanks or during initial setup.
• Adjusting Temperature: If the water temperature needs adjustment, unplug the heater, wait a few minutes for it to cool, then carefully rotate the temperature regulator dial to a new setting. Re-submerge and plug in the heater. Monitor the temperature with your thermometer.
• Automatic Operation: The heater will automatically turn on and off to maintain the set temperature.

7. Maintenance

Regular maintenance ensures the longevity and efficiency of your heater.

• Cleaning: Over time, algae and mineral deposits may accumulate on the heater's surface. Always unplug the heater and allow it to cool completely before removing it from the aquarium for cleaning. Gently wipe the heater with a soft cloth or sponge. Do not use harsh chemicals or abrasive materials.
• Water Changes: During water changes, ensure the water level does not drop below the 'MINIMUM' mark on the heater. If it does, unplug the heater immediately and only plug it back in after the water level has been restored and the heater has cooled.
• Cord Inspection: Periodically inspect the power cord for any signs of damage, fraying, or kinks.

8. Troubleshooting

If you encounter issues with your heater, refer to the following common problems and solutions:

9. Specifications

Detailed specifications for the SunSun JRB Series Aquarium Heaters:

Note: Specifications are subject to change without notice for product improvement.

10. Warranty and Support

SunSun products are manufactured with high-quality materials and undergo strict quality control. While specific warranty details may vary by region and retailer, we stand by the quality of our products. For any technical assistance, troubleshooting beyond this manual, or warranty claims, please contact your original point of purchase or the authorized SunSun distributor in your region. Please retain your proof of purchase for warranty purposes.
