Introduction
Thank you for choosing the Vangoa A-Style Mandolin. This instrument is designed for beginners, kids, and adults, offering a unique aesthetic with its Sunset Pink Mahogany finish and a rich, balanced sound. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your mandolin to ensure a rewarding musical experience.
Image: The Vangoa A-Style Mandolin in Sunset Pink Mahogany, accompanied by its carrying bag, digital tuner, picks, extra strings, cleaning cloth, and strap.
Product Features
- Unique Aesthetic: Features a delicate Sunset Pink Mahogany finish, transitioning from pale pink to white, designed to inspire creativity.
- High-Reliability Construction: Crafted with a quality mahogany arched body and a smooth, durable engineered wood fretboard, ensuring a perfectly balanced sound across all ranges.
- Beginner-Friendly Design: Lightweight and portable, making it an excellent choice for new players and musicians on the go. Includes a pre-installed pickguard to protect the body from scratches.
- Open Style Metal Tuning Pegs: Allows for clear visibility of tuning adjustments and ensures the instrument stays in tune.
- All-in-One Kit: Comes complete with essential accessories including a carrying bag, digital tuner, picks, extra alloy steel strings, and a dual-use strap with pre-installed strap buttons for comfortable playing.
Image: A close-up view highlighting the special glossy pink finish of the mandolin, reminiscent of a sunset sky.

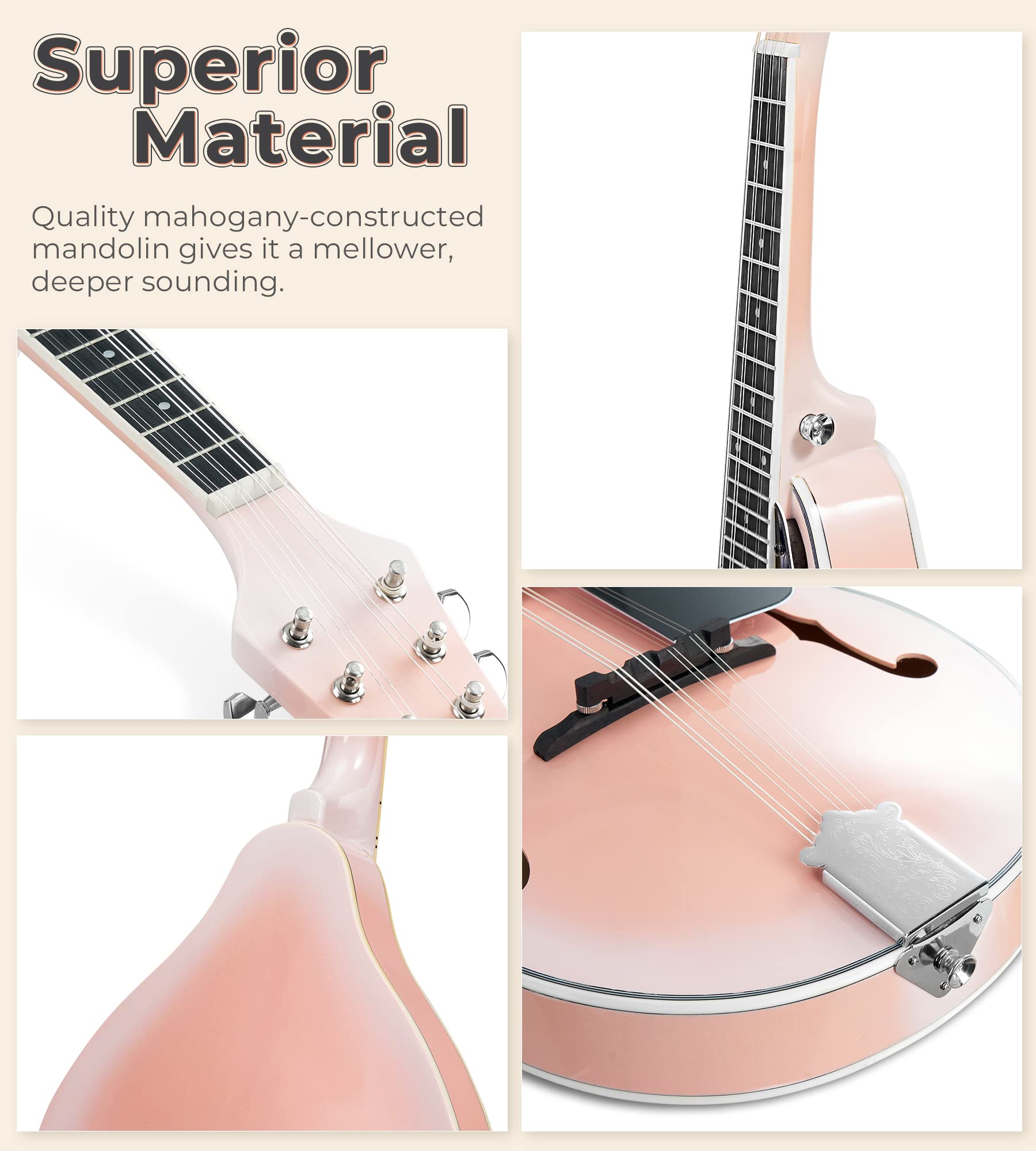

Image: Multiple detailed shots showcasing the superior mahogany material used for the mandolin's body and neck, and the engineered wood fretboard.
Setup
1. Unpacking and Inspection
Carefully remove the mandolin and all accessories from the packaging. Inspect the instrument for any visible damage. Ensure all listed accessories are present: mandolin, carrying bag, digital tuner, picks, extra strings, cleaning cloth, and strap.
2. Attaching the Strap
The mandolin features pre-installed strap buttons on the neck and bottom. Attach the dual-use strap to these buttons for comfortable playing, especially when standing.
3. Tuning the Mandolin
Your Vangoa mandolin comes with new strings, which will require frequent tuning initially as they stretch. Use the included digital tuner for accurate tuning. The standard tuning for a mandolin is G-D-A-E, from lowest to highest pitch (G3 G3, D4 D4, A4 A4, E5 E5). Tune each pair of strings to the same note.
Image: A detailed view of the elegant classical open style tuning pegs, designed for precise and durable tuning.

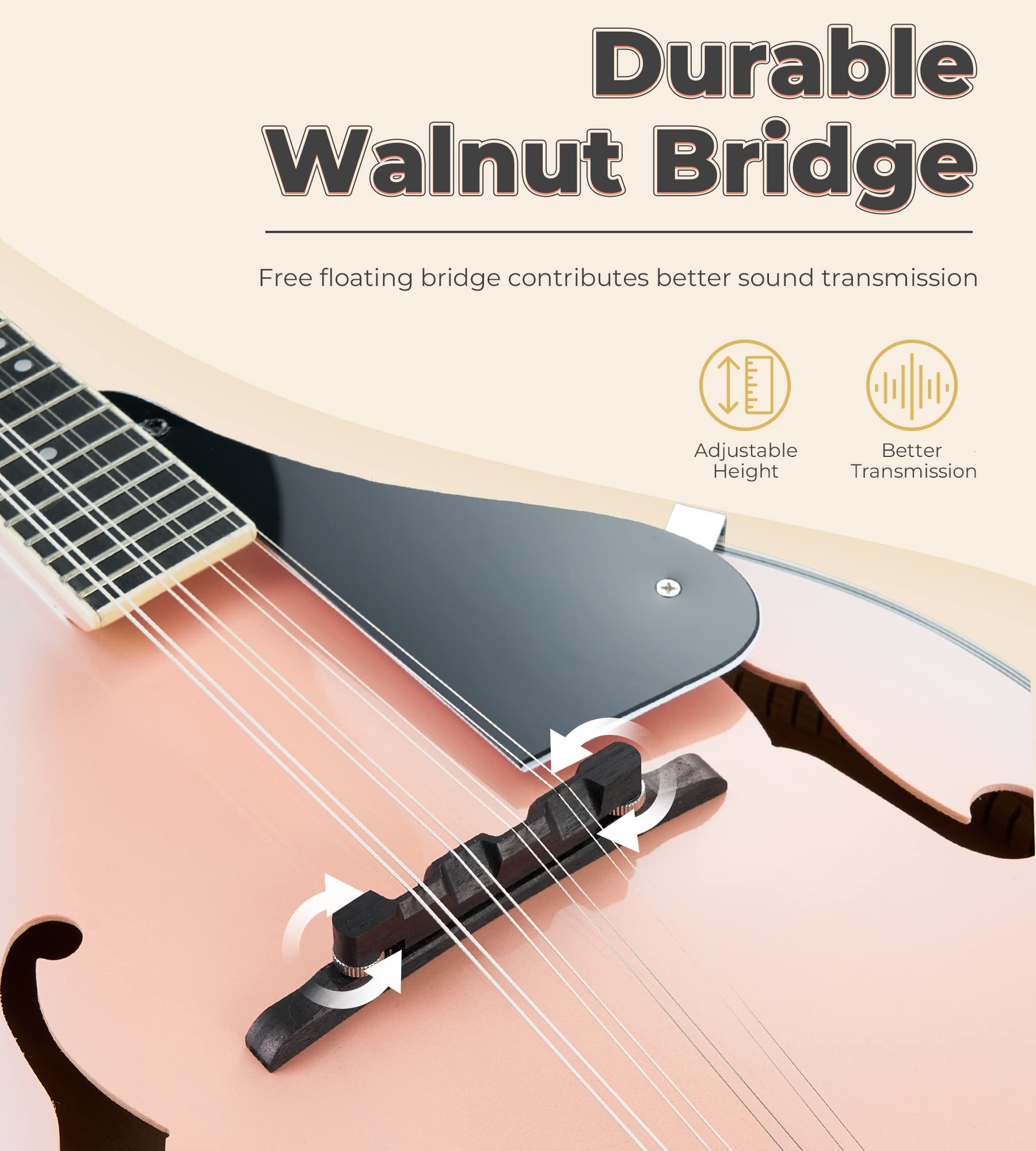

Image: A close-up of the durable walnut bridge, which is free-floating and contributes to better sound transmission. It is also adjustable for height.
Allow a few days for the new strings to settle and hold their tune consistently. Continue to tune regularly before each playing session.
Operating Your Mandolin
1. Holding the Mandolin
Hold the mandolin comfortably against your body. If seated, rest it on your lap. If standing, use the strap to support the instrument. Ensure your fretting hand (usually left) can comfortably reach all frets and your picking hand (usually right) can freely strum or pick the strings over the sound holes.
Image: A person comfortably holding the Vangoa mandolin while seated outdoors, demonstrating its portability and ease of use.
Image: A person playing the Vangoa mandolin indoors, highlighting its comfortable design for relaxed playing sessions.
2. Using the Pickguard
The mandolin is equipped with a pre-installed pickguard. This protective film is designed to shield the instrument's body from scratches and wear caused by your pick or fingers during playing. Ensure the transparent protective film is removed before use for optimal appearance.

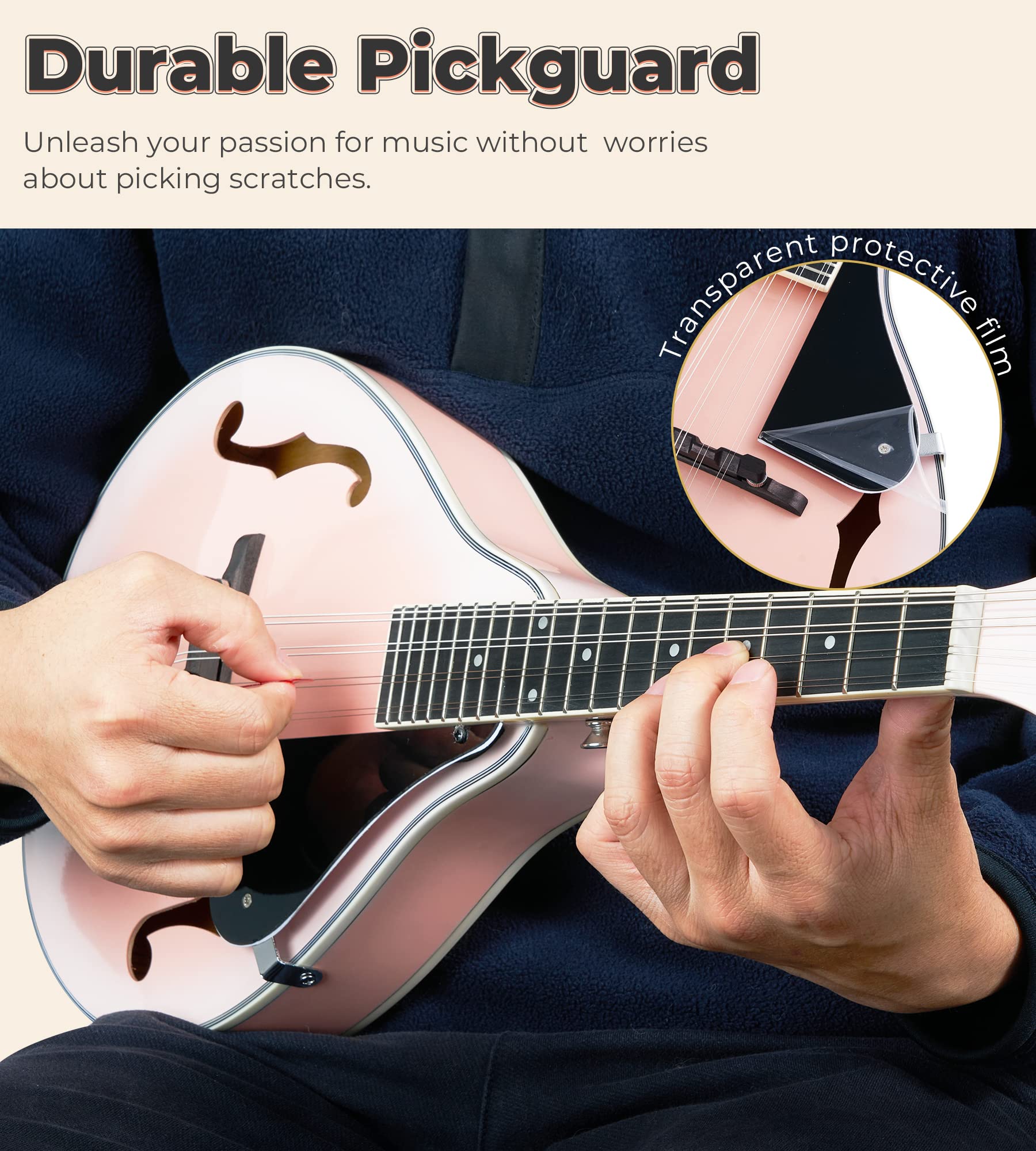

Image: A player's hand positioned over the mandolin's pickguard, illustrating how it protects the instrument from picking scratches.
3. Playing Techniques
The mandolin is played by strumming or picking its eight strings (four courses of two strings each). Experiment with different picking patterns and strumming techniques to explore the instrument's versatile sound. Resources for learning chords and melodies are widely available online and through music instructors.
Video: A demonstration of the Vangoa Mandolin being played acoustically, showcasing its sound quality and playability. This video illustrates the instrument's tone and how it can be used for musical expression.
Maintenance
1. Cleaning
After each use, wipe down the strings and body of the mandolin with the included cleaning cloth to remove oils and dirt. This helps prolong the life of the strings and maintain the instrument's finish. Avoid using abrasive cleaners or solvents.
2. String Replacement
Strings will eventually wear out and lose their tone. Replace them as needed using the included extra set of alloy steel strings. When replacing strings, do so one course at a time to maintain tension on the bridge and neck.
3. Storage
When not in use, store your mandolin in its carrying bag to protect it from dust, humidity fluctuations, and accidental damage. Avoid exposing the instrument to extreme temperatures or direct sunlight.
Image: The Vangoa mandolin securely stored within its durable carrying bag, illustrating the importance of proper protection and storage.
Troubleshooting
- Problem: Mandolin won't stay in tune.
Solution: New strings require time to stretch. Continue to tune frequently over the first few days of use. Ensure tuning pegs are tightened sufficiently. Check if the bridge is properly seated.
- Problem: Buzzing sound when playing.
Solution: Check string action (height of strings above the fretboard). The walnut bridge is adjustable; minor adjustments may be needed. Ensure no frets are uneven. If the issue persists, consult a professional luthier.
- Problem: Muted or dull sound.
Solution: Old or dirty strings can cause this. Replace strings if they appear worn or corroded. Ensure the bridge is correctly positioned for optimal sound transmission.
Specifications
| Model | B07JJ37PDQ |
| Instrument Type | A-Style Mandolin |
| Number of Strings | 8 (4 courses) |
| Body Material | Mahogany |
| Top Material | Mahogany |
| Back Material | Mahogany |
| Fretboard Material | Engineered Wood |
| Neck Material | Mahogany |
| Color | Sunset Pink Mahogany |
| Finish Type | Polished |
| String Material | Alloy Steel |
| String Gauge | Light |
| Item Weight | 3 pounds (1.36 kg) |
| Product Dimensions | 27 x 10.6 x 2.9 inches (68.6 x 26.9 x 7.4 cm) |
| Proficiency Level | Beginner |
Image: A detailed diagram illustrating the key dimensions and weight of the Vangoa A-Style Mandolin.
Warranty and Support
Vangoa is committed to providing quality musical instruments and sincere service. For any questions, concerns, or support needs regarding your Vangoa A-Style Mandolin, please contact Vangoa customer service through the retailer where you purchased the product. Please refer to your purchase documentation for specific warranty details.
You can also visit the official Vangoa store for more information and resources: Vangoa Store on Amazon.
