LAGRANGE LA19232 Premium Waffles + Wafers Instruction Manual

Product Overview

The LAGRANGE LA19232 Premium Waffles + Wafers appliance is a versatile electronic waffle maker designed for preparing both waffles and wafers. It features reversible and interchangeable plates, allowing for simultaneous preparation of two 155 x 100 mm waffles or four 100 x 77 mm wafers. The appliance offers adjustable settings for waffle finish (fluffy/crisp) and cooking degree, ensuring personalized results. It includes indicator lights for power and preheating/cooking completion, and a plate ejection button for easy removal of plates. Constructed with solid cast aluminum plates with a non-stick coating, and Bakelite hoods and handles, it ensures durability and ease of use. The removable cord adds to its convenience.

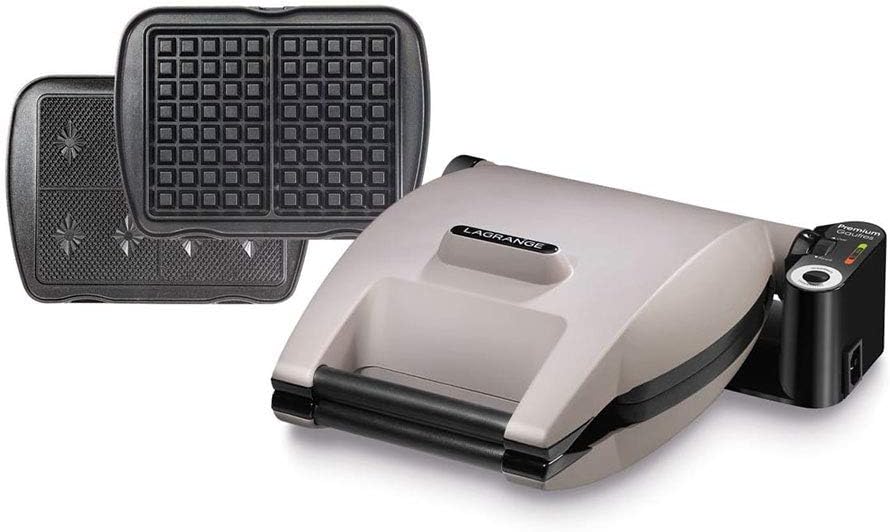

Image: The LAGRANGE LA19232 Premium Waffles + Wafers appliance, shown with its main unit and two sets of interchangeable plates (waffle and wafer plates).

Important Safety Instructions

Please read all instructions carefully before using the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always ensure the appliance is unplugged from the power outlet before cleaning, assembling, or disassembling parts.
• Do not immerse the appliance, cord, or plug in water or any other liquid.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not use outdoors. This appliance is for household use only.
• Do not let the power cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use the appliance for other than intended use.
• The surfaces of the appliance are hot during use. Do not touch hot surfaces directly. Use handles or knobs.
• Ensure the appliance is placed on a stable, heat-resistant surface.

Setup and Initial Use

1. Unpacking: Carefully remove the appliance and all accessories from the packaging. Retain packaging for future storage or transport.
2. Cleaning Plates: Before first use, wipe the non-stick cooking plates with a damp cloth and dry thoroughly. Do not use abrasive cleaners or scourers.
3. Installing Plates:
   • Ensure the appliance is unplugged and cool.
   • Identify the desired plates (waffle or wafer).
   • Align the plate tabs with the slots on the appliance.
   • Press the plate ejection button (if plates are already installed) and gently slide the new plates into place until they click securely.
   • The plates are reversible; ensure the desired cooking surface is facing upwards.
4. First Use Burn-Off: It is recommended to operate the appliance empty for approximately 10 minutes during the first use. This will burn off any manufacturing residues and odors. A slight smoke or odor is normal during this process. Ensure good ventilation.
5. Seasoning Plates: After the burn-off, allow the appliance to cool. Lightly brush or spray a small amount of cooking oil onto the non-stick plates. This helps maintain the non-stick properties.

Operating Instructions

1. Preparation: Ensure the correct plates are installed and lightly oiled. Prepare your waffle or wafer batter.
2. Power On: Plug the appliance into a suitable electrical outlet. The orange undermount indicator light will illuminate, indicating the appliance is powered on.
3. Preheating: Allow the appliance to preheat. The green indicator light will illuminate and a cooking beep will sound when the appliance has reached the optimal cooking temperature. This typically takes a few minutes.
4. Adjusting Settings:
   • Waffle Finish Adjustment Knob: Use this knob to select your desired waffle texture (fluffy or crisp).
   • Cooking Degree Adjustment Knob: Use this knob to control the browning level of your waffles or wafers.
5. Adding Batter: Once preheated, carefully pour or ladle the batter onto the center of the lower cooking plate. Do not overfill, as the batter will expand.
6. Closing the Lid: Gently close the lid. The appliance is designed to cook evenly.
7. Cooking Process: The green indicator light will turn off during cooking and will illuminate again, accompanied by a beep, when the cooking cycle is complete. The cooking time will vary based on batter type, desired browning, and selected settings.
8. Removing Cooked Items: Once cooking is complete, carefully open the lid. Use a heat-resistant plastic or wooden utensil to remove the waffles or wafers. Do not use metal utensils, as they can damage the non-stick coating.
9. Subsequent Batches: Close the lid to allow the appliance to reheat between batches. The green indicator light will signal when it's ready for the next batch.
10. Power Off: When finished cooking, unplug the appliance from the power outlet.

Maintenance and Cleaning

Proper maintenance ensures the longevity and optimal performance of your appliance.

1. Cool Down: Always allow the appliance to cool completely before cleaning.
2. Unplug: Ensure the appliance is unplugged from the power outlet.
3. Removing Plates: Press the plate ejection button and carefully remove the cooking plates.
4. Cleaning Plates:
   • Wash the non-stick plates in warm, soapy water.
   • For stubborn residue, soak the plates for a few minutes before cleaning.
   • Use a soft sponge or cloth. Do not use abrasive pads, steel wool, or harsh detergents, as these can damage the non-stick coating.
   • Rinse thoroughly and dry completely before re-installing or storing.
5. Cleaning Appliance Body: Wipe the exterior of the appliance with a damp cloth. Do not use abrasive cleaners.
6. Storage: Store the appliance in a clean, dry place. The removable cord can be detached for compact storage.

Troubleshooting

Product Specifications

Warranty and Support

LAGRANGE products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or service, please refer to the warranty card included with your purchase or visit the official LAGRANGE website. Please retain your proof of purchase for warranty claims.
