1. Product Overview
The Wolf Guard LB-W06 is a solar-powered outdoor siren alarm system designed to enhance home security. It features a 120 dB siren and a flashing light to deter intruders. The system is powered by a solar cell, allowing it to operate even during rainy or dark periods for extended durations. It supports passive infrared detection, door/window sensors, and remote control for arming and disarming.
Figure 1: Wolf Guard LB-W06 Solar Powered Outdoor Siren Alarm.
2. Package Contents
Please verify that all items listed below are included in your package:
- Wolf Guard LB-W06 Solar Powered Outdoor Siren Alarm Unit
- Lithium Battery (pre-installed or included separately)
- Sensors (e.g., door/window sensors, motion sensors, quantity may vary based on kit)
- Remote Controls (quantity may vary based on kit)
- Mounting Hardware
- User Manual (this document)
3. Technical Specifications
| Feature | Detail |
|---|---|
| Model Number | JD-W06 |
| Dimensions (L x W x H) | 19 x 6.8 x 30 cm |
| Weight | 1.43 kg |
| Power Source | Solar Powered, Lithium Battery (1 included) |
| Battery Type | Lithium Metal |
| Voltage | 5 Volts |
| Control Method | Remote Control |
| Sound Level | 120 Decibels |
| Mounting Type | Wall Mount |
| Maximum Range (PIR) | 12 Meters |
| Compatible Devices | Home Security System |

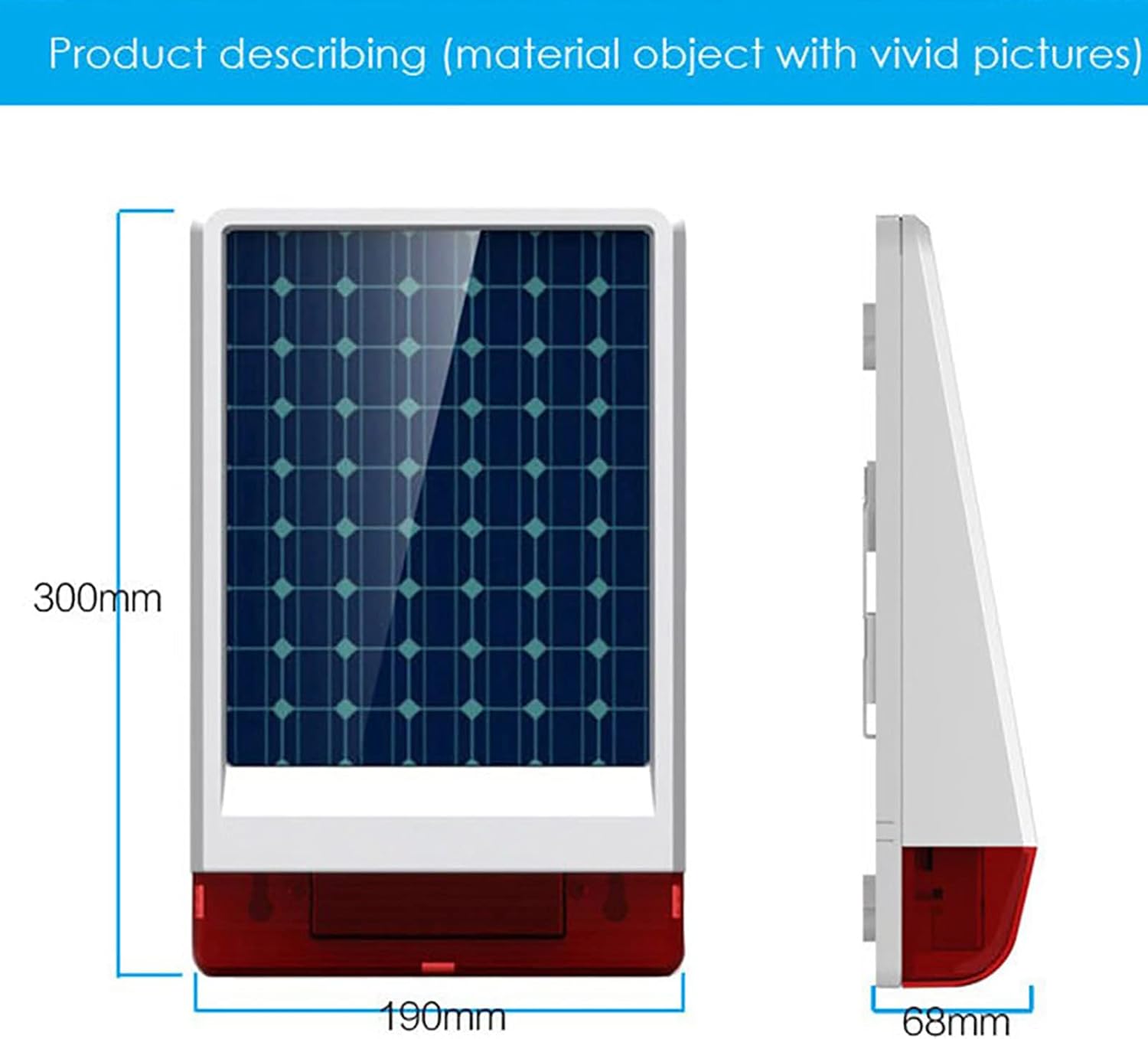

Figure 2: Product dimensions (Length: 300mm, Width: 190mm, Depth: 68mm).
4. Setup and Installation
4.1 Internal Component Overview
Before installation, familiarize yourself with the internal components of the siren alarm unit. Carefully open the unit to access the battery and wiring ports.
Figure 3: Internal view of the siren alarm, highlighting the solar power panel, siren, alarm strobe light, and flash indicator.
Figure 4: Rear view of the siren alarm, showing the installation points and the internal siren component.
4.2 Battery and Power Connection
The unit includes a built-in lithium battery that is charged by the solar panel. Ensure the battery is properly connected before use. An external 5V power adapter can also be used for charging or continuous power.
- Carefully remove the front cover of the siren unit.
- Locate the battery connector and ensure it is securely plugged into the designated port on the circuit board.
- Identify the power ON/OFF switch and set it to the ON position.
- If using an external power adapter, connect it to the 5V external power adapter port.
Figure 5: Illustration of the solar panel and backup battery connection for power.
Video 1: Detailed guide on opening the siren unit, connecting the internal battery, identifying the siren, and locating the power ports and ON/OFF switch. This video demonstrates the physical setup of the main alarm unit.
4.3 Wall Mounting
Mount the siren alarm unit securely on a wall in an outdoor location where it can receive adequate sunlight for solar charging. Use the provided mounting hardware.
- Choose a suitable location on an exterior wall, ensuring it is within range of your wireless sensors and remote controls.
- Use the mounting bracket as a template to mark drilling points on the wall.
- Drill holes and insert wall plugs if necessary.
- Secure the mounting bracket to the wall using screws.
- Attach the siren alarm unit to the mounted bracket.
Figure 6: Close-up of the rear cover showing the installation points for wall mounting.
5. Operating Instructions
5.1 Remote Control Functions
The system is controlled using the provided remote control. Each button has a specific function:
- Arm Button (Locked padlock icon): Activates the alarm system. The siren will sound if any linked sensor is triggered.
- Disarm Button (Unlocked padlock icon): Deactivates the alarm system. The siren will stop if it is currently alarming.
- Home Arm Button (House icon): Activates a partial arming mode, typically for perimeter protection while occupants are inside.
- SOS Button: Triggers an immediate alarm, regardless of the system's arming status.
Figure 7: Remote control for the Wolf Guard LB-W06 system, showing the indicator light and function buttons.
5.2 Triggering the Alarm with Sensors
The system works with various wireless sensors, such as door/window sensors and passive infrared (PIR) motion detectors. When the system is armed and a sensor is triggered, the siren will activate.
- Door/Window Sensor: When the two parts of the door/window sensor are separated (e.g., a door or window is opened), the sensor sends a signal to the siren, triggering the alarm.
- Motion Detector: If a passive infrared (PIR) motion detector senses movement within its detection zone while the system is armed, it will trigger the siren.
Video 2: Demonstration of the alarm being triggered by a door sensor and a motion detector, showing the siren and strobe light activation. The video also shows arming and disarming the system with the remote control.
5.3 Anti-Tamper Alarm
The siren unit is equipped with an anti-tamper feature. If the unit is forcibly removed from its mounting bracket or tampered with while armed, it will trigger the alarm, providing an additional layer of security.
Video 3: Demonstration of the anti-tamper alarm feature. The video shows the siren activating when the unit is removed from its mounting, indicating a security breach.
6. Maintenance
6.1 Solar Charging and Battery Life
The Wolf Guard LB-W06 is designed for low maintenance due to its solar charging capability. The integrated solar panel continuously charges the internal lithium battery. Even in periods of low sunlight, the battery can sustain operation for 15 days or more.
- Ensure the solar panel is kept clean and free from obstructions (e.g., dirt, leaves) to maximize charging efficiency.
- Position the unit in a location that receives ample direct sunlight throughout the day.
Figure 8: The solar panel actively charging the internal backup battery.
6.2 Weather Resistance
The outdoor siren alarm is designed to be waterproof, allowing it to withstand various weather conditions. Regular checks for any physical damage or blockages to the siren or strobe light are recommended to ensure optimal performance.
Figure 9: The waterproof design of the Wolf Guard LB-W06, suitable for outdoor use.
