SONGMICS 9 ft Patio Umbrella Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your new SONGMICS 9 ft Patio Umbrella. Please read this manual carefully before use to ensure proper setup and safe operation. Keep this manual for future reference.

Package Contents

• 1 x Patio Umbrella
• 1 x Instructions Manual (This document)

Key Features

• Effortless Opening and Closing: Features a smooth crank handle for easy extension and retraction of the canopy.
• Dual-Direction Tilt System: Allows the canopy to tilt 30° in two opposite directions by pressing a button on the durable zinc alloy joint, providing flexible shade adjustment.
• Sun and Drizzle Protection: Constructed with a water-repellent 180 g/m² polyester canopy offering UPF 50+ sun protection, blocking over 98% of harmful UV rays and providing shelter from light rain.
• Sturdy Construction: Supported by 8 rectangular, rust-resistant steel ribs, ensuring long-lasting durability and stability.
• Ventilation: Equipped with air vents at the top of the canopy to promote airflow, reduce wind pressure, and enhance stability.

Image: The umbrella canopy highlighting UPF 50+ protection and air vents for stability.

Image: Detail of the 8 rectangular, rust-resistant steel ribs providing robust support.

Setup and Assembly

The patio umbrella is designed for straightforward assembly. A suitable umbrella base is required for stability and is not included with this product.

1. Prepare the Base: Ensure you have a stable and sufficiently weighted umbrella base. Follow the instructions provided with your umbrella base for proper setup.
2. Insert the Pole: Carefully insert the bottom section of the umbrella pole into the opening of your umbrella base.
3. Secure the Umbrella: Tighten any securing knobs or screws on your umbrella base to firmly hold the umbrella pole in place. Ensure the umbrella is upright and stable before proceeding.

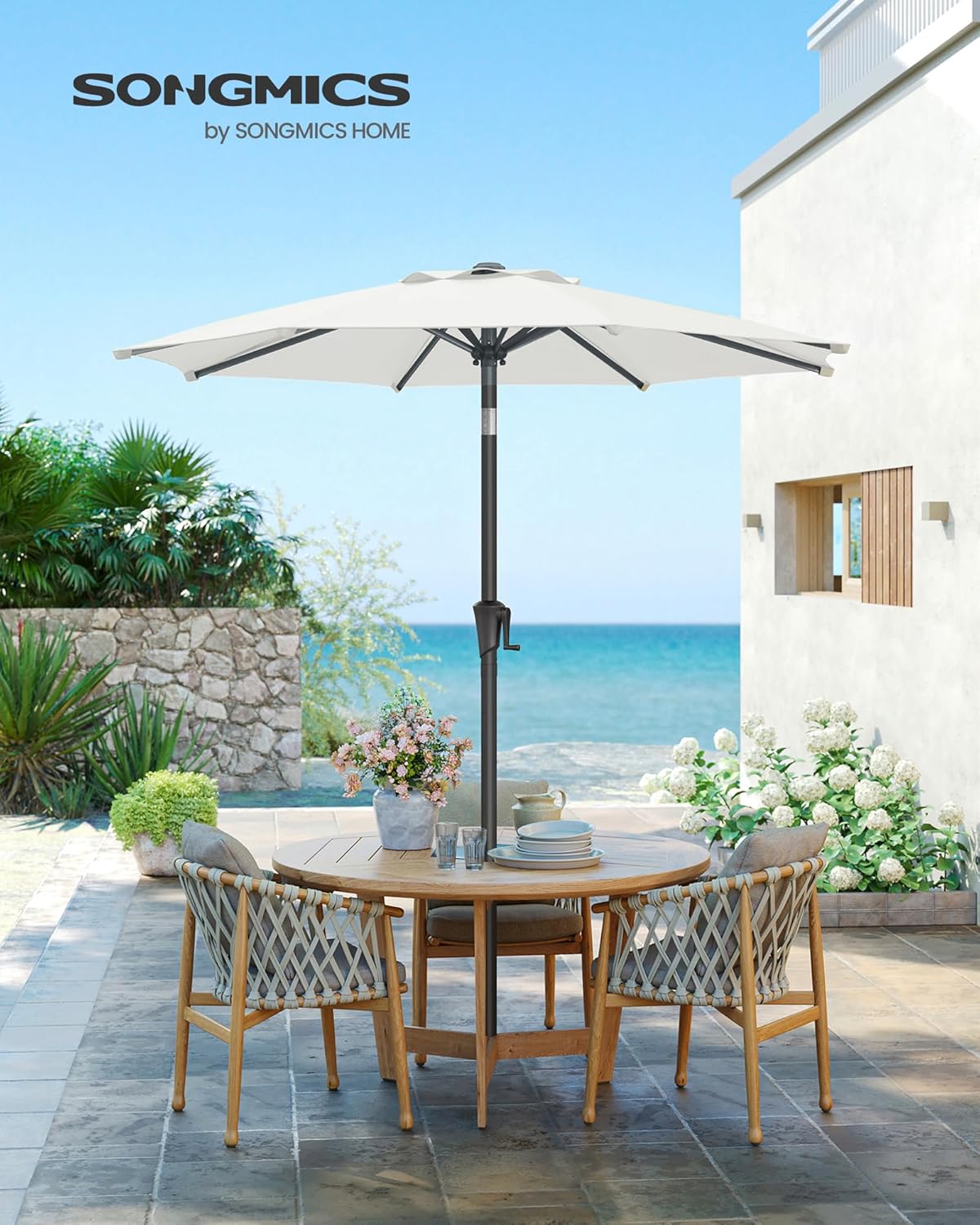

Image: The SONGMICS 9 ft Patio Umbrella fully assembled and in use on a patio, demonstrating its intended setup.

Operating Instructions

This section details how to operate your patio umbrella for optimal use.

Opening the Umbrella

To open the umbrella, locate the crank handle on the main pole. Rotate the handle clockwise to smoothly extend the canopy until it is fully open. Do not force the mechanism.

Image: The crank handle mechanism used for opening and closing the umbrella.

Closing the Umbrella

To close the umbrella, rotate the crank handle counter-clockwise until the canopy is fully retracted and secured. It is recommended to secure the closed canopy with a tie strap if available (not included) to prevent it from unfurling in windy conditions.

Tilting the Umbrella

The umbrella features a 30° dual-tilt system for adjustable shade. To tilt the canopy, press the button located on the zinc alloy joint on the pole. While holding the button, adjust the canopy to the desired angle. Release the button to lock the tilt position. You can tilt it in two opposite directions.

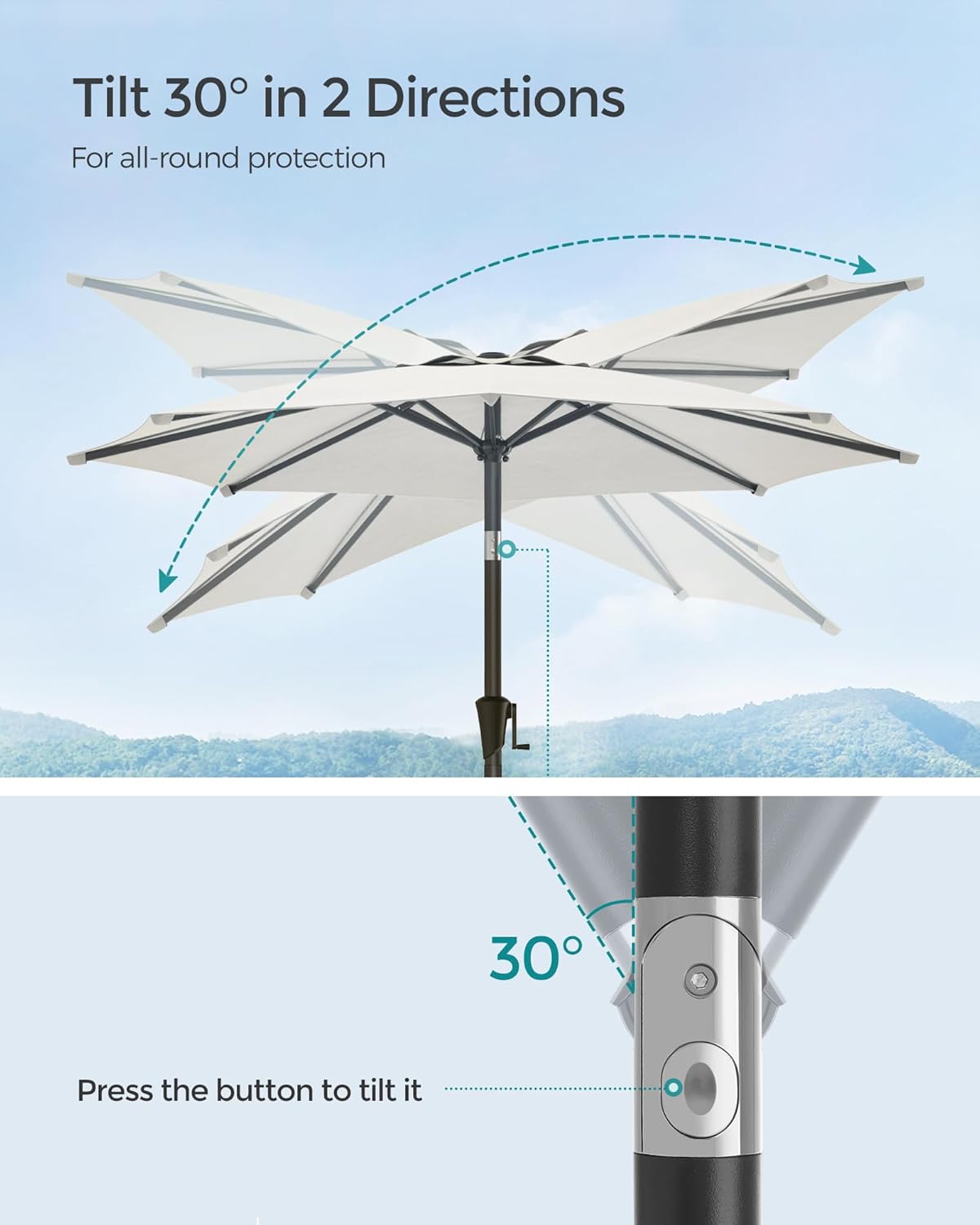

Image: The tilt mechanism button and its 30-degree adjustment capability for optimal shade.

Maintenance

• Cleaning the Canopy: Clean the polyester canopy with a soft brush, mild soap, and lukewarm water. Rinse thoroughly with clean water and allow it to air dry completely before closing or storing to prevent mildew.
• Frame Care: Periodically inspect the steel frame and ribs for any signs of rust, corrosion, or damage. Clean any dirt or debris and apply a rust-inhibiting paint or coating if necessary to prolong the life of the metal components.
• Mechanism Lubrication: The crank and tilt mechanisms may benefit from occasional lubrication with a silicone-based spray to ensure smooth and effortless operation.

Storage

Proper storage is crucial for extending the lifespan of your patio umbrella.

• Daily Use: Always close the umbrella during windy conditions, heavy rain, or other severe weather to prevent damage.
• Off-Season Storage: When not in use for extended periods, such as during the off-season, fully close the umbrella, clean it thoroughly, and ensure it is completely dry. Store it in a protective umbrella cover (not included) in a cool, dry, and sheltered location to protect it from environmental elements.

Troubleshooting

• Umbrella does not open/close smoothly:
  • Check the crank mechanism for any visible obstructions or debris.
  • Ensure the fabric of the canopy is not caught in the ribs or mechanism.
  • Apply a small amount of silicone lubricant to the crank mechanism if it feels stiff.
• Umbrella is unstable:
  • Verify that the umbrella pole is securely fastened in a heavy and stable base.
  • Ensure the base itself is placed on a flat, level surface.
  • Always close the umbrella during strong winds to prevent it from tipping over.

Specifications

Image: Detailed dimensions of the 9 ft patio umbrella.

Safety Warnings

• Always close the umbrella during strong winds, heavy rain, thunderstorms, or other severe weather conditions to prevent damage to the umbrella or potential injury.
• Do not force the umbrella open or closed. Operate the crank and tilt mechanisms gently and smoothly.
• Ensure the umbrella is securely anchored in a stable and sufficiently weighted base. An umbrella base is not included and must be purchased separately.
• Keep children and pets away from the umbrella during operation to avoid accidents.
• Avoid placing the umbrella near open flames, barbecues, or other heat sources.
• Do not hang heavy objects from the umbrella ribs or pole.

Warranty and Support

For specific warranty information, details on product returns, or to contact customer support, please refer to the official SONGMICS website or the retailer from whom you purchased the product. Please have your model number (UGPU09BEV1) and purchase date available when contacting support.
