SUPERDANNY 52FT Outdoor LED String Lights Instruction Manual

Product Overview

The SUPERDANNY 52FT Outdoor LED String Lights are designed to provide durable and energy-efficient illumination for various outdoor settings. Featuring shatterproof plastic bulbs and a robust, weather-resistant design, these lights are suitable for year-round use in diverse climates. The end-to-end connectable design allows for extended installations, making them ideal for large areas or multiple decorative arrangements.

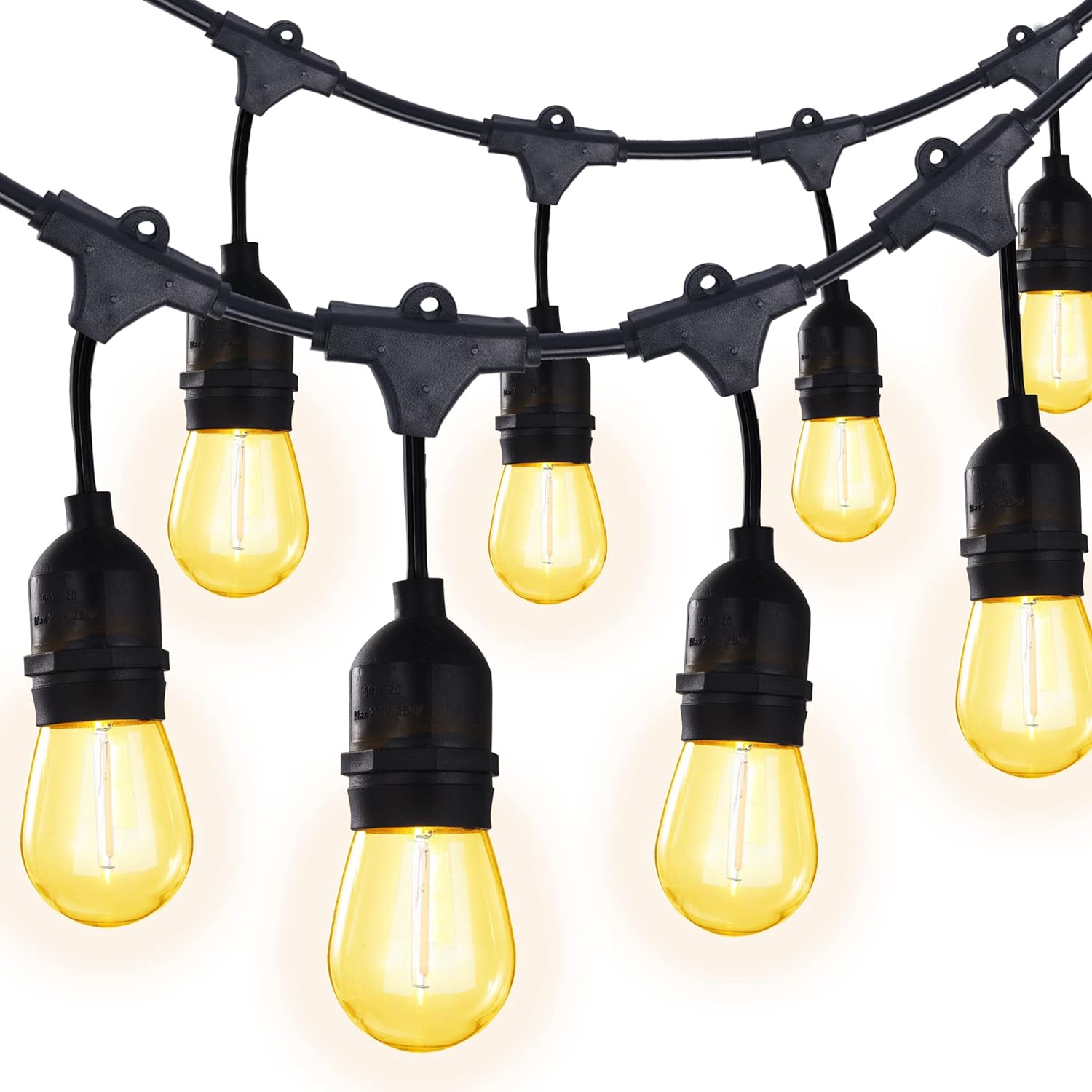

Image: Overview of the SUPERDANNY 52FT Outdoor LED String Lights, showcasing multiple illuminated bulbs along the string.

Package Contents

• 1 x 52 Ft Outdoor String Lights with 24 sockets
• 26 x 1W S14 E26 LED light bulbs (including 2 spare bulbs)
• 30 x Cable ties
• 2 x Fuses

Safety Information

• WARNING: Always unplug the string lights from the power source before installation, maintenance, or bulb replacement.
• Ensure the power outlet is suitable for outdoor use and protected from moisture.
• Do not exceed the maximum connectable strands (up to 16 strands).
• Do not immerse the string lights or bulbs in water.
• Keep away from flammable materials.
• Use only with compatible dimmers (dimmer not included).

Setup and Installation

Follow these steps for proper installation of your string lights:

1. Plan Your Layout: Determine the desired path for your string lights. The 52ft strand has 24 sockets spaced 2 feet apart, with a 3.5ft lead cord from the plug to the first bulb.

Image: Diagram illustrating the 2-foot spacing between bulbs and the 3.5-foot lead cord from the plug to the first bulb.
2. Secure the String: Use the included cable ties or other appropriate fasteners to securely hang the string lights along your planned path. Ensure the string is taut but not overly stressed.
3. Install Bulbs: Carefully screw each S14 LED bulb into its respective E26 socket. The bulbs are shatterproof plastic, providing durability.


Image: A close-up of a shatterproof plastic bulb, demonstrating its durability against impact.

4. Connect Multiple Strands (Optional): If more length is needed, connect additional SUPERDANNY string light strands end-to-end. The lights feature male and female plugs for easy connection. You can connect up to 16 strands safely.
5. Plug In: Once all bulbs are installed and the string is securely hung, plug the string lights into a suitable 120V AC outdoor power outlet.

Durability Features

These string lights are built for outdoor resilience:

• UL-Listed: Ensures safety and quality standards.
• Pure Copper Cord: Provides better conductivity and reduced heat.
• IP55 Wet Rated: Designed to withstand rain, snow, wind, and heat, making them suitable for year-round outdoor use.

Image: Close-up showing the pure copper wiring for enhanced conductivity and the UL Listed certification mark.

Image: Composite image demonstrating the string lights' resistance to various weather conditions including rain, wind, heat, and snow.

Operating Instructions

Simply plug the string lights into a compatible 120V AC power outlet to turn them on. To turn them off, unplug them from the outlet.

Dimming Functionality

These LED string lights are dimmable. To adjust the brightness, you will need to connect them to an external dimmer switch (not included). Ensure the dimmer switch is compatible with LED lighting and rated for outdoor use if applicable.

Energy Efficiency

The 1W LED bulbs are highly energy-efficient, significantly reducing electricity costs compared to traditional incandescent bulbs (11W/bulb).

Maintenance

• Cleaning: To clean the string lights, ensure they are unplugged. Wipe the bulbs and cord with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Bulb Replacement: If a bulb needs replacement, ensure the string is unplugged. Unscrew the old bulb and screw in a new 1W S14 E26 LED bulb. Two spare bulbs are included in the package.
• Fuse Replacement: The plug contains two fuses. If the lights do not turn on, check and replace the fuses if necessary. Ensure the replacement fuse matches the original rating.
• Storage: When not in use for extended periods, unplug the lights and store them in a cool, dry place away from direct sunlight.

Troubleshooting

Specifications

Warranty and Support

SUPERDANNY offers a 12-MONTH FULL AFTER-SALES SERVICE for this product. If you encounter any issues or have questions regarding your 52FT Outdoor LED String Lights, please contact SUPERDANNY customer support for assistance.

For more information or to explore other products, visit the official SUPERDANNY store: SUPERDANNY Store on Amazon.
