Linea Brasil Ipanema Entertainment Centre Instruction Manual

Introduction

This manual provides essential information for the assembly, operation, maintenance, and troubleshooting of your Linea Brasil Ipanema Entertainment Centre. Please read these instructions carefully before beginning assembly or use to ensure proper installation and safe operation of the product.

The Ipanema Entertainment Centre is designed to accommodate televisions up to 55 inches, providing a structured and organized space for your media devices and decorative items. It features a durable construction with multiple shelves and niches for storage.

Safety Information

• Do not expose the entertainment centre to water or excessive moisture. Keep it away from wet surfaces or walls to prevent damage to the wood and structural integrity.
• Ensure the product is assembled on a flat, stable surface to prevent tipping.
• Distribute weight evenly across shelves. Do not exceed the maximum weight capacities specified in the 'Specifications' section.
• Keep small parts and assembly hardware out of reach of children during assembly.
• For wall-mounted installation, ensure appropriate wall anchors and fasteners are used for your wall type. Consult a professional if unsure.

Package Contents

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact customer support immediately.

• Main structural panels (various sizes)
• Shelves
• Hardware kit (screws, dowels, cam locks, brackets, etc.)
• Sliding door mechanism and handle
• Optional feet for base
• Assembly instructions (refer to this manual for guidance)

The product is typically shipped in two boxes. Ensure both boxes are received before starting assembly.

Setup and Assembly

Assembly of the Linea Brasil Ipanema Entertainment Centre requires careful attention to detail. It is recommended that two adults perform the assembly. Gather all tools required (e.g., screwdriver, hammer) before starting.

1. Unpack and Organize: Carefully unpack all components and lay them out on a clean, soft surface (e.g., a blanket or carpet) to prevent scratches. Group similar hardware items together.
2. Identify Components: Refer to the included parts list (if available) and diagrams to identify each panel and piece of hardware.
3. Assemble Base Structure: Begin by assembling the main base frame according to the diagrams. Ensure all connections are secure but do not overtighten screws initially.
4. Install Shelves and Dividers: Attach internal shelves and dividers as indicated. Pay attention to the orientation of each piece.
5. Attach Back Panel: Secure the back panel(s) to the main structure. This often adds significant stability.
6. Assemble TV Panel: Construct the central TV panel section, ensuring it is robust enough to support your television.
7. Integrate TV Panel with Main Unit: Carefully attach the TV panel to the main entertainment centre structure.
8. Install Sliding Door: Assemble and install the sliding door for the storage niche. Ensure it glides smoothly.
9. Attach Optional Feet: If desired, attach the optional feet to the base of the unit.
10. Wall Mounting (Optional but Recommended): For added stability and safety, especially in homes with children or pets, secure the unit to the wall using appropriate anti-tip hardware (not always included, may need to be purchased separately).
11. Final Tightening: Once fully assembled, go back and gently tighten all screws and fasteners. Do not overtighten.

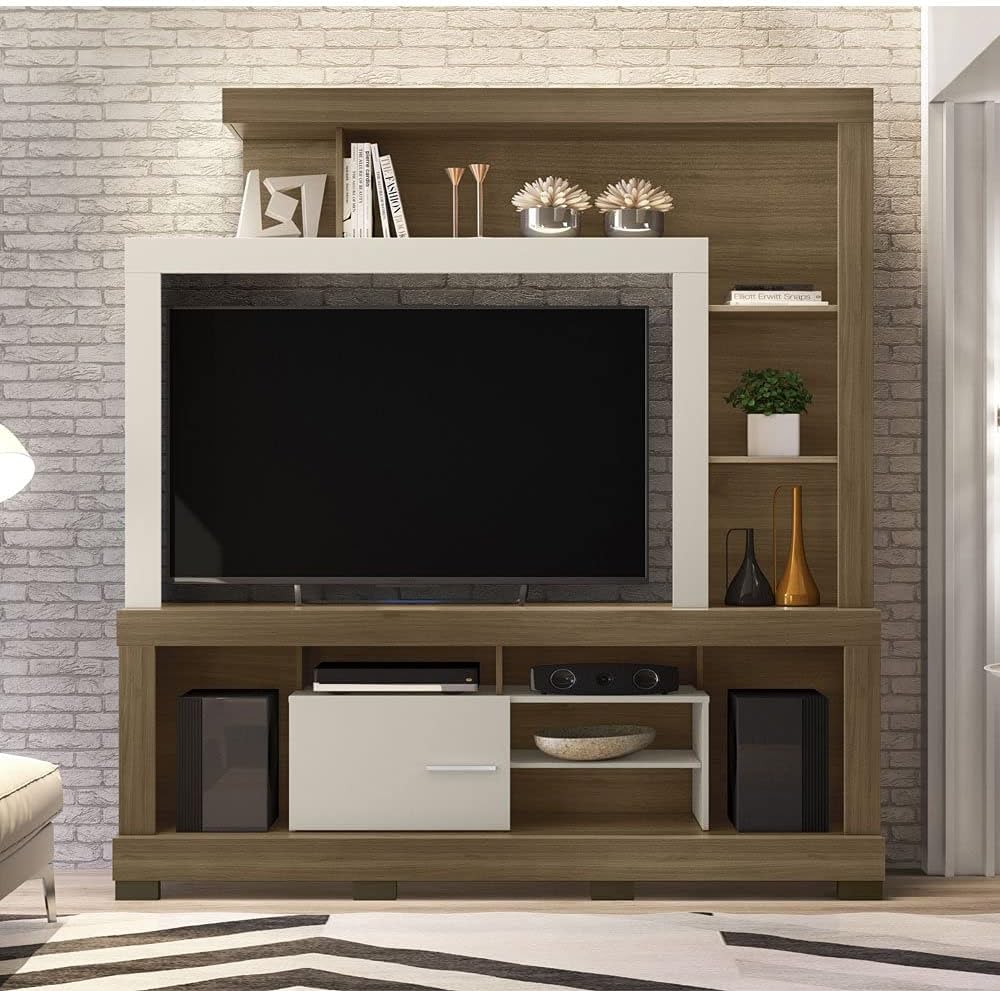

Figure 1: Fully assembled Linea Brasil Ipanema Entertainment Centre.

Figure 2: Feature diagram illustrating storage, display areas, and the sliding door mechanism.

Figure 3: Technical drawing showing overall dimensions (1.80m width, 0.40m depth, 1.87m height) and individual shelf weight capacities (e.g., 5kg, 3kg, 40kg for the main TV shelf).

Operating Instructions

• TV Placement: Carefully place your television on the designated TV panel. Ensure it is centered and stable. The unit supports TVs up to 55 inches.
• Device Storage: Utilize the open niches for electronic devices such as media players, gaming consoles, or soundbars. The design helps to manage and conceal cables.
• Shelf Usage: The upper and side shelves are suitable for displaying decorative items, books, or smaller electronic accessories. Adhere to the specified weight limits for each shelf.
• Sliding Door Compartment: Use the compartment with the sliding door for discreet storage of items you wish to keep out of sight.

Maintenance

• Cleaning: To clean the surfaces of the entertainment centre, use a dry, soft cloth. Avoid abrasive cleaners, harsh chemicals, or excessive moisture, as these can damage the finish.
• Dusting: Regularly dust the unit to prevent buildup.
• Inspection: Periodically check all fasteners and connections to ensure they remain tight. Retighten if necessary, but do not overtighten.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading or discoloration of the wood finish.

Troubleshooting

• Difficulty with Assembly: If you encounter difficulties during assembly, re-read the instructions carefully and review the diagrams. Ensure all parts are correctly oriented. Sometimes, a slight adjustment or loosening of previously tightened screws can help align components.
• Missing Parts: If any parts are missing from the package, do not attempt to force assembly. Contact Linea Brasil customer support with your product model number and a description of the missing part.
• Unit Instability: Ensure the unit is placed on a level surface. Verify that all screws and fasteners are securely tightened. If the unit still feels unstable, consider using the wall-mounting hardware to secure it to a wall.
• Sliding Door Not Moving Smoothly: Check the tracks for any obstructions or debris. Ensure the door is correctly seated in its runners.

Specifications

Figure 4: Product dimensions for planning placement. Overall height is 1.92m, width is 1.80m.

Warranty and Support

Warranty: The Linea Brasil Ipanema Entertainment Centre comes with a 90-day manufacturer's warranty against fabrication defects. This warranty covers defects in materials and workmanship under normal use.

What is not covered: This warranty does not cover damage resulting from improper assembly, misuse, neglect, accidents, alterations, or normal wear and tear.

Customer Support: For warranty claims, missing parts, or assembly assistance, please contact Linea Brasil customer support. Have your product model number (810001014 203839) and proof of purchase ready when contacting support.

For further assistance, please refer to the official Linea Brasil website or contact your retailer.
