Introduction
Thank you for choosing the Lorus Sport RT359GX9 Quartz Watch. This manual provides essential information for the proper setup, operation, maintenance, and care of your new timepiece. Please read these instructions carefully to ensure optimal performance and longevity of your watch.
Safety Information
- Water Resistance: This watch is water-resistant up to 100 meters. Avoid operating the crown or pushers when the watch is wet to prevent water ingress. Do not expose the watch to hot water or steam, as this can compromise the seals.
- Battery: The watch uses a quartz movement powered by a battery. Do not attempt to open the watch case or replace the battery yourself, as this may damage the watch and void the warranty. Contact an authorized service center for battery replacement.
- Temperature: Avoid exposing the watch to extreme temperatures (below 0°C or above 60°C) or sudden temperature changes, as this can affect accuracy and battery life.
- Magnetic Fields: Keep the watch away from strong magnetic fields, such as those produced by speakers, refrigerators, or mobile phones, as they can affect the watch's accuracy.
Package Contents
Your Lorus Sport RT359GX9 package should contain the following:
- 1 Lorus Sport RT359GX9 Quartz Watch
- User Manual (this document)
Setup
Setting the Time
- Pull the crown out to the second click position.
- Turn the crown to set the hour and minute hands.
- Push the crown back into the normal position.
Setting the Date
- Pull the crown out to the first click position.
- Turn the crown to set the date. If the date is set between 9:00 PM and 1:00 AM, the date may not change correctly the next day.
- Push the crown back into the normal position.
Note: The watch is powered by a battery, which is included and pre-installed.
Operating Instructions
Chronograph Function
The chronograph allows for precise measurement of elapsed time.
- Press the upper pusher to start the chronograph.
- Press the upper pusher again to stop the chronograph.
- Press the lower pusher to reset the chronograph hands to zero.
Tachymeter Scale
The tachymeter scale on the bezel can be used to measure speed over a known distance (e.g., 1 kilometer or 1 mile). Start the chronograph at the beginning of the distance and stop it at the end. The number indicated by the chronograph second hand on the tachymeter scale represents the average speed per hour.

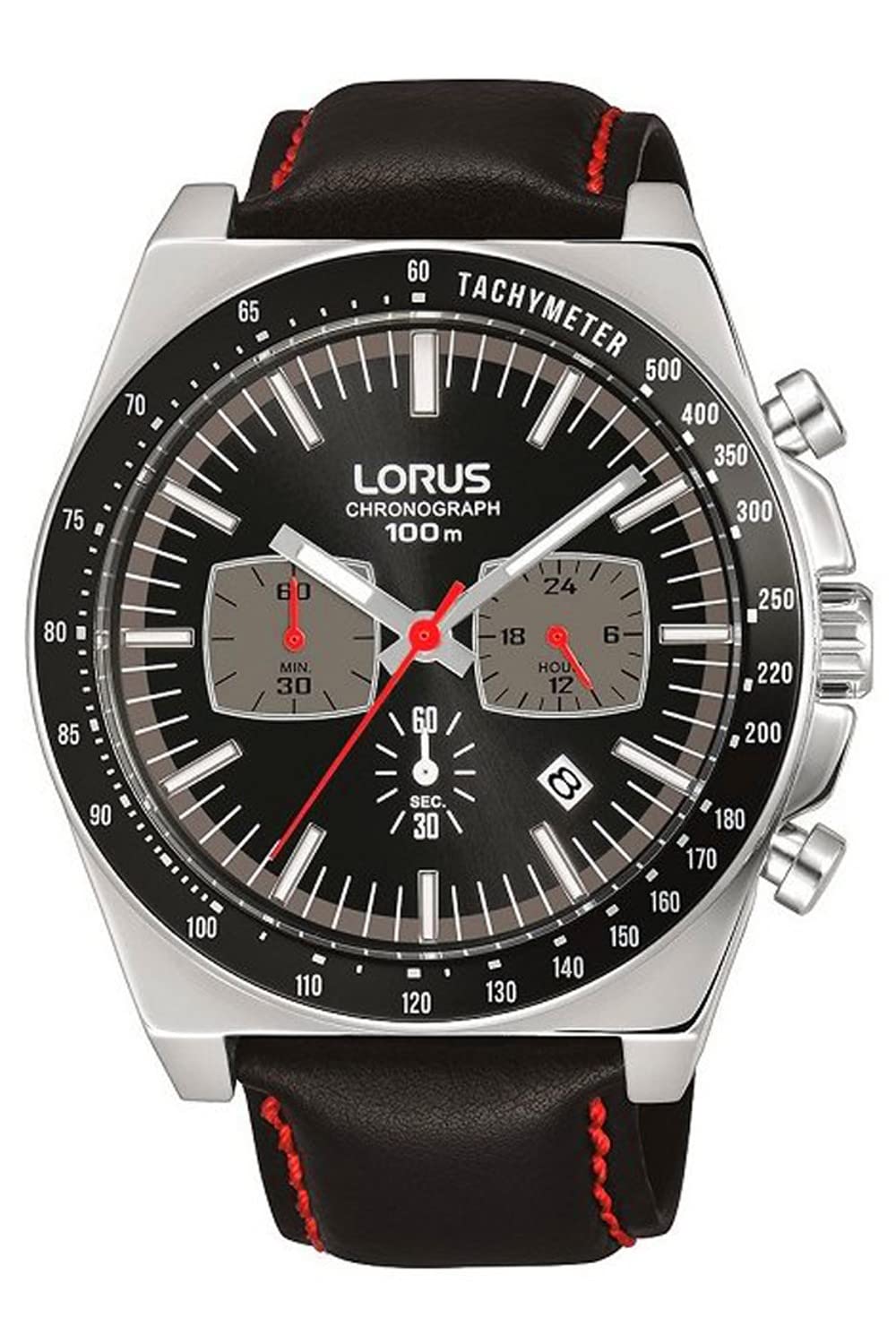

Figure 1: Lorus Sport RT359GX9 Quartz Watch. This image shows the watch face, including the chronograph subdials and the tachymeter scale on the bezel, along with the black leather strap.
Maintenance
Cleaning Your Watch
Wipe the watch case and crystal with a soft, dry cloth. For the leather strap, avoid excessive moisture and harsh chemicals. If the watch gets wet, dry it thoroughly with a soft cloth.
Battery Replacement
When the battery is depleted, the watch hands may stop or move erratically. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and function. The watch uses 1 battery.
Water Resistance Precautions
- Do not operate the crown or pushers underwater.
- Ensure the crown is pushed in completely after setting the time/date.
- Avoid exposing the watch to sudden temperature changes, such as going from a hot sauna to cold water, as this can affect the water-resistant seals.
- Have the water resistance seals checked periodically (e.g., every 2-3 years) by a professional, especially if the watch is frequently exposed to water.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Watch stops or runs intermittently. | Depleted battery. | Replace the battery at an authorized service center. |
| Date does not change at midnight. | Date was set during the prohibited time (9 PM - 1 AM). | Adjust the time past 1 AM, then reset the date. Ensure the AM/PM is correct. |
| Water condensation inside the crystal. | Compromised water resistance. | Immediately take the watch to an authorized service center for inspection and repair. |
Specifications
| Model Number: | RT359GX9 |
| Movement Type: | Quartz |
| Display Type: | Analog |
| Case Material: | Stainless Steel |
| Band Material: | Leather |
| Case Diameter: | 46 mm |
| Case Thickness: | 12 mm |
| Band Width: | 20 mm |
| Water Resistance: | 100 Meters (Resistant to water) |
| Special Features: | Chronograph, Date, Tachymeter |
| Power Source: | Battery |
| Clasp Type: | Tang Buckle |
| Crystal Material: | Mineral Glass |
| Dial Color: | Black |
| Strap Color: | Black |
Warranty and Support
This Lorus watch comes with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact Lorus customer support.
In addition to any legal return rights, you have a 30-day return right for many products. For exceptions and conditions, please consult the relevant policies where you made your purchase.
For technical assistance, service, or warranty claims, please contact your authorized Lorus dealer or visit the official Lorus website for support information.
