MIFXIN Electric Automatic Rotating Peeler User Manual

1. Introduction

Thank you for choosing the MIFXIN Electric Automatic Rotating Peeler. This device is designed to simplify the peeling of various fruits and vegetables, offering convenience and efficiency in your kitchen. Please read this manual thoroughly before first use to ensure proper operation, safety, and maintenance.

Safety Precautions

• Always keep hands clear of the peeling blade during operation.
• Ensure the peeler is placed on a stable, flat surface before use.
• Do not immerse the main unit in water or any other liquid.
• Keep out of reach of children.
• Unplug the device when not in use or before cleaning.
• Use only the specified power source (batteries or AC adapter, if applicable).

2. Product Overview

The MIFXIN Electric Automatic Rotating Peeler features a robust design for efficient peeling. Familiarize yourself with its components:

• Peeling Arm: Holds the stainless steel blade and adjusts to the fruit/vegetable contour.
• Upper Holder: Secures the top of the fruit/vegetable.
• Lower Holder: Rotates the fruit/vegetable during peeling.
• Power Button: Initiates and stops the peeling process.
• Base Unit: Houses the motor and battery compartment.
• Thumb Knife: A small, integrated knife for removing blemishes or eyes.

Image 2.1: The MIFXIN Electric Automatic Rotating Peeler, showcasing its main components in white.

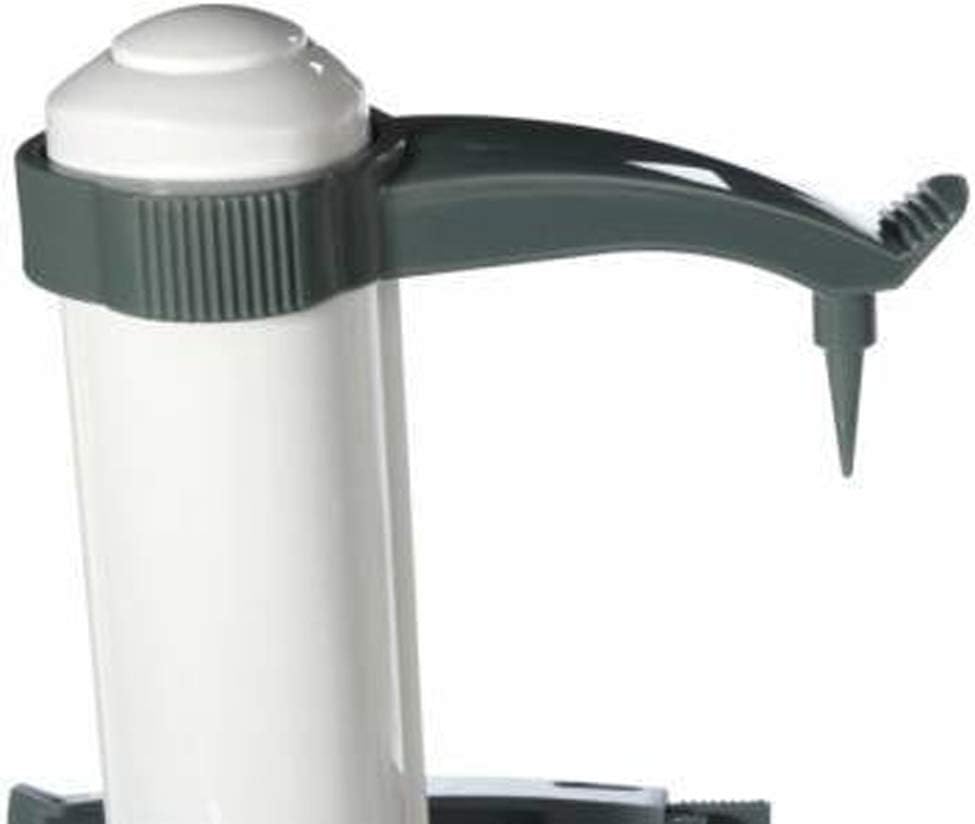

Image 2.2: Detail of the upper holder and peeling arm, designed to securely hold and peel produce.

3. Setup

Battery Installation

The peeler operates on 4 AA batteries (not included) or an AC adapter (not included).

1. Ensure the peeler is turned off and unplugged if using an AC adapter.
2. Locate the battery compartment on the underside of the base unit.
3. Open the compartment cover.
4. Insert 4 AA batteries, observing the correct polarity (+/-) as indicated inside the compartment.
5. Close the battery compartment cover securely.

Preparing the Peeler

Before first use, wipe down the peeling arm and holders with a damp cloth. Ensure all parts are dry before operation.

4. Operating Instructions

Follow these steps for effective and safe peeling:

1. Prepare the Fruit/Vegetable: Wash the fruit or vegetable thoroughly. For items like potatoes, apples, or pears, ensure they are firm and relatively symmetrical. Trim any excessively large or irregular ends.
2. Position the Produce: Center the fruit or vegetable onto the lower holder's spikes. Gently press down to secure it.
3. Adjust the Upper Holder: Lower the upper holder until its spike firmly grips the top of the fruit or vegetable. Ensure the produce is held securely between both holders.
4. Position the Peeling Arm: Adjust the peeling arm so that the blade rests gently on the top of the fruit or vegetable, just below the upper holder. The arm is designed to automatically adjust to the contour.
5. Start Peeling: Press the power button. The fruit or vegetable will begin to rotate, and the peeling arm will move downwards, removing the skin in a continuous spiral.
6. Completion: The peeler will automatically stop once the peeling process is complete.
7. Remove Peeled Produce: Carefully lift the peeling arm and then remove the peeled fruit or vegetable from the holders. Use the integrated thumb knife to remove any remaining small blemishes or eyes.

Image 4.1: A visual guide demonstrating the four main steps for using the electric peeler: placing the potato, adjusting the blade, pressing the switch, and automatic peeling. Note: This image depicts a black model, but the operational steps are identical for the white model.

Image 4.2: The peeler actively removing the skin from a potato, demonstrating the spiral peeling action.

Tips for Best Results

• For very soft fruits, ensure they are slightly firm to prevent crushing.
• The peeler is suitable for various items including potatoes, apples, pears, oranges, lemons, cucumbers, kiwis, and zucchinis.
• If the blade struggles, ensure it is clean and free of debris.

Image 4.3: Examples of various fruits and vegetables successfully peeled by the device, including apples, lemons, oranges, potatoes, turnips, pears, cucumbers, kiwis, and zucchinis.

5. Maintenance and Cleaning

Regular cleaning ensures optimal performance and longevity of your peeler.

1. Power Off: Always turn off the peeler and remove batteries or unplug the AC adapter before cleaning.
2. Remove Debris: Carefully remove any accumulated peels from the base and around the peeling arm.
3. Clean Blade and Holders: Use a damp cloth or sponge with mild soap to wipe down the stainless steel blade, peeling arm, and fruit/vegetable holders. Be cautious around the sharp blade.
4. Clean Base Unit: Wipe the exterior of the base unit with a damp cloth. Do not submerge the base unit in water.
5. Dry Thoroughly: Ensure all parts are completely dry before reassembling or storing the peeler.
6. Storage: Store the peeler in a clean, dry place.

6. Troubleshooting

If you encounter issues with your peeler, refer to the following common problems and solutions:

7. Specifications

• Brand: MIFXIN
• Model: B07J2JTP5F
• Operation Mode: Automatic
• Blade Material: Stainless Steel
• Body Material: Plastic
• Color: White
• Power Source: 4 x AA Batteries (not included) or AC Adapter (not included)
• Special Features: Automatic, Non-Slip Base, Integrated Thumb Knife
• Recommended Uses: Peeling fruits (apples, pears, citrus) and vegetables (potatoes, carrots, cucumbers, zucchinis)
• Item Dimensions (L x W): Approximately 6.44 inches x 6.24 inches

8. Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact your retailer. Keep your purchase receipt as proof of purchase.
