Jabra Elite Active 65t True Wireless Sports Earbuds Instruction Manual

1. Introduction

Welcome to the instruction manual for your Jabra Elite Active 65t True Wireless Sports Earbuds. This guide provides essential information on setting up, operating, maintaining, and troubleshooting your earbuds to ensure optimal performance and longevity.

2. What's in the Box

• Jabra Elite Active 65t Earbuds (Left and Right)
• Wireless Charging Case
• EarGels (various sizes for optimal fit)
• USB Charging Cable
• Quick Start Guide

3. Product Overview

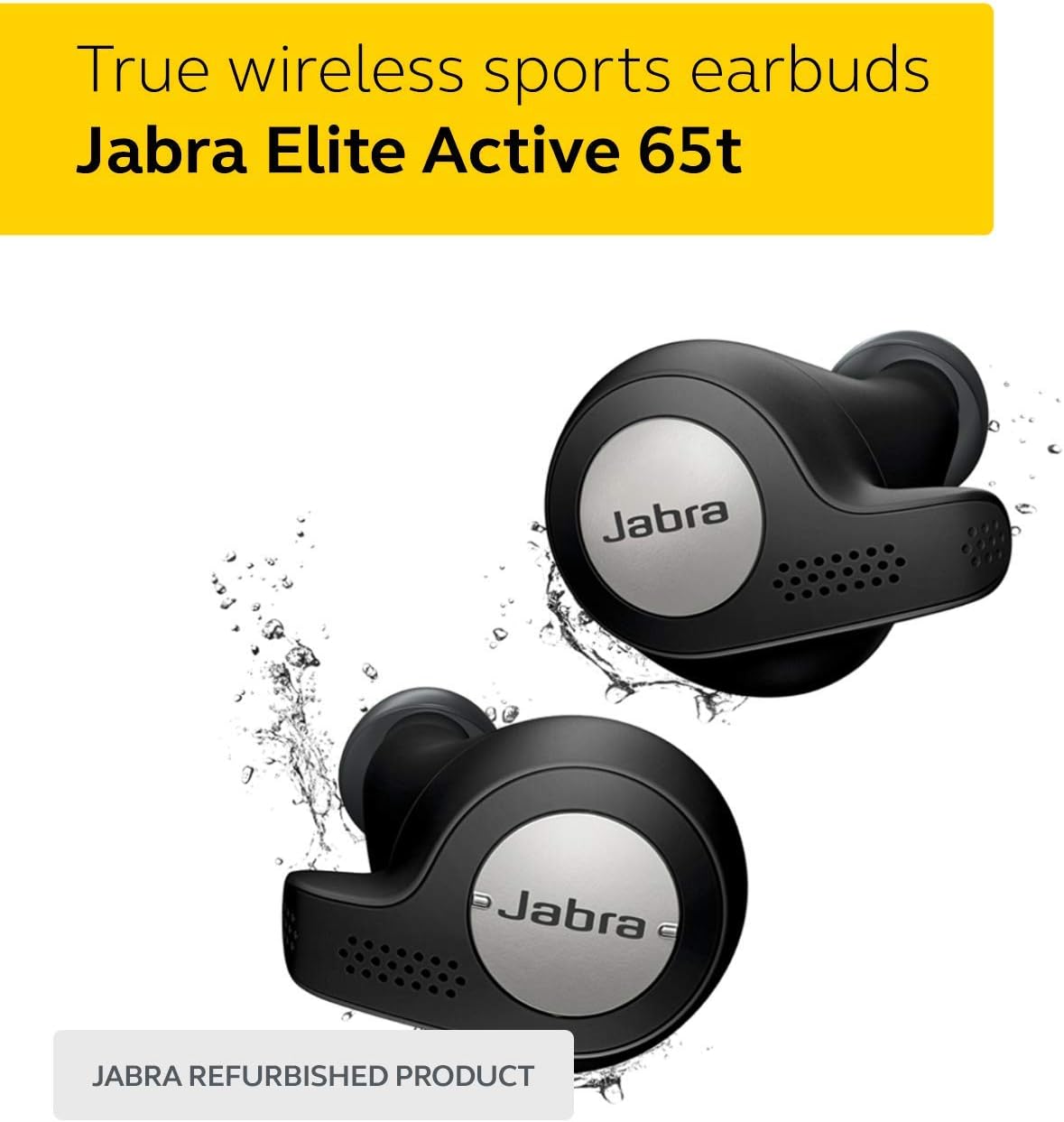

Image Description: A pair of black Jabra Elite Active 65t true wireless earbuds, featuring a metallic silver outer button with the Jabra logo, surrounded by water splashes, indicating their water-resistant design.

Earbud Components

• Multi-function Button: Controls music playback, calls, and voice assistant.
• Microphones: Four built-in microphones for clear calls and voice commands.
• Charging Contacts: For charging the earbuds in the case.
• EarGel: Silicone tips for a secure and comfortable fit.

Charging Case

Image Description: The black Jabra Elite Active 65t earbuds resting inside their compact black charging case, which is open to reveal the earbuds.

• Charging Port: USB port for charging the case.
• LED Indicator: Displays battery status of the case and earbuds.
• Magnetic Closure: Secures earbuds within the case.

4. Setup

4.1 Initial Charge

Before first use, place the earbuds in the charging case and connect the case to a USB power source using the provided cable. Ensure both the earbuds and the case are fully charged. The LED indicator on the case will show charging status.

Image Description: A man wearing Jabra Elite Active 65t earbuds during an outdoor workout, with text overlay highlighting "Up to 5 hours battery" and "15 hours with charging case."

4.2 Pairing with Your Device

1. Open the charging case and remove the earbuds. They will automatically enter pairing mode.
2. On your smartphone or Bluetooth-enabled device, go to the Bluetooth settings.
3. Select "Jabra Elite Active 65t" from the list of available devices.
4. Follow any on-screen prompts to complete the pairing process.

Note: If you experience difficulty pairing, ensure the earbuds are charged and within range of your device. You may need to manually put them into pairing mode by holding down the multi-function button on both earbuds until the LED flashes blue.

4.3 Jabra Sound+ App

Download the Jabra Sound+ app from your device's app store for enhanced control and customization. The app allows you to:

• Adjust the equalizer for personalized sound.
• Enable/disable HearThrough for ambient sound awareness.
• Customize button functions.
• Update firmware for optimal performance.

Image Description: A smartphone displaying the Jabra Sound+ application interface, showing options for sound modes, HearThrough control, and a customizable music equalizer with various presets.

5. Operating Instructions

5.1 Power On/Off

• Power On: Remove earbuds from the charging case. They will automatically power on.
• Power Off: Place earbuds back into the charging case. They will automatically power off and begin charging.

5.2 Music Controls

• Play/Pause: Press the multi-function button on the right earbud once.
• Next Track: Double-press the multi-function button on the right earbud.
• Previous Track: Triple-press the multi-function button on the right earbud.
• Volume Up: Press and hold the volume up button on the right earbud.
• Volume Down: Press and hold the volume down button on the left earbud.

5.3 Call Controls

• Answer/End Call: Press the multi-function button on the right earbud once.
• Reject Call: Double-press the multi-function button on the right earbud.
• Mute/Unmute Microphone: During a call, press the multi-function button on the left earbud once.

5.4 Voice Assistant

The Jabra Elite Active 65t supports voice assistants like Alexa, Google Assistant, and Siri.

• Activate Voice Assistant: Press and hold the multi-function button on the right earbud for 1 second.

Image Description: A man wearing Jabra Elite Active 65t earbuds, with speech bubbles illustrating common voice assistant commands such as "Alexa, Call the office," "OK Google, Where is my next meeting?", and "Hey Siri, Set an alarm for 1 p.m."

5.5 HearThrough Function

HearThrough allows you to hear your surroundings without removing your earbuds.

• Toggle HearThrough: Press the multi-function button on the left earbud once.

6. Maintenance

6.1 Cleaning

Regular cleaning helps maintain sound quality and hygiene.

• Gently wipe the earbuds and charging case with a soft, dry, lint-free cloth.
• Remove EarGels and clean them with mild soap and water, then dry thoroughly before reattaching.
• Ensure charging contacts are free of debris.

6.2 Storage

Store your earbuds in their charging case when not in use to protect them and keep them charged.

6.3 Water and Dust Resistance (IP56)

The Jabra Elite Active 65t earbuds are IP56-rated, meaning they are protected against dust ingress and high-pressure water jets from any direction. This makes them suitable for sports and exercise, including use in light rain or during sweaty workouts.

Image Description: A close-up of the Jabra Elite Active 65t earbuds with water droplets, illustrating their IP56 water and dust resistance, ideal for active use.

7. Troubleshooting

• No Sound/Poor Sound Quality:
  • Ensure earbuds are properly seated in your ears and EarGels are the correct size.
  • Check device volume and earbud volume.
  • Verify Bluetooth connection is active and stable.
  • Clean earbuds and charging contacts.
• Earbuds Not Charging:
  • Ensure earbuds are correctly placed in the charging case.
  • Check that the charging case itself is charged or connected to a power source.
  • Clean charging contacts on both earbuds and case.
• Connection Issues:
  • Turn Bluetooth off and on again on your device.
  • Try re-pairing the earbuds (see Section 4.2).
  • Ensure no other devices are interfering with the Bluetooth signal.
• Earbuds Not Turning On:
  • Ensure earbuds and charging case are fully charged.
  • If stored outside the case, manually power them on by holding the multi-function button.

8. Specifications

9. Warranty and Support

Your Jabra Elite Active 65t earbuds come with a manufacturer's warranty. For detailed warranty information, product registration, and technical support, please visit the official Jabra support website or refer to the warranty card included in your product packaging.

For further assistance, you may also contact Jabra customer service directly.
