1. Introduction
Thank you for choosing the CASO Crema One Automatic Coffee Machine, Model 1881. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new coffee machine. Please read these instructions thoroughly before first use and keep them for future reference.
2. Important Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.
- Read all instructions before operating the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
3. Product Overview
Familiarize yourself with the components of your CASO Crema One Automatic Coffee Machine.
Figure 3.1: Front view of the CASO Crema One Automatic Coffee Machine, showcasing its sleek design and coffee dispenser.
Figure 3.2: Top view of the machine, showing the coffee bean hopper on the right and the control panel with various function icons on the left.
Key Components:
- Control Panel: Touch-sensitive buttons for power, coffee strength, volume, and cleaning.
- Coffee Bean Hopper: Located on top, for whole coffee beans.
- Water Tank: Removable tank for fresh water supply.
- Coffee Spout: Adjustable height for different cup sizes.
- Drip Tray: Collects excess liquid and removable for cleaning.
- Grounds Container: Collects used coffee grounds, located behind the drip tray.
- Brewing Unit: Internal component responsible for brewing coffee.
4. Setup
4.1 Unpacking and Placement
- Remove all packaging materials.
- Place the machine on a stable, level, and heat-resistant surface.
- Ensure adequate ventilation around the machine.
4.2 Filling the Water Tank
Figure 4.1: A hand lifting the removable water tank from the top-rear of the coffee machine for refilling.
- Remove the water tank from the back of the machine.
- Rinse the tank with fresh water.
- Fill the tank with fresh, cold drinking water up to the MAX mark.
- Place the water tank back into the machine securely.
4.3 Filling the Coffee Bean Hopper
- Open the lid of the coffee bean hopper on top of the machine.
- Pour fresh, whole coffee beans into the hopper. Do not overfill.
- Close the lid securely.
4.4 Initial Rinse Cycle
Before first use, perform an initial rinse cycle to clean the internal components.
- Ensure the water tank is filled and the drip tray is in place.
- Place a large container under the coffee spout.
- Plug the machine into a grounded power outlet.
- Press the power button to turn on the machine.
- The machine will automatically perform a rinse cycle. Follow any on-screen prompts if available.
- Discard the water collected in the container.
5. Operating Instructions
5.1 Making Espresso/Coffee
Figure 5.1: The coffee machine dispensing a rich espresso into a small, clear glass cup.
- Ensure the machine is powered on and the water tank is filled.
- Place a cup under the coffee spout.
- Select your desired coffee strength and volume using the control panel buttons.
- Press the coffee button to start brewing. The machine will grind beans, brew, and dispense coffee.
- The brewing process will stop automatically.
5.2 Adjusting Coffee Settings
- Coffee Strength: Use the dedicated button on the control panel to cycle through different strength levels (e.g., mild, normal, strong).
- Coffee Volume: Press and hold the coffee button until the desired volume is reached, then release. The machine will save this setting for future use.
- Grind Fineness: The grind fineness can be adjusted inside the bean hopper. Turn the adjustment knob to a coarser or finer setting. Caution: Adjust grind fineness only when the grinder is operating.
6. Maintenance
Regular cleaning and maintenance ensure the longevity and optimal performance of your coffee machine.
6.1 Daily Cleaning

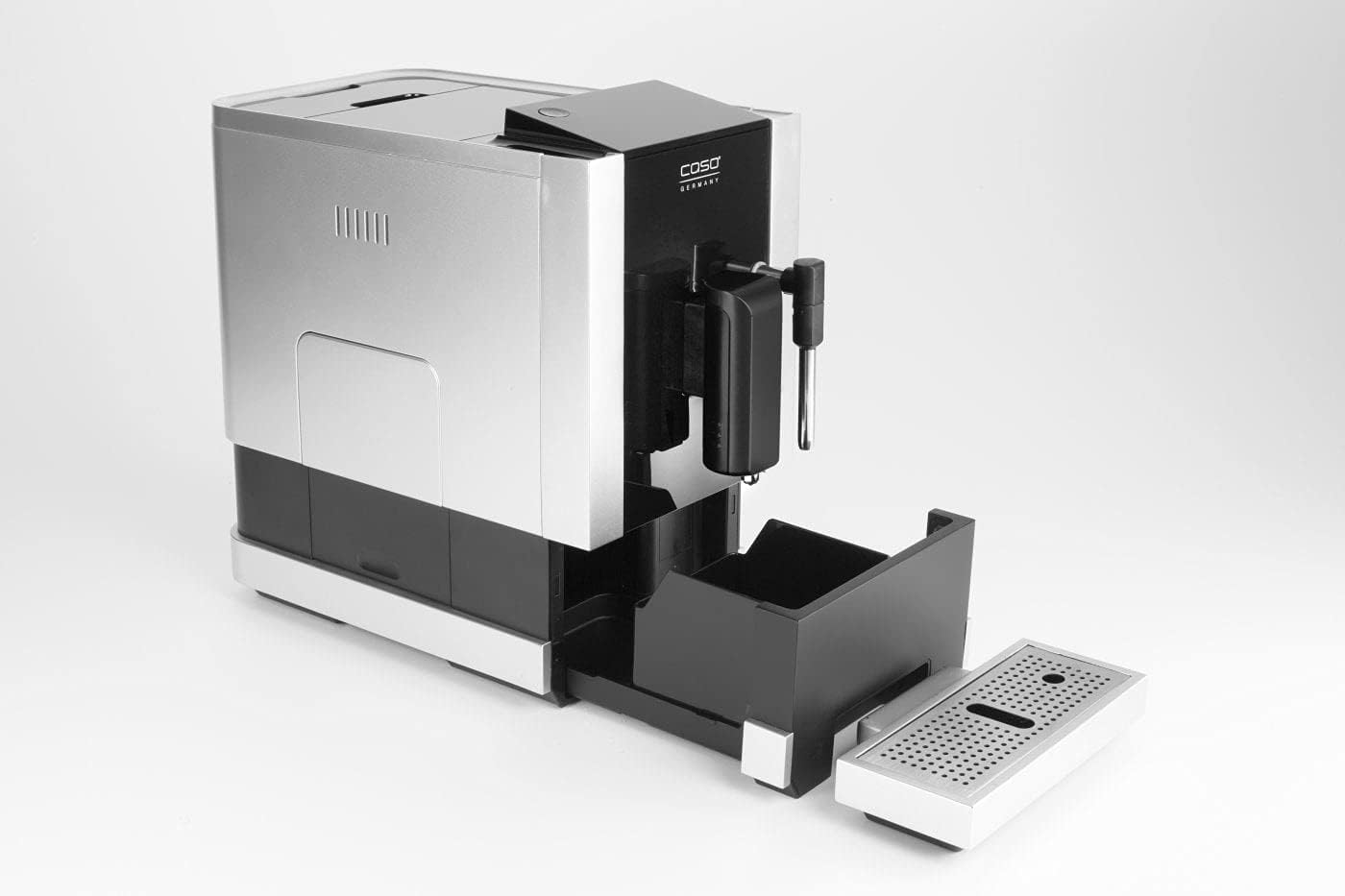

Figure 6.1: The coffee machine with its drip tray and used coffee grounds container pulled out, ready for cleaning.
- Drip Tray and Grounds Container: Empty and rinse daily.
- Water Tank: Rinse daily and refill with fresh water.
- Coffee Spout: Wipe with a damp cloth.
6.2 Cleaning the Brewing Unit
Figure 6.2: A hand grasping the orange tabs to remove the internal brewing unit from the side of the coffee machine for cleaning.
- Turn off and unplug the machine.
- Open the service door (usually on the side or front).
- Press the release buttons/tabs and carefully pull out the brewing unit.
- Rinse the brewing unit thoroughly under running water. Do not use detergents.
- Allow it to air dry completely before reinserting.
6.3 Descaling
The machine will indicate when descaling is required. Use a suitable descaling solution designed for coffee machines and follow the instructions provided with the descaler or the machine's display prompts.
7. Troubleshooting
If you encounter issues with your coffee machine, refer to the following table for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| No coffee dispenses | Water tank empty; Brewing unit clogged; Machine not primed. | Fill water tank; Clean brewing unit; Perform initial rinse cycle. |
| Coffee is too weak | Incorrect coffee strength setting; Coarse grind; Stale beans. | Adjust strength setting; Adjust grind fineness to finer; Use fresh beans. |
| Machine leaks water | Water tank not seated correctly; Drip tray full; Internal seal issue. | Ensure water tank is secure; Empty drip tray; Contact support if issue persists. |
| Grinder is noisy or not grinding | No beans in hopper; Foreign object in grinder. | Fill bean hopper; Carefully check for and remove foreign objects (unplug first). |
8. Technical Specifications
Detailed technical information for the CASO Crema One Automatic Coffee Machine.
Figure 8.1: Diagram illustrating the dimensions of the coffee machine: 42.5 cm (length), 18 cm (width), and 33.5 cm (height).
- Brand: CASO
- Model Number: 1881
- Color: Black
- Product Dimensions (L x W x H): 42.5 x 18 x 33.5 cm
- Weight: 7.7 Kilograms
- Capacity: 1.2 Liters
- Power / Wattage: 1350 Watts
- Voltage: 230 Volts
- Material: Stainless Steel
- Automatic Shutoff: Yes
- Special Features: Thermal, Removable Tank, Programmable, Timer, Water Filter
- Coffee Machine Type: Espresso Coffee Machine
- Style: Modern
- Exterior Finish: Metallic
- Included Components: Coffee Machine
9. Warranty and Support
For warranty information and customer support, please refer to the warranty card included with your product or visit the official CASO website. Keep your proof of purchase for any warranty claims.
If you require technical assistance or have questions not covered in this manual, please contact CASO customer service.
