1. Introduction
This manual provides comprehensive instructions for the safe installation, operation, and maintenance of your Dreffco 18-inch Vented Natural Gas Fireplace Dual Row Burner. Please read all instructions carefully before installation and use. Retain this manual for future reference.
The Dreffco dual row burner kit is designed for use with 18-inch fire logs in indoor or outdoor vented natural gas fireplaces and fire pits. It features a heavy-duty, powder-coated steel construction for durability and two rows of burners to enhance flame presentation.
2. Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
- Professional Installation Recommended: All gas products should be installed and serviced by professionals certified by the National Fireplace Institute (NFI) or Wood Energy Technology Transfer (WETT). The installer must comply with all state and local codes.
- Natural Gas Only: This burner is designed for Natural Gas (NG) only. Do not attempt to use with Liquid Propane (LP) or any other fuel type.
- Ventilation: Ensure adequate ventilation as this is a vented burner.
- Clearances: Maintain proper clearances to combustible materials as specified by local codes and appliance manufacturer instructions.
- Gas Leaks: Before initial use and after any service, check all gas connections for leaks using a soap solution. Never use an open flame to check for leaks.
- Carbon Monoxide: Gas appliances produce carbon monoxide. Install and maintain carbon monoxide detectors in your home.
- Children and Pets: Keep children and pets away from the fireplace when in operation.
- Hot Surfaces: The burner and surrounding areas will become very hot during operation and remain hot for some time after shutdown. Avoid contact.
3. Package Contents
Verify that all components listed below are present and undamaged before proceeding with installation.
Image: Overview of the Dreffco 18-inch Vented Natural Gas Fireplace Dual Row Burner kit, showing the burner pan, flexible gas line, fittings, vent clip, and glowing embers.

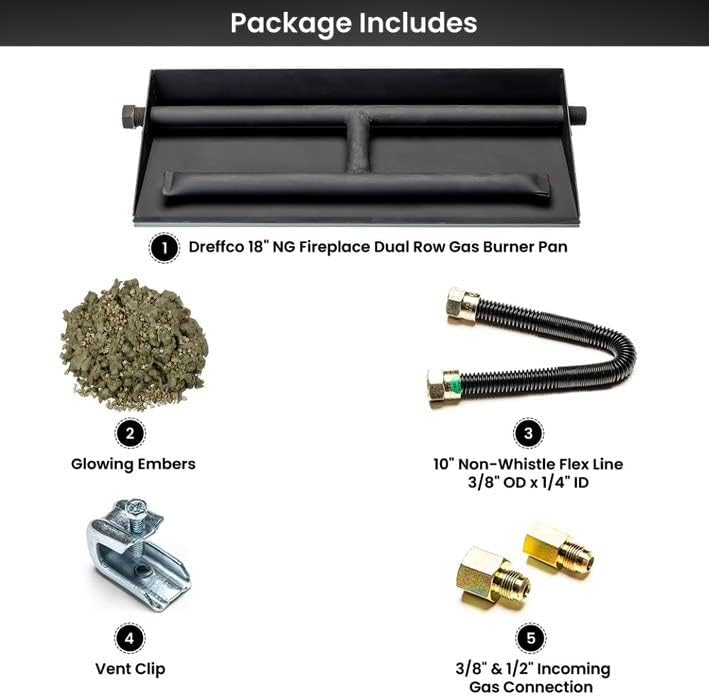

Image: Detailed diagram illustrating the components included in the package, numbered for easy identification.
- Dreffco 18-inch NG Fireplace Dual Row Gas Burner Pan (Actual dimensions: 16.25" x 6.5")
- Black Non-Whistle Flex Line (10" length, 3/8" OD x 1/4" ID)
- Vent-Clip
- 3/8" and 1/2" Connections/Fittings for incoming gas line
- Bonus Bag of Glowing Embers
4. Setup and Installation
Important: Installation must be performed by a qualified professional and comply with all local codes and regulations.
4.1 Pre-Installation Checks
- Ensure the fireplace is clean and free of debris.
- Confirm that the existing gas supply line is Natural Gas (NG) and has a 3/8" or 1/2" male flare gas stub.
- Verify that the fireplace opening and firebox dimensions are suitable for an 18-inch burner and logs.
- Turn off the gas supply at the main valve before beginning any work.
4.2 Installation Steps
- Position the Burner: Carefully place the Dreffco dual row burner pan into the fireplace. Ensure it is centered and stable. The burner has a 1/2-inch connection hub on both ends, allowing connection from either side.
- Connect the Flex Line: Attach one end of the black non-whistle flex line to one of the 1/2-inch connection hubs on the burner pan. Use a wrench to tighten securely, but do not overtighten.
- Connect to Gas Supply: Use the appropriate 3/8" or 1/2" fitting to connect the other end of the flex line to your incoming gas stub. Ensure all connections are tight.
- Secure the Vent-Clip: If applicable, use the vent-clip to secure the flex line or other components as needed to prevent obstruction or damage.
- Check for Leaks: Turn on the main gas supply. Apply a soap and water solution to all new gas connections. Bubbles indicate a leak. If a leak is detected, turn off the gas supply immediately, tighten the connection, and re-test. Repeat until no leaks are present.
- Arrange Glowing Embers: Distribute the bonus bag of glowing embers over the burner pan. These embers enhance the visual effect of the flames.
- Place Fire Logs: Arrange your 18-inch vented fire logs over the burner pan, ensuring they do not obstruct the burner ports or pilot light (if applicable). Allow for proper airflow around the logs.
5. Operating Instructions
Always follow the operating instructions provided with your specific fireplace and gas valve system.
5.1 Lighting the Burner
- Ensure the gas supply to the fireplace is open.
- If your fireplace has a pilot light, light it according to your fireplace manufacturer's instructions.
- Slowly open the main gas valve to the burner.
- Ignite the gas using a long lighter or the fireplace's integrated igniter system.
- Adjust the flame height using the fireplace's gas control knob.
5.2 Shutting Down the Burner
- Turn off the gas supply to the burner using the fireplace's gas control knob.
- If your fireplace has a pilot light, turn it off according to your fireplace manufacturer's instructions.
- Allow the burner and logs to cool completely before touching or covering.
Image: The Dreffco dual row gas burner installed within a brick fireplace, showcasing the flames produced during operation.
6. Maintenance
Regular maintenance ensures safe and efficient operation of your burner.
- Annual Inspection: Have the burner and gas connections inspected annually by a qualified service technician.
- Cleaning: Periodically inspect the burner ports for any obstructions (e.g., dust, debris, insect nests). Use a soft brush or compressed air to clean the ports if necessary. Ensure the burner is cool before cleaning.
- Embers: The glowing embers may need to be rearranged or replaced over time to maintain optimal appearance.
- Burner Pan: The powder-coated steel burner pan is designed for longevity. Clean with a damp cloth when cool, avoiding abrasive cleaners.
7. Troubleshooting
If you experience issues, consult this section. For problems not listed or if solutions do not resolve the issue, contact a qualified service technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| No flame or weak flame | Gas supply off, obstructed burner ports, low gas pressure, pilot light issue. | Check gas supply valve. Clean burner ports. Consult gas professional for pressure issues. Refer to fireplace manual for pilot light. |
| Uneven flame | Obstructed burner ports, improper log placement. | Clean burner ports. Adjust log placement to ensure even gas distribution. |
| Gas odor detected | Gas leak. | Immediately turn off gas supply. Ventilate area. Do not operate. Contact a qualified gas professional. |
| Whistling noise from flex line | Gas flow turbulence. | The included flex line is designed to be non-whistling. If whistling occurs, ensure connections are tight and line is not kinked. If issue persists, consult a professional. |
8. Specifications
Product specifications for the Dreffco 18-inch Vented Natural Gas Fireplace Dual Row Burner.
Image: Dimensional drawing illustrating the sizes of Dreffco burner pans, including the 18-inch model's measurements.
- Brand: Dreffco
- Model: 18-inch Premium Kit - NG
- Power Source: Natural Gas Powered
- Product Dimensions (Burner Pan): 6.5"D x 18.25"W x 2.5"H (Actual burner area: 16.25" x 6.5")
- Material: Alloy Steel
- Finish Type: Powder Coated (Black)
- Heat Output: Approximately 80,000 British Thermal Units (BTU)
- Ventilation Type: Natural Vent
- Specific Uses: Indoor and outdoor natural gas fireplaces and fire pits
- Item Weight: 8 Pounds
9. Warranty and Support
9.1 Warranty Information
This Dreffco burner comes with a Limited Warranty. For specific terms and conditions of the warranty, please refer to the documentation included with your purchase or contact Dreffco customer support.
9.2 Customer Support
For technical assistance, troubleshooting, or warranty claims, please contact Dreffco customer support. Contact information can typically be found on the product packaging or the official Dreffco website.
