Introduction

The JOYO JE-307 is a comprehensive pickup, tuner, and equalizer system designed for acoustic guitars. It features a 5-band equalizer (Bass, Mid-L, Mid-H, Treble, Presence) to shape your guitar's tone, an integrated tuner with an LCD display for accurate tuning, a volume control knob, and a low battery indicator LED. This system is engineered to enhance the amplified sound of acoustic guitars.

Figure 1: Front view of the JOYO JE-307 unit, showcasing the control panel and LCD tuner display.

Setup and Installation

Proper installation is crucial for optimal performance. This unit is designed to be integrated into the body of an acoustic guitar. Professional installation is recommended.

Components Overview:

• Preamp Unit: The main control panel with EQ, volume, and tuner.
• Piezo Pickup: Connects to the preamp to capture string vibrations.
• Output Jack: For connecting the guitar to an amplifier or PA system.
• Battery Compartment: Located on the back of the preamp unit, for a 9V battery.

Figure 2: The JE-307 unit showing the attached wiring for the piezo pickup and output jack, ready for internal guitar installation.

Battery Installation:

1. Locate the battery compartment on the rear of the JE-307 unit.
2. Open the battery compartment cover.
3. Insert one 9V battery, ensuring correct polarity (+/-). The battery is not included with the unit.
4. Close the battery compartment cover securely.

A low battery indicator LED (BATT.) will illuminate when the battery power is low, signaling that a replacement is needed.

Figure 3: Rear view of the JE-307 unit, highlighting the integrated battery compartment for a 9V battery.

Figure 4: Bottom view of the JE-307, illustrating the mounting flange and screw holes for secure installation into the guitar body.

Operating Instructions

Once installed, the JE-307 provides intuitive controls for shaping your acoustic guitar's sound and ensuring it is in tune.

Controls and Functions:

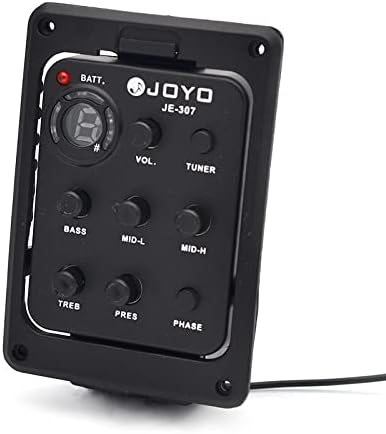

Figure 5: Angled view of the JE-307 control panel, showing the various knobs and the tuner display.

• VOL (Volume): Adjusts the overall output level of the preamp. Turn clockwise to increase volume, counter-clockwise to decrease.
• TUNER: Press this button to activate the built-in chromatic tuner. The LCD display will show the note being played.
• BASS: Controls the low-frequency response (±12dB at 80Hz). Adjust to add warmth or reduce muddiness.
• MID-L (Low-Mid): Controls the lower-mid frequency response (±12dB at 500Hz). Affects the body and fullness of the sound.
• MID-H (High-Mid): Controls the higher-mid frequency response (±12dB at 1KHz-2KHz). Influences presence and clarity.
• TREB (Treble): Controls the high-frequency response (±12dB at 10KHz). Adjust for brightness or to reduce harshness.
• PRES (Presence): Controls the upper harmonic frequencies (±12dB at 3KHz). Adds sparkle and definition.
• PHASE: This button reverses the phase of the output signal. Useful for reducing feedback in live performance settings.
• BATT. (Battery Indicator): A red LED that illuminates when the 9V battery power is low and requires replacement.

Figure 6: Top-down view of the JE-307 control panel, providing a clear layout of all knobs and the tuner display.

Using the Tuner:

1. Press the "TUNER" button to activate the tuner. The LCD display will light up.
2. Pluck a single string on your guitar. The display will show the detected note.
3. Adjust the string's tuning peg until the display indicates the correct note and the tuning indicator (usually a needle or bars) is centered, signifying accurate pitch.
4. Repeat for all strings.
5. Press the "TUNER" button again to deactivate the tuner and return to normal preamp operation.

The A4 frequency is set to 440Hz. The tuning range covers A0 (27.5Hz) to C8 (4186.01Hz).

Maintenance

To ensure the longevity and optimal performance of your JOYO JE-307, follow these maintenance guidelines:

• Cleaning: Use a soft, dry cloth to wipe the surface of the unit. Avoid using abrasive cleaners, solvents, or waxes, as these can damage the finish or internal components.
• Battery Replacement: Replace the 9V battery promptly when the "BATT." indicator LED illuminates. Remove the battery if the unit will not be used for an extended period to prevent leakage and damage.
• Storage: Store the unit in a cool, dry place, away from direct sunlight, extreme temperatures, and high humidity.
• Handling: Handle the unit with care. Avoid dropping it or subjecting it to strong impacts, which can damage the internal circuitry or external casing.

Troubleshooting

If you encounter issues with your JOYO JE-307, refer to the following common problems and solutions:

Specifications

Detailed technical specifications for the JOYO JE-307 unit:

Warranty and Support

For warranty information and technical support, please refer to the official JOYO website or contact your authorized dealer. Keep your purchase receipt as proof of purchase for any warranty claims.

For further assistance, you may visit the JOYO Official Store on Amazon.
