Premium Guard PureFlow Cabin Air Filter PC4103X User Manual

1. Introduction to Cabin Air Filters

A cabin air filter is an essential component of your vehicle's heating, ventilation, and air conditioning (HVAC) system. Its primary function is to filter the air entering the passenger compartment, removing airborne particles such as dust, pollen, soot, and other pollutants.

Why Change Your Cabin Air Filter?

• Improved Air Quality: A clean filter ensures that you and your passengers breathe cleaner air, reducing exposure to allergens and pollutants.
• Odor Reduction: Filters with activated charcoal, like the PureFlow PC4103X, can absorb odors and harmful gases, contributing to a fresher cabin environment.
• HVAC System Efficiency: A clogged filter can restrict airflow, forcing your HVAC system to work harder, which may reduce its efficiency and lifespan.
• Clearer Windshield: Proper airflow helps defog your windshield more effectively.

2. Product Overview: PureFlow PC4103X

The Premium Guard PureFlow Cabin Air Filter PC4103X is designed to provide advanced filtration for your vehicle's interior air. It incorporates multiple filtration stages to capture a wide range of airborne contaminants.

Key Features:

• Multi-Stage Filtration: Utilizes four distinct filtration levels to effectively trap particles.
• Particulate Filter Media: Designed to capture fine particles such as dust, pollen, and other airborne debris.
• Activated Charcoal Layer: Helps to absorb unpleasant odors and certain harmful gases like carbon monoxide and sulfur dioxide.
• Baking Soda Infusion: Further enhances odor absorption capabilities.

3. Vehicle Compatibility

The PureFlow Cabin Air Filter PC4103X is compatible with various Mazda models. Always verify fitment using your vehicle's specific year, make, and model.

Compatible Models:

• 2014-2025 Mazda CX-5
• 2014-2018 Mazda 3
• 2014-2021 Mazda 6
• 2014-2018 Mazda 3 Sport
• 2020 Mazda 2

4. Installation Instructions

Replacing your cabin air filter is a routine maintenance task that can typically be performed without specialized tools. The filter is commonly located behind the glove compartment.

General Installation Steps:

1. Locate the Filter Housing: In most compatible Mazda models, the cabin air filter housing is located behind the glove compartment. Open the glove compartment.
2. Access the Housing: You may need to release clips or remove screws to lower the glove compartment fully or to access the filter housing cover. Consult your vehicle's owner's manual for specific instructions on how to safely lower the glove box.
3. Remove the Old Filter: Once the housing cover is open, carefully slide out the old cabin air filter. Note the direction of the airflow arrow on the old filter, as the new filter must be installed in the same orientation.
4. Clean the Housing (Optional): While the housing is open, you may wish to wipe away any accumulated dust or debris.
5. Install the New Filter: Insert the new PureFlow PC4103X filter into the housing, ensuring the airflow arrow on the filter points in the correct direction (typically towards the rear of the vehicle or as indicated by the housing).
6. Secure the Housing: Close the filter housing cover and re-secure the glove compartment.

5. Maintenance and Replacement

The recommended replacement interval for cabin air filters can vary based on driving conditions and manufacturer recommendations. Generally, it is advisable to inspect and potentially replace your cabin air filter every 12,000 to 15,000 miles or once a year, whichever comes first. If you frequently drive in dusty environments or areas with high pollution, more frequent replacement may be necessary.

6. Troubleshooting

Reduced Airflow from Vents:

If you experience significantly reduced airflow from your vehicle's vents after installing a new filter, ensure the filter is correctly seated and that the airflow arrow is pointing in the proper direction. Some high-efficiency filters may inherently cause a slight reduction in airflow compared to standard filters due to denser media, but a substantial reduction may indicate an installation error or an incompatible filter type for your specific vehicle's HVAC system design. Verify the filter dimensions and compatibility with your vehicle's owner's manual.

Persistent Odors:

While the PureFlow PC4103X is designed to reduce odors, persistent strong odors may indicate other issues within the HVAC system, such as mold or mildew buildup in the evaporator core, or a source of odor external to the filter. Consider having your HVAC system inspected by a qualified technician if odors persist after filter replacement.

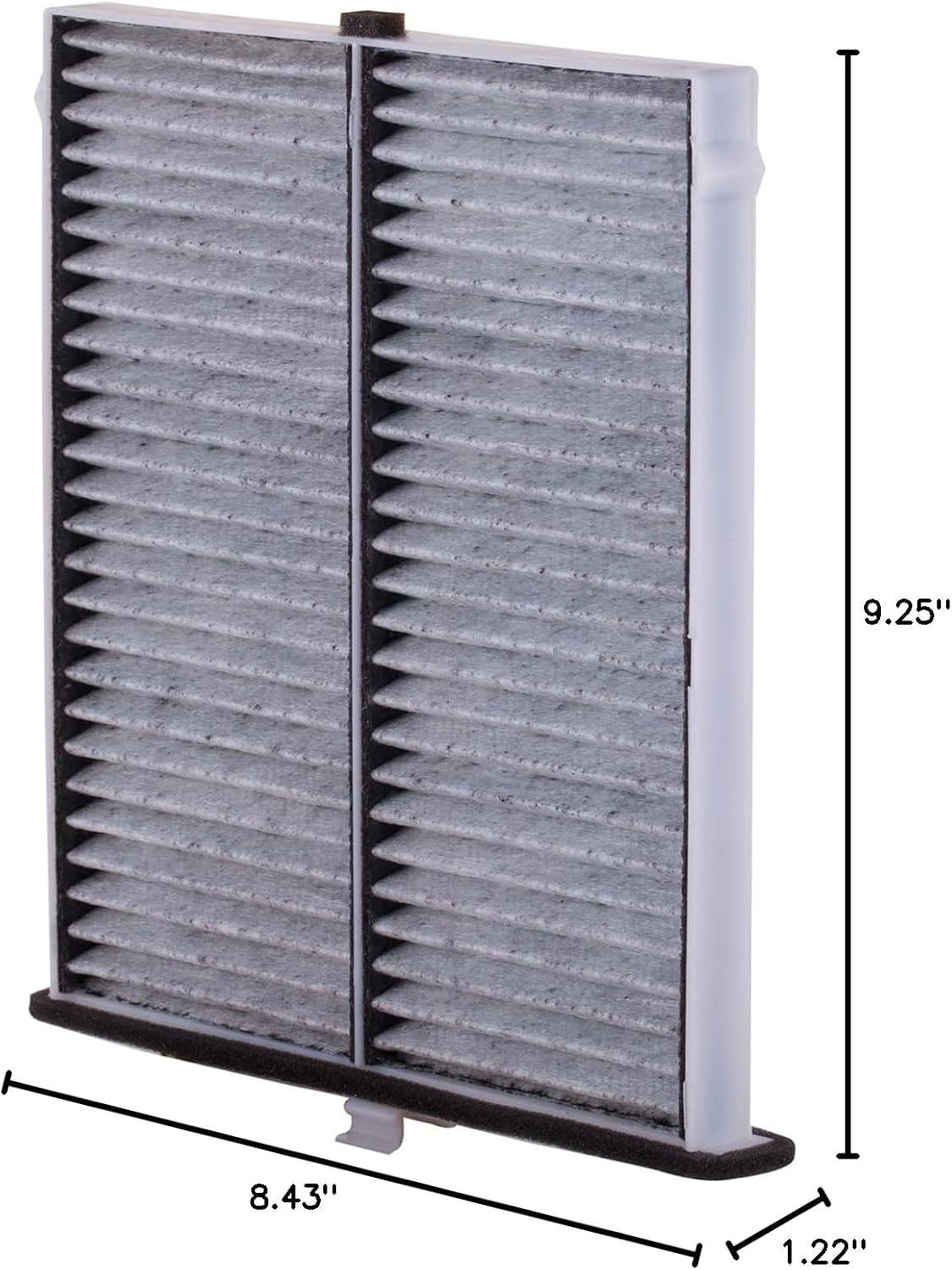

7. Product Specifications

8. Instructional Videos

No official product videos from the seller were available in the provided data to embed in this manual. For visual installation guides, please refer to your vehicle's manufacturer resources or reputable automotive maintenance channels.

9. Customer Support

For further assistance or inquiries regarding the PureFlow Cabin Air Filter PC4103X, please refer to the Premium Guard official website or contact their customer service department. Always provide your product model number (PC4103X) and vehicle details when seeking support.
