Sonello Double Layer Day and Night Roller Blind - User Manual

1. Introduction

Thank you for choosing the Sonello Double Layer Day and Night Roller Blind. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new roller blind. Please read these instructions carefully before installation and retain them for future reference.

Figure 1: Sonello Double Layer Day and Night Roller Blind installed on a window, showcasing its elegant design and functionality.

2. Product Features

• Double Layer Fabric: Features alternating transparent and opaque stripes for flexible light control and privacy.
• No-Drill Installation: Quick and easy clip-on mounting system suitable for window frames up to 25mm wide, eliminating the need for drilling.
• Smooth Chain Mechanism: Allows for easy and precise adjustment of the blind to control light and privacy levels. The chain can be installed on either the left or right side.
• Durable Material: Made from 100% polyester fabric (PVC-free), ensuring easy maintenance and suitability for humid environments.
• Versatile Design: Available in various colors and sizes to complement any interior decor.

Figure 2: Detailed view of the double-layer fabric, illustrating the transparent and opaque stripe design for light management.

3. Package Contents

The package includes the following items:

• 1 x Sonello Double Layer Day and Night Roller Blind (Cream, 65x150 cm)
• Set of clip-on fixing supports (in matching fabric color)
• Chain mechanism for operation
• Installation instructions

4. Safety Instructions

• Keep the chain mechanism out of reach of small children and pets to prevent entanglement hazards.
• Ensure all mounting components are securely fastened to prevent the blind from falling.
• Do not hang heavy objects on the blind or its components.
• Avoid using abrasive cleaners or harsh chemicals on the fabric or hardware.
• If any part of the blind is damaged, discontinue use and contact customer support.

5. Setup and Installation

The Sonello roller blind features a no-drill Klemmfix installation system. Follow these steps for quick and easy setup:

1. Measure Your Window Frame: Ensure your window frame width is suitable for the clip-on supports (up to 25mm). The overall width of the blind with supports will be approximately 4cm wider than the fabric width.
2. Attach Clip-on Supports: Securely attach the provided clip-on supports to the top edge of your window frame. Ensure they are evenly spaced and firmly in place.
3. Mount the Roller Blind: Carefully place the roller blind mechanism onto the installed clip-on supports. Listen for a click to confirm it is securely seated.
4. Install Chain Mechanism: Decide whether you prefer the chain on the left or right side. Attach the chain mechanism to the designated side of the roller blind. Ensure it hangs freely and operates smoothly.
5. Test Operation: Gently pull the chain to raise and lower the blind, ensuring it moves freely and the fabric layers align as desired.

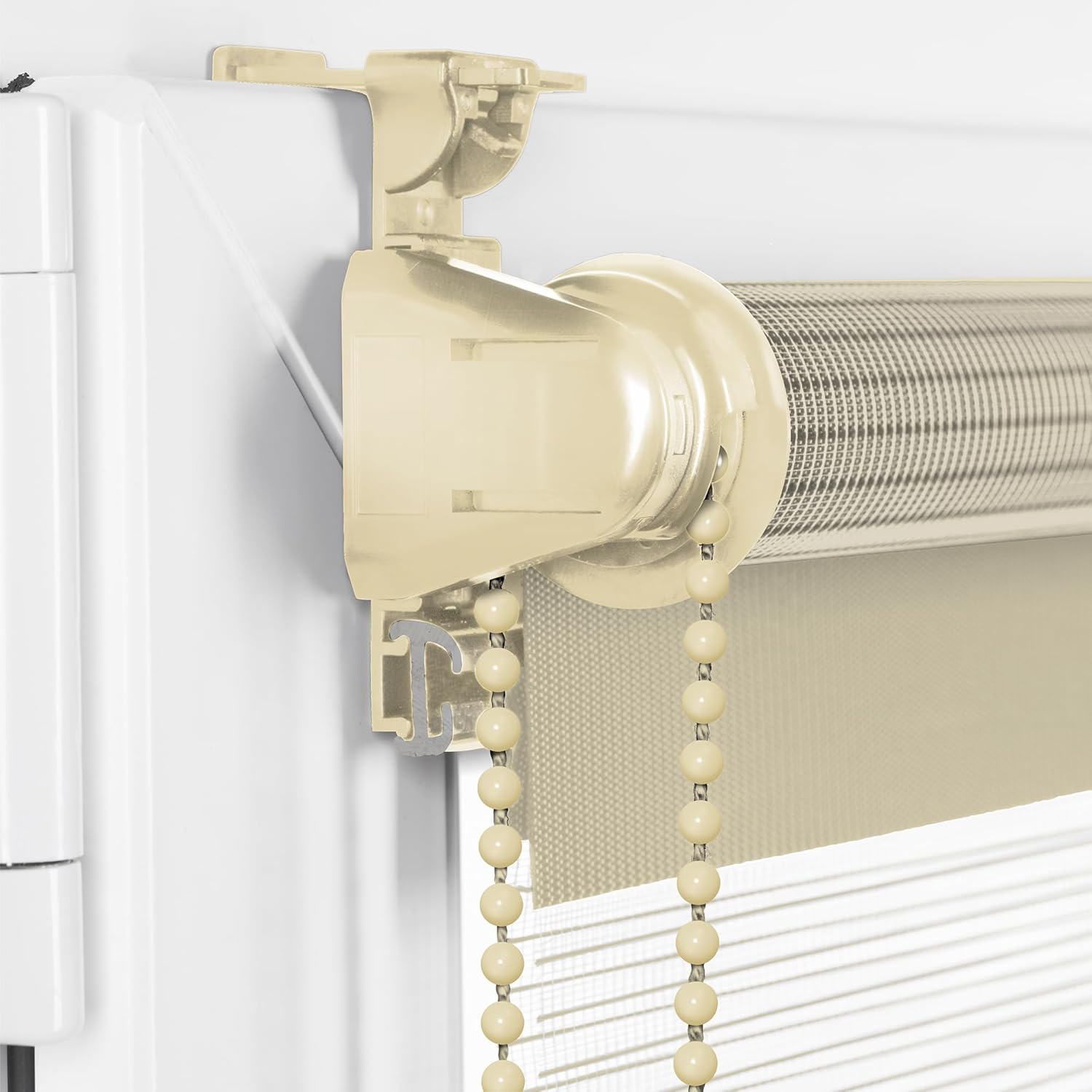

Figure 3: Close-up view of the no-drill clip-on mounting bracket, demonstrating how it attaches to the window frame.

6. Operating Instructions

The Sonello Double Layer Day and Night Roller Blind offers flexible light control:

1. Adjusting Light and Privacy: Use the chain mechanism to raise or lower the blind. As the blind moves, the transparent and opaque stripes will shift, allowing you to adjust the amount of light entering the room and your desired level of privacy.
2. Day Mode: Align the transparent stripes to allow maximum natural light while maintaining a degree of privacy.
3. Night Mode / Dimming: Align the opaque stripes to block more light and enhance privacy.
4. Stopping the Blind: Release the chain at your desired height and stripe alignment. The internal mechanism will hold the blind in place.

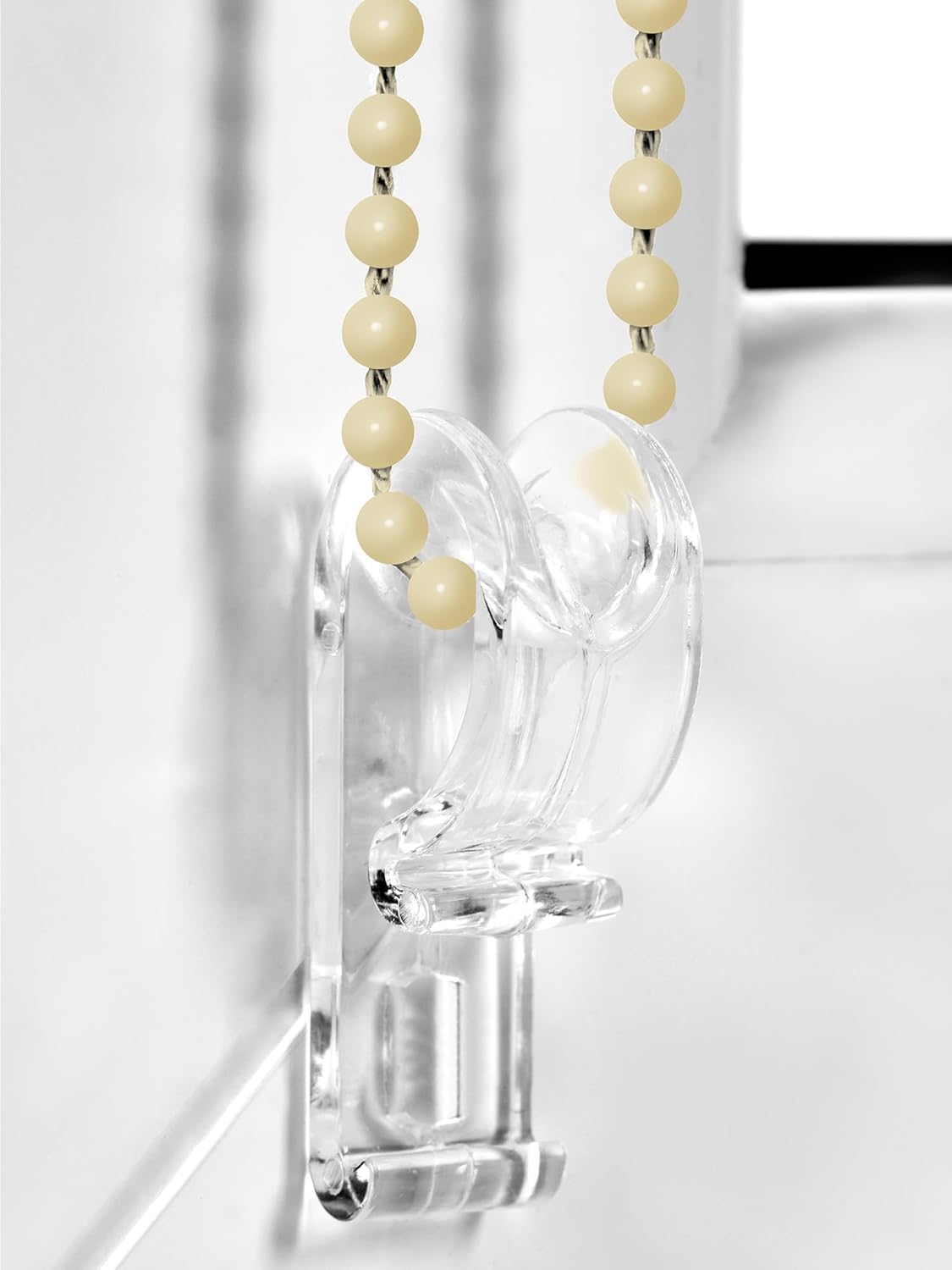

Figure 4: The smooth chain mechanism allows for precise control over the blind's position and light filtering.

7. Maintenance

To ensure the longevity and appearance of your Sonello roller blind, follow these simple maintenance guidelines:

• Cleaning the Fabric: The 100% polyester fabric is easy to maintain. Gently wipe the fabric with a damp cloth to remove dust or light stains. Avoid rubbing vigorously.
• Spot Cleaning: For stubborn spots, use a mild soap solution on a damp cloth. Test on an inconspicuous area first. Rinse with a clean damp cloth and allow to air dry completely before rolling up the blind.
• Avoid Harsh Chemicals: Do not use bleach, abrasive cleaners, or solvents, as these can damage the fabric and color.
• Mechanism Care: Periodically check the chain mechanism and mounting supports for any signs of wear or loosening. Ensure the chain runs smoothly and is free of obstructions.
• Humid Environments: The blind is suitable for humid environments; however, ensure proper ventilation to prevent mold or mildew growth.

8. Troubleshooting

If you encounter any issues with your Sonello roller blind, refer to the following common problems and solutions:

If the problem persists, please contact Sonello customer support for assistance.

9. Product Specifications

10. Warranty and Support

Sonello products are manufactured to high-quality standards. For information regarding warranty coverage, returns, or technical support, please refer to your purchase documentation or contact the retailer directly. Keep your proof of purchase for any warranty claims.

For further assistance, please visit the official Sonello website or contact their customer service department.
