Delta Children Twinkle 4-in-1 Convertible Crib Instruction Manual

1. Product Overview

The Delta Children Twinkle 4-in-1 Convertible Crib is designed to provide a safe and comfortable sleeping environment for your child, adapting as they grow. This versatile crib transitions from a standard baby crib to a toddler bed, a daybed, and finally a full-size bed, offering long-term utility.

Constructed from sustainable New Zealand pine wood, this crib features a sleigh-style silhouette and open slats. It includes a 3-position adjustable mattress support system, allowing you to lower the mattress height as your child develops the ability to sit or stand.

Image: The Delta Children Twinkle 4-in-1 Convertible Crib in a grey finish, shown with a white and grey polka dot mattress.

2. Safety Information

Your child's safety is paramount. This crib is JPMA (Juvenile Products Manufacturers Association) certified, meeting or exceeding all safety standards established by ASTM (American Society for Testing and Materials). It has been tested for lead and other toxic elements to comply with government and ASTM safety regulations.

Please read and follow all instructions carefully before assembly and use. Keep all small parts away from children during assembly. Regularly inspect the crib for loose hardware, damaged parts, or sharp edges. Do not use the crib if any parts are missing or broken.

Image: Visual representation of the crib's safety certifications, including JPMA certification, non-toxic materials, and use of sustainable New Zealand pine wood.

3. Setup and Assembly

Assembly of the Delta Children Twinkle 4-in-1 Convertible Crib is required. While designed for easy assembly, it is crucial to follow the provided step-by-step instructions precisely to ensure the crib's structural integrity and your child's safety. All necessary hardware is included with the product.

General Assembly Steps:

1. Unpack all components and verify that all parts and hardware are present according to the parts list.
2. Assemble the end panels and side rails using the provided hardware. Ensure all connections are secure.
3. Install the mattress support frame. Select the desired mattress height position (see Section 4 for details).
4. Tighten all fasteners firmly, but do not overtighten.
5. Before placing your child in the crib, perform a final check to ensure all components are correctly assembled and secure.

It is recommended to assemble the crib in the room where it will be used to avoid moving it after assembly, which could loosen connections.

4. Operating and Conversion

4.1 Adjustable Mattress Heights

The crib features a 3-position adjustable mattress support system. This allows you to lower the mattress as your baby grows and becomes more mobile, preventing them from climbing out of the crib.

• Highest Position: For newborns and infants who cannot push up on their hands and knees.
• Middle Position: For babies who can sit up unassisted.
• Lowest Position: For babies who can pull themselves to a standing position.

Always ensure the mattress support is securely locked into place at the desired height. The crib accommodates standard size crib mattresses (sold separately).

Image: A diagram illustrating the three adjustable mattress height settings, indicating measurements for each position.

4.2 4-in-1 Conversion Features

This crib is designed to convert into four different bed configurations to accommodate your child's growth:

• Crib: Standard baby crib for infants.
• Toddler Bed: Converts by removing one side rail and adding a toddler guardrail (sold separately, Delta Children Toddler Guardrail Kit #555725).
• Daybed: Converts by removing the front rail, creating an open-front seating area.
• Full-Size Bed: Converts into a full-size bed frame using the headboard and footboard from the crib, requiring a full-size bed frame (sold separately, Delta Children Full Size Bed Frame #0040).

Note: Conversion kits for the toddler bed and full-size bed are sold separately and are required to complete these transformations. Please refer to the specific instructions included with each conversion kit for detailed assembly steps.

Image: A composite image demonstrating the four conversion stages of the crib: Crib, Toddler Bed, Daybed, and Full Bed with Headboard.

5. Maintenance and Care

Proper care will extend the life and appearance of your Delta Children Twinkle Crib.

• Cleaning: Wipe surfaces clean with a damp cloth. Avoid using abrasive cleaners, harsh chemicals, or strong detergents, as these can damage the finish.
• Inspection: Periodically check all screws, bolts, and fasteners to ensure they are tight and secure. Do not overtighten.
• Storage: If storing the crib, do so in a dry, temperature-controlled environment to prevent warping or damage to the wood.
• Sunlight Exposure: Avoid prolonged exposure to direct sunlight, which can cause fading or discoloration of the wood finish.

6. Troubleshooting

If you encounter any issues with your crib, consider the following common solutions:

• Wobbling/Instability: Ensure all bolts and screws are tightened securely. Check that the crib is on a level surface.
• Squeaking Noises: Apply a small amount of silicone lubricant or paraffin wax to the joints where wood meets wood or where metal parts rub. Ensure all hardware is tight.
• Difficulty Adjusting Mattress Height: Ensure the mattress support frame is properly aligned with the designated slots on the end panels. Do not force the mechanism.
• Missing Parts: If you find any parts missing upon unboxing, do not attempt to assemble the crib. Contact Delta Children customer support immediately for replacement parts.

For issues not covered here, please contact Delta Children customer support.

7. Specifications

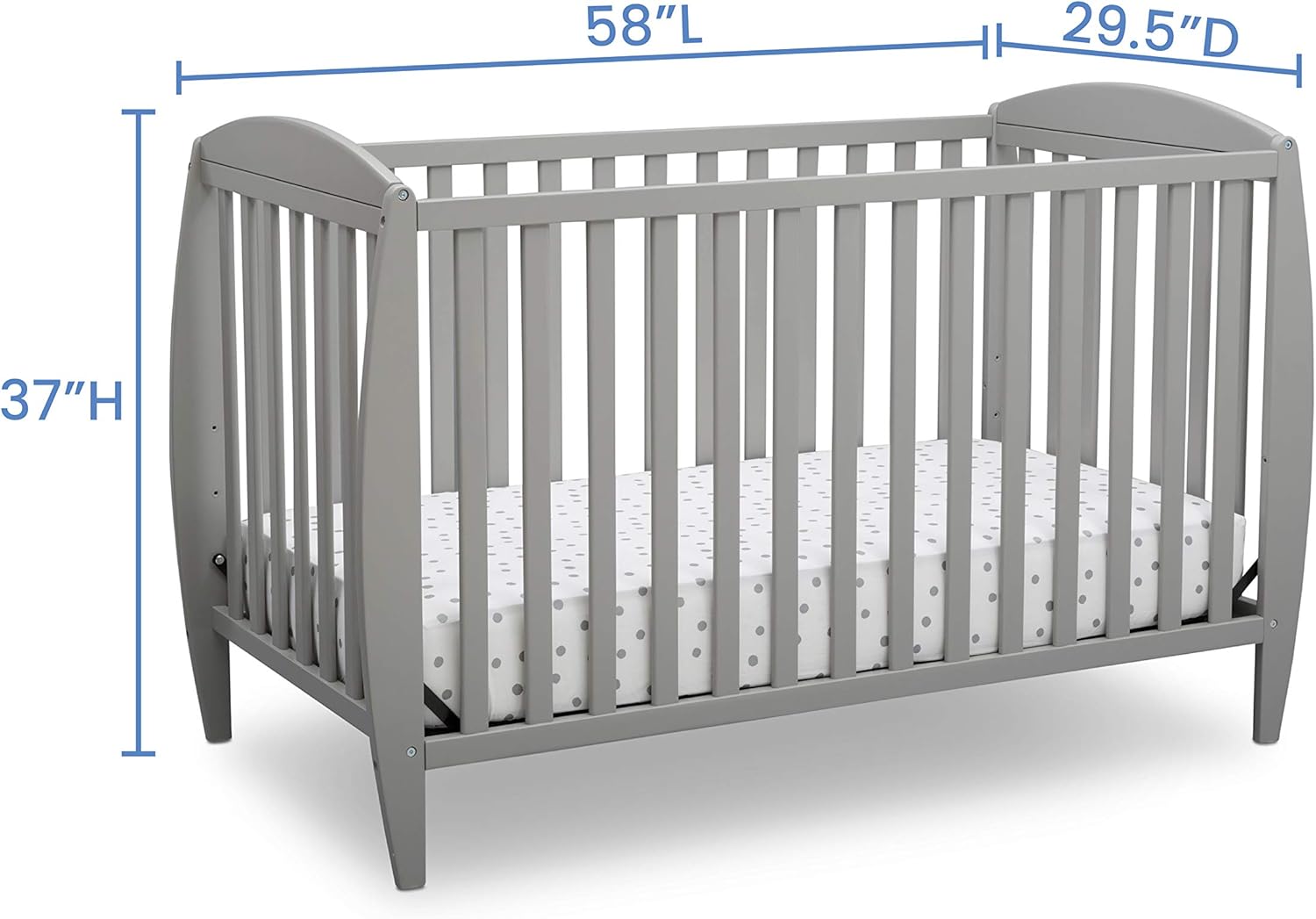

Image: A diagram illustrating the overall dimensions of the crib: 58" L x 29.5" D x 37" H.

8. Warranty and Support

Delta Children products are designed for durability and safety. While specific warranty details are not provided in this manual, Delta Children typically offers a manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for any warranty claims.

Extended protection plans may be available for purchase through third-party providers (e.g., Assurant). These plans offer additional coverage beyond the manufacturer's warranty.

For customer support, replacement parts, or further inquiries, please visit the official Delta Children website or contact their customer service department directly. Contact information can usually be found on the product packaging or their official website.

Delta Children Official Website: www.deltachildren.com
