Paww SilkSound Headphones User Manual

1. Introduction

This manual provides detailed instructions for the proper use and maintenance of your Paww SilkSound Headphones. Please read this manual thoroughly before operating the device to ensure optimal performance and longevity.

2. Product Contents

The Paww SilkSound Headphones package includes the following items:

• Paww SilkSound Headphones
• Custom Carry Pouch
• Micro-USB Charging Cable
• 3.5mm Aux Cable

3. Product Overview

The Paww SilkSound Headphones feature a unique, foldable design for portability and comfort. They are equipped with Bluetooth 4.1 for wireless connectivity and include a built-in microphone for hands-free calling.

Figure 3.1: Labeled components of the Paww SilkSound Headphones.

1. MFB: Multi-Function Button (Power, Pairing, Play/Pause, Answer/End Calls/Reject)
2. Volume + (Next)
3. Volume - (Previous)
4. LED Indicator
5. MicroUSB Charging Port
6. Microphone
7. 3.5 mm Audio In

Figure 3.2: Paww SilkSound Headphones in use, demonstrating their discreet on-ear fit.

4. Setup

4.1 Charging the Headphones

Before first use, fully charge your Paww SilkSound Headphones. Connect the Micro-USB Charging Cable to the MicroUSB Charging Port (E) on the headphones and the other end to a USB power source. The LED Indicator (D) will show charging status.

Figure 4.1: Included Micro-USB charging cable and 3.5mm auxiliary cable.

4.2 Bluetooth Pairing

1. Ensure the headphones are turned off.
2. Press and hold the Multi-Function Button (A) until the LED Indicator (D) flashes blue and red, indicating pairing mode.
3. On your device (smartphone, tablet, laptop), enable Bluetooth and search for available devices.
4. Select "Paww SilkSound" from the list of devices.
5. Once connected, the LED Indicator (D) will flash blue slowly.

The headphones can be paired with multiple devices simultaneously. To switch between devices, ensure the headphones are connected to both, then play audio from the desired device.

5. Operating Instructions

5.1 Power On/Off

• Power On: Press and hold the Multi-Function Button (A) until the LED Indicator (D) flashes blue.
• Power Off: Press and hold the Multi-Function Button (A) until the LED Indicator (D) flashes red and then turns off.

5.2 Music Playback

• Play/Pause: Press the Multi-Function Button (A) once.
• Next Track: Press the Volume + (B) button once.
• Previous Track: Press the Volume - (C) button once.
• Volume Up: Press and hold the Volume + (B) button.
• Volume Down: Press and hold the Volume - (C) button.

5.3 Call Management

• Answer/End Call: Press the Multi-Function Button (A) once.
• Reject Call: Press and hold the Multi-Function Button (A) for 2 seconds.
• Redial Last Number: Double-press the Multi-Function Button (A).

5.4 Voice Assistant

To activate your device's voice assistant (Siri, Google Assistant), press the Multi-Function Button (A) twice quickly.

6. Portability and Design

The SilkSound headphones are designed for convenience and style. Their slim, lightweight structure allows them to fold compactly for storage.

Figure 6.1: The headphones fold compactly into their stylish carrying case, designed to fit easily into bags.

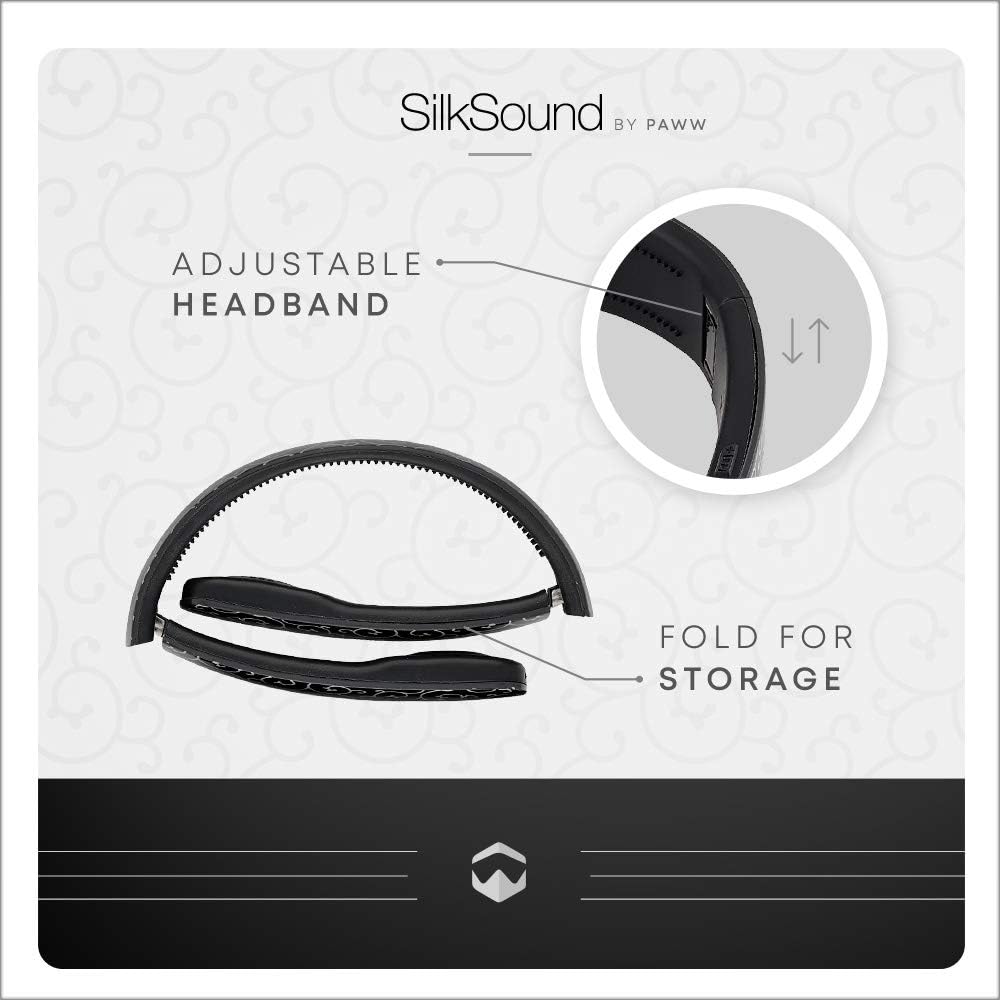

Figure 6.2: The adjustable headband and folding mechanism for easy storage.

Figure 6.3: The product packaging, highlighting its premium presentation.

7. Maintenance

• Clean the headphones with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Store the headphones in their custom carry pouch when not in use to protect them from dust and damage.
• Avoid exposing the headphones to extreme temperatures, humidity, or direct sunlight.
• The headphones are not water-resistant. Avoid contact with liquids.

8. Troubleshooting

9. Specifications

• Model Name: SilkSound Bluetooth Headband Over-Ear Headphones with Microphone (Onyx Black)
• Model Number: PW-2018SS01-BR
• Connectivity: Wireless (Bluetooth 4.1)
• Bluetooth Range: Up to 10 meters (33 feet)
• Battery Life: Up to 10 hours playtime
• Charging Port: Micro USB
• Earpiece Shape: On-Ear Cups
• Weight: Approximately 1.24 pounds (0.56 kg)
• Special Feature: Lightweight, Foldable
• Included Components: Headphones, Carry Pouch, Micro-USB Cable, 3.5mm Aux Cable

10. Official Product Video

11. Warranty and Support

For warranty information and customer support, please refer to the official Paww website or contact their customer service department. Keep your proof of purchase for any warranty claims.
