Introduction
This instruction manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Campbell Hausfeld VT4923 Cast Iron Single-Stage Air Compressor Pump. Please read this manual thoroughly before installation or use to ensure proper function and to prevent injury or damage.
Safety Information
Always observe the following safety precautions:
- Read All Instructions: Familiarize yourself with the compressor pump's operation and warnings.
- Eye Protection: Always wear ANSI-approved safety goggles when operating or servicing the pump.
- Hearing Protection: Use hearing protection during operation, as the noise level can reach 85 dB.
- Electrical Safety: Ensure the power source matches the pump's requirements (120 Volts). Disconnect power before servicing.
- Ventilation: Operate the pump in a well-ventilated area to prevent overheating.
- Hot Surfaces: The pump and motor can become hot during operation. Avoid contact to prevent burns.
- Pressure Release: Always release air pressure from the system before performing any maintenance.
- Authorized Service: Only qualified personnel should perform repairs.
Product Overview
The Campbell Hausfeld VT4923 is a robust cast iron, single-stage air compressor pump designed for durability and efficient performance. It is suitable for various applications including air brushing, drilling, nailing, and spraying when paired with an appropriate air tank and motor.

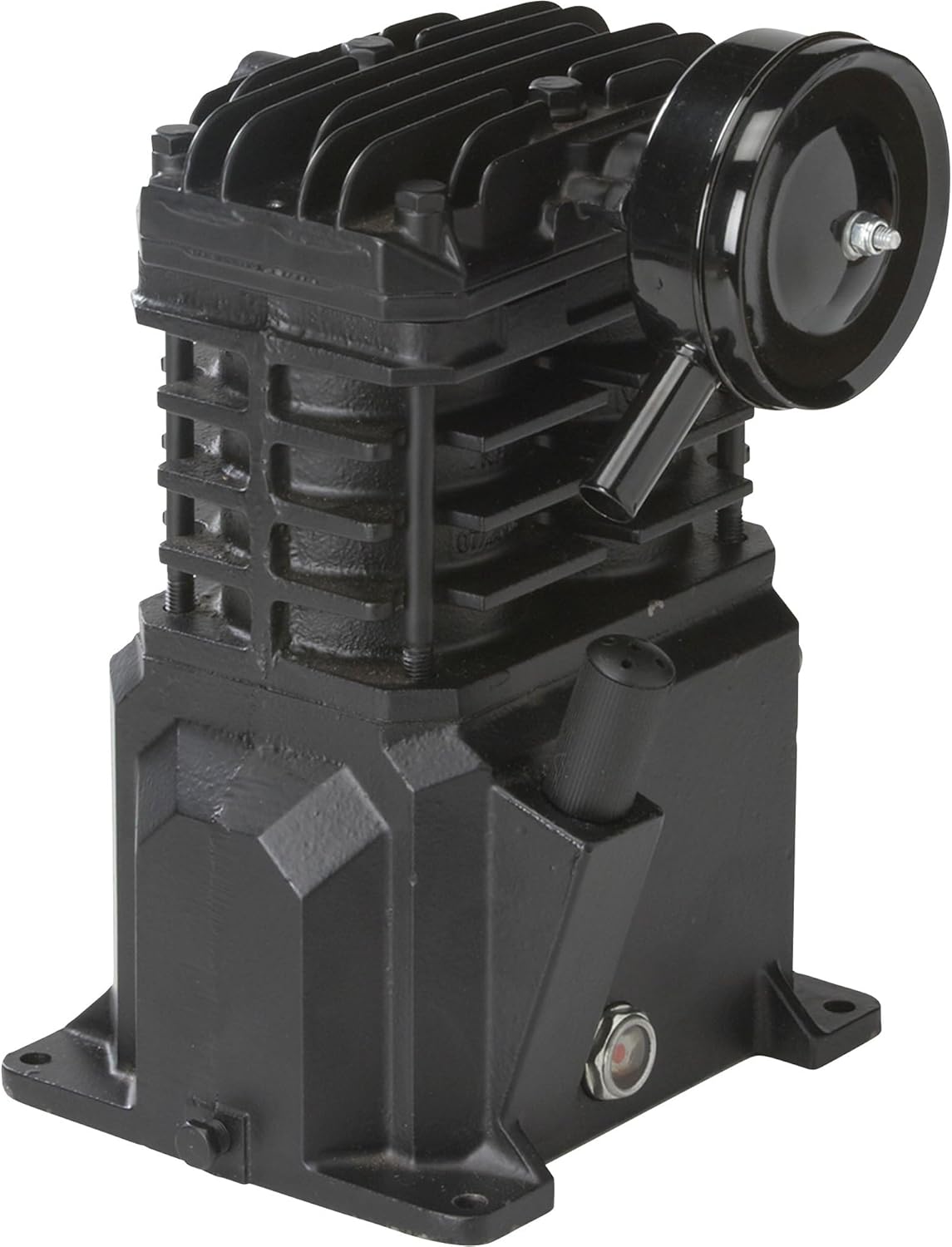

Figure 1: Front view of the Campbell Hausfeld VT4923 Cast Iron Single-Stage Air Compressor Pump. This image shows the main body of the pump, including the cooling fins and the air intake filter assembly.
Key Features:
- Cast Iron Construction: Ensures durability and cooler operation.
- Single-Stage Design: Efficient air compression.
- Metal Belt Guard: Provides protection for moving parts.
- Oil Sight Glass: For easy monitoring of oil levels.
Specifications
| Feature | Detail |
|---|---|
| Model Name | VT4923 |
| Brand | Campbell Hausfeld |
| Voltage | 120 Volts |
| Power Source | Corded Electric |
| Motor Horsepower | 3 Horsepower |
| Air Flow Capacity | 10.3 Cubic Feet Per Minute (CFM) |
| Noise Level | 85 Decibels |
| Item Weight | 34 Pounds |
| Product Dimensions | 12 x 9 x 13 inches |
| Included Components | Filter |
| Special Feature | Metal Belt guard |
Setup
Follow these steps for proper installation of your air compressor pump:
- Unpacking: Carefully remove the pump from its packaging. Inspect for any shipping damage.
- Mounting: Securely mount the pump to a stable surface or an existing air tank assembly. Ensure all mounting bolts are tightened to the manufacturer's specifications. Note: This pump is designed to fit Campbell Hausfeld VTXXX units 3 HP and above. Verify compatibility with your existing setup.
- Belt Installation: Install the drive belt between the motor pulley and the pump flywheel. Ensure proper belt tension; it should have approximately 1/2 inch of play when pressed in the middle.
- Lubrication: Fill the pump crankcase with appropriate air compressor oil. Check the oil level using the sight glass. Do not overfill. Refer to your compressor's main manual for oil type and capacity.
- Air Filter: Ensure the included air filter is properly installed on the pump's intake.
- Electrical Connection: Connect the motor to a grounded 120 Volt power supply. Ensure all electrical connections are secure and meet local codes.
Figure 2: Side view of the Campbell Hausfeld VT4923 pump, showing the oil sight glass and mounting points.
Operating Instructions
Once the pump is properly installed and lubricated, follow these steps for operation:
- Initial Start-up (Break-in Period): For the first 30 minutes of operation, run the pump with the tank drain valve open. This allows the pump to break in without building pressure, ensuring proper lubrication of internal components.
- Regular Operation: Close the tank drain valve. Turn on the power to the motor. The pump will begin to build air pressure in the tank.
- Monitoring: Regularly check the oil level via the sight glass. Listen for unusual noises or vibrations.
- Shut Down: Turn off the power to the motor. If storing for an extended period, drain all air from the tank and ensure the pump is clean and dry.
Maintenance
Regular maintenance is crucial for the longevity and performance of your pump.
- Daily: Check oil level and add if necessary. Drain moisture from the air tank (if applicable to your full compressor unit).
- Weekly: Inspect the air filter. Clean or replace if dirty. Check belt tension and condition.
- Monthly: Change the pump oil. Refer to your compressor's main manual for recommended oil change intervals and oil type.
- Annually: Inspect all fasteners for tightness. Check for air leaks.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start | No power, motor overload, faulty switch | Check power supply, reset breaker, consult a technician |
| Low air pressure | Air leaks, worn piston rings, dirty air filter | Check for leaks, replace worn parts, clean/replace filter |
| Excessive noise | Loose components, low oil, worn bearings | Tighten fasteners, check/add oil, consult a technician |
| Overheating | Poor ventilation, low oil, prolonged operation | Ensure adequate airflow, check oil, allow pump to cool |
Warranty and Support
For warranty information or technical support, please refer to the original purchase documentation or contact Campbell Hausfeld customer service directly. Keep your proof of purchase for warranty claims.
