Product Overview
The COSTWAY Commercial Ice Machine (Model: 23703-CYPE) is a high-efficiency, freestanding ice cube maker designed for various commercial and home applications. It is capable of producing up to 88 lbs of crystal clear ice per day and features an 8.8 lb storage bin. Its robust construction and user-friendly design make it suitable for supermarkets, cafes, bakeries, bars, restaurants, and more.
Key features include a high-power compressor, R600a refrigerant, an intuitive LCD control panel, and an automatic cleaning function. The unit also provides ice-full and add-water indicators for enhanced safety and convenience.
Figure 1: Front view of the COSTWAY Commercial Ice Machine.
Setup and Installation
Before operating your ice machine, ensure proper setup and installation to guarantee optimal performance and safety.
- Unpacking: Carefully remove the ice machine from its packaging. Inspect for any shipping damage.
- Placement: Place the unit on a stable, level surface. Ensure adequate ventilation around the machine. The freestanding design allows for flexible placement, provided there is access to a water supply and a drain.
- Power Connection: Connect the power cord to a standard 120 Volts electrical outlet.
- Water Supply: Connect the provided water supply hose to a potable water source.
- Drain Connection: Connect the water draining hose to a suitable drain. This is essential for managing melted ice and water from the self-cleaning function.

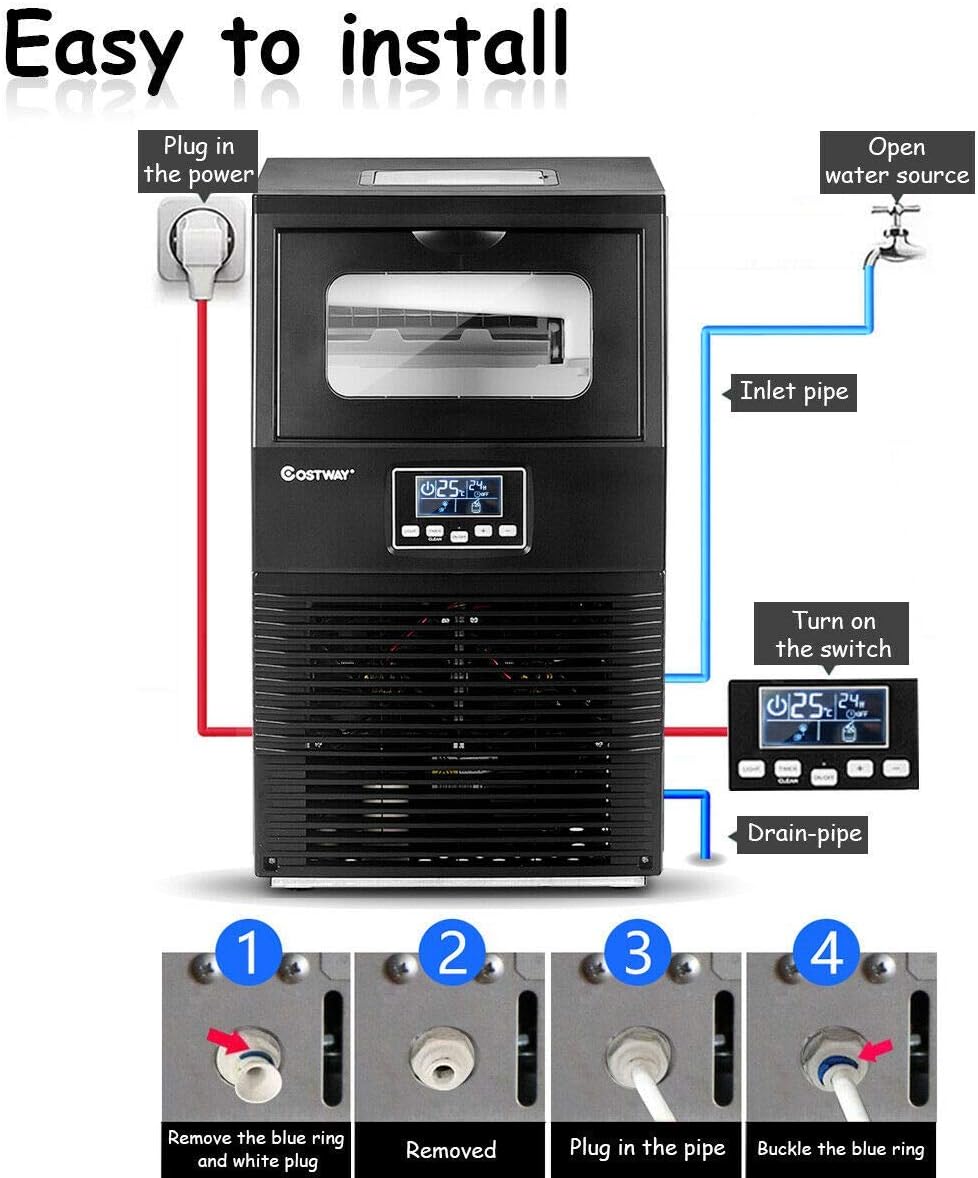

Figure 2: Diagram illustrating the easy installation steps, including power, water inlet, and drain connections.
Operating Instructions
The COSTWAY Commercial Ice Machine features a user-friendly control panel for easy operation.
Figure 3: Close-up of the LCD control panel with various function buttons.
- Power On/Off: Use the dedicated button on the LCD control panel to turn the machine on or off.
- Ice Production: The machine will automatically begin the ice-making cycle once powered on and water is supplied. It can produce 32 ice cubes within 12-18 minutes.
- Adjusting Ice Thickness: The control panel allows you to adjust the ice-making time, which influences the thickness of the ice cubes. Refer to the specific icons on the panel for this adjustment.
- Indicators:
- Ice-Full Indicator: An indicator light will illuminate when the ice storage basket is full, prompting you to remove ice.
- Add-Water Indicator: If the water level is low, an indicator will alert you to add more water to the reservoir.
- Viewing Window and Lighting: The integrated viewing window allows you to monitor the ice-making process without opening the unit. In-box lighting facilitates ice retrieval, especially in low-light conditions.
Figure 4: Details of the in-box lighting and viewing window for convenient monitoring and access.
Maintenance
Regular maintenance ensures the longevity and efficient operation of your COSTWAY ice machine.
- Automatic Cleaning Function: Utilize the automatic cleaning function regularly to maintain hygiene and prevent mineral buildup. Refer to the control panel for initiating this cycle.
- Exterior Cleaning: The painted steel construction is low-maintenance and easy to clean. Wipe the exterior with a soft, damp cloth. Avoid abrasive cleaners.
- Interior Cleaning: Periodically clean the interior components, including the ice storage bin and water reservoir, following the instructions in the full manual.
- Thermal Insulation: The unit features durable and thick thermal insulation material, which contributes to better ice-making performance and energy efficiency.
Figure 5: Cross-section view highlighting the thick thermal insulation material and stainless steel surface panel for efficient heat retention.
Troubleshooting
If you encounter issues with your ice machine, refer to the following common troubleshooting tips. For more complex problems, consult the full product manual or contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| No ice production or very little ice. | Insufficient water supply, high ambient temperature, or internal malfunction. | Check water supply connection and ensure water is flowing. Verify ambient temperature is within operating limits. If problem persists, contact customer support. |
| Ice cubes are too thin or too thick. | Incorrect ice-making time setting. | Adjust the ice-making time via the control panel to achieve desired ice thickness. |
| "Add Water" indicator is on. | Water reservoir is empty or water supply is interrupted. | Refill the water reservoir or check the water supply connection. |
| "Ice Full" indicator is on. | Ice storage bin is full. | Remove ice from the storage bin. |
Specifications
| Feature | Detail |
|---|---|
| Brand | COSTWAY |
| Model Name | machine |
| Model Number | 23703-CYPE |
| Capacity | 8.8 Pounds (storage bin) / 88 lbs/24H (production) |
| Voltage | 120 Volts |
| Refrigerant | R600a |
| Material | Metal |
| Item Weight | 40 pounds |
| Product Dimensions | 13.5 x 13 x 23.5 inches |
| Installation Type | Freestanding |
| Color | Black |
| Noise Level | ≤43 db |
Figure 6: Detailed dimensions of the ice machine for proper placement and planning.
Warranty and Support
For information regarding product warranty, technical support, or service inquiries, please contact COSTWAY customer service. Keep your purchase receipt and model number (23703-CYPE) readily available when contacting support.
You can often find contact details on the manufacturer's official website or within the product packaging.
