IMRELAX LED 200W Stage Light Instruction Manual

1. Product Overview

The IMRELAX LED 200W Stage Light is a high-performance lighting fixture designed for professional stage, theater, and DJ applications. It integrates multiple lighting functions into a single unit, providing a wide range of dynamic effects.

Image 1.1: Two IMRELAX LED 200W Stage Lights and their accompanying flight case, ready for transport or storage.

2. Package Contents

Upon opening your package, please verify that all the following items are included:

• 2 x IMRELAX LED 200W Stage Lights
• 2 x Power Cords
• 2 x DMX Cables
• 1 x User Manual
• 4 x Mounting Brackets
• 1 x Flight Case (for the 2-piece set)

3. Setup

3.1 Physical Installation

The IMRELAX LED 200W Stage Lights are designed for secure mounting. Due to their size and weight, it is recommended to use two clamps per fixture when mounting to trussing for proper stability.

Image 3.1: Side view of a single IMRELAX LED 200W Stage Light, showing its robust construction.

Image 3.2: Rear view of the stage light, highlighting the power and DMX input/output ports for connection.

3.2 Power Connection

Connect the provided power cords to the power input on the rear of each light fixture. Ensure the power source matches the specified voltage of 1.1E+2 Volts (AC).

3.3 DMX Connection

For DMX control, connect the DMX cables from your DMX controller to the DMX input of the first fixture, and then daisy-chain to subsequent fixtures using the DMX output ports.

4. Operating Instructions

The IMRELAX LED 200W Stage Light offers versatile control options and dynamic lighting effects.

4.1 Control Modes

The fixture supports the following control modes:

• DMX Control: For precise control over all functions using a DMX controller. Refer to the detailed DMX channel chart in the user manual for specific parameters.
• Master-Slave Mode: Link multiple fixtures together where one acts as the master and others as slaves, synchronizing their operations.
• Auto-Run Mode: The fixture runs through pre-programmed sequences automatically.
• Sound Activation Mode: The light reacts to ambient sound, ideal for dynamic performances.

4.2 Lighting Functions

This 4-in-1 fixture provides:

• Zoom: Adjust the beam angle for wider washes or tighter spots.
• Beam: Produces sharp, concentrated light beams.
• Spot: Creates defined, focused light circles.
• Wash: Provides a soft, diffused light spread.

4.3 Color and Gobo Effects

The light features a 9-color wheel and a 16-gobo wheel, allowing for a wide array of visual effects. The dual gobo wheel and 4-face prism enhance the three-dimensional and dynamic nature of the light output.

Image 4.1: Examples of various gobo patterns projected by the light, demonstrating the range of shapes and textures available.

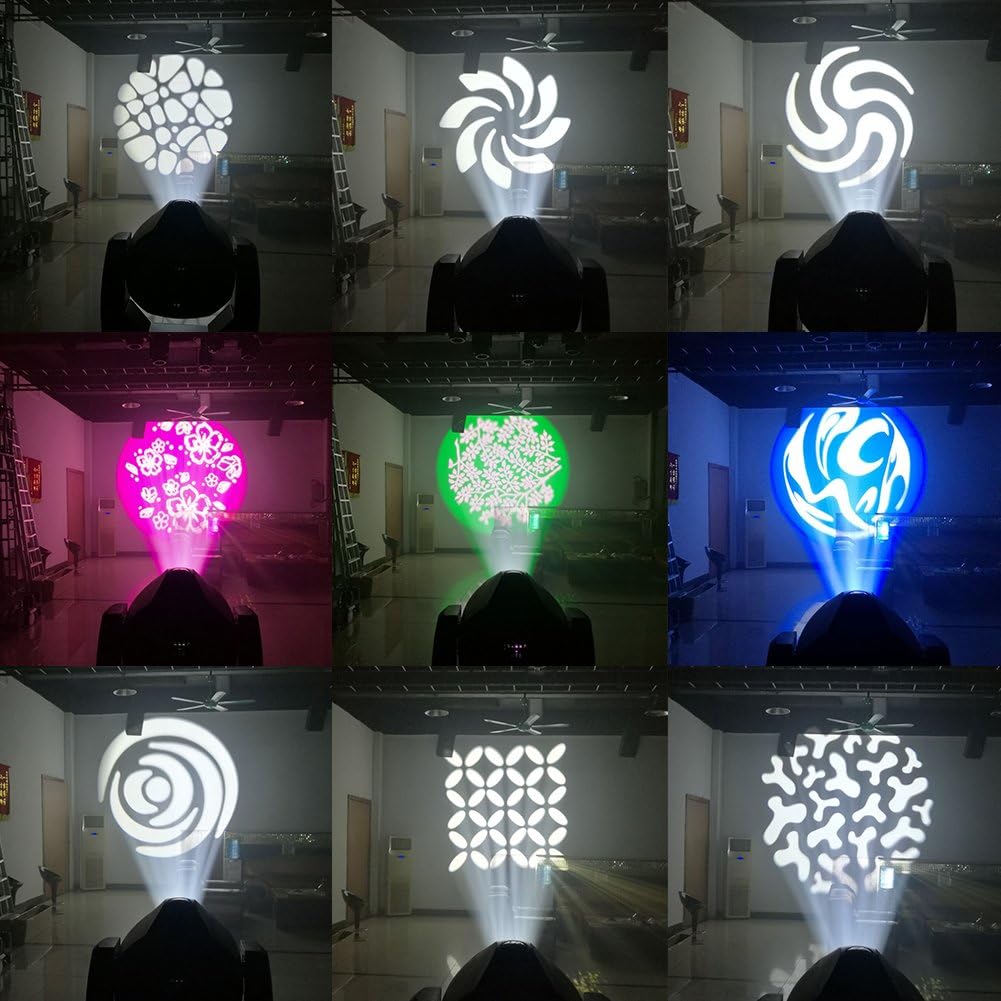

Image 4.2: Additional gobo patterns, showcasing the light's ability to create diverse visual effects.

4.4 Brightness and Color Reproduction

Equipped with a 200W LED, the fixture provides powerful illumination. The high Color Rendering Index (CRI) ensures that colors are reproduced accurately and vibrantly.

5. Maintenance

The IMRELAX LED 200W Stage Light is designed for low maintenance due to its LED technology. Regular cleaning and inspection will ensure optimal performance and longevity.

5.1 General Care

• Keep the fixture in a dry, well-ventilated area when not in use.
• Avoid exposing the fixture to extreme temperatures or humidity.
• Ensure proper ventilation during operation to prevent overheating.

5.2 Cleaning

• Regularly clean the exterior of the fixture with a soft, dry cloth.
• For optical components (lens, gobos), use a lint-free cloth and a specialized optical cleaning solution to avoid scratches.
• Ensure the fixture is powered off and disconnected from the power source before cleaning.

6. Troubleshooting

This section addresses common issues you might encounter with your stage light.

6.1 Initial Startup Noises

Upon initial power-up, the fixture may produce some discernible 'clunking' sounds for the first 5 seconds as it initializes. This is considered normal for fixtures of this size and should cease once the light is fully operational.

6.2 Light Not Powering On

• Check if the power cord is securely connected to both the fixture and the power outlet.
• Verify that the power outlet is functional.
• Inspect the power cord for any visible damage.

6.3 No DMX Control

• Ensure DMX cables are correctly connected (input to output, and proper termination if necessary).
• Verify the DMX address on the fixture matches the address set on your DMX controller.
• Check the DMX controller for proper operation.

7. Specifications

Image 7.1: Beam angle diagram for the light, showing light intensity at various distances.

8. Warranty and Support

All products purchased from IMRELAX Stage Lighting come with a 2-year warranty and lifetime technical support. For any inquiries or assistance, please contact IMRELAX customer service.
