ROLLPLAY MINI Cooper S Roadster 6V Electric Ride-On Car User Manual

Introduction

Thank you for choosing the ROLLPLAY MINI Cooper S Roadster 6V Electric Ride-On Car. This manual provides essential information for the safe assembly, operation, and maintenance of your new electric vehicle. Please read this manual thoroughly before first use and keep it for future reference.

Safety Information

WARNING: Not suitable for children under 3 years due to small parts and potential hazards. Adult supervision is required at all times during operation.

• Always ensure the child wears appropriate safety gear, including a helmet.
• Operate the vehicle only on flat, dry surfaces away from traffic, pools, or steep inclines.
• The maximum weight capacity for this vehicle is 35 kg (77 lbs).
• Only one rider at a time.
• Ensure the safety belt is securely fastened before each use.
• Keep hands, hair, and clothing away from moving parts.
• Do not modify the electrical system. Only use the provided charger and battery.

Package Contents

Please check the package contents to ensure all parts are present before assembly.

• 1x ROLLPLAY MINI Cooper S Roadster Electric Ride-On Car
• 1x Remote Control (requires 2x AAA batteries, not included for remote)
• 1x 6V Alkaline Battery (for vehicle)
• 1x Battery Charger
• Instruction Manual

Image: The main electric ride-on car, a pink MINI Cooper S Roadster.

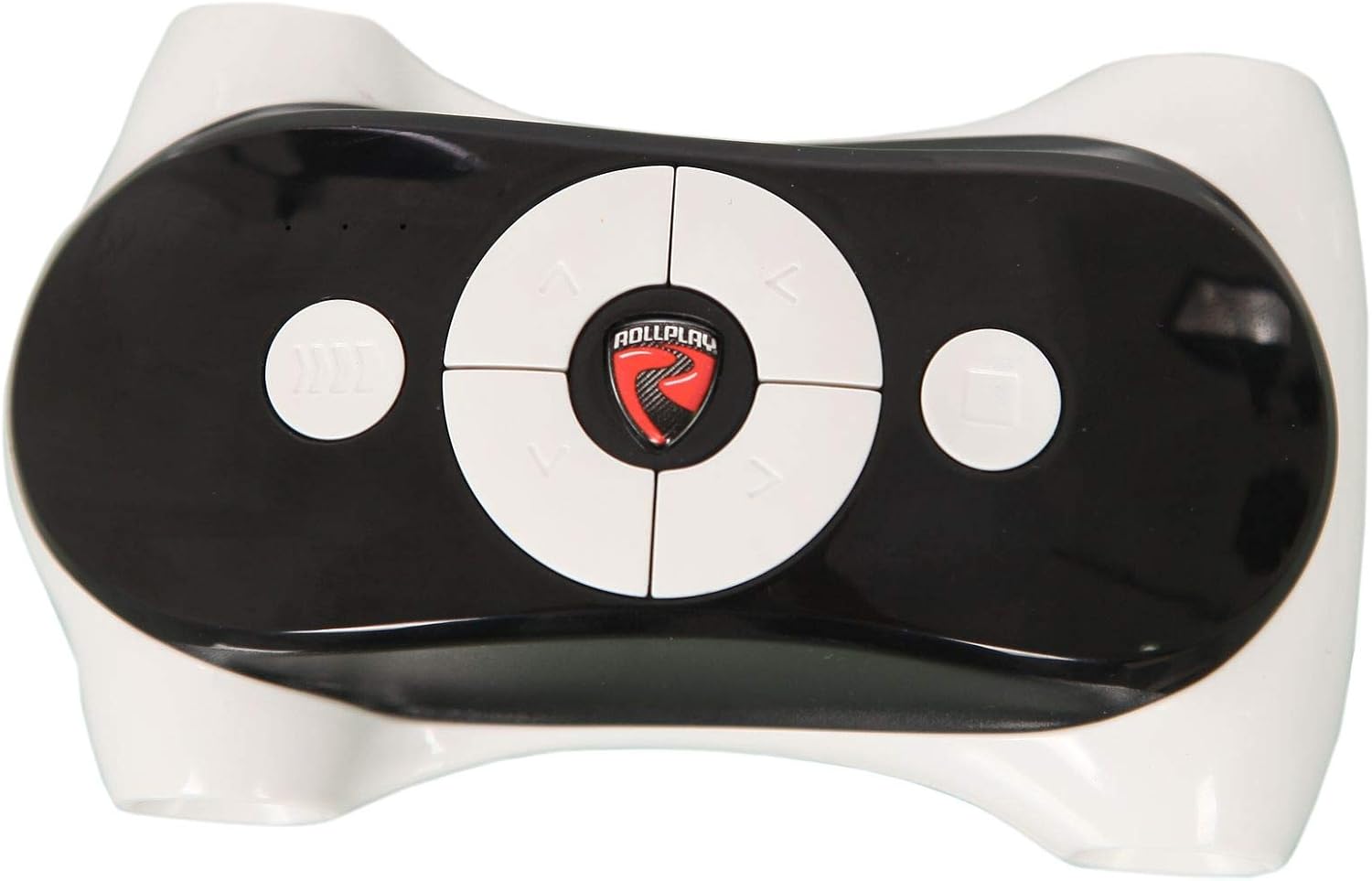

Image: The remote control unit for the electric ride-on car, featuring directional and stop buttons.

Setup Instructions

1. Assembly

The vehicle requires some assembly. Please refer to the detailed assembly instructions provided in the separate assembly guide included in your package. Ensure all screws and fasteners are tightened securely before use.

2. Battery Charging

1. Locate the 6V battery and the charger.
2. Connect the charger to the battery charging port on the vehicle. The charging port is typically located under the seat or on the dashboard.
3. Plug the charger into a standard wall outlet.
4. Charge the battery for approximately 8-12 hours before the first use. Do not overcharge.
5. A full charge provides approximately 1-2 hours of continuous use, depending on terrain and usage.

3. Remote Control Battery Installation

The 2.4 GHz remote control requires 2x AAA batteries (not included). Open the battery compartment on the back of the remote control and insert the batteries, observing correct polarity.

Operating Instructions

1. Starting the Vehicle

• Ensure the main power switch is in the "ON" position.
• The vehicle features functional LED headlights and engine sounds/horn on the steering wheel for an authentic driving experience.

2. Driving the Vehicle

• The child can operate the vehicle using the easy-to-use foot pedal. Press the pedal to move forward.
• A reverse function is available for backing up.
• The maximum speed is approximately 4 km/h (2.5 mph).
• The vehicle is equipped with anti-slip tires for optimal grip on grass and hard surfaces.

3. Using the Remote Control

The remote control allows parents to supervise and control the vehicle's movement for added safety.

• Pairing: Follow the instructions in the separate assembly guide to pair the remote control with the vehicle.
• Directional Control: Use the directional buttons on the remote to steer the vehicle forward, backward, left, and right.
• Stop Function: The remote control includes a "Stop" button to immediately halt the vehicle in case of emergency.

Maintenance

1. Cleaning

• Wipe the vehicle with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Avoid spraying water directly onto electrical components.

2. Battery Care

• Always recharge the battery after each use.
• If storing the vehicle for an extended period, charge the battery fully every 30 days to prolong its lifespan.
• Do not store the battery in extreme temperatures.
• The battery is stored securely within the vehicle.

3. General Inspection

• Regularly check all nuts, bolts, and fasteners to ensure they are tight.
• Inspect tires for wear and tear.
• Ensure all electrical connections are secure.

Troubleshooting

Product Specifications

• Model: 22492
• Brand: Rollplay
• Material: Plastic (Polyethylene)
• Battery: 6V Alkaline
• Maximum Speed: 4 km/h (2.5 mph)
• Maximum Weight Capacity: 35 kg (77 lbs)
• Recommended Age: 3 to 8 years (36 to 96 months)
• Battery Life (Operating): 1-2 hours
• Charging Time: 8-12 hours
• Product Dimensions (L x W x H): 105 cm x 59 cm x 54.2 cm (41.3 in x 23.2 in x 21.3 in)
• Product Weight: 12 kg (26.5 lbs)
• Remote Control Frequency: 2.4 GHz

Image: Diagram showing the dimensions of the electric ride-on car: 105cm length, 59cm width, and 54.2cm height.

Warranty Information

This ROLLPLAY product comes with a 2-year manufacturer's warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

Please retain your proof of purchase for warranty claims.

Customer Support

For technical assistance, spare parts, or warranty inquiries, please contact Rollplay customer service. Refer to the contact information provided on the product packaging or the official Rollplay website.

You can visit the official Rollplay store for more information: Rollplay Store
