Monster Shop Zodiac Collection Gloss White Counter Set Instruction Manual

1. Product Overview

The Monster Shop Zodiac Collection Gloss White Counter Set provides versatile and robust display solutions for retail environments, reception areas, or offices. This set is designed for both individual unit use and for interlocking to create a larger, elegant L-shaped counter configuration.

1.1 Package Contents

• Two (2) A1200 White Shop Counters
• One (1) CM60 Curved Closed Counter
• Assembly Hardware (screws, dowels, cam locks, etc.)
• Assembly Instructions (this manual)

1.2 Unit Descriptions

A1200 White Shop Counter: A solid retail unit featuring a closed front and significant under-counter storage at the rear, including one fixed internal shelf. These units are suitable for use as a service area or for product display with the shelves facing the customer.

CM60 Curved Closed Counter: A curved display unit with storage shelves at the rear. This unit is designed to connect two A1200 counters to form a large L-shaped counter set, but it can also function as a standalone unit.

Figure 1: Front view of the assembled L-shaped counter set, showcasing the two A1200 units connected by the CM60 curved unit.

Figure 2: Rear view of the assembled L-shaped counter set, illustrating the internal storage shelves within each unit.

2. Safety Information

Please read and understand all safety warnings before proceeding with assembly and use of this product. Failure to follow these instructions may result in injury or damage to the product.

• Assembly Required: This product requires assembly. Exercise caution when handling heavy parts.
• Inspection: Before each use, inspect the product to ensure there are no loose parts or sharp edges. Do not use if any damage is observed.
• Assembly Instructions: Always follow the provided assembly instructions carefully.
• Environmental Conditions: Do not expose the product to extreme temperatures or humidity.
• Child and Pet Safety: Keep the product out of reach of children and pets, especially during assembly.
• Two-Person Assembly: The counters arrive flat-packed, and two people are required for safe lifting and assembly due to the weight and size of the components.
• Weight Capacity: The maximum recommended weight capacity for the counter surface is 90 Kilograms. Distribute weight evenly.

3. Setup and Assembly

This section provides general guidelines for assembling your counter set. Refer to the detailed diagrams and step-by-step instructions included with your specific hardware kit for precise assembly.

3.1 Tools Required

• Phillips Head Screwdriver
• Hammer (optional, for dowels)
• Soft Cloth (for protecting surfaces)

3.2 General Assembly Steps

1. Unpack Components: Carefully unpack all parts and hardware. Lay them out on a clean, soft surface to prevent scratches. Verify all components are present against the parts list.
2. Assemble Individual Units:
   • For each A1200 counter, attach the side panels to the base and top panels using the provided screws and cam locks. Insert the fixed internal shelf.
   • For the CM60 curved counter, attach the side panels to the curved front and rear panels, then secure the base and top. Insert any internal shelves.

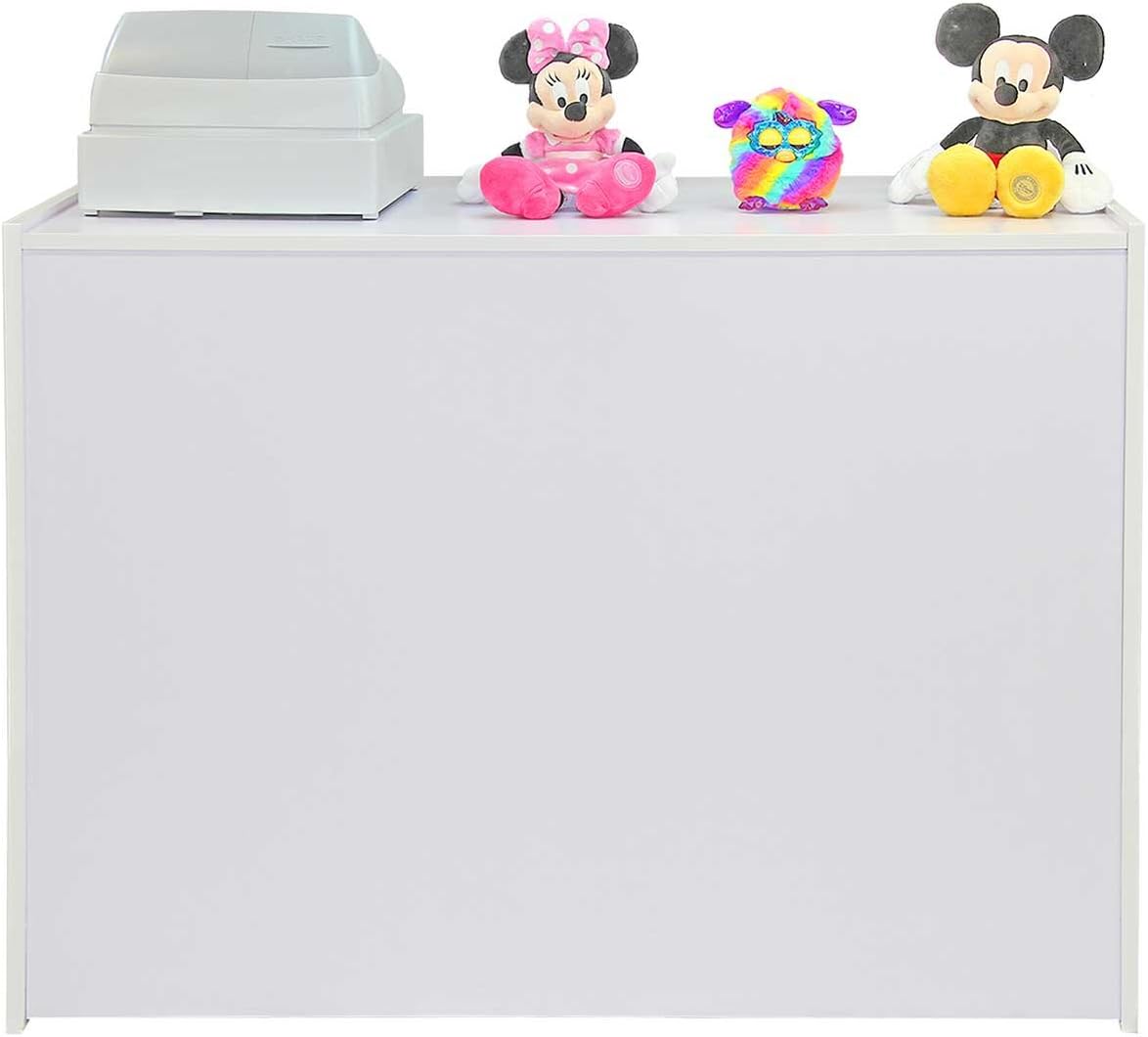

   Figure 3: Front view of an individual A1200 counter unit.



   Figure 4: Rear view of an individual A1200 counter unit, highlighting the internal storage shelf.



   Figure 5: Front view of an individual CM60 curved counter unit.



   Figure 6: Rear view of an individual CM60 curved counter unit, showing internal storage shelves.

3. Connect Units (for L-shape configuration): Position the two A1200 counters and the CM60 curved counter in the desired L-shape. Use the connecting hardware (if provided, typically screws or brackets) to securely join the units together. Ensure all connections are tight and stable.
4. Final Check: Once assembled, gently shake the entire structure to ensure stability. Tighten any loose fasteners.

4. Operating Instructions (Usage)

The Zodiac Collection Counter Set is designed for various retail and office applications.

• Display Surface: Use the top surface for displaying products, operating a cash register, or as a service area. Ensure items are placed stably.
• Storage: Utilize the internal shelves for storing inventory, office supplies, or personal items. Organize contents to maintain accessibility and prevent clutter.
• Configuration: The units can be used individually as standalone counters or combined into an L-shaped configuration to suit your space and operational needs.
• Weight Distribution: Always distribute weight evenly across the counter surfaces and shelves to prevent stress on the structure. Do not exceed the maximum weight capacity of 90 kg.

5. Maintenance

Proper maintenance will ensure the longevity and appearance of your counter set.

• Cleaning: Wipe surfaces with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive materials that can damage the gloss finish.
• Spills: Clean up spills immediately to prevent staining or damage to the engineered wood and melamine surface.
• Fasteners: Periodically check all screws, cam locks, and connecting hardware to ensure they remain tight. Re-tighten as necessary to maintain structural integrity.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading or discoloration of the finish.
• Heat Protection: Do not place hot items directly on the counter surface. Use coasters or protective pads.

6. Troubleshooting

This section addresses common issues you might encounter.

• Wobbly Counter: If the assembled counter feels unstable, check all fasteners (screws, cam locks) and re-tighten them. Ensure the counter is placed on a level surface. Adjust any leveling feet if present.
• Parts Missing/Damaged: If you find any parts missing or damaged upon unpacking, do not proceed with assembly. Contact customer support immediately for replacement parts.
• Difficulty Assembling: Ensure you are following the assembly instructions step-by-step. If a step is unclear, refer to the diagrams or seek assistance from another person. Remember, two people are recommended for assembly.
• Surface Scratches: Minor scratches on the gloss finish can sometimes be minimized with specialized furniture polish designed for high-gloss surfaces. For deeper scratches, professional repair may be required.

7. Specifications

8. Warranty and Support

For information regarding warranty coverage, replacement parts, or technical support, please refer to the contact information provided at the point of purchase or visit the official Monster Shop website.

Please retain your proof of purchase for any warranty claims.
