Hoteche 170102 3-in-1 Manual Stapler User Manual

1. Introduction

Thank you for choosing the Hoteche 170102 3-in-1 Manual Stapler. This versatile tool is designed for various fastening tasks, including upholstery, carpentry, and general DIY projects. It is compatible with three different types of staples and nails, offering flexibility for your needs. Please read this manual carefully before use to ensure safe and efficient operation.

2. Safety Instructions

Always follow these safety guidelines to prevent injury and damage to the tool:

• Always wear appropriate personal protective equipment, such as safety glasses, when operating the stapler.
• Keep hands and other body parts away from the stapling area.
• Never point the stapler at yourself or others.
• Ensure the workpiece is stable and secure before stapling.
• Do not attempt to staple into extremely hard materials that may cause fasteners to ricochet.
• Keep the stapler out of reach of children.
• Store the stapler in a dry, secure place when not in use.

3. Product Overview

The Hoteche 170102 is a robust manual stapler constructed from steel with a chrome finish. It features an adjustable force wheel for varying material densities and is designed to handle three types of fasteners.

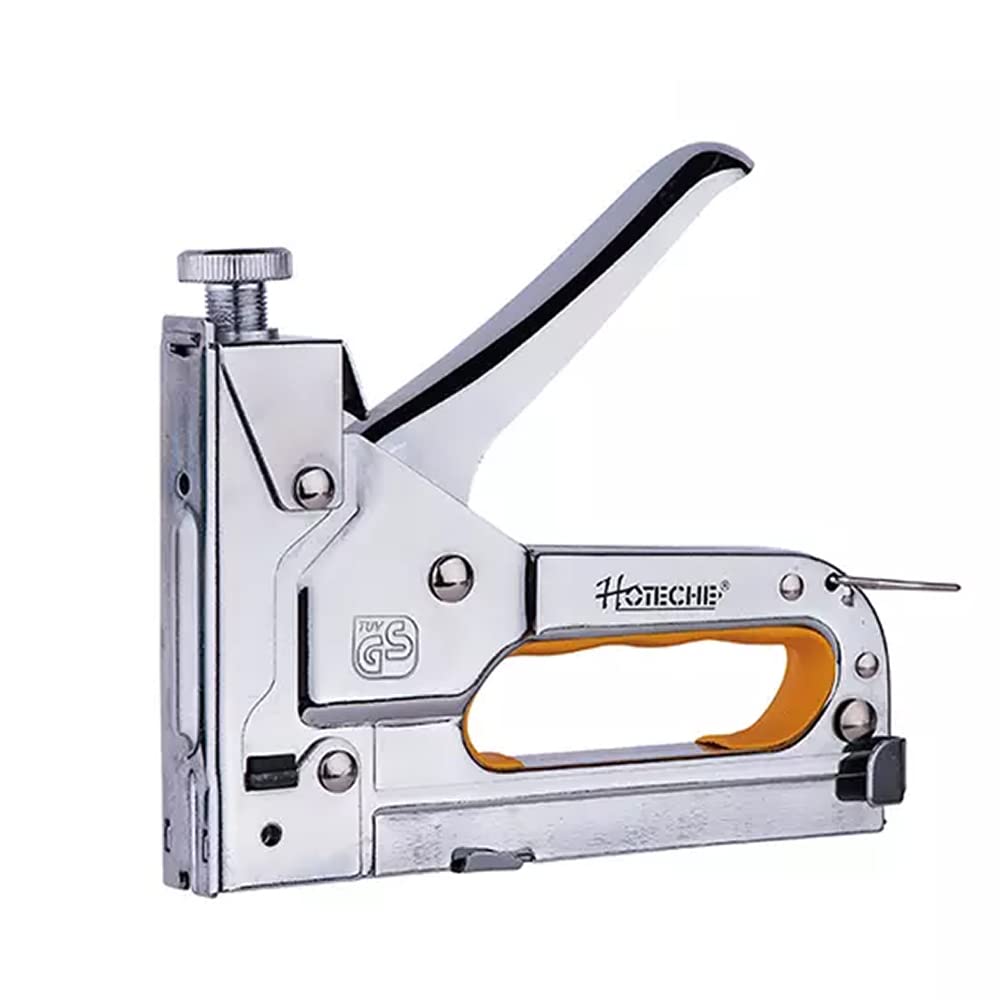

Figure 1: Hoteche 170102 3-in-1 Manual Stapler. This image shows the overall design of the manual stapler, highlighting its chrome finish and ergonomic handle.

3.1 Key Components

• Handle: Ergonomically designed for comfortable grip and leverage.
• Staple Magazine: Holds the fasteners (staples or nails).
• Force Adjustment Wheel: Allows adjustment of stapling force for different materials.
• Staple Release Latch: Used to open the magazine for loading/unloading fasteners.
• Impact Mechanism: Delivers the force to drive the fastener.

3.2 Compatible Fasteners

This stapler is compatible with three types of fasteners:

• U-shaped staples (4-14 mm)
• T-shaped nails (10-12 mm)
• Straight nails (10-14 mm)

The product includes 600 assorted staples to get you started.

4. Setup and Loading Fasteners

Before operating the stapler, it is essential to load the correct fasteners properly.

1. Ensure Safety: Always ensure the stapler is not pointed at anyone and your fingers are clear of the stapling mechanism.
2. Open Magazine: Locate the staple release latch, usually at the bottom rear of the stapler. Press or pull it to release and slide out the staple magazine.
3. Load Fasteners: Insert a strip of compatible staples or nails into the magazine with the points facing forward (towards the stapler's nose). Ensure they lie flat and are correctly oriented. Do not overload the magazine.
4. Close Magazine: Slide the magazine back into the stapler until it clicks securely into place. Verify it is fully closed before use.

5. Operating Instructions

5.1 Adjusting Stapling Force

The stapler features an adjustable force wheel, typically located on the top or front of the tool. Turn the wheel to increase or decrease the stapling force. A higher setting is suitable for harder materials, while a lower setting is for softer materials or when less penetration is desired.

• Increase Force: Turn the wheel towards the '+' or 'hard' indicator.
• Decrease Force: Turn the wheel towards the '-' or 'soft' indicator.

5.2 Stapling Procedure

1. Position the Stapler: Place the nose of the stapler firmly against the material where you wish to drive a fastener. Ensure it is perpendicular to the surface for best results.
2. Apply Pressure: Press down firmly on the handle with a swift, continuous motion until the fastener is fully driven. You may need to apply significant force, especially for harder materials or higher force settings.
3. Release Handle: Release the handle to allow the stapler to reset for the next fastener.
4. Test on Scrap Material: Before working on your final project, always test the stapler on a piece of scrap material to ensure the force setting is appropriate and the fasteners are driving correctly.

6. Maintenance

Proper maintenance ensures the longevity and reliable performance of your stapler.

• Cleaning: Periodically clean the stapler, especially the staple magazine and nose, to remove dust, debris, or adhesive residue. Use a dry cloth or a soft brush.
• Lubrication: Apply a small amount of light machine oil to moving parts, such as the handle pivot points and the magazine slide, if they become stiff. Do not over-lubricate.
• Storage: Store the stapler in a dry environment to prevent rust. Ensure it is unloaded before storage.
• Inspection: Regularly inspect the stapler for any signs of wear, damage, or loose components. Do not use a damaged stapler.

7. Troubleshooting

Here are solutions to common issues you might encounter:

If you encounter issues not listed here or if solutions do not resolve the problem, please contact Hoteche customer support.

8. Specifications

• Model: 170102
• Brand: Hoteche
• Operation Mode: Manual
• Material: Alloy Steel, Metal
• Finish: Chrome
• Compatible Fasteners: U-shaped (4-14mm), T-shaped (10-12mm), Straight (10-14mm)
• Included Fasteners: 600 assorted staples
• Dimensions: Approximately 16 cm (length)

9. Warranty and Support

Hoteche products are manufactured to high-quality standards. For warranty information or technical support, please refer to the warranty card included with your purchase or visit the official Hoteche website. Keep your purchase receipt as proof of purchase.

For further assistance, you may contact Hoteche customer service through their official channels. Contact details are typically available on the product packaging or the manufacturer's website.
