GC 38C Acoustic Guitar User Manual

1. Introduction

This manual provides essential information for the setup, operation, and maintenance of your GC 38C Acoustic Guitar. Please read these instructions carefully to ensure proper use and to maximize the lifespan of your instrument. This guitar is designed for right-handed players and features a 38-inch slim body with a natural finish.

2. Product Overview

2.1 Key Features

• 38-inch Slim Body Design
• Linden Wood Top, Back, and Sides
• Rosewood Fretboard and Bridge
• 21 Frets
• Integrated Truss Rod for Neck Adjustment
• Die-Cast Machine Heads for stable tuning
• Includes a protective bag

2.2 Components

Familiarize yourself with the main parts of your acoustic guitar:

• Headstock: Houses the tuning machines and provides tension for the strings.
• Tuning Machines: Used to adjust the pitch of each string.
• Nut: A small piece at the top of the fretboard that guides the strings.
• Neck: The long part of the guitar that contains the fretboard and frets.
• Fretboard: The surface on the neck where you press the strings.
• Frets: Metal strips embedded in the fretboard that define musical notes.
• Body: The main resonant chamber of the guitar.
• Soundhole: The opening in the body that projects sound.
• Bridge: Anchors the strings to the body.
• Saddle: A small piece on the bridge that supports the strings.
• Strings: The vibrating elements that produce sound.
• Truss Rod: An adjustable metal rod inside the neck that helps maintain neck straightness.

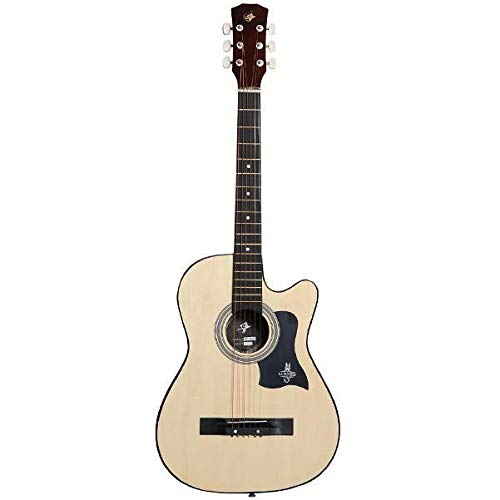

Figure 1: Front view of the GC 38C Acoustic Guitar, showcasing its natural finish, soundhole, bridge, and headstock with tuning machines.

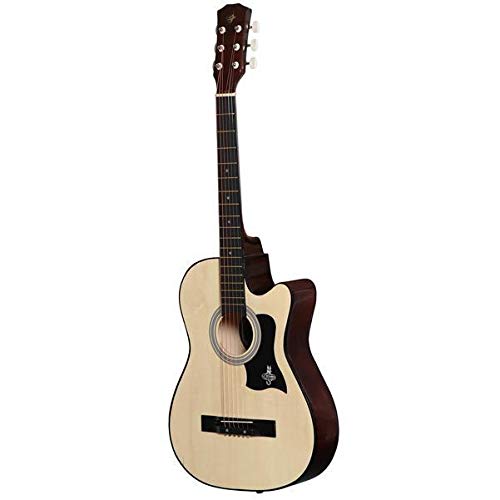

Figure 2: Angled view of the GC 38C Acoustic Guitar, highlighting the slim body profile and the wood binding.

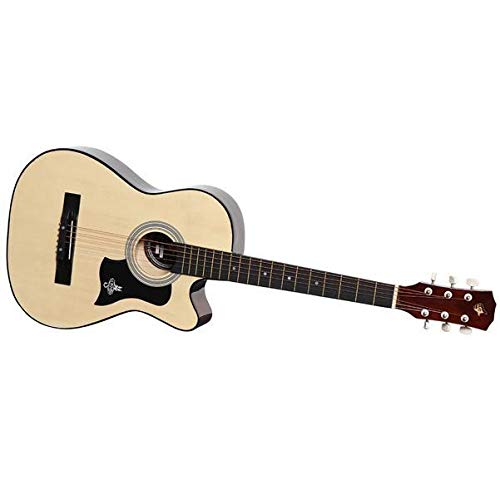

Figure 3: Top-down view of the GC 38C Acoustic Guitar, showing the fretboard, frets, and the arrangement of the tuning machines on the headstock.

3. Setup

3.1 Unpacking

1. Carefully remove the guitar from its packaging.
2. Inspect the guitar for any signs of damage that may have occurred during shipping.
3. Remove any protective films or packaging materials.

3.2 Initial Inspection

Before playing, check the following:

• Ensure all strings are properly seated at the bridge and nut.
• Verify that the tuning machines turn smoothly.
• Check the neck for any visible warping or bowing.

3.3 Tuning

Your guitar will likely be out of tune upon arrival. Use an electronic tuner (not included) to tune the strings to standard pitch (E-A-D-G-B-e, from thickest to thinnest string). Turn the tuning machines slowly and carefully to avoid over-tightening and breaking strings.

3.4 Truss Rod Adjustment

The truss rod is located inside the neck and allows for minor adjustments to the neck's curvature (relief). This adjustment should only be performed if you notice excessive bowing or back-bowing of the neck, which can affect string action and playability. Improper adjustment can damage the neck.

• Purpose: To counteract string tension and maintain optimal neck relief.
• Adjustment: Typically accessed via an Allen wrench (not included) at the headstock or heel of the neck. Turn clockwise to straighten the neck (reduce relief) and counter-clockwise to add relief. Make small adjustments (quarter turns) and allow the neck to settle before re-evaluating.
• Recommendation: If you are unsure, consult a qualified guitar technician for truss rod adjustments.

4. Operating

Hold the guitar comfortably, ensuring your fretting hand can easily reach all frets and your strumming hand has a clear path over the strings. Practice basic chords and strumming patterns. Regular practice will improve your technique and familiarity with the instrument.

5. Maintenance

5.1 Cleaning

• Wipe down the body, neck, and strings with a soft, dry, lint-free cloth after each use to remove sweat and oils.
• For stubborn grime, use a guitar-specific cleaning solution sparingly. Avoid harsh chemicals.
• Clean the fretboard periodically with a lemon oil or fretboard conditioner to prevent drying and cracking.

5.2 String Replacement

Strings should be replaced regularly, typically every 1-3 months depending on usage, or when they sound dull, corroded, or break. Replace strings one at a time to maintain neck tension. Use light gauge acoustic guitar strings for optimal playability and tone.

5.3 Storage

• Store your guitar in its included bag or a hard case when not in use to protect it from dust, impacts, and environmental changes.
• Avoid exposing the guitar to extreme temperatures or humidity fluctuations, as this can cause wood warping or cracking. Keep it away from direct sunlight, heaters, and air conditioning vents.
• Do not lean the guitar against walls or furniture where it could fall.

6. Troubleshooting

6.1 Tuning Instability

• Cause: New strings stretching, improper string winding on tuning posts, worn tuning machines, or environmental changes.
• Solution: Stretch new strings gently after tuning. Ensure strings are wound correctly. If tuning machines are faulty, they may need replacement. Allow the guitar to acclimate to its environment.

6.2 Buzzing Strings

• Cause: Low string action, uneven frets, insufficient neck relief, or worn frets.
• Solution: Check neck relief (see Truss Rod Adjustment). If the issue persists, professional setup by a guitar technician may be required to address fret leveling or saddle height.

6.3 Dull Sound

• Cause: Old or corroded strings, accumulated grime on the fretboard, or environmental factors.
• Solution: Replace strings. Clean the fretboard and body. Ensure proper storage conditions.

7. Specifications

8. Warranty and Support

For information regarding warranty coverage, returns, or technical support, please refer to the documentation provided at the point of purchase or contact your retailer directly. Specific warranty terms may vary.
