UpStart Components DT-LA-1053-DL249
UpStart Components LA-1053 Thermostat Kit User Manual
For Magic Chef YG205KW Residential Dryer
Introduction
This manual provides essential information for the installation and safe operation of the UpStart Components LA-1053 Thermostat Kit, a replacement part for the Magic Chef YG205KW Residential Dryer. Please read these instructions carefully before proceeding with installation to ensure proper function and safety.
Safety Information
- Disconnect Power: Always unplug the dryer from its power source before attempting any installation, repair, or maintenance. Failure to do so can result in electric shock or serious injury.
- Professional Installation Recommended: If you are unfamiliar with appliance repair, it is recommended to seek assistance from a qualified technician.
- Wear Protective Gear: Use appropriate personal protective equipment, such as gloves, to prevent injury during installation.
- Refer to Dryer Manual: Always consult your specific Magic Chef YG205KW dryer's original manufacturer manual for detailed disassembly and reassembly instructions. This kit is a replacement part and does not cover the entire dryer's service procedure.
- Component Handling: Handle all components carefully to avoid damage.
Compatibility
This UpStart Components LA-1053 Thermostat Kit is specifically designed as a replacement for the Magic Chef YG205KW Residential Dryer. It is crucial to verify your dryer's model number to ensure compatibility before installation.
Package Contents
The UpStart Components LA-1053 Thermostat Kit typically includes the following components:
- High-Limit Thermostat
- Thermal Cut-Off Fuse
- Cycling Thermostat

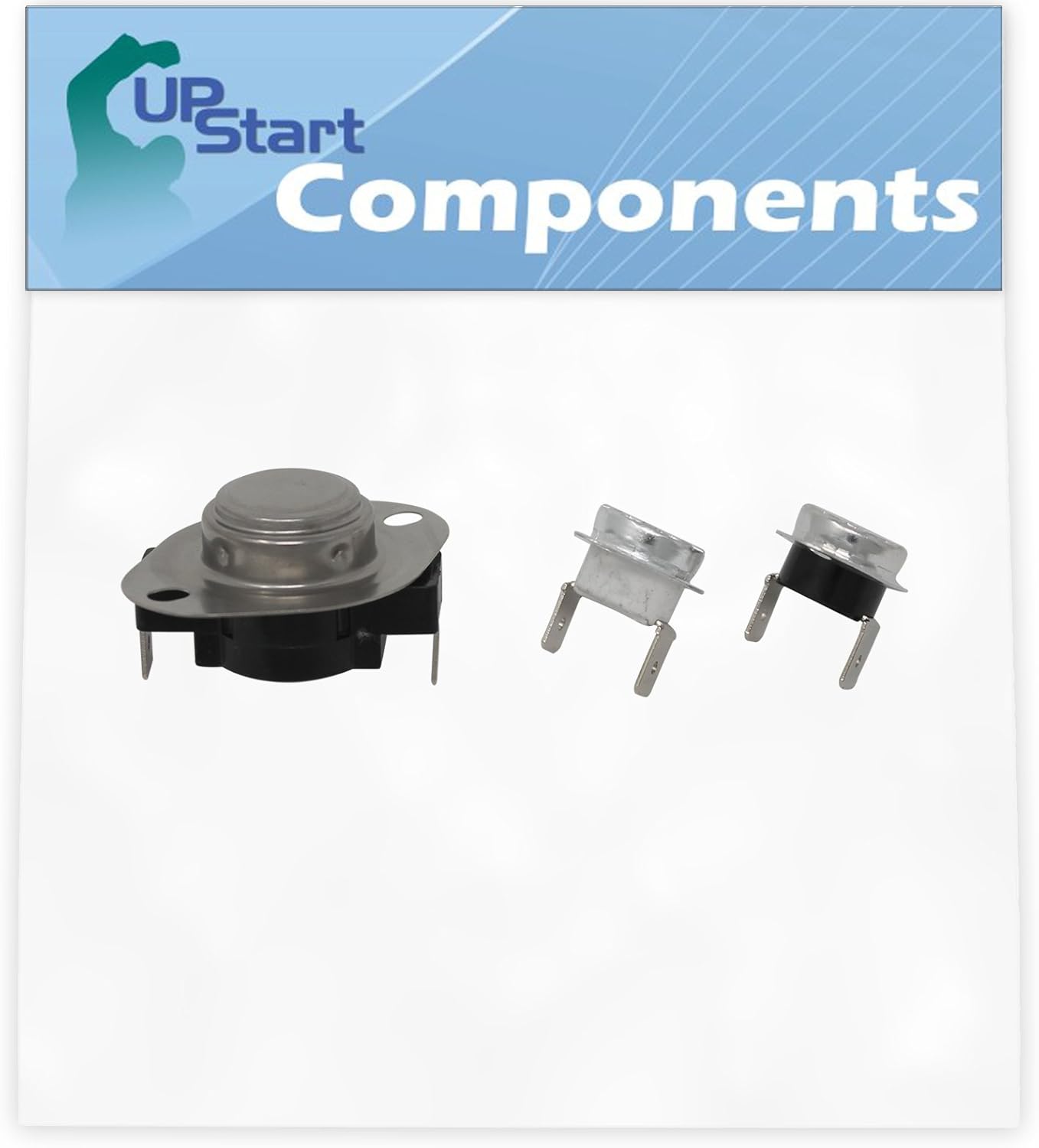

Image: Overview of the UpStart Components LA-1053 Thermostat Kit components. This image displays the three main parts included in the kit: a high-limit thermostat, a thermal cut-off fuse, and a cycling thermostat.
Setup and Installation
The following steps provide a general guide for installing the thermostat kit. Always refer to your dryer's specific service manual for detailed instructions pertinent to your model.
- Disconnect Power: Ensure the dryer is unplugged from the electrical outlet.
- Access Components: Depending on your dryer model, you may need to remove the back panel, top panel, or front panel to access the existing thermostats and thermal fuse. Use appropriate tools as specified in your dryer's manual.
- Locate Existing Parts: Identify the high-limit thermostat, thermal cut-off fuse, and cycling thermostat. These are typically located near the heating element or blower housing.
- Remove Old Components: Carefully disconnect the wires from the old components. Note their positions or take a photograph for reference. Unscrew or unclip the old thermostats and fuse from their mounting brackets.
- Install New Components:

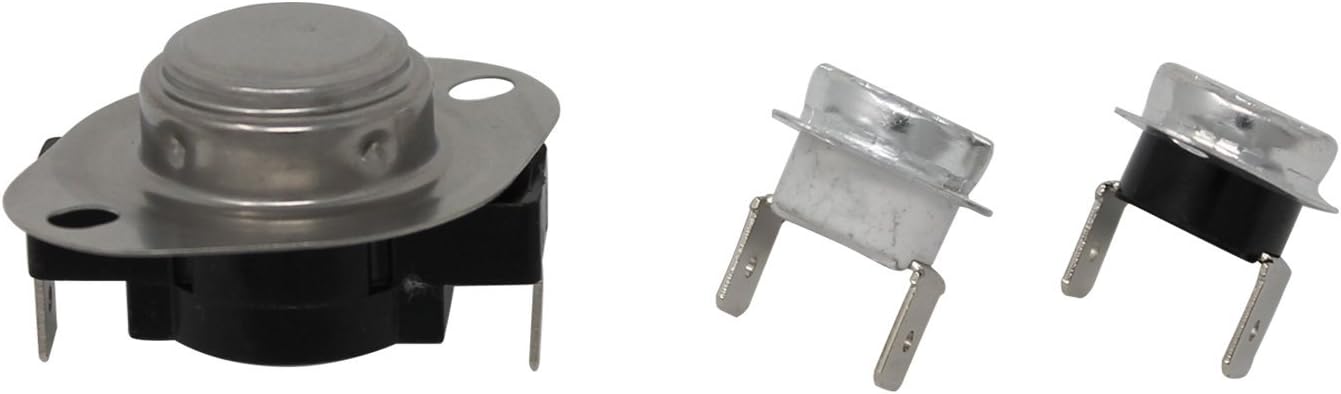

Image: Close-up view of the individual thermostat components. This image shows the high-limit thermostat (left) and the two smaller thermal cut-off and cycling thermostats (right), highlighting their connection terminals.
- Mount the new high-limit thermostat, thermal cut-off fuse, and cycling thermostat in the exact locations where the old ones were removed.
- Secure them with the original screws or clips.
- Connect the wires to the new components, ensuring they are securely attached to the correct terminals. Refer to your previous notes or photos.
- Reassemble Dryer: Once all new components are installed and wired correctly, reassemble the dryer panels. Ensure all screws are tightened and panels are securely in place.
- Test Operation: Plug the dryer back into the electrical outlet. Run a short cycle to verify proper operation. Monitor for any unusual noises, smells, or malfunctions.
Operating Principles (Post-Installation)
After successful installation, the new thermostat kit will restore the dryer's ability to regulate temperature and prevent overheating. The components work together to:
- Cycling Thermostat: Controls the heating element to maintain the selected drying temperature. It cycles the heat on and off as needed.
- High-Limit Thermostat: Acts as a safety device, shutting off the heating element if the dryer's internal temperature exceeds a safe limit. It typically resets automatically once the temperature drops.
- Thermal Cut-Off Fuse: A non-resettable safety device that permanently cuts power to the heating element if the dryer overheats significantly, indicating a more serious issue. If this fuse blows, it must be replaced.
Image: Top view of the thermostat components, showing the metal casing and mounting holes. This perspective highlights the design of the high-limit thermostat and the two smaller thermostats, including their attachment points.
Maintenance
The thermostat kit itself does not require routine maintenance. However, regular maintenance of your dryer can prevent issues that might lead to thermostat failure:
- Clean Lint Filter: Clean the lint filter before or after every load to ensure proper airflow.
- Inspect Venting: Periodically check and clean the dryer's exhaust vent system to prevent lint buildup, which can restrict airflow and cause overheating.
- Avoid Overloading: Do not overload the dryer, as this can impede airflow and lead to longer drying times and potential overheating.
Troubleshooting
If your dryer exhibits problems after installing the thermostat kit, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Dryer not heating | Blown thermal cut-off fuse, faulty heating element, wiring issue. | Check continuity of thermal fuse and heating element. Verify all wire connections. |
| Dryer overheating | Restricted airflow (clogged vent), faulty cycling thermostat, faulty high-limit thermostat. | Clean dryer vent thoroughly. Test cycling and high-limit thermostats for proper operation. |
| Dryer runs but clothes don't dry | Restricted airflow, faulty heating element, faulty cycling thermostat. | Ensure vent is clear. Check heating element and cycling thermostat. |
If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified appliance repair technician.
Specifications
- Part Number: DT-LA-1053-DL249
- Compatibility: Magic Chef YG205KW Residential Dryer
- Kit Includes: High-Limit Thermostat, Thermal Cut-Off Fuse, Cycling Thermostat
- Special Features: Easy to Install (as per manufacturer)
Image: Underside view of the thermostat components, showing electrical terminals and temperature ratings. This image provides a detailed look at the base of the thermostats, including the L248-80°F marking on one component, indicating its temperature rating.
Warranty and Support
This product is an UpStart Components Brand replacement part. Any warranties for this product are offered solely by UpStart Components. This product is not affiliated with any OEM brands and is not covered under any warranties offered by the original manufacturers.
For support or warranty inquiries, please contact UpStart Components directly through their official channels. Refer to the packaging or their website for contact information.
