Allek Kick Scooter B02 Instruction Manual

1. Product Overview

The Allek Kick Scooter B02 is designed for children aged 3-12 years, offering a stable and enjoyable riding experience. It features a durable construction, adjustable handlebar height, and unique light-up wheels.

Figure 1: Allek Kick Scooter B02, Purple Model.

Key Features:

• Durable Construction: Integrated fiberglass reinforced deck and wear-resistant, high-elastic PU wheels provide shock absorption for a smooth ride.
• Adjustable Height: Rustproof aluminum alloy T-bar with a secure lifting and twisting lock adjusts from 25.5" to 33" from the ground, accommodating various child heights.
• Luminous Wheels: All wheels contain magnetic steel that illuminates embedded LEDs as the scooter rolls, requiring no batteries. Elastic PU material protects indoor flooring.
• Lean-To-Steer Technology: Steering is controlled by leaning the rider's body, enhancing balance and coordination.
• Enhanced Braking: Metal-enhanced rear fender brake provides reliable speed control and safe stopping.

2. Safety Information

Before using the Allek Kick Scooter B02, please read this manual carefully. Adherence to safety guidelines is crucial for preventing accidents and ensuring a safe riding experience.

• Always wear safety-approved protective equipment, including a helmet, knee pads, and elbow pads, when riding.
• Before each ride, check and secure all screws and fasteners to ensure the scooter is in proper working condition.
• Ensure the handlebar is securely locked at the appropriate height for the rider.
• Ride on smooth, dry surfaces away from traffic and pedestrians.
• Do not ride in wet conditions, on uneven terrain, or at night without proper lighting.
• Supervise young children during use.

3. Setup and Assembly

The Allek Kick Scooter B02 is designed for straightforward assembly. It typically takes about 15 minutes to put together.

Assembly Steps:

1. Unpack all components from the box. The package includes the scooter deck and the T-bar handlebar.
2. Insert the T-bar handlebar into the designated opening on the scooter deck until it clicks securely into place. Ensure the stem lock is engaged.
3. Adjust the handlebar to the desired height using the secure lifting and twisting lock mechanism.
4. Verify that all connections are firm and secure before the first use.

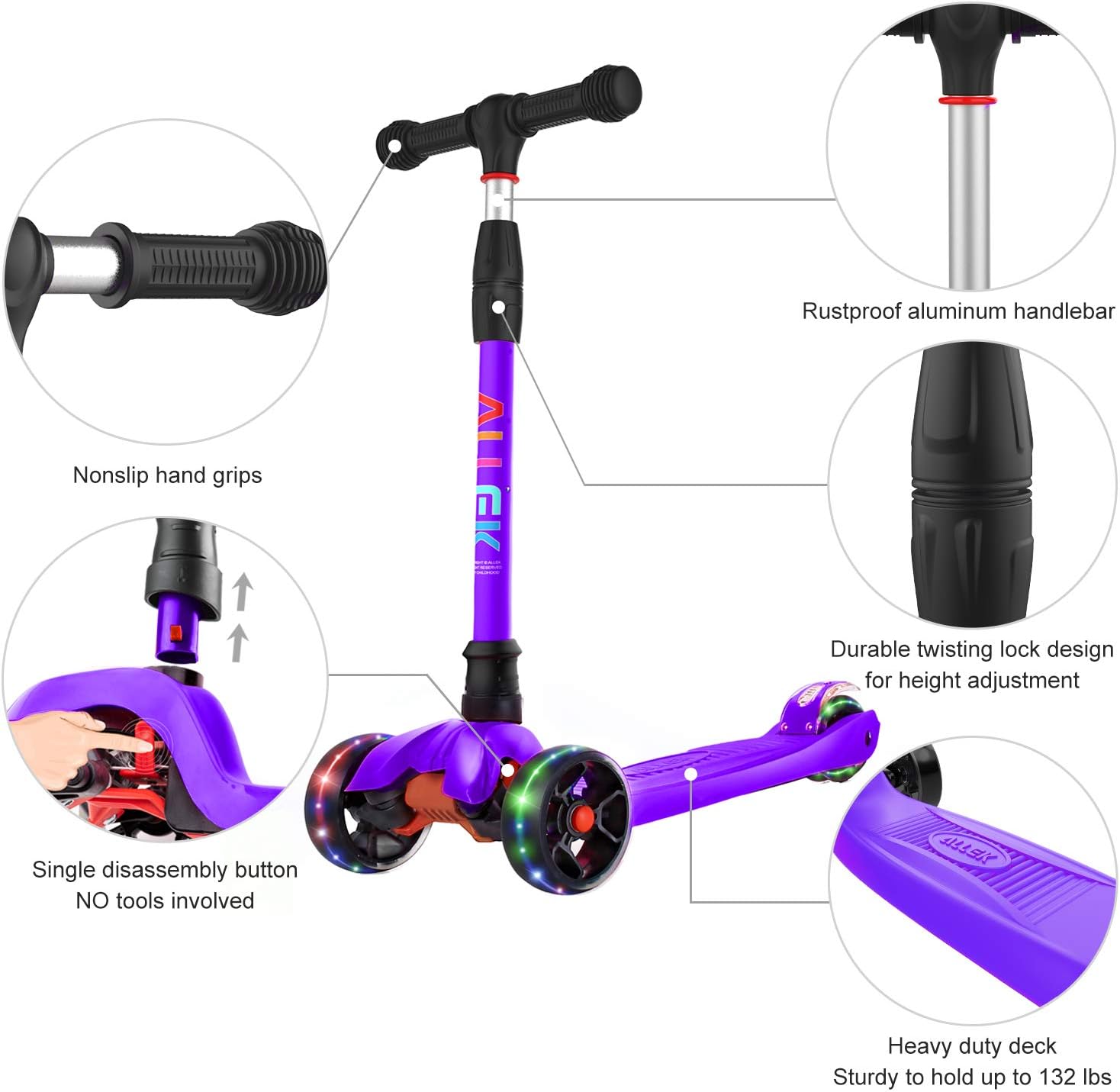

Figure 2: Scooter components and assembly points, including nonslip hand grips, rustproof aluminum handlebar, durable twisting lock design for height adjustment, single disassembly button, and heavy-duty deck.

4. Operating Instructions

The Allek Kick Scooter B02 utilizes a lean-to-steer mechanism for intuitive control.

Riding the Scooter:

1. Place one foot firmly on the scooter deck.
2. Use the other foot to push off the ground to gain momentum.
3. To steer, gently lean your body in the desired direction (left to turn left, right to turn right). The handlebar does not turn independently for steering.
4. To stop, press down on the rear fender brake with your foot.

Figure 3: Lean-To-Steer technology, showing how leaning the body controls direction.

Adjusting Handlebar Height:

The handlebar can be adjusted to four different heights to suit the rider's stature.

1. Locate the secure lifting and twisting lock on the T-bar tube.
2. Twist and lift the lock to release the handlebar.
3. Adjust the handlebar to one of the four height settings (25.5", 28", 30.5", 33").
4. Securely twist the lock back into place to fix the handlebar at the chosen height.

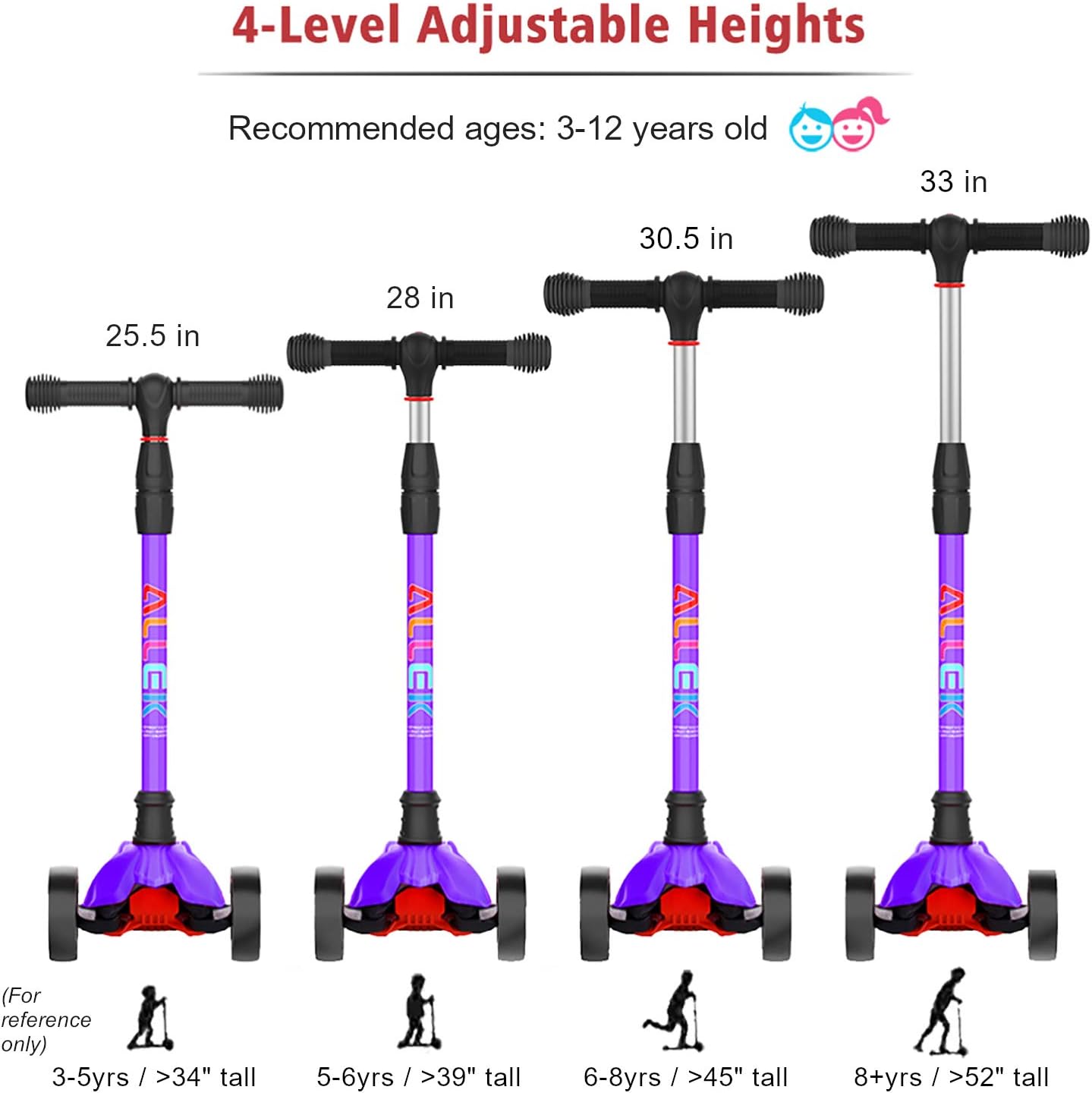

Figure 4: Four-level adjustable heights for the handlebar, with recommended age and height ranges.

Luminous Wheels:

The scooter's wheels light up automatically when in motion due to magnetic steel within the wheels. No batteries are required for this feature.

Figure 5: Illustration of the wide and large front wheels and dual large rear wheels, highlighting the illuminated flashing feature and reinforced rear fender brake.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your Allek Kick Scooter B02.

• Pre-Ride Check: Before every ride, inspect all screws and fasteners. Tighten any loose components.
• Cleaning: Wipe the scooter with a damp cloth to remove dirt and debris. Avoid using harsh chemicals or abrasive cleaners.
• Wheel Inspection: Periodically check the wheels for wear and tear. Ensure they spin freely and the light-up mechanism is functioning.
• Storage: Store the scooter in a dry place away from direct sunlight and extreme temperatures to prevent material degradation.

6. Troubleshooting

This section addresses common issues you might encounter with your scooter.

• Wheels not lighting up: Ensure the wheels are spinning with sufficient speed. The lights are powered by kinetic energy and require motion. If the issue persists, inspect the magnetic steel components within the wheels for any obstructions or damage.
• Handlebar is loose: Check the secure lifting and twisting lock mechanism. Ensure it is fully engaged and tightened after adjusting the height.
• Scooter not steering properly: The Allek B02 uses a lean-to-steer system. Ensure the rider is leaning their body to initiate turns, rather than attempting to turn the handlebar directly.
• Brake not effective: Inspect the rear fender brake for wear. Ensure it makes full contact with the wheel when pressed.

7. Specifications

Figure 6: Detailed dimensions of the Allek Kick Scooter B02.

8. Warranty and Support

Allek is committed to providing high-quality products and customer satisfaction.

• Limited Warranty: The Allek Kick Scooter B02 comes with a limited warranty. Please refer to the product packaging or contact customer support for specific warranty terms and conditions.
• Return Policy: A 30-day return/replacement policy is available for eligible purchases.
• Customer Support: If you are not satisfied with your scooter or encounter any issues, please feel free to contact Allek customer support. We are dedicated to resolving your concerns.
